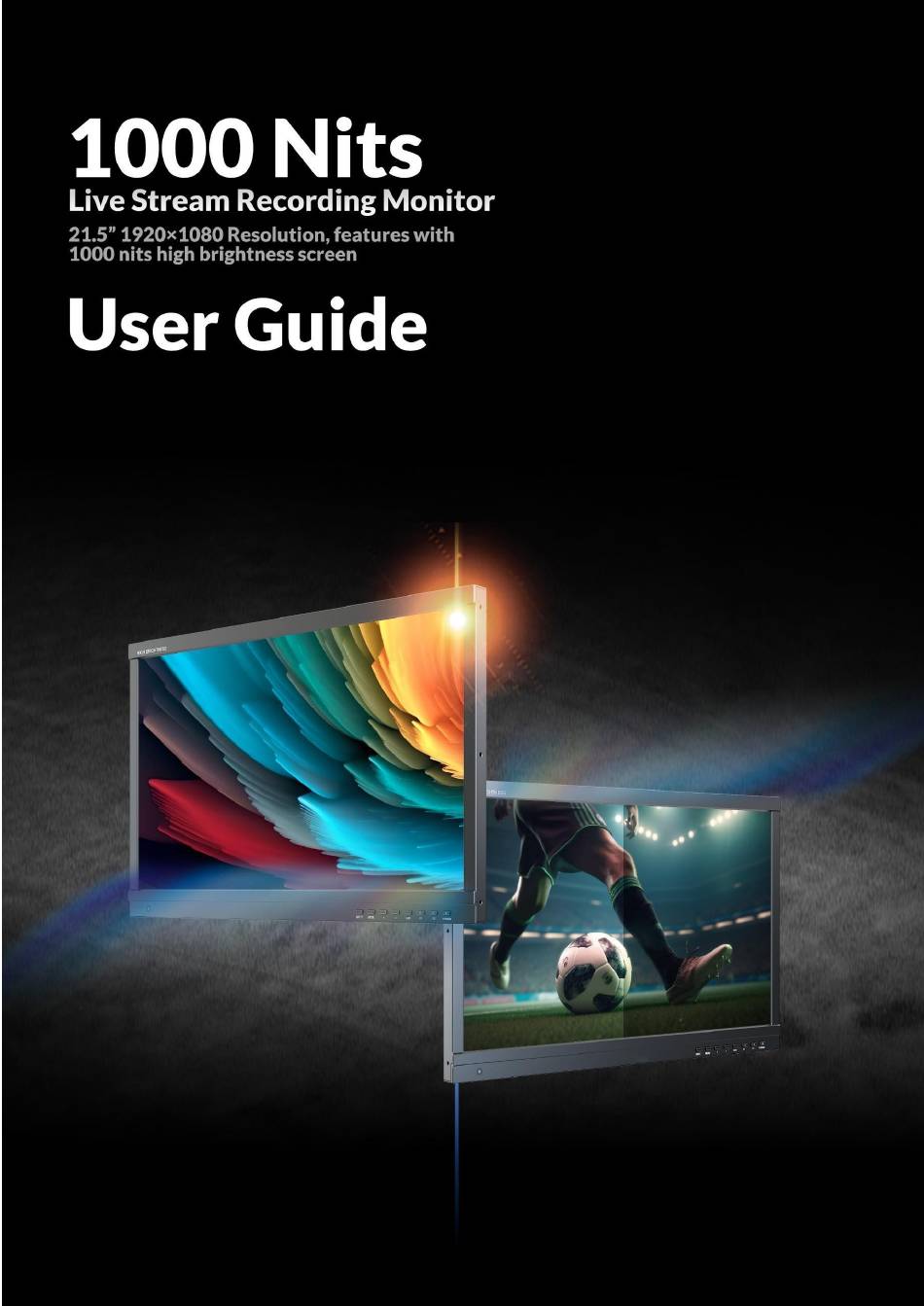

Lilliput PVM220S-E User Manual

1000 nits live stream recording monitor
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PVM220S-E and is the answer not in the manual?

Questions and answers

Related Manuals for Lilliput PVM220S-E

Summary of Contents for Lilliput PVM220S-E

  • Page 2: Table Of Contents

    Contents Important Safety Instructions ..........................1 Precaution ................................1 1. Main Features ..............................2 2. Production Description ............................3 2.1 Front Panel ..............................3 2.2 Rear Panel ..............................4 2.2.1 Interfaces ............................. 4 2.2.2 Standard VESA ............................. 5 3. Menu Setting ................................ 6 3.1 Shortcut keys...............................

  • Page 3: Important Safety Instructions

    Important Safety Instructions:  Please read User Guide before using this product.  Please keep User Guide for future reference.  Please read the precaution to prevent possible danger and loss of property. Precaution:  Please do not place the display screen towards the ground. ...

  • Page 4: Main Features

    1. Main Features  Support standard 3G-SDI and HDMI 2.0 input/output.  Input signals support up to SDI 1920x1080 60/59.94/50/30/29.97/25/24/23.98p and HDMI 3840x2160 60/59.94/50/48/47.95/30/29.97/25/24/23.98p; Signal loop out.  Support customized various waveform mode: Waveform/Vectorscope/Histogram/Level Meter.  HDR (High Dynamic Range) display supporting ST 2084/ Hybrid Log Gamma. ...

  • Page 5: Production Description

    2. Production Description 2.1 Front Panel 1) Light Sensor 2) Input Button (Switch from MEDIA, HDMI and SDI) 3) Menu Button 4) Left Button 5) Right Button 6) Exit Button 7) F1 Button and Lamp 8) F2 Button and Lamp Assigned function by factory as follow: - [F1]: REC Enable - [F2]: SD Playback...

  • Page 6: Rear Panel

    2.2 Rear Panel 2.2.1 Interfaces 1) USB Type-C: For upgrade 2) Earphone: 3.5mm 3) SD Card Slot: SD card, support up to 512GB (Speed Class > C10, 10MB/s) 4) Audio-in: 3.5mm 5) HDMI Output, support 2160p 60Hz 6) HDMI Input, support 2160p 60Hz 7) 3G-SDI Output, support 1080p 60Hz 8) 3G-SDI Input, support 1080p 60Hz 9) USB for upgrade and 3D-LUT...

  • Page 7: Standard Vesa

    2.2.2 Standard VESA  Standard 75mm*75mm is used for external battery (V-mount/ Anton Bauer mount battery).  Standard 75mm*75mm and 100mm*100mm, can be used for external hanging bracket.

  • Page 8: Menu Setting

    3. Menu Setting Before setting the functions, please make sure the device is connected correctly. 3.1 Shortcut keys 3.1.1 Menu Button  Power on the monitor, press Menu button to display OSD, and select options as the following sequence via rotating it: INFORMATION/PICTURE/MARKER/FUNCTION/WAVE/AUDIO/STREAM&REC/SYSTEM. ...

  • Page 9: Menu Operations

    3.2 MENU Operations 3.2.1 INFORMATION Source&Timing SDI/HDMI/MEDIA SD Card Unmounted/xxxx.xGB/xxxx.xGB Stream1 Status Off/Pushing/Connecting/Connection Failed Stream2 Status Off/Pushing/Connecting/Connection Failed Stream3 Status Off/Pushing/Connecting/Connection Failed REC Status Off/Recording MAC Addr xx-xx-xx-xx-xx-xx Note: Items in the Information Menu cannot be changed manually.  Source & Timing Display the current video source: [HDMI], [SDI], [Media] ...

  • Page 10: Picture

    3.2.2 PICTURE Brightness 0-100 Contrast 0-100 Saturation 0-100 Tint 0-100 Sharpness 0-100 Back Light Mode Off/Auto Back Light 0-100 RGB Range Full/Limited HDMI EDID 4K/2K Color Space Native/SMPTE-C/Rec709/EBU Camera Log Off/Default/User SLog2ToLC-709/SLog2ToLC-709TA/ SLog2ToSLog2-709/SLog2ToCine+709/ SLog3ToLC-709/SLog3ToLC-709TA/ SLog3ToSLog2-709/SLog3ToCine+709/ Def. Log ArriLogCTo709/ArriLogCToP3DCI/ CLogTo709/VLogToV709/ JLogTo709/JLogTo709HLG/ JLogTo709PQ/Z7 NLogTo709/ D780 NLogTo709 User Log...
  • Page 11  Brightness Control the degree of brightness between 0-100.  Contrast Control contrast ratio between 0-100.  Saturation Adjust the color intensity between 0-100.  Tint Adjust tint between 0-100.  Sharpness Control sharpness of the image between 0-100.  Back Light Mode Back light can be set to adjust automatically: [Off], [Auto].
  • Page 12 [CLogToV709], [VLogToV709], [JLog To709], [JLogTo709HLG], [JLogTo709PQ], [Z7 NLogTo709], [D780 NLog To709]. - [User Log]: Use this item to choose one of the User Log modes (1-6). Please install the User Log as following steps: The User Log must be named with. cube in the suffix. Please note: the device only supports the format of User Log: 17x17x17 / 33x33x33;...

  • Page 13: Color Temp

    [HLG].  Color Temp. Use this item to choose one of the color temperature presets: [5500K], [6500K], [7500K], [9300K], [User]. Note: Only available under [User] mode to adjust R/G/B Gain and Offset.  R/G/B Gain Adjust the R/G/B Gain of the current Color Temperature from 0 to 255. Default value: 128. ...

  • Page 14: Safety Marker

    Select the aspect ratio of the marker: [Off], [16:9], [1.85:1], [2.35:1], [2.39:1], [4:3], [3:2], [Grid], [User].  User H1 / H2 / V1 / V2 When the Aspect Marker is in User mode, the position of lines in all four directions can be freely adjusted. User H1: 1-1920 User H2: 1-1920 User V1: 1-1080...

  • Page 15: Function

    3.2.4 FUNCTION Scan Aspect/Pixel To Pixel/Zoom Aspect Full/4:3 Anamorphic Off/1.3X/1.5X/1.8X/2.0X/2.0X MAG Overscan Off/On H/V Delay Off/H/V/ H/V Check Field Off/Red/Green/Blue/Mono Zoom 10%-90% Freeze Off/On  Scan Adjust the scan mode among [Aspect], [Pixel To Pixel], [Zoom]. Note: Aspect and overscan functions only can be adjusted only under [Aspect] mode. Both of them cannot be adjusted in [Zoom] and [Pixel To Pixel] modes.

  • Page 16: Check Field

     Check Field Select one of check field modes: [Off], [Red], [Green], [Blue], [Mono].  Zoom Select zoom scale from 10% to 90% (Step value is 10%). When you select [Scan] as [Zoom], any part of the enlarged image can be displayed on the screen. ...
  • Page 17 Peaking Color Red/Green/Blue/White/Black Peaking Level 1-100 False Color Off/Default/Spectrum/ARRI/RED False Color Table Off/On Exposure Off/On Exposure Level 50-100IRE Histogram Off/Y/RGB/Color TimeCode Off/LTC/VITC  Full Mode Some features can be displayed in full screen to show more detail: [Waveform Y], [Waveform YCbCr], [Waveform RGB], [Vector], [Histogram].

  • Page 18: Peaking Color

     Peaking Color Select one of the peaking colors: [Red], [Green], [Blue], [White], [Black].  Peaking Level Use this item to adjust the level of peaking from 1-100. The higher peaking level is, the more obvious peaking effect is.  False Color Use this item to activate or deactivate the false color function.
  • Page 19 When activated, exposure works if the input signal exceeds the designated exposure level.  Exposure Level Use this item to adjust the level of exposure between 50-100 IRE.  Histogram Use this item to activate or deactivate histogram. When activated, [Y], [RGB], [Color] are for optional. - [Y]: Display Y histogram.

  • Page 20: Audio

    3.2.6 AUDIO Master Volume 0~100 Master Mute Off/On Audio Source Mix/Audio-in/Source-in Audio-in Volume 0~100 Source-in Volume 0~100 Level Meter Off/On CH1&CH2/CH3&CH4/CH5&CH6/CH7&CH8 (HDMI) Audio CH CH1&CH2 (SDI) CH1&CH2 (MEDIA)  Master Volume Adjust the master volume among 0-100. Audio Source: SDI/HDMI/MEDIA. ...

  • Page 21: Level Meter

    Adjust the audio-in volume among 0-100.  Level Meter Select whether to activate or deactivate level meter.  Audio Channels In HDMI mode, select one of the audio channels among [CH1&CH2], [CH3&CH4], [CH5&CH6], [CH7&CH8]. Default: [CH1&CH2] In SDI mode, the audio channels is [CH1&CH2]. In MEDIA mode, the audio channels is [CH1&CH2].
  • Page 22 Format SD Card No/Format Pull Stream Off/On SD Playback Off/On Split Rec File Off/1mins/5mins/10mins/20mins/30mins/60mins NDI Server Off/On Note: The <Bitrate>, <Rate Control>, <Video Encoding>, <H264 Profile>, <Resolution>, <FPS>, <I-Frame Interval>, <Audio SR> options under the <STREAM&REC> menu are available for both Record and Push/Pull stream functions.

  • Page 23: Audio Bitrate

    file sizes. Select among [30], [60], [90], [120].  Audio SR Usually measured per second, using kilohertz (kHz) or cycles per second. - [44.1kHz]: CDs standard sample rate, which means every second, 44100 samples were taken. - [48kHz]: DVDs standard sample rate, which means every second, 48000 samples were taken. ...

  • Page 24: System

     Split Rec File Automatically splits the recorded video into equal parts during the recording process: [Off], [1mins], [5mins], [10mins], [20mins], [30mins], [60mins].  NDI Sever (Optional Function) Turn on/off the NDI video stream server. 3.2.8 SYSTEM Language English/Chinese Color Bar Off/100%/75% OSD Timer 10s/20s/30s...

  • Page 25: Osd Timer

    Turn on/off color bar. When the color bar on, it can be selected: [100%], [75%]  OSD Timer Option: [10s], [20s], [30s].  Color Calibration Select [On] or [Off]. If the device needs to be calibrated color, please operate as following: 1) Connect the device with the PC via HDMI interface.

  • Page 26: Time Format

    Note: When [DHCP] on, IP address cannot be manually set .  Sub net Mask Manually configure Sub net Mask: xxx.xxx.xxx.xxx Note: When [DHCP] on, Sub net Mask cannot be manually set .  Gateway Manually configure Gateway: xxx.xxx.xxx.xxx Note: When [DHCP] on, Gateway cannot be manually set . ...

  • Page 27: Product Parameters

    4. Product Parameters DISPLAY Panel 21.5” Resolution 1920×1080 Brightness 1000 cd/m² Contrast 1000:1 Viewing Angle 178°/178°(H/V) INTERFACES Input 3G-SDI, HDMI 2.0 Output 3G-SDI, HDMI 2.0, LAN (1000M, optional PoE) SDI Support Formats 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60... HDMI Support Formats 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60...

  • Page 28: Accessories

    5. Accessories  Standard: 1) 15V/4A DC Adapter 1 pair 2) Base Bracket 1 pair 3) E-User Manual 1 pc  Optional: 4) Carrying Case + Sunshade 1 pair 5) V-Lock or Anton Bauer Battery Mount 1 pair...

  • Page 29: Trouble Shooting

    6. Trouble Shooting 1) Only black-and-white display: Check whether the color saturation is properly setup or not. 2) Power on but no pictures: Check whether the cables of SDI and HDMI are correctly connected or not. Please use the standard power adapter coming with the product package.

  • Page 30: Appendix 1: 3D Lut Loading

    Appendix 1: 3D LUT Loading 3D LUT supports upload color calibration document and User Log via USB flash disk.  Format Requirement  LUT format Type: .cube 3D Size: 17x17x17/33x33x33 Data Order: BGR Table Order: BGR  USB flash disk version USB: System: FAT32 Size:...
  • Page 31  LightSpace CMS software user demo - Activate LUT Tool.exe. - Click Input File, then select *LUT. - Click Output File, choose the file name.
  • Page 32 - Click Generate Lut button to finish.  USB Loading Copy the needed files to the root directory of the USB flash disk. Plug the USB flash disk into USB port of the device after power on. Click “Yes” on the pop-up prompt window (If the device doesn’t pop-up the prompt window, please check the LUT document name or the USB flash disk version), then press Menu button to update automatically.

  • Page 33: Appendix 2: Push / Pull Streaming

    Appendix 2: Push / Pull Streaming  Push Stream in Internet  Prepare in Advance - Network Cables - Router - Computer - USB Drive Disk  Push Stream Steps - Connect the monitor’s LAN port to the router and the router to a computer. Ensure that the computer is able to access the Internet properly and that the monitor can read the IP address.
  • Page 34 Note: Press the EXIT button to check the address. - Open the monitor’s <STREAM&REC> menu and turn on <Stream Platform 1>. - Finally, open the live stream link and start playing!  Pull Stream in Ethernet/Internet  Prepare in Advance - Network Cables - Router - Computer...
  • Page 35 - Monitor - Network Cables - Router - Computer  How to connect Connect the monitor and computer to the same IP network segment, either static or dynamic environment, keep the network smooth, then enter the IP address of the monitor device in the computer's Internet browser to enter the login interface of the website.
  • Page 36 2. NDI Settings (Only for optional NDI function) The method to get the NDI video stream is shown below: Turn on the "NDI Server" switch in the upper left corner (<NDI Server> and <Pull Stream> under < STREAM&REC> menu of the monitor device will also be turned on automatically). When the monitor gets the video streams from the connected devices, the web interface will automatically list the current video streams, when more than one video streams are acquired, the first one in the list will be selected by default (the list will be sorted by A-Z order), and the other video streams need to be selected manually.
  • Page 37 monitor. 3. Streaming Settings The interface of streaming settings is shown below: Push and pull stream link addresses can be entered directly in this interface, the switch after the address can be used to control whether the address is effective or not, after clicking "Apply", the monitor's push and pull stream addresses will be synchronised with the website, press the monitor EXIT button to check whether the imported address is correct.
  • Page 38 5. Recording Settings The interface of recording settings is shown below: This interface is used to configure the settings of recording and playback. Note: Please remember to turn off the pull stream function before playback the recording video in SD card. 6.
  • Page 39 7. System Settings The interface of system settings is shown below: (1) Network Settings: Used to set a dynamic or static IP address. (2) User Settings: Used to set the monitor name, change the login password and other operations.
  • Page 40 (3) Upgrade: Used for website upgrades. Note: Please operate under the guidance of an engineer.  Note 1. If the browser does not display the login screen properly, please update your browser to the latest version. 2. If the image is stuttering or static when NDI streaming, you can turn off <NDI Server> and <Pull Stream> and turn on again.
  • Page 41 3. NDI streaming with H.265 encoding format is not supported.
