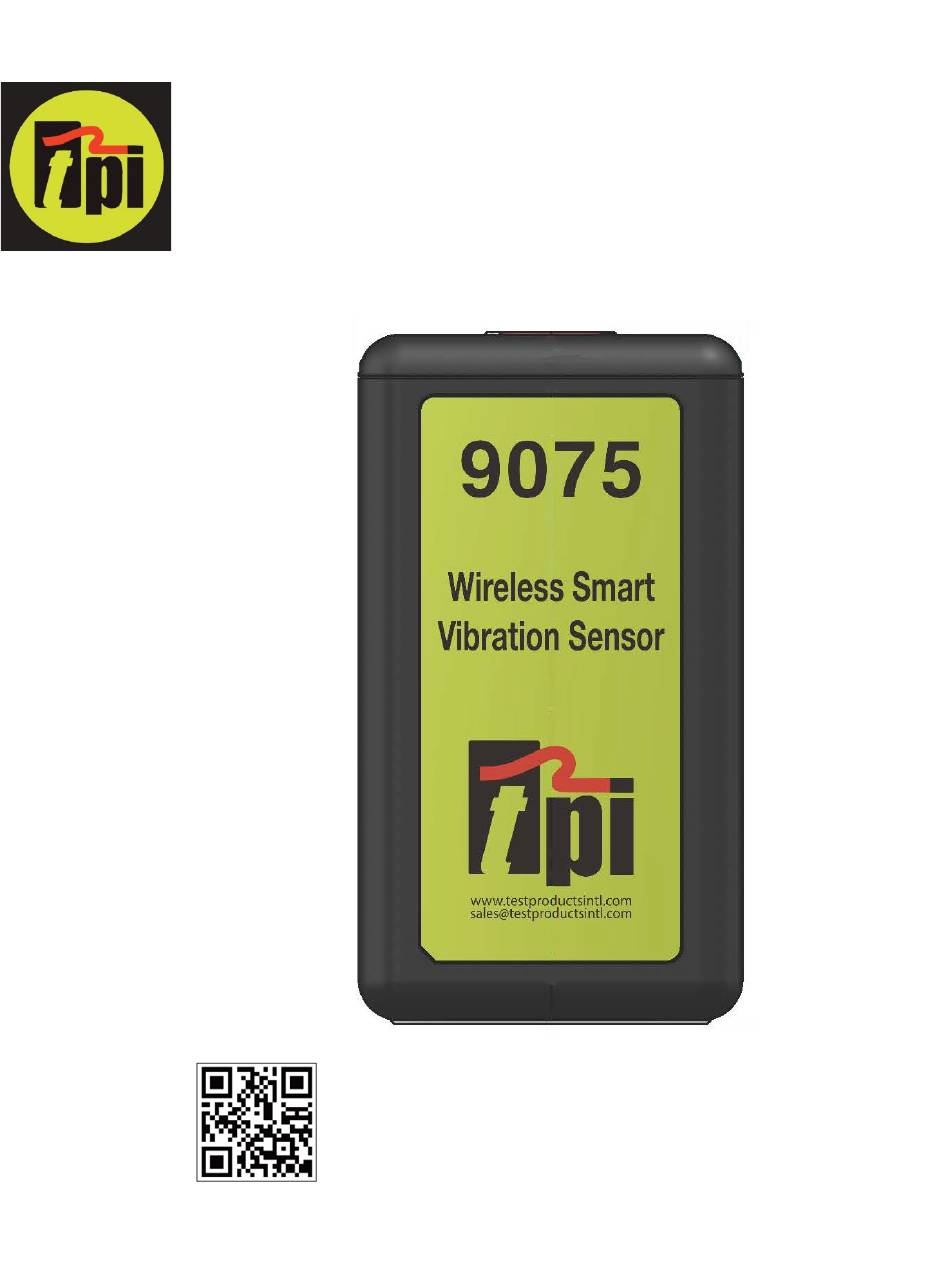

- Page 1 9075 Wireless Accelerometer Instruction Manual Scan to download the TPI View app:...
- Page 2 Description The 9075 is a wireless accelerometer used to take vibration readings and send data via Bluetooth wireless communication to an Android tablet running the TPI Ultra III app. Used in conjunction with Ultra III software the 9075 features include: •...
- Page 3 Overview Front View Back View Top View Wireless charging, Power and Bluetooth On / Off Switch Place this area onto connection indicator LED Indicators wireless charging pad. LED’s On/Off Switch Side / Bottom View ¼ x 28 threaded female connection point for use with magnets and studs.
- Page 4 The 9075 can be charged using a wireless charging pad. Place the 9075 backside down on the charging pad. Make sure the charge indication icon on the 9075 is placed on the pad. Please see the charge indication icon below.
- Page 5 Using the 9075 1. Turn the 9075 on. The 9075 is ready to be connected to a smart device running the TPI View app. 2. Open the View app on the smart device and tap on Scan for Devices. The View app will search for the 9075.
- Page 6 The ISO value background is color coded according to the ISO 10816-1 vibration velocity level chart (see below). Bearing Noise (BDU) Below the displayed ISO value and to the left is the value of bearing noise (high frequency vibration) in Bearing Damage Units (BDU), where 100 BDU corresponds to 1g RMS (average) vibration measured above 1kHz.
-
Page 7: Specifications
SPECIFICATIONS 9075 Signal Parameters Frequency Range / Resolution 2Hz to 10kHz l 100 to 51,200 Lines BDU - Bearing Noise - Frequency Range 1kHz - 10kHz Dynamic Range 108dB A/D Converter 24 bit 9075 Information Connection Bluetooth Battery 2000mAh Lithium-Ion battery... -
Page 8: Standard Accessories
To Obtain Warranty Performance: Include with the product: your name, address, phone number, written description of the problem and proof of purchase date. Carefully package and return to: TPI, Inc. TPI Canada TPI, Europe Ltd.. 9615 SW Allen Blvd. 342 Bronte Rd. S., Unit 6 Unit 6, Rutherford Way Industrial Estate... - Page 9 Notes:...
- Page 10 Notes:...
- Page 11 Notes:...
- Page 12 Test Products International, Inc. 9615 SW Allen Blvd., Ste. 104 Beaverton, OR 97005 Tel: 503-520-9197 www.testproductsintl.com Test Products International, Ltd. 342 Bronte Road South, Unit #6 Milton Ontario Canada L9T 5B7 Tel: 905-693-8558 www.tpicanada.com Test Products International Europe Ltd. Rutherford Way Industrial Estate Rutherford Way Manor Royal Crawley...
