Pioneer Eclipse PE325BU Operator's Manual

Uhs battery burnisher
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

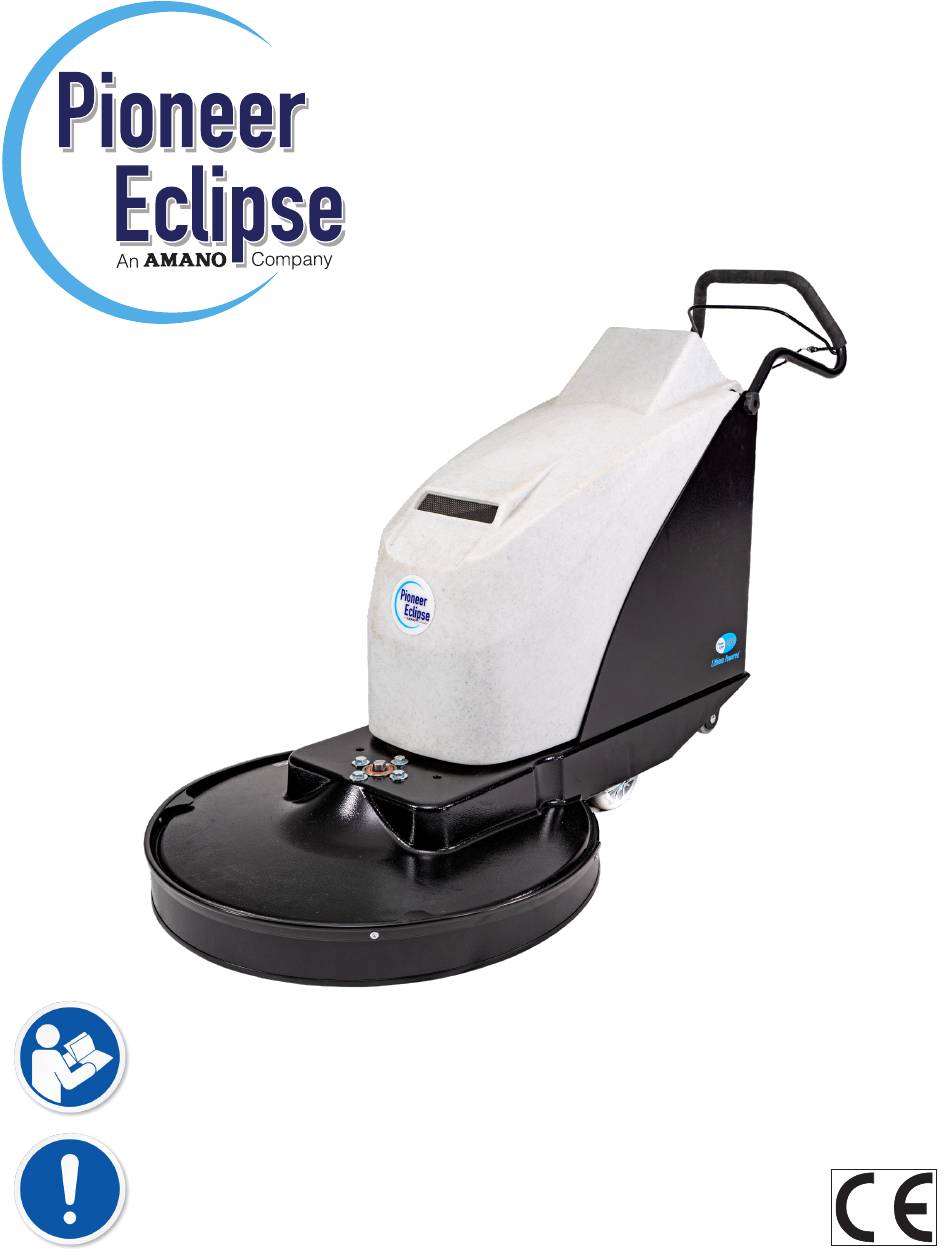

UHS Battery Burnisher
PE325BU
Operator's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PE325BU and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Pioneer Eclipse PE325BU

Summary of Contents for Pioneer Eclipse PE325BU

  • Page 1 UHS Battery Burnisher PE325BU Operator’s Manual...
  • Page 2 Each operator must be trained in the operation of this machine before being allowed to use it. Contact Amano Pioneer Eclipse Customer Service at 1-800-367-3550 or +1-336-372-8080 or an authorized Amano Pioneer Eclipse Distributor to inquire about training or to request a replacement manual.

  • Page 3: For Your Safety

    ! FOR YOUR SAFETY ! DO NOT store or use gasoline or other flammable vapors and liquids in the vicinity of this or any or other appliance. Record This Important Information Date of Purchase Purchased From Address City State Phone Contact Machine Model Machine Serial Number...

  • Page 4: Table Of Contents

    Table of Contents Safety Precautions ............6 Machine Preparation ............8 Machine Components ............9 Battery Charger Fault Codes .......... 12 Operating the Machine ............ 11 Maintenance ..............14 Troubleshooting ............... 15 Machine Specifications ............ 16 Parts Manual ..............17 Electrical Schematic ............

  • Page 5: Quick Reference

    Pad Pressure: Adjustable Your Authorized Amano Pioneer Eclipse Distributor: _____________________________________ Authorized Amano Pioneer Eclipse Distributor Phone Number: _____________________________ Amano Pioneer Eclipse Phone Number: +1-336-372-8080 WARNING! Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.

  • Page 6: Safety Precautions

    WARNING! Use caution when operating the machine on replacement parts supplied by Amano Pioneer Eclipse a ramp or incline. DO NOT turn the machine, or leave it or a Amano Pioneer Eclipse Authorized Distributor or unattended, on a ramp or incline. Service Center.

  • Page 7: Operator Responsibility

    This machine is manufactured for Test for Operator-Ear Sound Pressure Level commercial use only. Amano Pioneer Eclipse measures and rates the operator-ear sound pressure level for hand-guided floor This machine is designed and manufactured for treatment and floor cleaning machines for industrial use.

  • Page 8: Machine Preparation

    Machine Preparation Unpacking the Machine Repacking the Machine The machine is shipped boxed on a wooden pallet. To Refer to Unpacking section on page 8 and repack unpack machine: machine using original packing materials and container. 1. Cut and remove bands holding the box to the pallet. Transporting the Machine 2.

  • Page 9: Machine Components

    Machine Components Controls and Instruments 325BU 1. Key Switch - Turns the machine on/off. 2. Handle Bail - When the handle bail is engaged the pad will start turning. NOTE: The machine needs to be moving when the pad is turning in order to keep from burning the floor. 3.

  • Page 10: Over Current Protection

    Over Current Protection Onboard Battery Charger The machine is equipped with an 80 amp circuit breaker. To charge the batteries, push the machine to a flat, dry, To reset: well-ventilated area. Turn off the machine. Unwrap the charging cord and plug into a wall socket. 1.

  • Page 11: Pre-Operation Check List

    How the Machine Works Operation on Inclines The Burnish components of the machine are: CAUTION! When the machine is traversing on an incline, up or down, move slowly. l Burnish pad holder CAUTION! Do not run burnish pad on an incline. The l Burnish pad maximum rated climb and descent incline is 6°.

  • Page 12: Active Dust Control

    8. Remove the center device by turning counter- 5. Reinstall dust bag by working the elastic band over clockwise and carefully remove the old pad from the the lip of the rubber grommet. Velcro material. 6. Stretch the dust bag towards rear of machine and orientate with the zipper facing downward.

  • Page 13: Handle Adjustment

    4. Empty dust bag by rubbing or gently tapping on sides Handle Adjustment in a downward motion, to loosen soil trapped on 1. The height of the handle can be adjusted by raising sides of bag or replace with new bag. or lowering the handle.

  • Page 14: Operation

    Replace HEPA filter Replace drive belt As Required These items must be performed with the proper tools and training. Contact a Amano Pioneer Eclipse Factory Certified Technician unless you have the proper equipment and mechanical proficiency. Body & Battery Cover The body may be cleaned with a damp cloth to remove dust and scuff marks.

  • Page 15: Troubleshooting

    Machine Troubleshooting Problem Possible Cause Action Breaker Tripped Reset Breaker Incorrect Battery Connection Check Battery Connection Machine will not turn on On-Board charger plugged in Unplug charging cord Keyswitch Failure Check Key Switch operation and connection Pad Change Safety switch Check safety switch and connections Bail Switch Check bail switch and connections...

  • Page 16: Machine Specifications

    Machine Specifications Feature 325BU21LI 325BU21LIAV 325BU28LI 325BU28LIAV Burnishing Width 21” 21” 28” 28” Performance 25,000 ft /hr (2300 m /hr) 25,000 ft /hr (2300 m /hr) 34,000 ft /hr (3160 m /hr) 34,000 ft /hr (3160 m /hr) Motor HP 5 (8) 5 (8) 5 (8)

  • Page 17: Parts Manual

    PE325BU Battery Burnisher Parts Manual Notes: ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________...

  • Page 18: Electrical Schematic

    Electrical Schematic RF105400 4/11/2025...

  • Page 19: Electrical Connections

    Electrical Connections BLACK DIAGNOSTIC PORT BLACK RED/YELLOW STRIPE BLACK (3X) BLACK RED/YELLOW STRIPE BLACK BLACK ITEM NO. QTY. PART NUMBER DESCRIPTION MP557410 EBS 36V BATTERY MP558200 MOTOR, VACUUM, 36V MP557700 MOTOR, MOTENERGY, 5 HP MP571600 CABLE, 2 AWG, 5/16 X 46 1/2" MP572300 HARNESS, EBS, BDI RF102300...
  • Page 20 Electrical Connections BLACK BROWN BLUE BLACK ITEM NO. QTY. PART NUMBER DESCRIPTION AS007800 METER, HOUR, AC/DC, DIGITAL MP234300 CORD, 14/3, SJT, 6' 7" MP318400 SWITCH, MICRO, 12V, 15A, 1" LE MP488800 SWITCH, ROCKER, DPST, 20A MP411300 SWITCH, KEY, 36V MP561400 BREAKER, CIRCUIT, 80A, 36V MP563200 GAUGE, EBS BDI...
  • Page 21 21” Deck Assembly...
  • Page 22 21” Deck Assembly ITEM NO. QTY. PART NUMBER DESCRIPTION 308202 SPACER. BEARING 57120A PLUG, HOLE, 9/16 ID 915044 KEY 3/16 X 3/16 X 1 962216 BOLT, HEX, 3/8-16 X 1 1/4, ZN LX2105 CLIP, HITCH PIN MP038700 WHEEL, 3",PERFORMA, FLAT TREAD MP071800 TENSIONER, BELT, W/4"...
  • Page 23 28” Deck Assembly...
  • Page 24 28” Deck Assembly ITEM NO. QTY. PART NUMBER DESCRIPTION 57120A PLUG, HOLE, 9/16 ID 90101A LUBRICANT, ANTI-SEIZE, SILVER 915044 KEY 3/16 X 3/16 X 1 93801A LOCTITE, MED.STR, 242, 50ML 962216 BOLT, HEX, 3/8-16 X 1 1/4, ZN LX2105 CLIP, HITCH PIN MP032500 PADHOLDER, 28", COMPLETE ASM.
  • Page 25 21” Active Vacuum Deck 325BU21 ACTIVE VACUUM DECK ITEM NO. QTY. PART NUMBER DESCRIPTION MP336200 STRAP, BUMPER, ROK-BAK MP371400 BUMPER, ROK-BAK, 12" NB038800 SCREW, SHC,1/4-20 X 1 1/4 MP139900 BUSHING, SKIRT, SPEEDSTAR 6.13 FT MP8300 VELCRO, HOOK, 1" W/ PSA NB033300 SCREW, BH, #10-24 X 7/8 NB9645...
  • Page 26 21” Passive Vacuum Deck 325BU21 PASSIVE VACUUM DECK BOM Table ITEM NO. QTY. PART NUMBER DESCRIPTION MP336200 STRAP, BUMPER, ROK-BAK MP371400 BUMPER, ROK-BAK, 12" NB038800 SCREW, SHC,1/4-20 X 1 1/4 MP139900 BUSHING, SKIRT, SPEEDSTAR 6.13 FT MP8300 VELCRO, HOOK, 1" W/ PSA NB033300 SCREW, BH, #10-24 X 7/8 NB9645...
  • Page 27 28” Active Vacuum Deck 325BU28 ACTIVE VACUUM DECK ITEM NO. QTY. PART NUMBER DESCRIPTION MP336200 STRAP, BUMPER, ROK-BAK MP371400 BUMPER, ROK-BAK, 12" MP537511 DECK, 325BU28LIAV, BLACK PP MP494600 DECK, CAST, 28" MP497800 BAND, SHROUD EXTENSION, 28" NB9645 WASHER, FLAT, SAE, #10 NB9735 NUT, NYLOK, #10-24 NB033300...
  • Page 28 28” Passive Vacuum Deck 325BU28 PASSIVE VACUUM DECK ITEM NO. QTY. PART NUMBER DESCRIPTION MP336200 STRAP, BUMPER, ROK-BAK MP371400 BUMPER, ROK-BAK, 12" MP537501 DECK, 325BU28LI, WB MP494601 DECK, CAST, 28", VAC MP497800 BAND, SHROUD EXTENSION, 28" NB9645 WASHER, FLAT, SAE, #10 NB9735 NUT, NYLOK, #10-24 NB033300...

  • Page 29: Frame Assembly

    Frame Assembly 35 29 OPTIONAL TELEMATICS COMPONENTS RF096910 4/11/2025...
  • Page 30 BAIL, 325BU, PP MP561301 HANDLE, 325BU, PP MP562300 TELEMATICS, ARMOR 4 BASE UNIT MP562310 BRACKET, TELEMATICS, ARMOR 4 MP566700 DECAL, PE325BU MP568101 WLDMT, SIDE PANEL, R, PP MP568302 WLDMT, SIDE PANEL, L, PP NB001800 BOLT, HEX, 5/16-18 X 1 1/4, ZN NB028300...
  • Page 31 Cover Assembly - Active Vac ITEM NO. QTY. PART NUMBER DESCRIPTION AS007800 METER, HOUR, AC/DC, DIGITAL MP411300 SWITCH, KEY, 36V MP572000 ASSY., LED, RED, 36V MP488800 SWITCH, ROCKER, DPST, 20A MP542000 COVER, 350BULI, S&P MP544601 SCREEN, AIR INTAKE MP555700 DECAL, PE LENS, 4.3" MP563200 GAUGE, EBS BDI MP563700...
  • Page 32 Cover Assembly - Passive Vac QTY. ITEM NO. PART NUMBER DESCRIPTION AS007800 METER, HOUR, AC/DC, DIGITAL MP411300 SWITCH, KEY, 36V MP572000 ASSY., LED, RED, 36V MP542000 COVER, 350BULI, S&P MP544601 SCREEN, AIR INTAKE MP555700 DECAL, PE LENS, 4.3" MP563200 GAUGE, EBS BDI MP563800 ASSY, 325BU36LI, DASH NB007100...
  • Page 33 Vacuum Components - Passive Vac 325BU PASSIVE VACUUM COMPONENTS ITEM NO. QTY. PART NUMBER DESCRIPTION MP067400 COVER, BAG, VACUUM MP467600 SCOOP, VACUUM, WELDMENT MP469300 BAG, DUST, 12" MP469400 GROMMET, 1.50" ID X 2" OD X 1. MP469500 TUBE, DUST, 90 DEG, WLDMT MP496500 GASKET, DUST TUBE NB9645...
  • Page 34 Active Vacuum Assembly 325BULIAV VACUUM SYSTEM RF092700 3/26/2025...
  • Page 35 Active Vacuum Assembly ITEM NO. QTY. PART NUMBER DESCRIPTION 30407B HOSE, SQUEEGEE, 1.5" 52338A LATCH, OVER CENTER, 1.16" 57120A PLUG, HOLE, 9/16 ID 85614A SCREW, PAN, PH, #8-32 X 3/4, ZN 90101A LUBRICANT, ANTI-SEIZE, SILVER 915044 KEY 3/16 X 3/16 X 1 93801A LOCTITE, MED.STR, 242, 50ML 962870...

  • Page 36: Electronics Assembly

    Electronics Assembly ITEM NO. QTY. PART NUMBER DESCRIPTION ITEM NO. QTY. PART NUMBER DESCRIPTION 80018A SCREW, SHLDR, 1/4X1/4, #10-24 NB007000 NUT, NYLOCK, #4-40 NB8125 CLAMP, 1/4" ID, RETAINER NB020500 SCREW, BH, #10-24 X 5/8 MP098700 CLAMP, CABLE NB028300 BUSHING, CABLE, BAIL MP207000 SOLENOID, 36VDC, SPNO NB033300...
  • Page 37 Pad Holder & Skirt Assembly ITEM PART NUMBER DESCRIPTION MP139400 SKIRT, STEEL, 28", ASM. MP139200 SKIRT, STEEL, 21", ASM. MP140000 FELT, DOT NB050600 BOLT, HEX, TAP, 1/4-20 x 2-1/2" NB3350 WASHER, FLAT, 1/4", CZ MX1045 NUT, HEX, 1/4-20 1.5A 97.4 in MP139800 EDGING, WEAR, SKIRT, STEEL, 28"...

  • Page 38: Ec Declaration Of Conformity

    EC Machinery Directive 2006/42/EC We, Amano Pioneer Eclipse Corp. (1 Eclipse Road, P.O. Box 909, Sparta NC28675, USA) with authorized EU representative (see info under section importer) declare under our sole responsibility that the following described equipment in our delivered version complies with the appropriate basic safety and health requirements of the above-mentioned Directives based on its design and type, as brought into circulation by us.
  • Page 40 1 Eclipse Rd l PO Box 909 Sparta, North Carolina 28675 l USA www.pioneereclipse.com +1-336-372-8080 1-800-367-3550 Fax +1-336-372-2913 EC Machinery Directive 2006/42/EC, EC Restriction of Hazardous Substances Directive (2011/65/EU) Harmonized Standards Applied: EN 12100-1, EN12100-2 LT094500 325BU_A © 2025 Amano Pioneer Eclipse Corporation 050125...
