Supplementary instructions: PROFINET
®
DULCOMETER
®

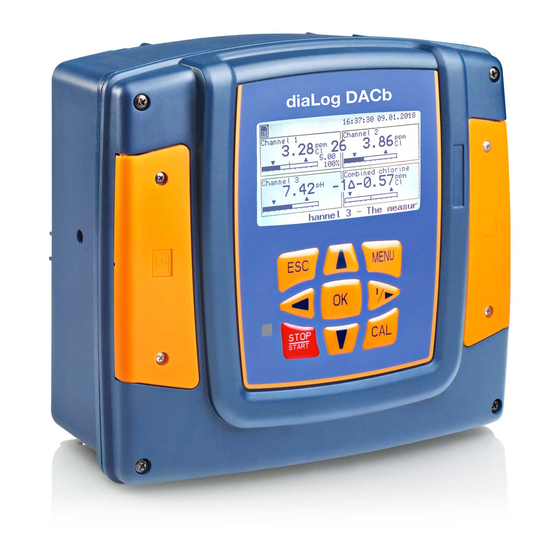

Multi-parameter Controller diaLog DACb
EN
A2666
Please carefully read these operating instructions before use. · Do not discard.
The operator shall be liable for any damage caused by installation or operating errors.
The latest version of the operating instructions are available on our homepage.
982194
Target group: trained electronics technicians
Version: BA DM 228 08/18 EN

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the diaLog DACb and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ProMinent diaLog DACb

Summary of Contents for ProMinent diaLog DACb

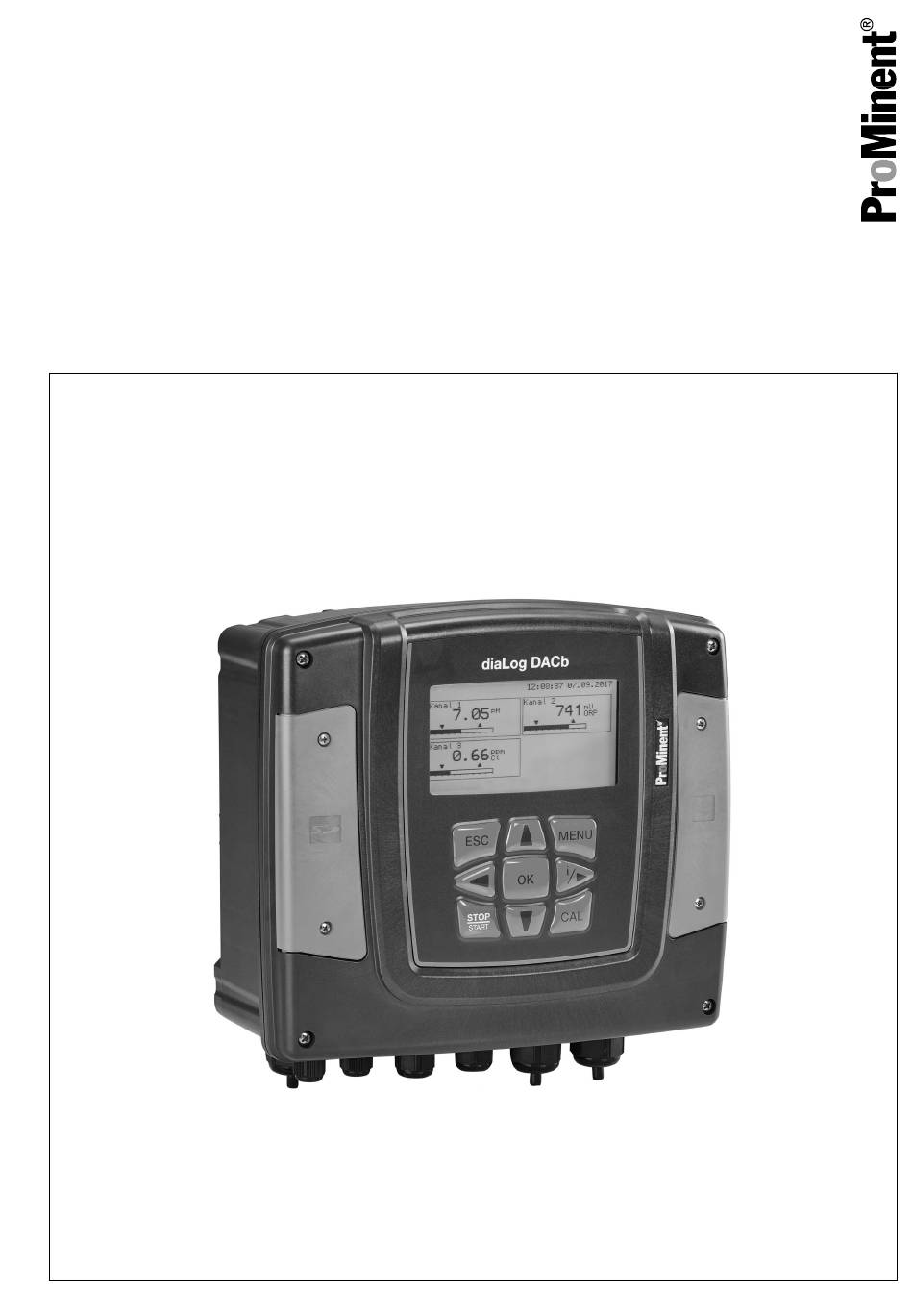

  • Page 1 Supplementary instructions: PROFINET ® DULCOMETER ® Multi-parameter Controller diaLog DACb A2666 Please carefully read these operating instructions before use. · Do not discard. The operator shall be liable for any damage caused by installation or operating errors. The latest version of the operating instructions are available on our homepage.
  • Page 2 Supplemental directives General non-discriminatory approach In order to make it easier to read, this document uses the male form in grammatical structures but with an implied neutral sense. It is aimed equally at both men and women. We kindly ask female readers for their understanding in this simplification of the text.

  • Page 3: Table Of Contents

    Table of contents Table of contents Supplementary Instructions for PROFINET ......4 ® 1.1 Prerequisites..............4 1.2 Terminal diagram for the DAC communication unit..4 1.3 Adjusting the Controller..........4 1.3.1 General..............4 1.3.2 Configuring PROFINET ® ........... 4 1.4 Special Features in Active PROFINET Mode.....

  • Page 4: Supplementary Instructions For Profinet

    Validity of the supplementary instruc‐ These supplementary instructions are only valid when used in con‐ tions junction with the operating instructions for the Multi-parameter Controller diaLog DACb. 1.2 Terminal diagram for the DAC communication unit Communication Communication communication Communication...
  • Page 5 Supplementary Instructions for PROFINET ® All external inputs also work while the PROFINET ® is enabled. The external inputs lead to the expected reactions, as in the case of a controller without PROFINET ® functionality (see controller oper‐ ating instructions). The controller sends corresponding information via the PROFINET ®...

  • Page 6: Special Features In Active Profinet ® Mode

    Supplementary Instructions for PROFINET ® 1.4 Special Features in Active PROFINET ® Mode 1.4.1 General Setting or programming In PROFINET ® mode, the controller cannot be manually set or programmed. Switch off remote configuration to set or program the controller. The settings from the last operating mode without PROFINET ®...

  • Page 7: Installation

    PROFINET mode ® (keywords, diagnosis, modules, sub-modules). The GSDML file can be downloaded from the PROFINET website and from the ® ProMinent website. The file name is clearly indicated: GSDML- V2.32-Prominent-DACa-PRT2P-20150721.xml .

  • Page 8: Description Of The Daca Data Objects

    Supplementary Instructions for PROFINET ® 1.6.3 Description of the DACa data objects Tab. 2: Output data Slot Index Name Module name Data type Byte Total: count Output data ‘Channel 1’ Channel 1 Measured FLOAT value Controller INT16 control vari‐ able Temperature INT16 0.1 °C Setpoint...
  • Page 9 Supplementary Instructions for PROFINET ® Slot Index Name Module name Data type Byte Total: count Temperature INT16 0.1 °C Setpoint FLOAT Channel UINT16 Ä Chapter 1.7.1 status ‘Status of the channel’ on page 14 Ä Chapter 1.7.3 Warnings UINT16 ‘Warning of the channel’...
  • Page 10 Supplementary Instructions for PROFINET ® Slot Index Name Module name Data type Byte Total: count Error UINT32 Ä Chapter 1.7.2 channel 1 ‘Error of the channel’ on page 16 Ä Chapter 1.7.2 Error UINT32 ‘Error of the channel 2 channel’ on page 16 Error UINT32...
  • Page 11 Supplementary Instructions for PROFINET ® Tab. 3: Input data Slot Index Name Module name Data type Byte Total: count Input data Stop / Pause (belongs to ‘Channel1/ Channel2’ module) ‘Channel 1’ Stop / Pause UINT8 Bit 7 = Stop channel 1 Bit 1 = Pause/ HOLD Bit 0 = Pause...
  • Page 12 Supplementary Instructions for PROFINET ® Slot Index Name Module name Data type Byte Total: count Configuration UINT16 Ä Chapter 1.7.5 ‘Settings of the channel configuration’ on page 19 (Parameter via bus, mode, limit value direc‐ tion, control time) Limit value 1 FLOAT value Limit value 2...
  • Page 13 Supplementary Instructions for PROFINET ® Slot Index Name Module name Data type Byte Total: count Error UINT32 0xFFFFFFFF channel 2 => all pending errors have been con‐ firmed Ä Chapter 1.7.2 ‘Error of the channel’ on page 16 Error UINT32 0xFFFFFFFF channel 3 =>...

  • Page 14: Bit Field Definitions

    Supplementary Instructions for PROFINET ® Slot Index Name Module name Data type Byte Total: count Additive INT16 basic load Control vari‐ UINT16 able limit Delay after UINT16 stop Delay after UINT16 restart Setpoint 2 FLOAT only with neu‐ tral zone con‐ trol ‘controller Controller...
  • Page 15 Supplementary Instructions for PROFINET ® Description 1 = local stop active; 0 = no local stop active 1 = channel active; 0 = channel inactive (or cannot be connected)

  • Page 16: Error Of The Channel

    Supplementary Instructions for PROFINET ® 1.7.2 Error of the channel Description [A system error exists] Error 99: There is a system error; Error 88: The connection to the extension module is faulty; [The connection to the expansion module is faulty ] Error 34: Incorrect correction variable;...

  • Page 17: Warning Of The Channel

    Supplementary Instructions for PROFINET ® 1.7.3 Warning of the channel Description [The fan has an error] Warning 73: The fan has a fault; [The time must be checked] Warning 72 The time must be checked; [The battery must be replace] Warning 71 The battery needs to be replaced;...

  • Page 18: Potential-Free Relay

    Supplementary Instructions for PROFINET ® 1.7.4 Potential-free relay If relay output is active, then according bit is used. Description Configuring alarm relay (XR3) Relay 2 (XR2) Relay 1 (XR1)

  • Page 19: Settings Of The Channel Configuration

    Supplementary Instructions for PROFINET ® 1.7.5 Settings of the channel configuration Description 1 = Channel uses remote control parameters; 0 = Channel uses internal parameters; [1 = Channel uses remote control parameters; 0 = Channel uses internal parameters] 1 = Channel uses internal set 2; 0 = Channel uses internal set 1; [1 = Use internal parameter set 2;...

  • Page 20: Diagnostic Messages

    Supplementary Instructions for PROFINET ® 1.8 Diagnostic messages The diagnostic messages are shown in plain text in the PLC Pro‐ grammable Logic Controller. Error type Diagnostic messages 12755 Limit error when writing 12773 Limit error when reading 13011 Protected value 13029 Protected value 13267...
  • Page 24 ProMinent GmbH Im Schuhmachergewann 5 - 11 69123 Heidelberg Germany Telephone: +49 6221 842-0 Fax: +49 6221 842-419 Email: info@prominent.com Internet: www.prominent.com 982194, 1, en_GB © 2018...
