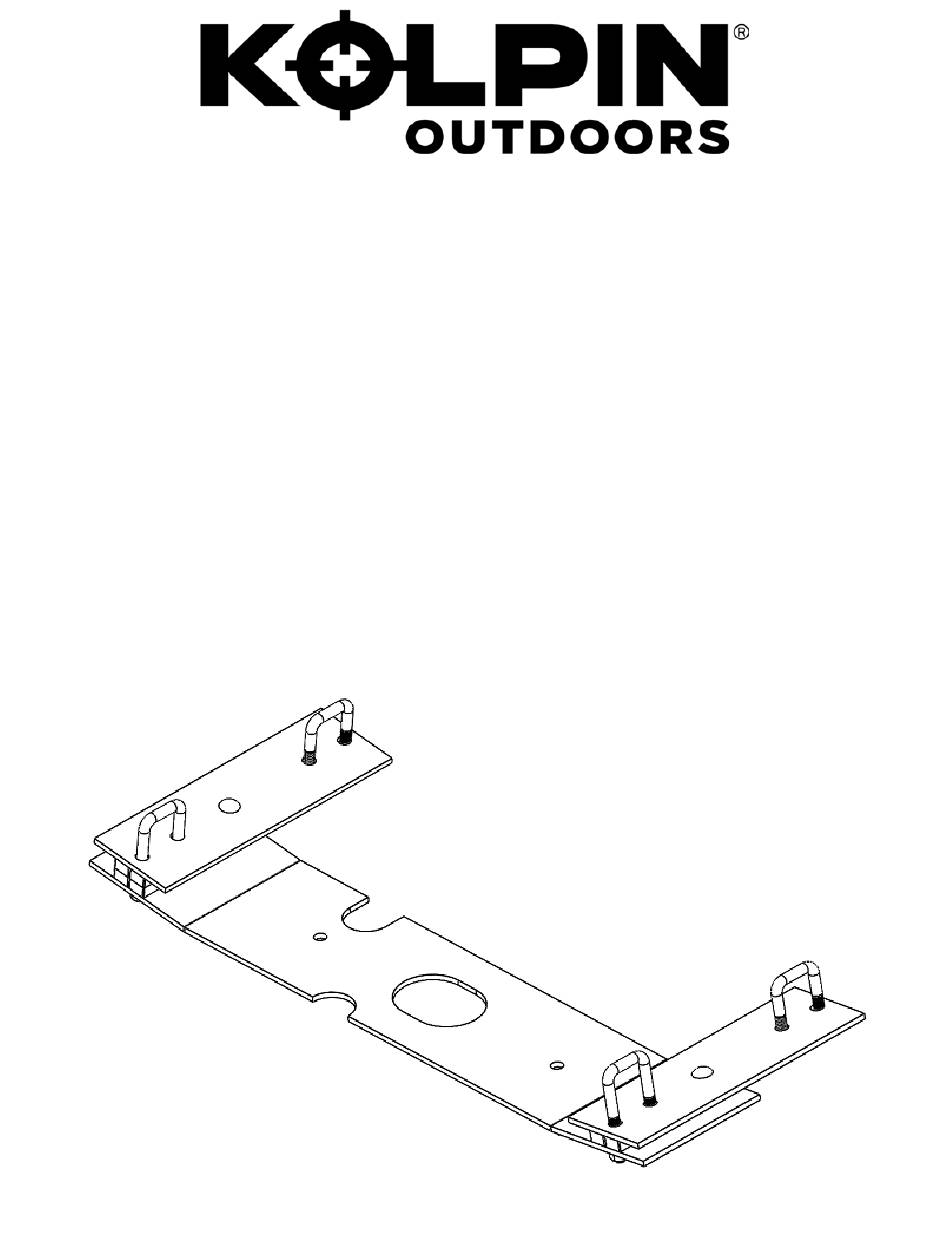

PLOW MID-MOUNT KIT
FOR POLARIS ATV's
P/N 15-3591
ASSEMBLY / OWNERS MANUAL
Application
PLOW PUSH FRAME NO. 15-0070, 33-0000 or 33-0070
Before you begin, please read these instructions and check to be sure all parts and tools are
accounted for. The following instructions contain details required to install and service the contents
of this kit.
© 2023 Kolpin Outdoors Inc.
REV 05
Advertisement
Table of Contents
Related Manuals for Kolpin Outdoors 15-3591
Summary of Contents for Kolpin Outdoors 15-3591
- Page 1 Before you begin, please read these instructions and check to be sure all parts and tools are accounted for. The following instructions contain details required to install and service the contents of this kit. © 2023 Kolpin Outdoors Inc. REV 05...
-
Page 2: Before You Begin
To increase traction during plow operation, operators can try: Securing weight to the ATV / UTV for additional tire downforce, • reducing tire air pressure, or installing tire chains. © 2023 Kolpin Outdoors Inc. REV 05... - Page 3 Hair Pin, Zinc Plated, #3 Square U-Bolt, Zinc Plated, M8-1.25 x 30mm x 70mm Square U-Bolt, Zinc Plated, M8-1.25 x 30mm x 50mm Carriage Bolt, Zinc Plated, M8-1.25 x 40mm Flange Locknut, Zinc Plated, M8-1.25 © 2023 Kolpin Outdoors Inc. REV 05...
-
Page 4: Kit Contents
Square U-Bolt, Zinc Plated, M8-1.25 x 30mm x 70mm Square U-Bolt, Zinc Plated, M8-1.25 x 30mm x 50mm Carriage Bolt, Zinc Plated, M8-1.25 x 40mm Flange Locknut, Zinc Plated, M8-1.25 Instruction Guide (not shown) © 2023 Kolpin Outdoors Inc. REV 05... -
Page 5: Installation Instructions
(See Illustrations 1-2 and 1-3). Ill. 1-2 Ill. 1-4 Front - Right side u-bolts 2004 models may require 2 spacers on the left side of the ATV Ill. 1-3 © 2023 Kolpin Outdoors Inc. REV 05... - Page 6 Tighten to specification. (See Illustrations 1-5 and 1-6). 8MM FASTENER TORQUE: 17 ft. lbs. (23 Nm) Ill. 1-5 8. If removed in step 4, please reinstall and/or tighten the four left-side floor- board screws. Ill. 1-6 © 2023 Kolpin Outdoors Inc. REV 05...
-
Page 7: Warranty
Most hardware is general in nature and is easily obtained locally. Be sure to replace with minimum metric class 8.8 specification. Kolpin Outdoors, Inc. Telephone: (763)-478-5800 Toll Free: (877)-956-5746 Fax Number: (800)-245-7569 www.kolpin.com Email: customerservice@kolpin.com © 2023 Kolpin Outdoors Inc. REV 05...
