Kolpin Outdoors 15-0070 Assembly & Owners Manual

Mid-mount kit for honda atv's

Advertisement

Quick Links

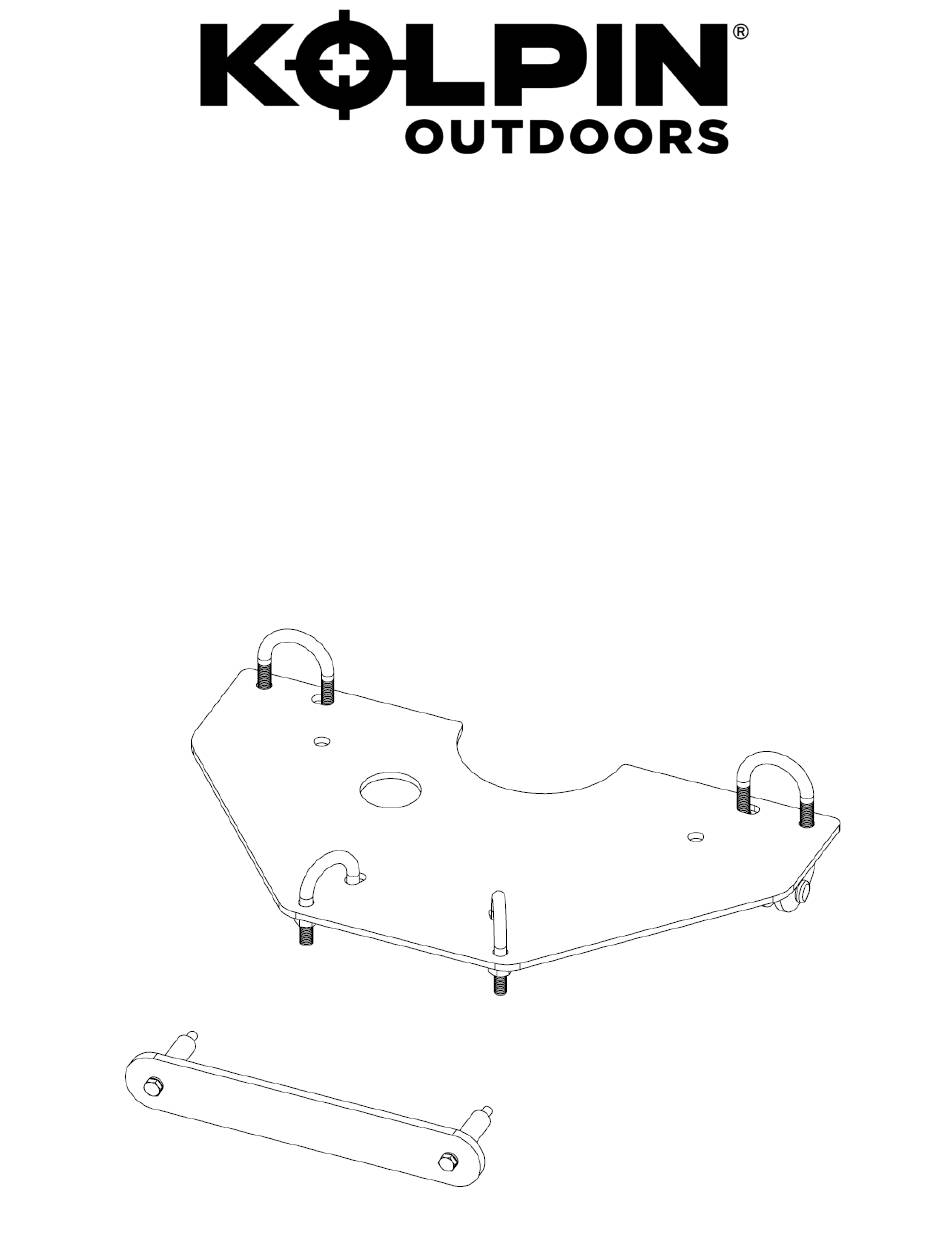

MID-MOUNT KIT
FOR HONDA ATV's
P/N 15-1600
ASSEMBLY / OWNERS MANUAL
Application
PLOW PUSH FRAME NO. 15-0070, 33-0000 or 33-0070
Before you begin, please read these instructions and check to be sure all parts and tools are ac-
counted for. The following instructions contain details required to install and service the contents of
this kit.
© 2021 Kolpin Outdoors Inc.
REV 06

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 15-0070 and is the answer not in the manual?

Questions and answers

Summary of Contents for Kolpin Outdoors 15-0070

  • Page 1 ASSEMBLY / OWNERS MANUAL Application PLOW PUSH FRAME NO. 15-0070, 33-0000 or 33-0070 Before you begin, please read these instructions and check to be sure all parts and tools are ac- counted for. The following instructions contain details required to install and service the contents of this kit.
  • Page 2 BEFORE ADJUSTING BLADE: STOP ATV ENGINE; SET AND LOCK BRAKES; RAISE AND LOCK BLADE LOWER BLADE TO DOWN POSITION WHEN BLADE AND ATV ARE NOT IN USE READ BLADE INSTRUCTION SHEETS AND ATV OWNER’S MANUAL © 2021 Kolpin Outdoors Inc. REV 06...
  • Page 3 Lock Washer, Zinc Plated, M6 U-Bolt, Zinc Plated, M8-1.25 x 35mm x 50mm Hex Locknut, Zinc Plated, M8-1.25 U-Bolt, Zinc Plated, M8-1.25 x 30mm x 50mm Hex Bolt, Zinc Plated, M6-1.0 x 60mm Instruction Guide (not shown) © 2021 Kolpin Outdoors Inc. REV 06...
  • Page 4 Lock Washer, Zinc Plated, M6 U-Bolt, Zinc Plated, M8-1.25 x 35mm x 50mm Hex Locknut, Zinc Plated, M8-1.25 U-Bolt, Zinc Plated, M8-1.25 x 30mm x 50mm Hex Bolt, Zinc Plated, M6-1.0 x 60mm © 2021 Kolpin Outdoors Inc. REV 06...
  • Page 5 #5, over the slotted holes and M8 17 ft. lbs. (23 Nm) locknuts, items #8. (See illustrations 1-1 and 1-2). Tighten the M8 locknuts to specification. Remove front skidpan Item #7 and install Blade Mount Item #9 Ill. 1-2 © 2021 Kolpin Outdoors Inc. REV 06...
  • Page 6 #2, using M6 screws, item #10, with M6 lock washer, item #6. (See illustration 1-3). Tighten the M6 screws to specification. Item #2 6MM FASTENER TORQUE: 7 ft. lbs. (9.5 Nm) © 2021 Kolpin Outdoors Inc. REV 06...
  • Page 7 Most hardware is general in nature and is easily obtained locally. Be sure to replace with minimum metric class 8.8 specification. Kolpin Outdoors, Inc. Telephone: (763)-478-5800 Toll Free: (877)-956-5746 Fax Number: (800)-245-7569 www.kolpin.com Email: customerservice@kolpin.com © 2021 Kolpin Outdoors Inc. REV 06...
