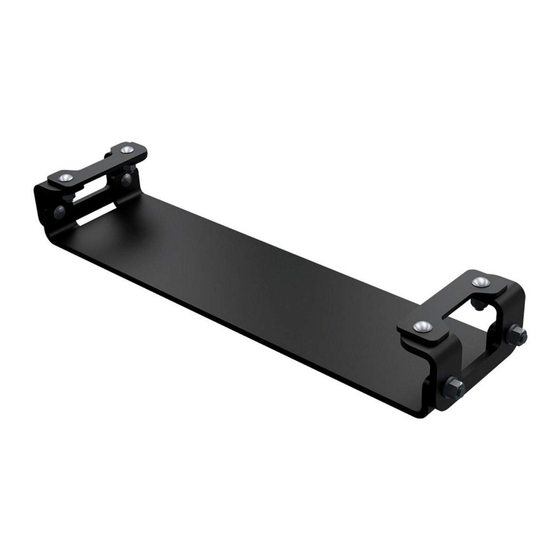

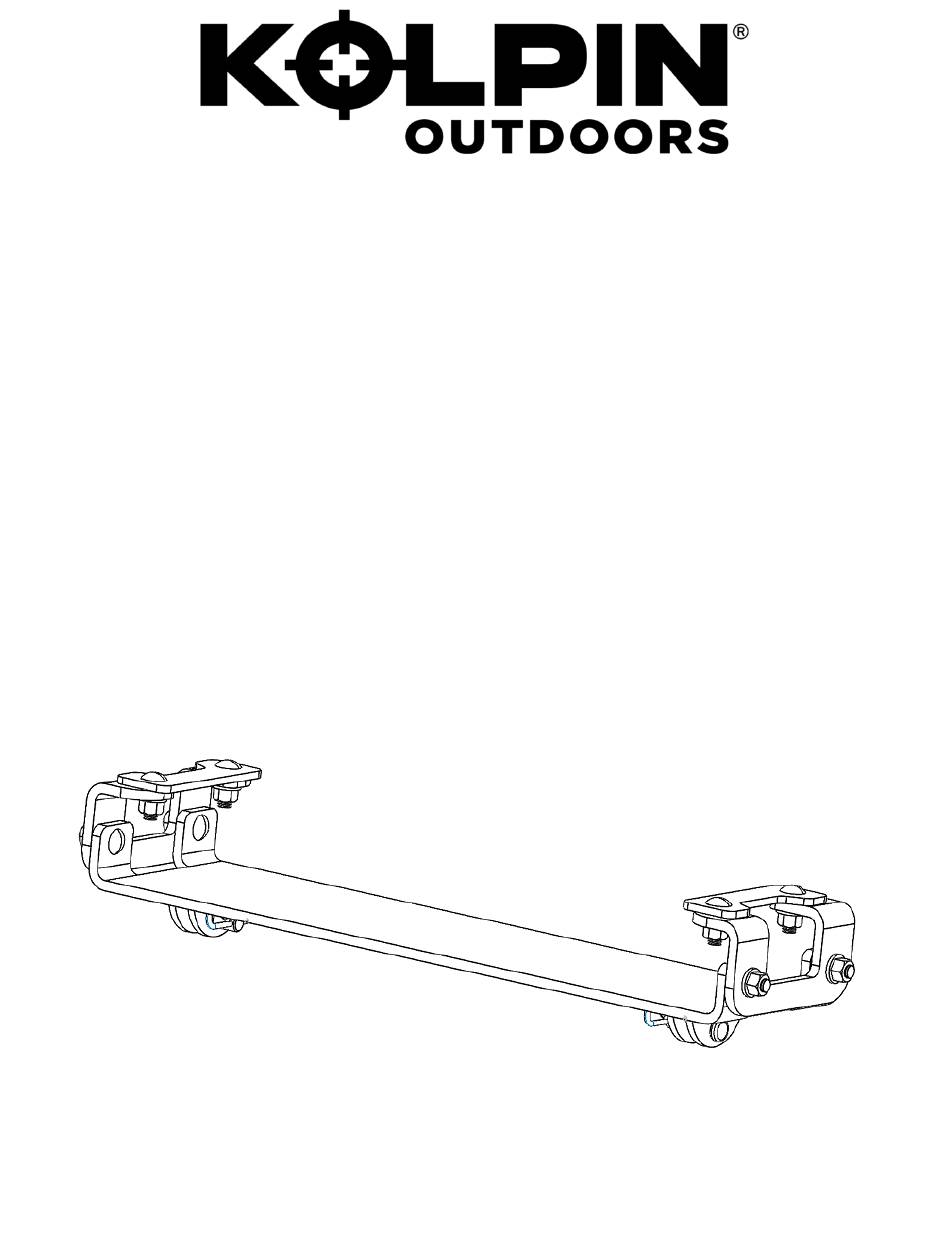

MID-MOUNT KIT
FOR CAN-AM ATV's
P/N 15-7580
ASSEMBLY / OWNERS MANUAL
Application
PLOW PUSH FRAME NO. 15-0070, 33-0000 or 33-0070
Before you begin, please read these instructions and check to be sure all parts and tools are
accounted for. The following instructions contain details required to install and service the contents
of this kit.
© 2018 Kolpin Outdoors Inc.
REV 03
Advertisement
Table of Contents
Related Manuals for Kolpin Outdoors 15-7580
Summary of Contents for Kolpin Outdoors 15-7580
- Page 1 Before you begin, please read these instructions and check to be sure all parts and tools are accounted for. The following instructions contain details required to install and service the contents of this kit. © 2018 Kolpin Outdoors Inc. REV 03...
- Page 2 IN UP POSITION. DO NOT ATTEMPT TO RAISE BLADE BY HAND; USE THE LIFT MECHANISM ONLY. LOWER BLADE TO DOWN POSITION WHEN BLADE AND ATV/UTV ARE NOT IN USE. READ BLADE'S INSTRUCTION SHEETS AND ATV/UTV OWNER MANUAL. © 2018 Kolpin Outdoors Inc. REV 03...
- Page 3 Clevis Pin, Zinc Plated, 10mm x 35mm Carriage Bolt, Zinc Plated, M8-1.25 x 25mm LG Side Support Brackets 15-7580_CP01 Top Support Plates CYC6223 Flange Locknut, Zinc Plated, M8-1.25 Hair Pin, Zinc Plated, #3 Instruction Guide (not shown) © 2018 Kolpin Outdoors Inc. REV 03...
- Page 4 SPARE KITS Hardware kit Item Description P/N CYC6533 Clevis Pin, Zinc Plated, 10mm x 35mm Carriage Bolt, Zinc Plated, M8-1.25 x 25mm LG Flange Locknut, Zinc Plated, M8-1.25 Hair Pin, Zinc Plated, #3 © 2018 Kolpin Outdoors Inc. REV 03...
- Page 5 ATV. 5. For model year 2015 and newer vehicles, follow instructions in step 6 for installation of the top plate on the right forward footrest support of the ATV. © 2018 Kolpin Outdoors Inc. REV 03...
- Page 6 A T V . (See Item 3 Illustration 4). ILL. 3 ILL. 4 © 2018 Kolpin Outdoors Inc. REV 03...
- Page 7 OEM specification. 12. Use clevis pins, items #2 and hair pins, items #7, to secure the push tube to the mount weldment. (See Illustration 7). Item 1 ILL. 6 Item 6 © 2018 Kolpin Outdoors Inc. REV 03...
- Page 8 Most hardware is general in nature and is easily obtained locally. Be sure to replace with minimum metric class 8.8 specification. Kolpin Outdoors, Inc. Telephone: (763)-478-5800 Toll Free: (877)-956-5746 Fax Number: (800)-245-7569 www.kolpin.com Email: customerservice@kolpin.com © 2018 Kolpin Outdoors Inc. REV 03...
