Uplus Lighting PIX-B1260 User Manual

Hide thumbs

Advertisement

Table of Contents

User manual
PIX-B1260
Please read the instructions carefully before use

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PIX-B1260 and is the answer not in the manual?

Questions and answers

Related Manuals for Uplus Lighting PIX-B1260

Summary of Contents for Uplus Lighting PIX-B1260

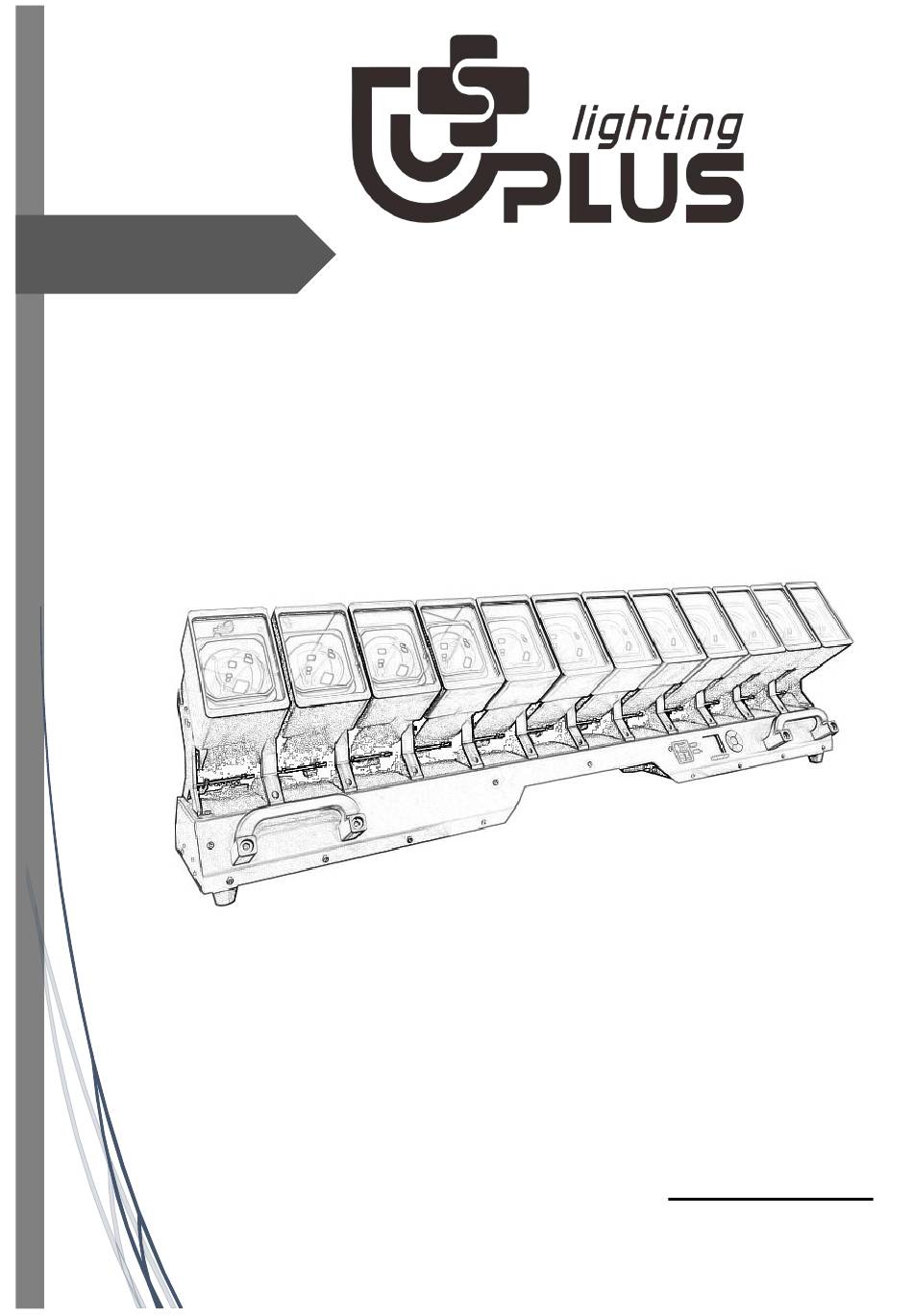

  • Page 1 User manual PIX-B1260 Please read the instructions carefully before use...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS 1. Safety Instructions……………………………………………………………………………3-4 Technical Specifications…………………………………………………………………………4 Control Menu ……………………………………………………………………………………5-10 DMX Channels …………………………………………………………………………………10-20 Dimension …………………………………………………………………………………………21 Trouble Shooting…………………………………………………………………………………22 Fixture Cleaning………………………………………………………… ………………………22 STATEMENT The product has well capability and intact packing when leave factory. All of the user should comply with warning item and manual, any misuse cause of the damages are not included in our guarantee, and also can not be responsible for any malfunction &...

  • Page 3: Safety Instructions

    1.Safety Instructions Please keep this User Guide for future consultation. If you sell the unit to another user, be sure that they also receive this instruction booklet. Unpack and check carefully there is no transportation damage before using the unit. •...

  • Page 4: Technical Specifications

    Installation: •The unit should be mounted via its screw holes on the bracket. Always ensure that the unit is firmly fixed to avoid vibration and slipping while operating. And make sure that the structure to which you are attaching the unit is secure and is able to support a weight of 10 times of the unit’s weight. Also always use a safety cable that can hold 12 times of the weight of the unit when installing the fixture.

  • Page 5: Control Menu

    3.Control Menu Menu key:Enter/return to the main menu Up key: menu function up selection/parameter increment Down key:menu function selection down/parameter decrease Confirm key: Select the menu function and make a confirmation and save when modifying the menu function parameters. main menu Submenu Menu Function Description 1.
  • Page 6 11. Green Adjust the brightness of the green light bead up or down (adjustable range 000-255), press the confirm button to save, default is 255. 12. Blue Adjust the brightness of the blue light bead up or down (adjustable range 000-255), press the confirm button to save, default is 255.
  • Page 7 calibration confirm key to save, default is 128. 11. Y6 axis Modify parameters up or down (range 000-255), press the calibration confirm key to save, default is 128. 12. F6 axis Modify parameters up or down (range 000-255), press the calibration confirm key to save, default is 128.
  • Page 8 confirm key to save, default is 255. 31. Red Modify parameters up or down (range 000-255), press the confirm key to save, default is 255. 32. Green Modify parameters up or down (range 000-255), press the confirm key to save, default is 255. 33.
  • Page 9 confirm key to save, default is 255. 54. White Modify parameters up or down (range 000-255), press the confirm key to save, default is 255. 55. Red Modify parameters up or down (range 000-255), press the confirm key to save, default is 255. 56.

  • Page 10: Dmx Channels

    the confirm button to save, default is 230. 77. Logo Logo switching Temperatu Temperature modification. Default 45 Temperatu Open/Close re Control - 80. LED LED sequence switching Modify the YF direction parameter (range 000-255) up or down, direction press the confirm key to save, default to 000. 4.DMX Channels 20Channel Channel...
  • Page 11 Tilt 3 Coarse adjustment 000-255 Tilt 3 Coarse adjustment° Tilt 3 fine adjustment 000-255 Tilt 3 fine-tuning overall (Tilt mode amplitude) Tilt 4 Coarse adjustment° Tilt 4 Coarse adjustment 000-255 Tilt 4 fine adjustment 000-255 Tilt 4 fine-tuning overall (Tilt mode amplitude) Tilt 5 Coarse adjustment 000-255 Tilt 5 Coarse adjustment°...
  • Page 12 CH51 Green 000-255 Green CH52 Blue 000-255 Blue CH53 White 000-255 White 169AChannel Channel Value Function Function Function 000-255 Function Tilt speed 000-255 Speed from slow to fast Tilt mode 000-255 Tilt mode 000-255 Color Macro 000-255 Color Macro pattern 000-255 pattern LED built-in effect...
  • Page 13 CH39 White 2 dimmer fine adjustment 000-255 White 2 dimmer fine adjustment CH40 Tilt 3 coarse adjustment Mode Direction 000-255 Tilt 3 coarse adjustment Mode Direction CH41 Tilt 3 fine adjustment Mode Amplitude 000-255 Tilt 3 fine adjustment Mode Amplitude CH42 Tilt 3 zoom 000-255...
  • Page 14 CH162 Red 12 dimmer coarse adjustment 000-255 Red 12 dimmer coarse adjustment CH163 Red 12 dimmer fine adjustment 000-255 Red 12 dimmer fine adjustment CH164 Green 12 dimmer coarse adjustment 000-255 Green 12 dimmer coarse adjustment CH165 Green 12 dimmer fine adjustment 000-255 Green 12 dimmer fine adjustment CH166...
  • Page 15 CH161 Red 12 dimmer coarse adjustment 000-255 Red 12 dimmer coarse adjustment CH162 Red 12 dimmer fine adjustment 000-255 Red 12 dimmer fine adjustment CH163 Green 12 dimmer coarse adjustment 000-255 Green 12 dimmer coarse adjustment CH164 Green 12 dimmer fine adjustment 000-255 Green 12 dimmer fine adjustment CH165...
  • Page 16 CH35 Dimmer 000-255 Dimmer CH36 Strobe 000-255 Strobe CH37 Tilt 1 zoom 000-255 Tilt 1 zoom CH38 Tilt 2 zoom 000-255 Tilt 2 zoom CH39 Tilt 3 zoom 000-255 Tilt 3 zoom CH40 Tilt 4 zoom 000-255 Tilt 4 zoom CH41 Tilt 5 zoom 000-255...
  • Page 17 CH12 Tilt 6 fine adjustment 000-255 Tilt 6 fine-tuning overall (Tilt mode amplitude) CH13 Tilt 7 Coarse adjustment 000-255 Tilt 7 Coarse adjustment° Tilt 7 fine-tuning overall (Tilt mode amplitude) CH14 Tilt 7 fine adjustment 000-255 CH15 Tilt 8 Coarse adjustment 000-255 Tilt 8 Coarse adjustment°...
  • Page 18 CH56 Blue Coarse adjustment 000-255 Blue Coarse adjustment CH57 Blue fine adjustment 000-255 Blue fine adjustment CH58 White Coarse adjustment 000-255 White Coarse adjustment CH59 White fine adjustment 000-255 White fine adjustment CH60 Red 1 Coarse adjustment 000-255 Red 1 Coarse adjustment CH61 Red1 fine adjustment 000-255...
  • Page 19 CH15 Tilt 8 Coarse adjustment 000-255 Tilt 8 Coarse adjustment° CH16 Tilt 8 fine adjustment 000-255 Tilt 8 fine-tuning overall (Tilt mode amplitude) Tilt 9 Coarse adjustment° CH17 Tilt 9 Coarse adjustment 000-255 CH18 Tilt 9 fine adjustment 000-255 Tilt 9 fine-tuning overall (Tilt mode amplitude) CH19 Tilt 10 Coarse adjustment 000-255...
  • Page 20 CH59 White fine adjustment 000-255 White fine adjustment CH60 Tilt 1 dimmer Coarse adjustment 000-255 Tilt 1 dimmer Coarse adjustment CH61 Tilt 1 dimmer fine adjustment 000-255 Tilt 1 dimmer fine adjustment CH62 Red 1 Coarse adjustment 000-255 Red 1 Coarse adjustment CH63 Red1 fine adjustment 000-255...

  • Page 21: Dimension

    5.Dimension...

  • Page 22: Trouble Shooting

    6.Trouble Shooting Following are a few common problems that may occur during operation. Here are some suggestions for easy troubleshooting: A. The unit does not work, no light and the fan does not work 1. Check the connection of power and main fuse. 2.
