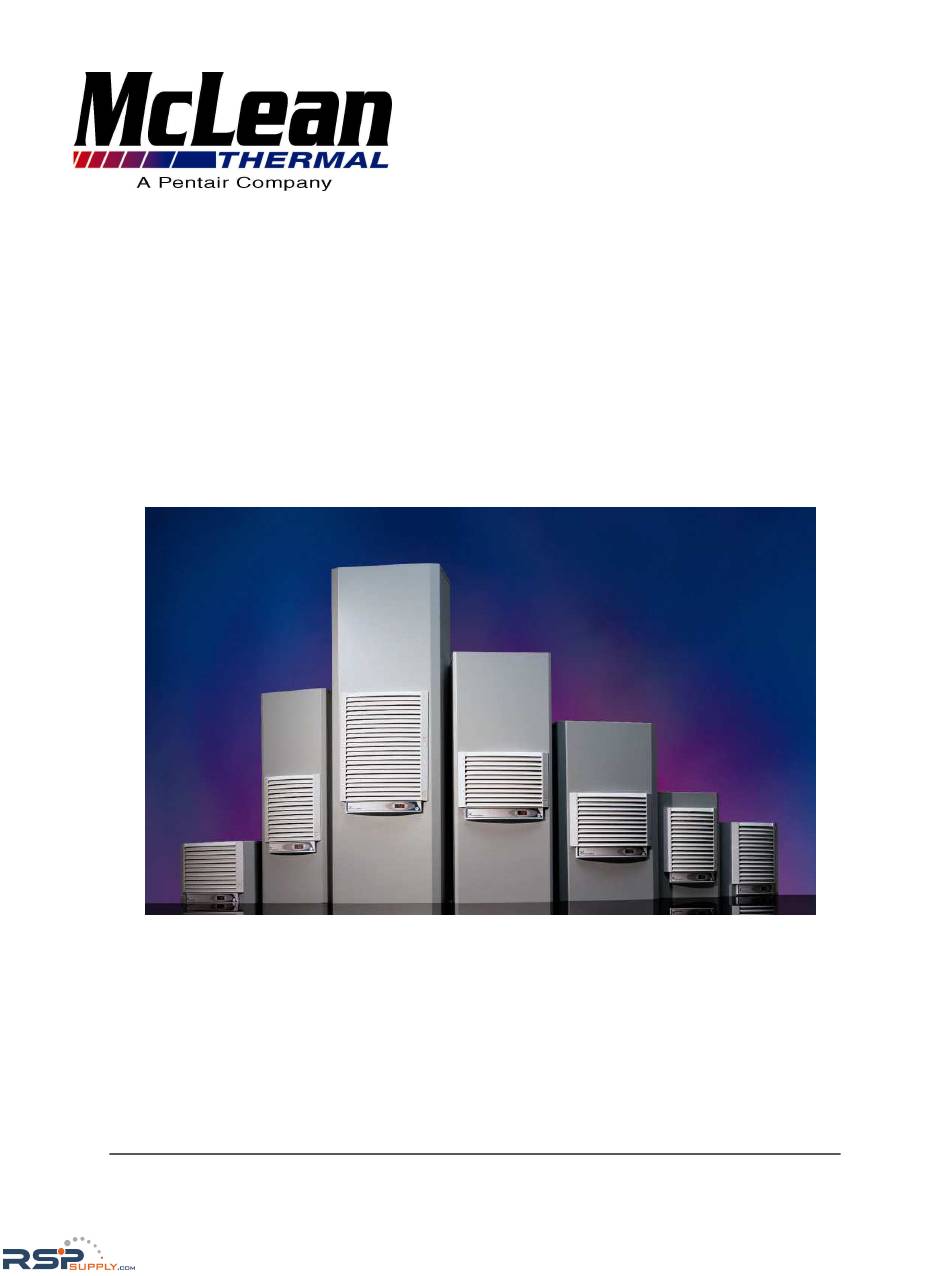

INSTRUCTION MANUAL FOR:
AIR CONDITIONERS
McLean Thermal
11611 Business Park Blvd. N Champlin, MN 55316
Tel: 763-323-8200 Fax: 763-576-3200
W W W . M C L E A N T H E R M A L . C O M
RSPSupply - 1-888-532-2706 - www.RSPSupply.com
http://www.RSPSupply.com/p-5865-Hoffman-M520816032.aspx
GENESIS
1
10-1008-170 rev 12

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the McLean THERMAL Genesis 13 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Pentair McLean THERMAL Genesis 13 Series

Summary of Contents for Pentair McLean THERMAL Genesis 13 Series

  • Page 1 INSTRUCTION MANUAL FOR: GENESIS AIR CONDITIONERS McLean Thermal 11611 Business Park Blvd. N Champlin, MN 55316 Tel: 763-323-8200 Fax: 763-576-3200 W W W . M C L E A N T H E R M A L . C O M 10-1008-170 rev 12 RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-5865-Hoffman-M520816032.aspx...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS Receiving the Air Conditioner ................1 Handling and Testing the Air Conditioner ............1 Installation ......................2 Design Data, Drawings/Illustrations, Components List & Wire Diagrams Genesis 13..................3 Genesis 17..................6 Genesis 28..................9 Genesis 33NSM................14 Genesis 36N ..................17 Genesis 52..................20 Genesis HB11................24 Temperature Control ..................28 Principles of Operation...................28 Maintenance....................28...

  • Page 3: Installation

    Refer to nameplate for proper electrical current requirements, then connect power cord to a properly grounded power supply. Minimum circuit ampacity should be at least 125% of the amperage shown in the design data section for the appropriate model. No other equipment should be connected to this circuit to prevent overloading.

  • Page 4: Genesis Tm 13

    GENESIS 13 Series 1000 BTU/Hr. (293 Watts) H x W x D: 13.25" (337) x 14.25" (362) x 7.80" (198) Full BTU/Hr @ Max Shipping Load Max Amb Weight Amb Temp Model Voltage Amps Phase Temp Lbs/Kgs M13-0116-G1014 50/60 4.0/4.0 800/1000 125/52 48/22...
  • Page 5 M13 Series Components List Item Part Number (1000 BTU) Part Description 115 Volt 230 Volt Fan, Condenser 12-1012-01 12-1012-02 Fan, Evaporator 13-1015-01 13-1015-02 Capacitor, Compressor Coil, Condenser 13-1001-05 13-1001-05 Coil, Evaporator 13-1001-04 13-1001-04 Compressor, AE 10-1016-61 10-1026-71 Control Panel Assy, Narrow 10-1106-100 10-1106-100 Filter, Air, Reusable, Narrow...
  • Page 6 M13 Wire Diagram, 115/230 Volt, 1000 BTU 10-1008-170 rev 12 RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-5865-Hoffman-M520816032.aspx...

  • Page 7: Genesis Tm 17

    GENESIS 17 Series 1800 BTU/Hr. (527 Watts) H x W x D: 17.65" (448) x 12" (305) x 8.68" (220) Full BTU/Hr @ Max Shipping Load Max Amb Weight Amb Temp Model Voltage Amps Phase Temp Lbs/Kgs M17-0216-G009 110/115 50/60 6.6/6.7 1500/1800 125/52 56/25...
  • Page 8 M17 Series Components List Item Part Number (1800 BTU) Part Description 115 Volt 230 Volt Fan, Condenser 12-1012-01 12-1012-02 Fan, Evaporator 12-1012-01 12-1012-02 Capacitor, Compressor, Start 10-1032-09 Coil, Condenser 17-1001-00 17-1001-00 Coil, Evaporator 17-1002-01 17-1002-01 Compressor, AE 10-1016-22 10-1026-74 Control Panel Assy, Narrow 10-1106-100 10-1106-100 Filter, Air, Reusable, Narrow...
  • Page 9 M17 Wire Diagram, 115 Volt, 1800 BTU M17 Wire Diagram, 230 Volt, 1800 BTU 10-1008-170 rev 12 RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-5865-Hoffman-M520816032.aspx...

  • Page 10: Genesis Tm 28

    GENESIS 28 Series 2000-6000 BTU/Hr. (586-1758 Watts) H x W x D: 28.50" (724) x 17" (432) x 11.33" (288) Full BTU/Hr @ Max Shipping Load Max Amb Weight Amb Temp Model Voltage Amps Phase Temp Lbs/Kgs M28-0216-G013 50/60 9.8/9.0 2200/2200 125/52 98/45 STOCK...
  • Page 11 M28 Mounting Gasket Kit M28 Mounting Cutout Dimensions M28 Components Drawing (Front View) 10-1008-170 rev 12 RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-5865-Hoffman-M520816032.aspx...
  • Page 12 M28 Series Components List Item Part Number (115 Volt) Part Description 2200 BTU 4000 BTU 6000 BTU Blower, Condenser 30-4019-01M 30-4019-01M 38-2019-04 Blower, Evaporator 28-1064-06M 28-1064-06M 28-1064-06M Capacitor, Compressor, Start/Run 10-1032-13 10-1032-15 Coil, Condenser 24-1001-00 24-1001-00 24-1001-00 Coil, Evaporator 28-1001-00 28-1001-01 14-1002-00 Compressor, AE/AK/AK...
  • Page 13 M28 Stock Wire Diagram, 115 Volt, 2200 BTU And 230 Volt 6000 BTU M28 Stock Wire Diagram, 230 Volt, 2200 BTU 10-1008-170 rev 12 RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-5865-Hoffman-M520816032.aspx...
  • Page 14 M28 Stock Wire Diagram, 115/230 Volt, 4000 BTU & 230 Volt 6000 BTU M28 Wire Stock Diagram, 115 Volt, 6000 BTU 10-1008-170 rev 12 RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-5865-Hoffman-M520816032.aspx...

  • Page 15: Genesis Tm 33Nsm

    GENESIS 33NSM Series 4000 BTU/Hr. (1172 Watts) H x W x D: 34.37" (873) x 12" (305) x 9.88" (251) Full BTU/Hr @ Max Shipping Load Max Amb Weight Amb Temp Model Voltage Amps Phase Temp Lbs/Kgs M33-0416-G010 50/60 13.0/13.2 3700/4000 125/52 105/48 STOCK...
  • Page 16 M33 Mounting Gasket Kit M33 Mounting Cutout Dimensions M33 Wire Diagram, 115/230 Volt, 4000 BTU 10-1008-170 rev 12 RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-5865-Hoffman-M520816032.aspx...
  • Page 17 M33 Series Components List Item Part Number (4000 BTU) Part Description 115 Volt 230 Volt Blower, Condenser, Top Dischrg 38-2019-04 38-2020-04 Blower, Condenser, Front Dischrg 38-2019-00 38-2020-00 Fan, Evaporator 12-1012-01 12-1012-02 Capacitor, Compressor, Start 10-1032-13 10-1032-14 Coil, Condenser 33-2001-01 33-2001-01 Coil, Evaporator 33-2002-02 33-2002-02...

  • Page 18: Genesis Tm 36N

    GENESIS 36N Series 6000 BTU/Hr. (1758 Watts) H x W x D: 38.72" (984) x 15" (381) x 11.33" (288) Full BTU/Hr @ Max Shipping Load Max Amb Weight Amb Temp Model Voltage Amps Phase Temp Lbs/Kgs M36-0616-307 STOCK 50/60 14.0/14.0 5000/6000 125/52 120/54...
  • Page 19 M36 Mounting Gasket Kit M36 Mounting Cutout Dimensions M36 Wire Diagram, 115/230 Volt, 6000 BTU 10-1008-170 rev 12 RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-5865-Hoffman-M520816032.aspx...
  • Page 20 M36 Series Components List Item Part Number (6000 BTU) Part Description 115 Volt 230 Volt Blower, Condenser 38-2019-04 38-2020-04 Blower, Evaporator 28-1064-06M 28-1064-05M Capacitor, Compressor, Run 52-6031-01 52-6031-01 Coil, Condenser 36-1017-01 36-1017-01 Coil, Evaporator 28-1001-01 28-1001-01 Compressor, AK 10-1016-08 10-1026-08 Control Panel Assy, Wide 10-1106-101 10-1106-101...
  • Page 21 GENESIS 52 Series 6000-12000 BTU/Hr. (1758-3516 Watts) H x W x D: 52.63" (1337) x 17.13" (435) x 11.33" (288) Full BTU/Hr @ Max Shipping Load Max Amb Weight Amb Temp Model Voltage Amps Phase Temp Lbs/Kgs M52-0616-XXX 50/60 13.0/13.0 5000/6000 125/52 155/70 M52-0626-XXX...
  • Page 22 M52 Mounting Gasket Kit M52 Mounting Cutout Dimensions M52 Wire Diagram, 115 Volt, 10000 & 12000 BTU 10-1008-170 rev 12 RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-5865-Hoffman-M520816032.aspx...
  • Page 23 M52 Wire Diagram, 115/230 Volt, 6000 & 8000 BTU and 230 Volt, 10000 & 12000 BTU M52 Components Drawing (Front View) 10-1008-170 rev 12 RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-5865-Hoffman-M520816032.aspx...
  • Page 24 M52 Series Components List Item Part Number (115 Volt) Part Description 6000 BTU 8000 BTU 10000 BTU 12000 BTU Blower, Condenser 52-6034-10 52-6034-10 52-6034-10 52-6034-10 Blower, Evaporator 52-6075-00 52-6075-00 52-6075-00 52-6034-10 Capacitor, Compressor, Run 52-6031-01 52-6032-01 52-6032-01 52-6032-01 Coil, Condenser 52-6111-00 52-6111-00 52-6111-00...

  • Page 25: Genesis Tm Hb11

    GENESIS HB11 Series 2000-4000 BTU/Hr. (586-1172 Watts) H x W x D: 10.25" (260) x 17" (432) x 21.02" (534) Full BTU/Hr @ Max Shipping Load Max Amb Weight Amb Temp Model Voltage Amps Phase Temp Lbs/Kgs 50/60 9.7/9.0 2200/2200 125/52 90/41 MHB11-0216-G306 STOCK...
  • Page 26 MHB11 Series Components List Item Part Number (115 Volt) Part Number (230 Volt) Part Description 2200 BTU 4000 BTU 2200 BTU 4000 BTU Blower, Condenser 28-1064-06M 28-1064-06M 28-1064-05M 28-1064-05M Blower, Evaporator 28-1064-06M 28-1064-06M 28-1064-05M 28-1064-05M Capacitor, Compressor, Start 10-1032-13 10-1032-09 10-1032-14 Coil, Condenser 11-3001-00...
  • Page 27 MHB11 Wire Diagram, 115 Volt, 2200 BTU MHB11 Wire Diagram, 230 Volt, 2200 BTU 10-1008-170 rev 12 RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-5865-Hoffman-M520816032.aspx...
  • Page 28 MHB11 Wire Diagram, 115/230 Volt, 4000 BTU 10-1008-170 rev 12 RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-5865-Hoffman-M520816032.aspx...

  • Page 29: Temperature Control

    TEMPERATURE CONTROL The electromechanical thermostat is factory preset to 75oF/23oC. To change the temperature setting, remove the nylon plug from the back face of the unit. Use a standard screwdriver to adjust thermostat. For cooler temperatures turn clockwise, for warmer temperatures turn counterclockwise. PRINCIPLES OF OPERATION If electrical power to the air conditioner is interrupted and reapplied immediately, (within 3 to 5 seconds), the compressor may not restart due to the high back pressure of the compressor.
  • Page 30 Inlet Air Filter Con’t It is recommended that power to the air conditioner be interrupted intentionally when abnormally high compressor operating temperature causes automatic shutdown of the unit. The above described shutdown is symptomatic of clogged or dirty filter, thus causing a reduction in cooling airflow across the surface of the compressor and condenser coil.

  • Page 31: Trouble Shooting

    TROUBLE SHOOTING Basic Air Conditioning Trouble Shooting Check List Check manufacturer’s nameplate located on the unit for correct power supply. 2. Turn the power to the unit on. The evaporator (Enclosure or “COLD” air) blower should come on. Is there airflow? YES, proceed to step # 3.
  • Page 32 Symptoms and Possible Causes: SYMPTOM POSSIBLE CAUSE Unit won’t cool * Blowers/impellers not running * Compressor not running * Compressor runs, but has bad valves * Loss of refrigerant Compressor tries to start but won’t run * Low line voltage at start. Should be +/-10% rated voltage * Compressor motor stuck * Bad relay * Bad overload switch...

  • Page 33: Declaration Of Conformity

    DECLARATION OF CONFORMITY Manufacturer Name: McLean Thermal Address: 11611 Business Park Boulevard Champlin, Minnesota 55316 Europe McLean Thermal Unit 4 Bevan Way Smethwick, West Midlands England, B66 1BZ declare under our sole responsibility that the following products: Product Name: Air Conditioner Model Numbers: M13-XXXX-GXXXX M17-XXXX-GXXX...

  • Page 34: Mclean Thermal Warranty

    McLEAN THERMAL WARRANTY Please note: Warranty effective at time of shipment. McLean Thermal warrants that all material and workmanship are free of defects in quality which impair the usefulness of the air conditioner or heat exchanger for a period of five (5) years for non-operating parts, except for the filter;...
