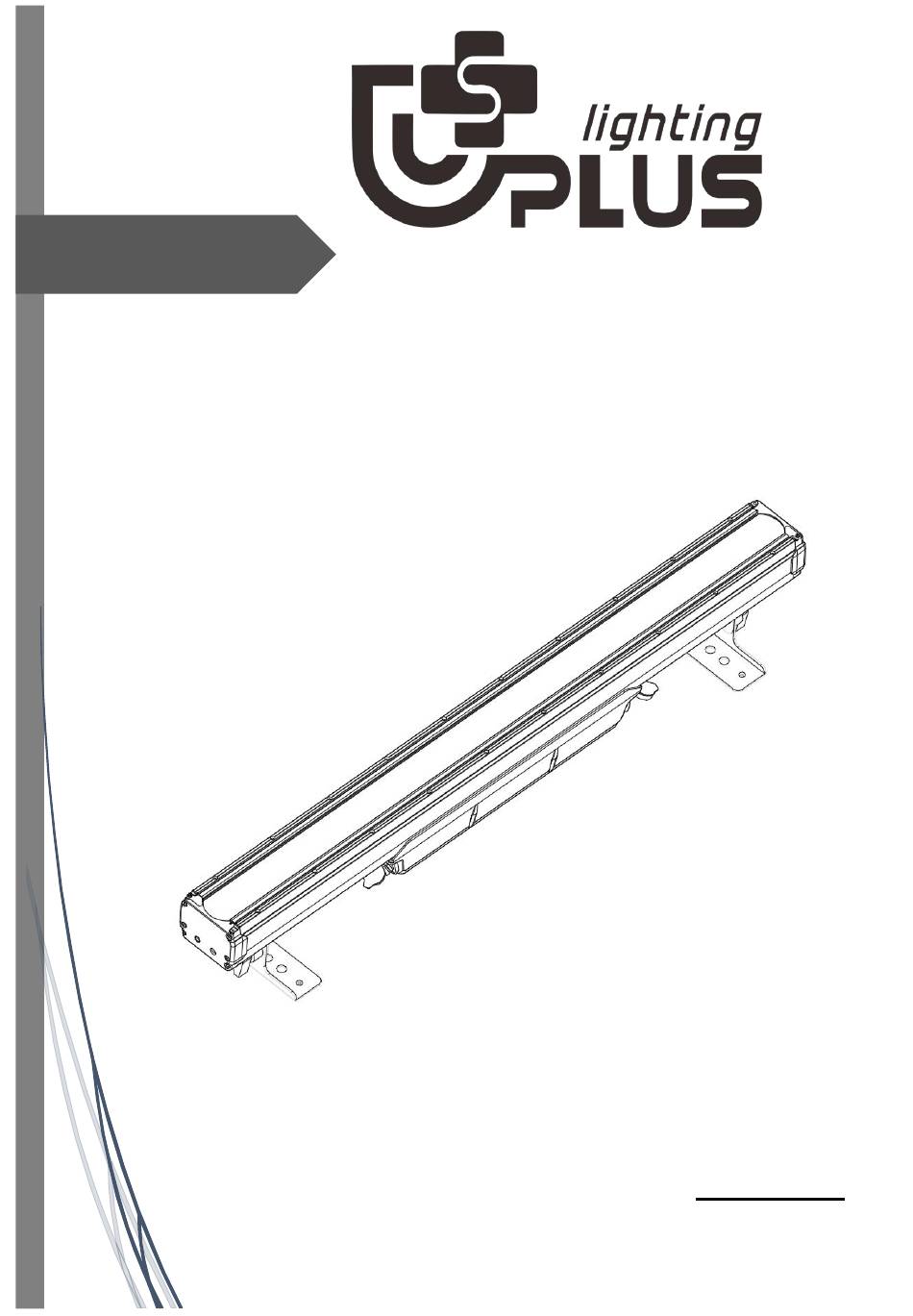

- Page 1 User manual IP-L360 Please read the instructions carefully before use...
-
Page 2: Table Of Contents
TABLE OF CONTENTS 1. Safety Instructions………………………………………………………………………………3 Technical Specifications…………………………………………………………………………4-5 Installation…………………………………………………………………………………………5-7 Control Menu ………………………………………………………………………………………7 DMX Channels ……………………………………………………………………………………8-9 Dimension…………………………………………………………………………………………10 Trouble Shooting…………………………………………………………………………………11 Fixture Cleaning………………………………………………………… ………………………11 STATEMENT The product has well capability and intact packing when leave factory. All of the user should comply with warning item and manual, any misuse cause of the damages are not included in our guarantee, and also can not be responsible for any malfunction &... -
Page 3: Safety Instructions
1.Safety Instructions Please keep this User Guide for future consultation. If you sell the unit to another user, be sure that they also receive this instruction booklet. •Unpack and check carefully there is no transportation damage before using the unit. •Before operating, ensure that the voltage and frequency of power supply match the power requirements of the unit. -
Page 4: Technical Specifications
2.Technical Specifications Light Source: Power supply: 100-240V - 50/60Hz Power consumption: 400W LED power: 360W LED source: Ultra-bright 90x3W 7000K, 180x0.5W RGB Optic: High efficiency optic system Sections: 20 individual sections control (5xRGBW) Luminous flux: Strobe 45000lm, Static >15000lm Field angle: 90° Dimmer mode: 8&16 Bit Dimmer curve: Linear, curve DMX mode: 13/20CH... -
Page 5: Installation
fly Case: 4 in 1 or 8 in 1 Fixture: L1004 x W96 x H130（Bracket H178) mm Carton size(2in1): 1330x290x200mm NW: 10KG (Gross 2in1 23.5KG) Optional Accessories - PMMA froster - PMMA cover - Barndoor - Infinite rotation engine - Clamp - Flight case 3. - Page 6 For the first uses this may be a little hard. Move the devices a little until the Bolts can be inserted completely. For vertical installation do not exceed the amount of 4 pieces. (caution, provisional specification) In case of hanging installation, each device needs to be saved individually! Using the quick-release pins for horizontal installation is not recommended.
-
Page 7: Control Menu
(Length of Omega & Safety cable position) 4.Control Menu Display: MENU To select the programming functions DOWN To go backward in the selected functions To go forward in the selected functions ENTER To confirm the selected functions (unlock screen) Operations: Press "MENU"... -
Page 8: Dmx Channels
5.DMX Channels 12 Channel Mode Channel Function DMX Value Description RGB Dimmer 1-255 Dimmer 1-255 Dimmer Green 1-255 Dimmer Blue 1-255 Dimmer White 1-255 Dimmer No Function 6-42 Strobe mode 1 43-85 Strobe mode 2 Strobe Mode 86-128 Strobe mode 3 129-171 Strobe mode 4 172-214... - Page 9 20 Channel Mode Channel Function DMX Value Description Red 1 1-255 Dimmer Green 1 1-255 Dimmer Blue 1 1-255 Dimmer White 1 1-255 Dimmer Red 2 1-255 Dimmer Green 2 1-255 Dimmer Blue 2 1-255 Dimmer White 2 1-255 Dimmer Red 3 1-255 Dimmer...
-
Page 10: Dimension
6.Dimension... -
Page 11: Trouble Shooting
7.Trouble Shooting Following are a few common problems that may occur during operation. Here are some suggestions for easy troubleshooting: A. The unit does not work, no light and the fan does not work 1. Check the connection of power and main fuse. 2.
