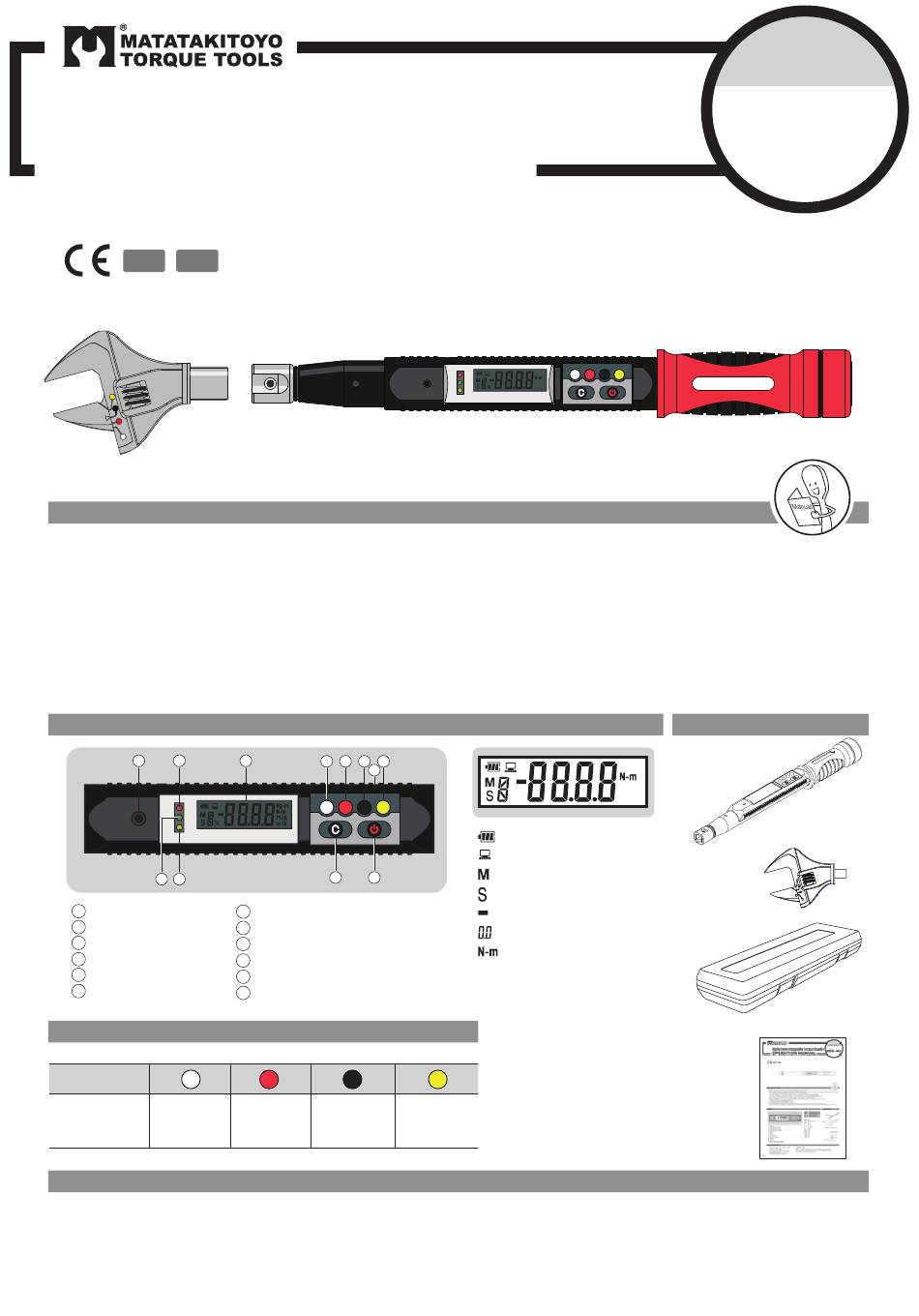

Matatakitoyo Torque Tools ACT-65NU Operation Manual

Digital Interchangeable Torque Handle for A/C
OPERATION MANUAL
9X12 14X18
BEFORE STARTING
1. Before operating this torque wrench study carefully these instructions.
2. Main usage & application digital torque wrench is different from general torque wrench, it has strong operation function including
torque setting, mode setting, data storage, data clear and data output.
It is easy to operate, it reduce the requirements for the operator by install the digital display.
It is widely used for the automotive industry, machinery industry, such as bolt fastening and control.
3. Over-torquing (109% of Max. Torque range) could cause breakage or lose of accuracy.
4. Keep this digital torque wrench away from magnets. If the wrench gets wet, wipe it with a dry towel soon.
The salt in seawater can damage the wrench.
5. Do not apply excessive force to the LCD screen .
6. The plastic body is not affected by petroleum products but may be damaged by some industrial solvents.
Clean it by clean cloth soaked in mineral spirits or denatured alcohol. Never immerse this wrench or any part of it in any liquid.
PANEL
1 2
3 4
1 Buzzer
2 LED indicator (Red)
3 LED indicator (Green)
4 LED indicator (Yellow)
5 LCD panel
6 Quick set (Set)
TORQUE PRE-SET VALUE
Button
TORQUE
65Nm
PRE-SET VALUE
SPECIFICATIONS
• Accuracy : C.W. ± 1% / C.C.W. ± 1.5%
• Memory : 100 Readings
• Unit : N-m
• Operating Temperature : -10℃~55℃
• Storage Temperature : -40℃~85℃
1
5
6 7 8 9
12
10 11
7 Quick set (Up)
8 Quick set (Down)
9 Quick set (Memory)
10
Cancel
11 Power
12 Mini-USB Communication
55Nm 42Nm
• Humidity : 0~90%
• Battery : 1.5V UM-3 (AA) x 3 ( Do not use low self-discharge battery )
• Warranty : 1 year in normal statement.
Battery
Communication
Memo
Setting
Direction
Values
Units
18Nm
Models covered
ACT
CONTENTS
Torque Handle
Adjustable
Wrench Head
Supplied in a plastic box.
Manual
