Matatakitoyo Torque Tools IPR Operation Manual

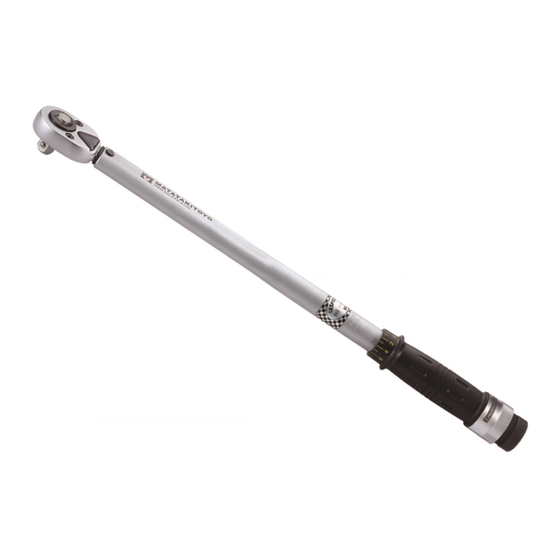

Interchangeable head adjustable torque handle
Hide thumbs
1
2

Advertisement

Quick Links

Download this manual
Interchangeable Head
Adjustable Torque Handle
OPERATION MANUAL
9X12
TORQUE
14X18
20X28.5
BEFORE STARTING
1. Study this instruction before use.
2. This torque wrench is calibrated and tested before leaving the factory, it is certified to meet the current standard specification and has
an accuracy of C.W.±4% / C.C.W.±6%.
3. THIS TOOL IS A PRECISION MEASUREMENT AND DESIGNED FOR MANUAL TIGHTENING FASTENERS ONLY.
DO NOT USE IT AS A NUT BREAKER OR FOR ANY OTHER PURPOSE.
4. Do not over torquing the fastener, or it will cause tool's damage and serious injury.
5. Do not use this tool near rotating machinery.
6. Disassemble this tool or make any adjustments will result in the loss of accuracy and invalidating the warranty.
7. Do not continuously apply force after hearing the clicking sound or feel shock.
8. Do not use any kind of extension on the handle of the tool. This will not only damage the tool, also affect the accuracy.
9. Do not immerse grease inside ratchet head. It may cause unexpected damage.
10. Use special care at minimum torque setting.
11. Please wear gloves and goggles when working.
WARNING
HOW TO USE
Choose a qualified accessory.
9X12
14X18
20X28.5
Insert square drive securely to the accessory.
Push Button
※Accessories are not included.
Push
Accessory
Push
Accessory
Main Scale
Graduation Scale
Tube
Lock Ring
CONTENTS
Torque handle
Supplied in a plastic box.
STOP
CLICK
Do not continuously apply force after
hearing the clicking sound or feel shock.
Models covered
IPR
Grip
Hand Force
Manual
