Matatakitoyo Torque Tools MT-1000 Operation Manual

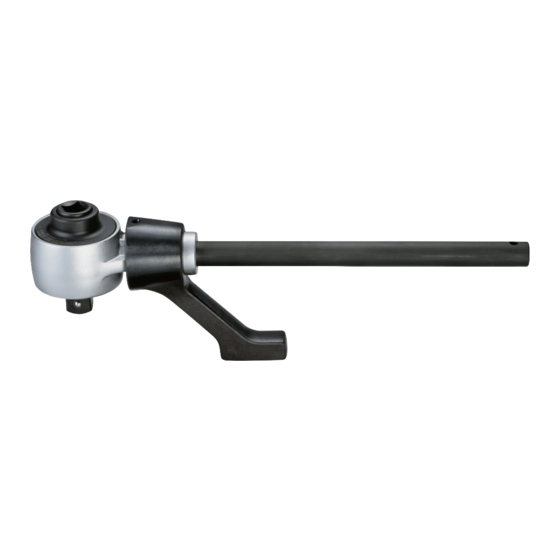

Torque Multiplier

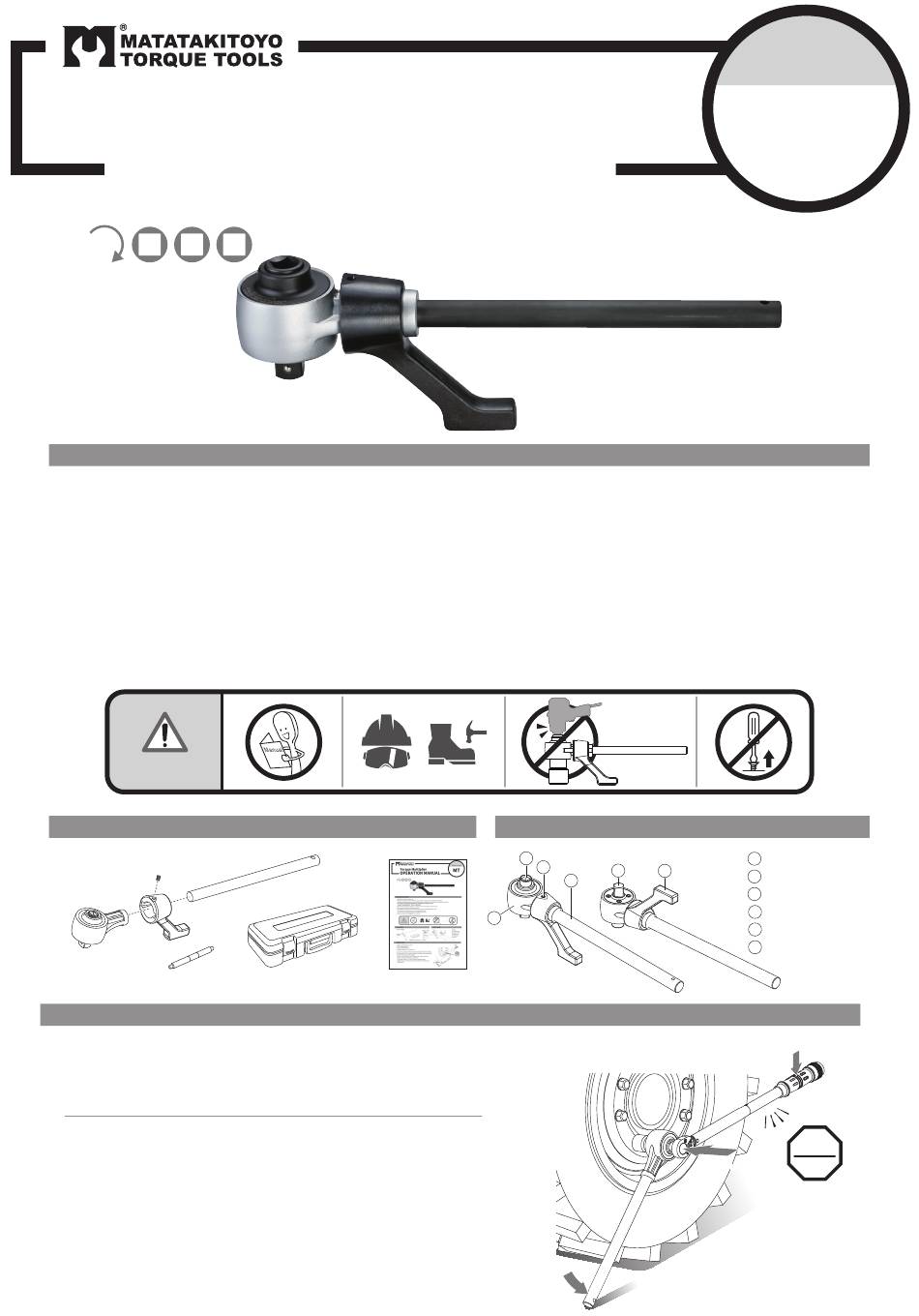

OPERATION MANUAL
TORQUE
1/2" 3/4" 1"
BEFORE STARTING
1. Study this instruction before use.
2. This tool is with torque ratio and there is an amount of reaction to be made to the fasteners.
Please keep hands or face away from extension bar / reaction foot. The reaction force might result injury.
3. THIS TOOL IS DESIGNED FOR MANUAL TIGHTENING FASTENERS ONLY.
DO NOT USE ANY IMPACT TOOL TO OPERATE.
4. Do not over torquing the fastener, or it will cause tool's damage and serious injury.
5. Do not use this tool near rotating machinery.
6. Any adjustments will result in the loss of accuracy and invalidating the warranty.
7. Do not use any kind of extension on the handle of the tool.
This will not only damage the tool, also affect the accuracy.
8. Please wear gloves and goggles when working.
CAUTIONS
CONTENTS
Torque multiplier
Pin Supplied in a plastic box.
HOW TO USE
1. Select a qualified torque wrench
2. Get a torque multiplier
3. Choose a qualified socket
4. Prepare extension bar / reaction foot
1. Choose the qualified socket for bolt and fastened the bolt with the multiplier.
2. Fix the extension bar / reaction foot with the multiplier on the reaction point.
3. Put the torque wrench on the multiplier.
Remark：The input torque value is calculated by the physical formula.
Required Torque / Torque Ratio = Input Torque.
For example：480 Nm / 3 = 160 Nm, 160 Nm is the input torque.
4. Apply the torque wrench gently and evenly until hear the clicking sound
and feel shock.
PART NAME
4
6
1
Manual
Reaction
5
3
2
Input drive
Input drive
Models covered
MT
1 Body
2 Extension bar
3 Reaction foot
4 Input drive
5 Output drive
6 Screw
Force
STOP
CLICK
