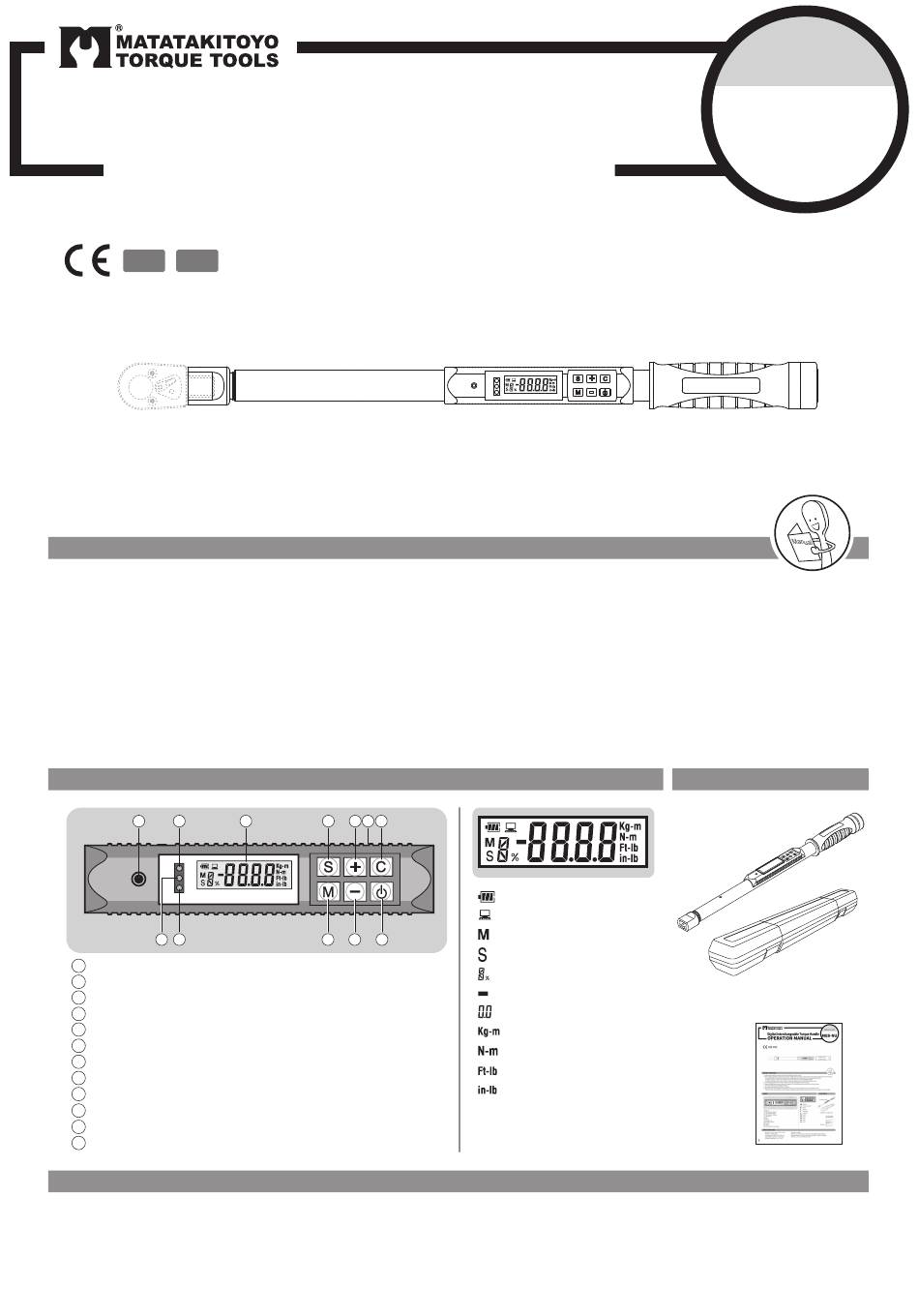

Matatakitoyo Torque Tools MEB-NU Operation Manual

Digital Interchangeable Torque Handle
OPERATION MANUAL
9X12 14X18

BEFORE STARTING

1. Before operating this torque wrench study carefully these instructions.
2. Main usage & application digital torque wrench is different from general torque wrench,it has strong operation function including
torque setting, time setting, mode setting, data storage,data clear, data output and user calibration function.
It is easy to operate, it reduce the requirements for the operator by install the digital display.
It is widely used for the automotive industry, machinery industry, such as bolt fastening and control.
3. Over-torquing (109% of Max. Torque range) could cause breakage or lose of accuracy.
4. Keep this digital torque wrench away from magnets. If the wrench gets wet, wipe it with a dry towel soon.
The salt in seawater can damage the wrench.
5. Do not apply excessive force to the LCD screen .
6. The plastic body is not affected by petroleum products but may be damaged by some industrial solvents.
Clean it by clean cloth soaked in mineral spirits or denatured alcohol. Never immerse this wrench or any part of it in any liquid.
PANEL
1 3
2 4
1 Buzzer
2 LED indicator (Green)
3 LED indicator (Red)
4 LED indicator (Yellow)
5 LCD panel
6 Set
7 Memo
8 Increase ; Up
9 Decrease ; Down
10 Cancel
11 Power
Mini-USB Communication
12

SPECIFICATIONS

• Accuracy : C.W. ± 1% / C.C.W. ± 1.5%
• Memory : 100 Readings
• Unit Selection : kg-m, N-m, ft.lb, in.lb
• Operating Temperature : -10℃~55℃
• Storage Temperature : -40℃~85℃
1
5 6 8 12 10
9 11
7
• Humidity : 0~90%
• Battery : 1.5V UM-3 (AA) x 3 ( Do not use low self-discharge battery )
• Operating Mode : Auto Reset & Track (See Page-2 Tolerance Setting)
• Warranty : 1 year in normal statement.
Battery
Communication
Memo
Setting
Tolerance
Direction
Values
Units
Units
Units
Units
Models covered
MEB-NU
CONTENTS
Torque wrench
Supplied in a plastic box.
Manual
