Matatakitoyo Torque Tools MT-1000 Operation Manual

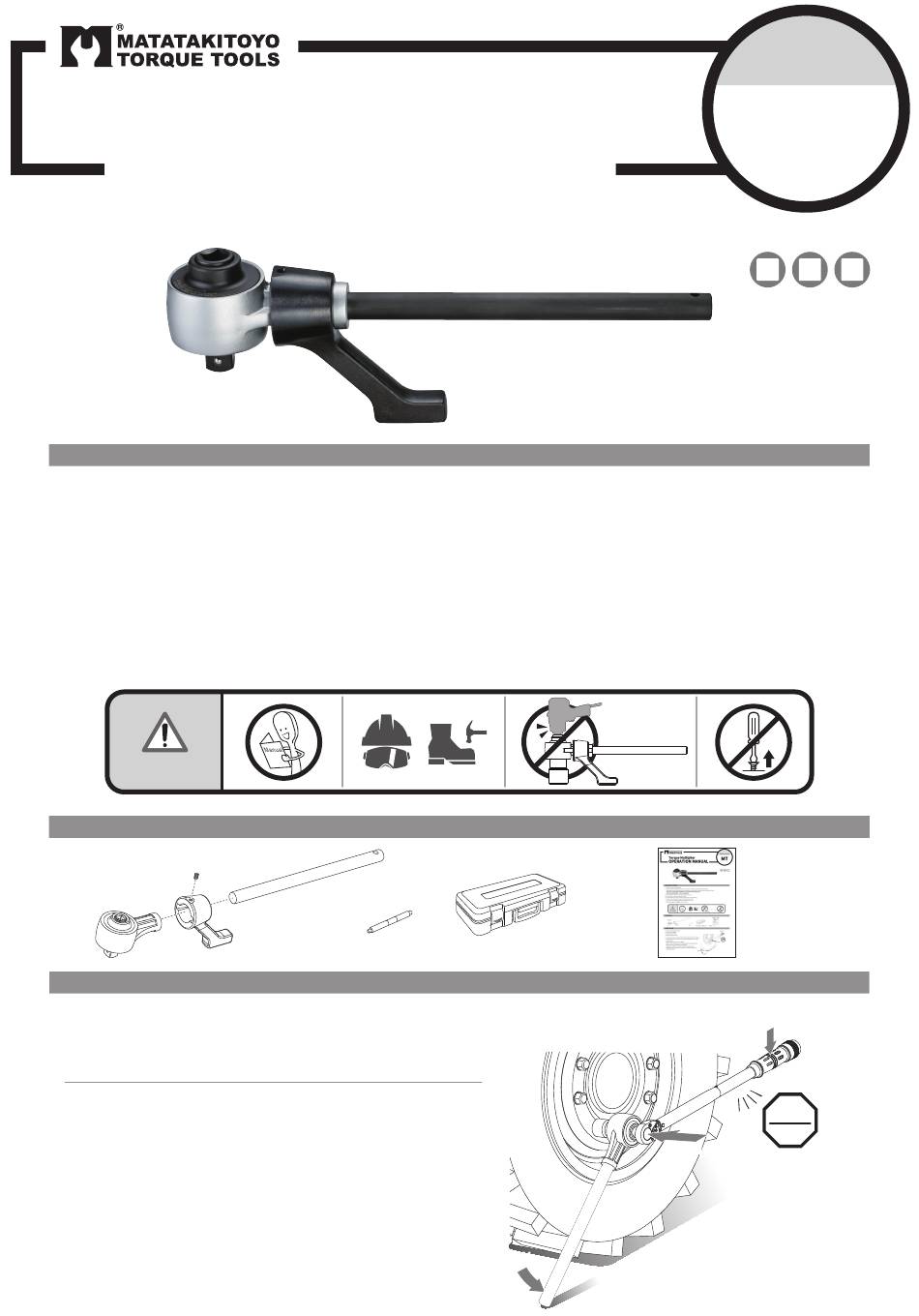

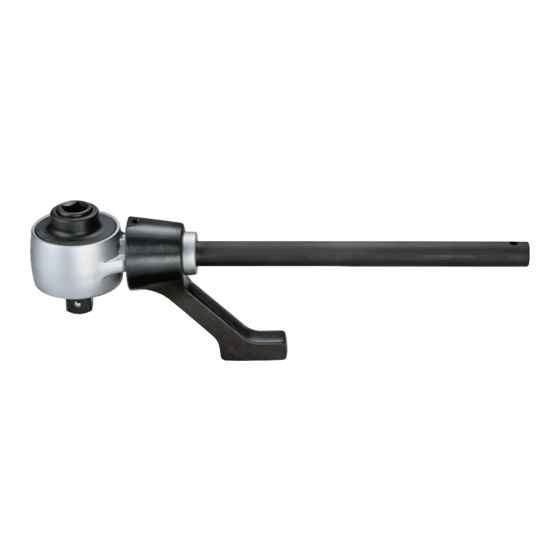

Torque Multiplier
OPERATION MANUAL
BEFORE STARTING
1. Study this instruction before use.
2. This tool is with torque ratio and there is an amount of reaction to be made to the fasteners.
Please keep hands or face away from extension bar / reaction foot. the reaction force might result injury.
3. THIS TOOL IS DESIGNED FOR MANUAL TIGHTENING FASTENERS ONLY.
DO NOT USE ANY IMPACT TOOL TO OPERATE
4. Over torque will cause tool damage and personal injury.
5. Do not use this tool near rotating machinery.
6. Any adjustments will result of losing accuracy and void the warranty.
7. Do not use any format of extension on the handle of the tool.
This will not only damage the tool, also affect the accuracy.
8. Please wear gloves and goggles when working.
CAUTIONS
CONTENTS
Multiplier
HOW TO USE
1. Select a quality torque wrench
2. Get a torque multiplier
3. Choose quality socket
4. Prepare reaction arm/bar
1. Choose the correct size of socket for bolt to be fastened with the multiplier.
2. Fix the extension bar / reaction foot with the multiplier and next to the
reaction point.
3. Put the torque wrench on the multiplier.
Remark：The input torque value is calculated by the physical formula,
Required Torque / Torque Ratio = Input Torque
For example：480 Nm / 3 = 160 Nm, 160 Nm is the input torque
4. Apply the torque wrench gently and evenly until hear the click sound
and feel light shock.
Pin Supplied in a plastic box.
REACTION REACTION
Models covered
MT
1/2"
Manual
FORCE
STOP
CLICK
INPUT DRIVE INPUT DRIVE
3/4" 1"
