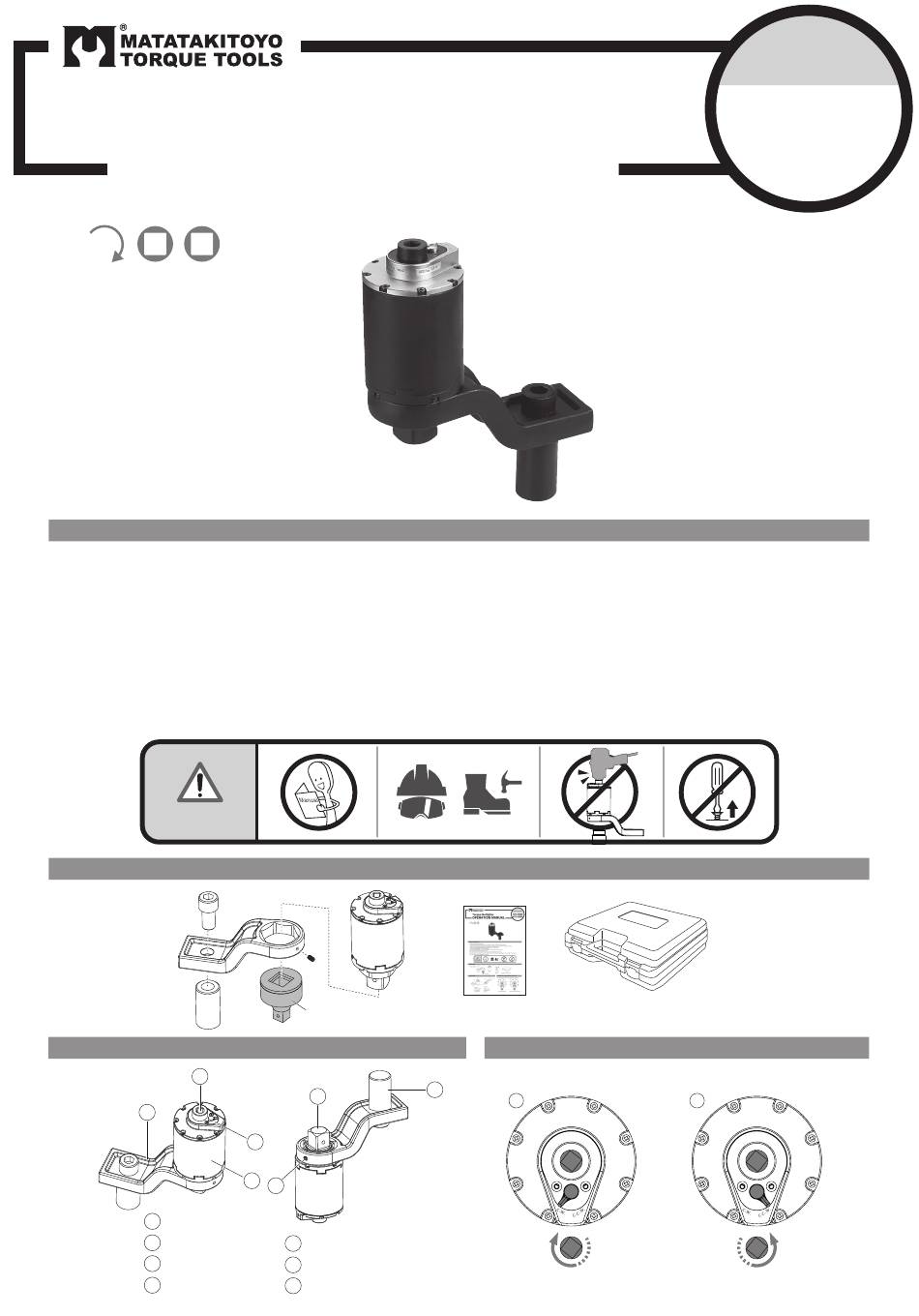

Torque Multiplier
OPERATION MANUAL
TORQUE
1/2"
1-1/2"
BEFORE STARTING
1. Study this instruction before use.
2. This tool is with torque ratio and there is an amount of reaction to be made to the fasteners.
Please keep hands or face away from reaction plate / support stand. The reaction force might result injury.
3. THIS TOOL IS DESIGNED FOR MANUAL TIGHTENING FASTENERS ONLY.
DO NOT USE ANY IMPACT TOOL TO OPERATE.
4. Do not over torquing the fastener, or it will cause tool's damage and serious injury.
5. Do not use this tool near rotating machinery.
6. Any adjustments will result in the loss of accuracy and invalidating the warranty.
7. Do not use any kind of extension on the handle of the tool. This will not only damage the tool, also affect the accuracy.
8. Please wear gloves and goggles when working.
CAUTIONS
CONTENTS
Torque multiplier
PART NAME
4
4
2
1 Body
2 Reaction plate
3 Switch lever
4 Input drive
Optional
5
5
3
1
7
5
5 Output drive
6 Support stand
7 Screw
Manual
Supplied in a plastic box
OPERATING THE RATCHET FUNCTION
Set ratchet direction to the correct direction of operation.
6
A
Clockwise operation
Models covered
MT2-4000N
MT2-4500N
B
counter-clockwise operation
Advertisement
Table of Contents
Related Manuals for Matatakitoyo Torque Tools MT2-4000N
Summary of Contents for Matatakitoyo Torque Tools MT2-4000N
- Page 1 Models covered Torque Multiplier MT2-4000N OPERATION MANUAL MT2-4500N TORQUE 1/2” 1-1/2” BEFORE STARTING 1. Study this instruction before use. 2. This tool is with torque ratio and there is an amount of reaction to be made to the fasteners. Please keep hands or face away from reaction plate / support stand. The reaction force might result injury.
- Page 2 Input Drive Output Drive Accuracy : C.W.±6% Range ( max ) Input Output Torque Ratio ITEM NO. Drive Drive Input Output MT2-4000N 1:10 400 Nm 300 ft.lb 4000 Nm 3000 ft.lb 1/2" 1-1/2" 262.0 228.0 265.0 13.00 MT2-4500N 1:30 150 Nm 110 ft.lb 4500 Nm 3300 ft.lb...
