Adjustable Torque Ｗrench
OPERATION MANUAL
TORQUE
1/4"
3/8"
Ratchet Lever
BEFORE STARTING
1. Study this instruction before use.
2. This torque wrench is calibrated and tested before leaving the factory, it is certified to meet the current standard specification and has
an accuracy of C.W.±4%.
3. THIS TOOL IS A PRECISION MEASUREMENT AND DESIGNED FOR MANUAL TIGHTENING FASTENERS ONLY.
DO NOT USE IT AS A NUT BREAKER OR FOR ANY OTHER PURPOSE.
4. Do not over torquing the fastener, or it will cause tool's damage and serious injury.
5. Do not use this tool near rotating machinery.
6. Disassemble this tool or make any adjustments will result in the loss of accuracy and invalidating the warranty.
7. Do not continuously apply force after hearing the clicking sound or feel shock.
8. Do not use any kind of extension on the handle of the tool. This will not only damage the tool, also affect the accuracy.
9. Do not immerse grease inside ratchet head. It may cause unexpected damage.
10. Use special care at minimum torque setting.
11. Please wear gloves and goggles when working.
WARNING
HOW TO USE
Position of ratchet lever for clockwise tightening.
Right
Left
1/4", 3/8", 1/2"
3/4", 1"
STOP
CLICK
Do not continuously apply force after
hearing the clicking sound or feel shock.
1/2"
3/4"
1"
Tube
Choose a qualified socket
Graduation Scale
Main Scale
Hand Force
Insert square drive securely to the socket.
CONTENTS
Torque wrench
Models covered
T
Grip
Lock
Supplied in
a plastic box.
Manual
Advertisement
Table of Contents

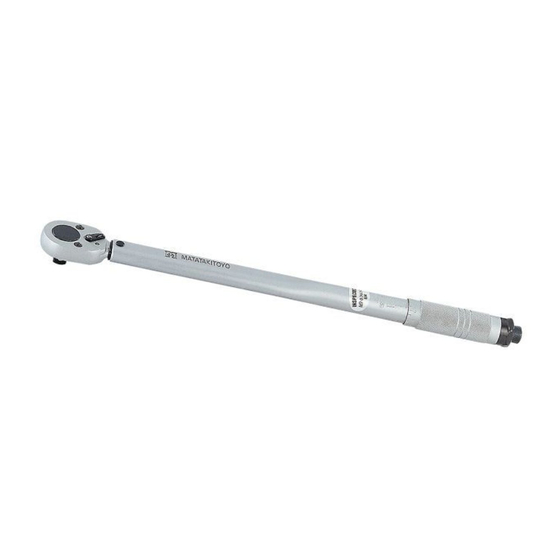

Related Manuals for Matatakitoyo Torque Tools T-25N
Summary of Contents for Matatakitoyo Torque Tools T-25N

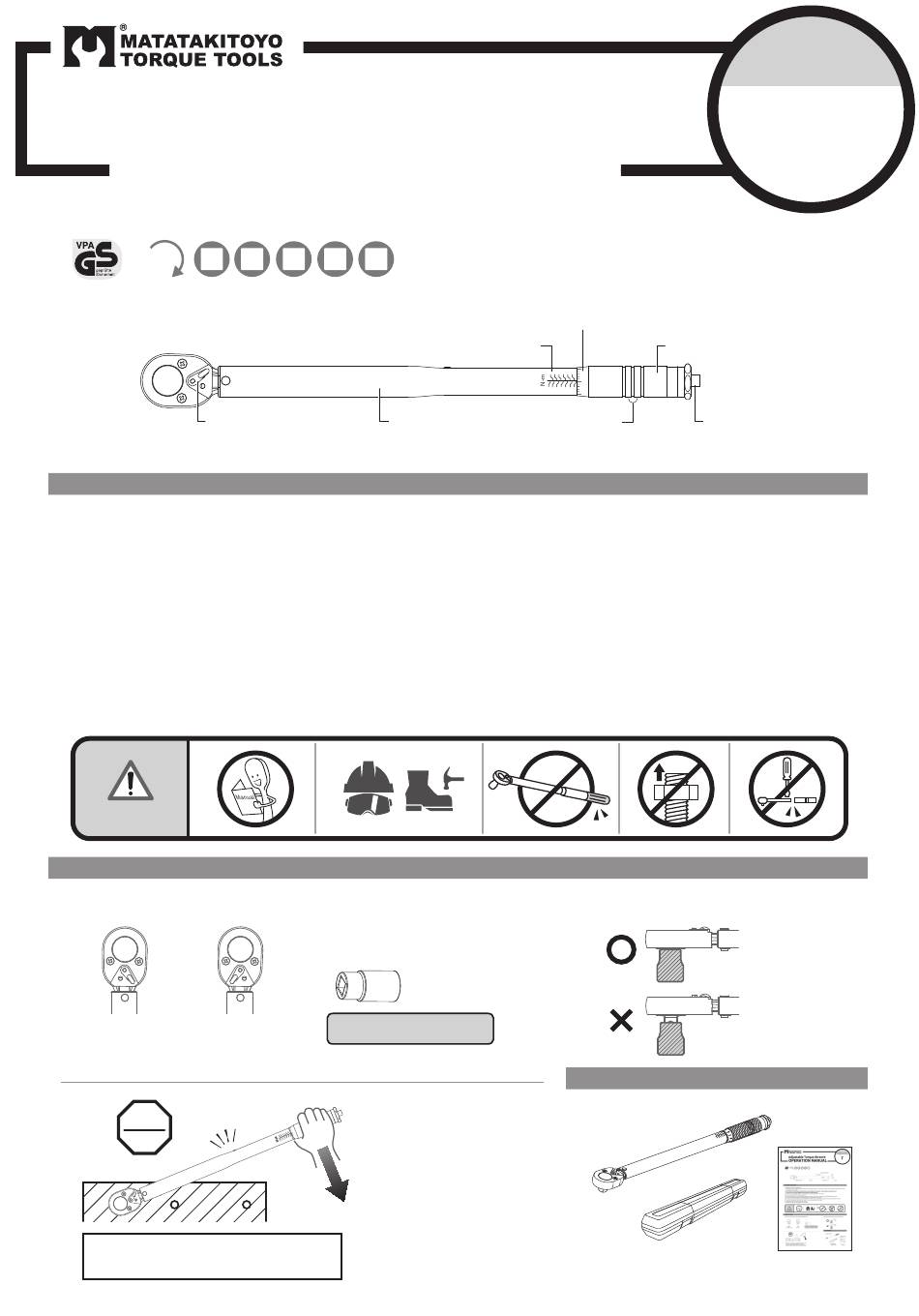

- Page 1 Models covered Adjustable Torque Ｗrench OPERATION MANUAL TORQUE 1/4” 3/8” 1/2” 3/4” 1” Graduation Scale Main Scale Grip Ratchet Lever Tube Hand Force Lock BEFORE STARTING 1. Study this instruction before use. 2. This torque wrench is calibrated and tested before leaving the factory, it is certified to meet the current standard specification and has an accuracy of C.W.±4%.
- Page 2 ITEM NO. Range ØD ITEM NO. Range ØD 20.3 20.3 1/4” 1/4” T-200i 35 -200 in.lb 1 in.lb 28.7 29.0 T-25N 5-25 Nm 0.1 Nm 28.7 29.0 0.56 0.56 23.6 23.6 3/8” 3/8” T-80F 15-80 ft.lb 0.5 ft.lb 36.5 27.8 29.0...
