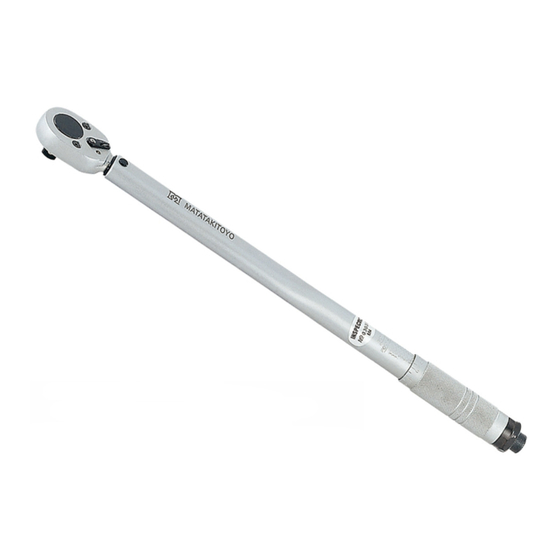

Interchangeable Head
Adjustable Torque Handle
OPERATION MANUAL
TORQUE
9X12
14X18
Push Button
BEFORE STARTING
1. Study this instruction before use.
2. This torque wrench is calibrated and tested before leaving the factory, it is certified to meet the current standard specification and has
an accuracy of ±4%.
3. THIS TOOL IS A PRECISION MEASUREMENT AND DESIGNED FOR MANUAL TIGHTENING FASTENERS ONLY.
DO NOT USE IT AS A NUT BREAKER OR FOR ANY OTHER PURPOSE.
4. Do not over torquing the fastener, or it will cause tool's damage and serious injury.
5. Do not use this tool near rotating machinery.
6. Disassemble this tool or make any adjustments will result in the loss of accuracy and invalidating the warranty.
7. Do not continuously apply force after hearing the clicking sound or feel shock.
8. Do not use any kind of extension on the handle of the tool. This will not only damage the tool, also affect the accuracy.
9. Do not immerse grease inside ratchet head. It may cause unexpected damage.
10. Use special care at minimum torque setting.
11. Please wear gloves and goggles when working.
WARNING
HOW TO USE
Choose a qualified accessory.
STOP
CLICK
Tube
※Accessories are not included.
Push
Accessory
Do not continuously apply force after
hearing the clicking sound or feel shock.
Main Scale
Graduation Scale
Grip
Insert square drive securely to the accessory.
CONTENTS
Torque handle
Supplied in a plastic box.
Models covered
ATP
Lock Ring
Hand Force
Manual
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Matatakitoyo Torque Tools ATP
Summary of Contents for Matatakitoyo Torque Tools ATP

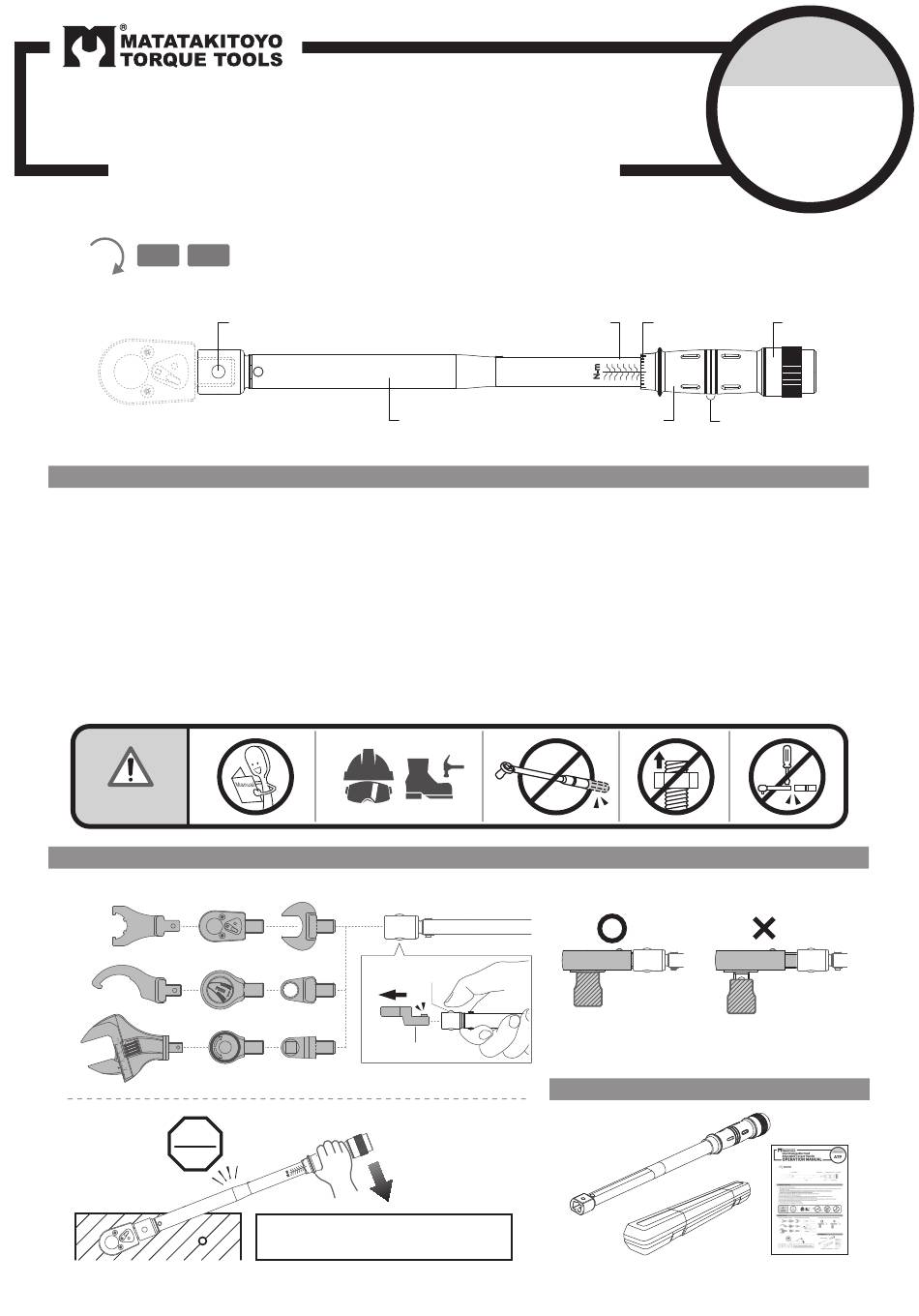

- Page 1 Models covered Interchangeable Head Adjustable Torque Handle OPERATION MANUAL TORQUE 9X12 14X18 Push Button Main Scale Graduation Scale Lock Ring Tube Grip Hand Force BEFORE STARTING 1. Study this instruction before use. 2. This torque wrench is calibrated and tested before leaving the factory, it is certified to meet the current standard specification and has an accuracy of ±4%.
