P802Serial LEVELING INSTRUCTION
V2.0.1
Note:
1. You should level the print plate at the first time before printing.
2. Please clean the nozzle before leveling , ensure that no other residual material.
3. For the convenience of adjusting the gap between extruder head and print plate,please try to use an A4 paper to drag
between them if moving smoothly (Fig 1).
Step 1. Preparation before leveling
1. Please confirm the correct control board wiring.( refer to the "control board wiring diagram" in installation guide ).
2. Power on , ensure that LCD display & keypad operating properly.
3. Ensure the motors and the limit switches work normally (Fig 2)
4. Before adjusting ,please be familiar with using LCD operating menu and keypad.

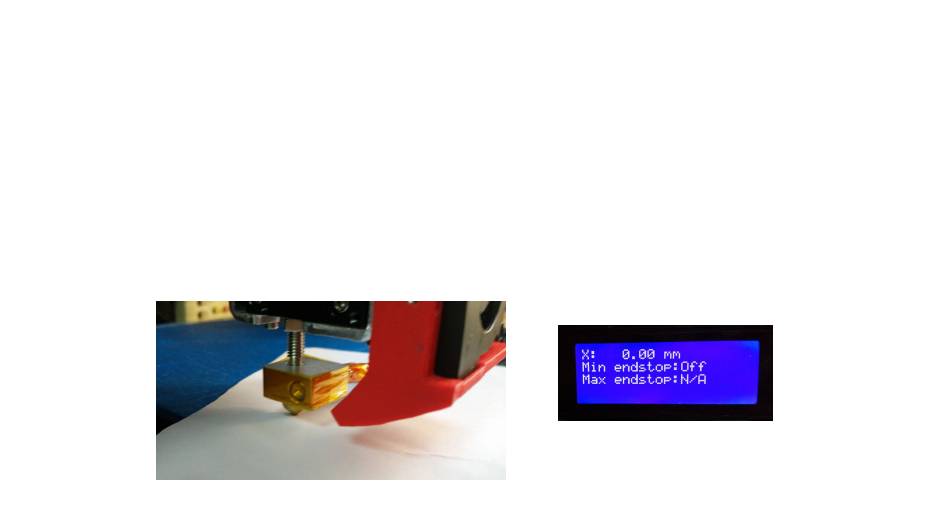

Fig1: check height between extruder head and bed
Fig 2: Check end stops state
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Zonestar P802Serial
Summary of Contents for Zonestar P802Serial
- Page 1 P802Serial LEVELING INSTRUCTION V2.0.1 Note: 1. You should level the print plate at the first time before printing. 2. Please clean the nozzle before leveling , ensure that no other residual material. 3. For the convenience of adjusting the gap between extruder head and print plate,please try to use an A4 paper to drag between them if moving smoothly (Fig 1).
- Page 2 Step 2. Initial adjustment 1. Turn off the power. Move the Z-axis limit switch to the lowest position, do not tension the limit switch screws. 2. Adjust the 4pcs thumb nuts, let the bottom of the screw and the thumb nuts are level.(fig3) 3.
- Page 3 Step 3. Fine adjustment 1. Turn on the power. 2. See the LCD display , enter to the menu and then select “Position” using keypad. Press DOWN key to point to “Home Z” (fig8) 3. Right click to execute, Pay attention to the gap between nozzle and plate, adjust the screw if the gap is too big or too small (fig 7) . 4.
