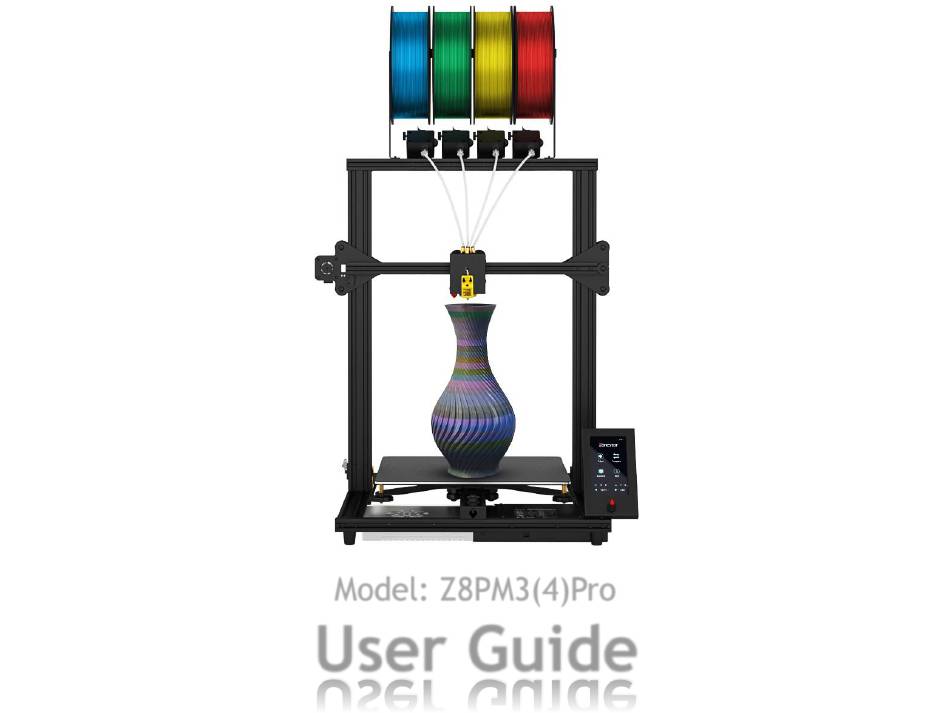

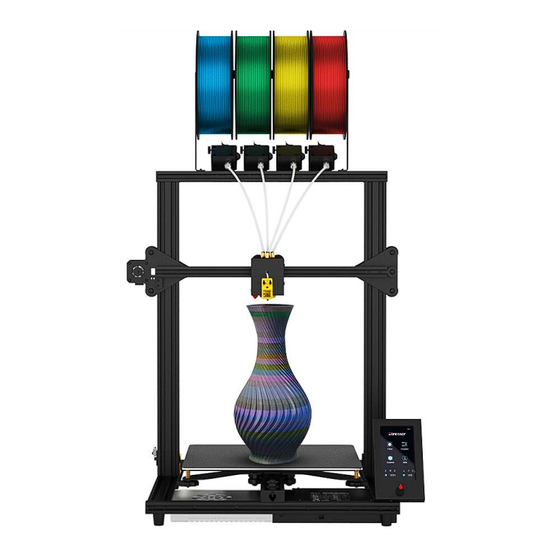

Model: Z8PM3(4)Pro
User Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Z8PM4 Pro and is the answer not in the manual?

Questions and answers

Related Manuals for Zonestar Z8PM4 Pro

Summary of Contents for Zonestar Z8PM4 Pro

  • Page 1 Model: Z8PM3(4)Pro User Guide...
  • Page 2 !! ATTENTION !! Please strictly follow the standard operation when installation. Please put the printer away from the reach of kids. Must be guided by adults when children are installed or used. Take care when installation, to avoid electrical shock hazards. Caution: Hot! Hotend has high temperature even the printer stop working.

  • Page 3: Parts List

    Parts List Name Check Name Check Base Module Contol Panel □ □ Extruders Scews, lead screws fix blocks, □ □ (3 sets for M3 and 4 sets for M4) ENDSTOPs, Fittings, PTFE Tubes, belt, cable tie, etc. Z-axis Motor Modules (2 sets) Filament Roll Bracket □...
  • Page 4 Parts 2x Z aluminum profiles, there are 4 taping hole on the end These two holes on the bottom There are 2 hole on the bottom side when install 1x top aluminum profile, there are many hole on the front 1x X Profile, 2020-420mm, There are two big hole on the back 2x lead screws insert into the Z profie (They are put inside the Z aluminum profiles)
  • Page 5 Install Z axis Parts M4x18 *4 2040V profiles NOTE: There are two hole on the profile, let the side with holes on the bottom. M4x25 *4 Install Zmotor module to the Z profiles Install Z profiles to base M4x18 *2 Z ENDSTOPs About 18mm Install Z ENDSTOPs module to the out side of the Z profiles...
  • Page 6 Install Z axis Parts Install Z Carrier Install lead screws Note: Adjust the eccentric cloumns let the carrier Through the Fixed on the Coupling hold the rail well and copper nut of Z axis motor move smoothly. Install Top profile M4x25 *4 Top profile...
  • Page 7 Install X axis Parts Install X belt idler and X profile M4x18 *4 X Profile Install the X belt idler to the Z right Install the X profile to carrier, move it from right to left the Z carrier...
  • Page 8 Install X axis Parts Install X profile Keep the same heigth Before fixed the X profile Install print head (hotend assembly) Slide in the hotend from the right to left Layout the hotend cable...
  • Page 9 Install X belt Install the X belt Hotend (the hotend be hide in this picture) X Timing Belt Adjust the eccentric cloumns, let the X carrier hold the rail well and move smoothly Tigthen the X belt Move X belt idler to the left Move X belt idler to the right before fix the belt...
  • Page 10 Install the other parts x 3 o r 4 Z8-M3 is 3 sets and Z8- M4 is 4 sets NOTE: Try to rotate the extruders a little when install to keep a little clearance between the adjusting screw and the indenter. M4x18 *6(8) Install Extrusion feeders to the top of the frame Install the LCD screen on the right/bottom of printer...
  • Page 11 Debug the Z Movement system Keep the lead screws parallel to the Z axis profiles as far as possible will help to obtain better printing quality, please debug them refer to the following steps: Step 1. Loosen all the screws a little that fixed the Z motors and T8 copper nut. Step 2.
  • Page 12 Adjust height of Z ENDSTOPs Step 1: Adjust the 4 hand nuts under the hotbed, let the hotbed is parallel with bottom profile. Step 2: Manual rotate the couplings on both of the Z axis motors , let the nozzle touched the hotbed. Step 3: Move up the ENDSTOP , let its RED part touched the pulley of the Z carriers.
  • Page 13 !!ATTENTION!! Take care when installation, to avoid electrical shock hazards! Set the 110V/220V swicth (on the side of power supply) to correct position according to your city power voltage! DC-IN, HOTBED has lager operating current, please make sure these wires contact well with the terminal. Double check the wiring! WRONG WIRING MAY DAMAGED THE ELECTRONIC DEVICE! Stop working immediately...
  • Page 14 About electronics parts X MOTOR and X SW Y MOTOR and Y SW Z1 MOTOR and Z1 SW DC power button See from left Filament run out sensor (Optional) Bed leveling Sensor NOTE: Y SW can be installed to the right side too Y MOTOR Hotend Extruder...
  • Page 15 Wiring Block...

  • Page 16: Bottom View

    Layout the wires / cables BOTTOM VIEW BACK VIEW X Motor w/ SW cable HOTEND Cable HOTEND Cable ZL Motor w/ SW cable E1 Motor E2 Motor cable E3 Motor cable FRODs wire ZR Motor w/ SW cable E1 Motor w/ SW cable X Motor w/ SW E2 Motor cable cable...

  • Page 17: Check Before Power On

    Check before power on It is very important to check the machine before power on. It can eliminate the trouble brought by some hardware to ensure the smooth printing! Step 1:Please check if the X&Y axis timing pulley are fixed on the shaft of motor, and the couplings are fixed on the shaft of the Z motors.

  • Page 18: Power On/Power Off

    Power ON / Power OFF !!ATTENTION!! MAKE SURE THE AC VOLTAGE SELECT SWITH HAS BEED SET TO THE CORRECT POSITION!!! POWER ON until the LCD shows Logo Plug in power Turn ON Push and hold and release the DC cord AC Power Switch power button power button...
  • Page 19 LCD Menu and Operation Printing from SD card Title bar Prepare to printing Menu bar Setup the machine Status bar Information of the machine Control handle For details on the TFT-LCD menu, please refer to "LCD_DWIN Menu Description.pdf".
  • Page 20 Prepare to print - Level the hotbed 1. Power on the 3d printer and then do “Prepare>>Auto Home>>Home All” on control panel, wait the hotend go to the HOME (origin) position. 2. Watch the nozzle, tighten the hand nuts under the bed to move down or loosen these nuts to move up the bed (Fig 1), let the nozzle is higher than the bed about 1~2mm.
  • Page 21 Prepare to print - Load Filament 1. Check the hotend, make sure only the center channel of the hotend connected “filament guide” and the others channels has been closed by hotend clean tools (Fig 1). 2. Do “Prepare>>Auto Home>>Home All” on control panel, and then do repare>>Temperature>> Preheat PLA”, waiting nozzle Temperature reached to 190 ℃...
  • Page 22 Print your first work 1. Insert the SD card to the SD card socket on the printer (Fig 1). 2. Click “Print” on the control panel and choose “Test gcode\xyz_cube.gcode” (Fig 2), click the knob to start printing. 3. Wait until the hotend and hotbed is reached to the setting temperature (Fig 3), the nozzle will home to the origin position and then move to above of the printing platform and extrude the filament, use a tweezers to remove the outflow filament (Fig 4).
  • Page 23 Slicing About slicing Slicing a 3D drawing translates the 3D drawing into a language that a 3D printer can understand and print. The slicing software is a computer software used in the majority of 3D printing processes for the conversion of a 3D object model to specific instructions for the printer.

  • Page 24: Advance Features

    Advance features NOTE: Do not turn on these functions until you clearly understand how to use them and precautions.  Bed auto leveling feature: This printer is equipped with a Bed leveling sensor (PL-08N), with this sensor, you can correct the unevenness of the hot bed.
  • Page 25 Upgrade your printer You can print something to upgrade your printer, we have made some printed part and store the stl file to the SD card, you can feel free to slicing it and print it out, and then install them to your kit to make the printer better. cap_af_40v.stl cap_af_20v.stl...

This manual is also suitable for:

Z8pm3 pro
