This user's guide describes the characteristics, operation, and use of the INA301EVM evaluation module.
This guide discusses how to set up and configure the hardware. Throughout this document, the terms
evaluation board, evaluation module, and EVM are synonymous with the INA301EVM. This document also
includes an electrical schematic, printed circuit board (PCB) layout drawings, and a parts list for the EVM.
.....................................................................................................................
1
Overview
2
INA301EVM Hardware
3
Schematic, PCB Layout, and Bill of Materials
1
INA301EVM Test Board Block Diagram
2
INA301EVM Test Board Schematic
3
INA301EVM Component Placement
4
PCB Top Layer
5
PCB Bottom Layer
1
INA301EVM Kit Contents
2
Related Documentation
3
INA301 Test Board BOM
All trademarks are the property of their respective owners.
SBOU154 – November 2015
Submit Documentation Feedback
......................................................................................................
..................................................................................
.......................................................................................
......................................................................................
...............................................................................................................
...........................................................................................................
...................................................................................................
.....................................................................................................
..................................................................................................
Copyright © 2015, Texas Instruments Incorporated
INA301EVM User's Guide
Contents
...........................................................................
List of Figures
List of Tables
User's Guide
SBOU154 – November 2015
INA301EVM User's Guide
2
3
5
3
5
6
7
8
2
2
9
1
Advertisement
Related Manuals for Texas Instruments INA301EVM
Summary of Contents for Texas Instruments INA301EVM

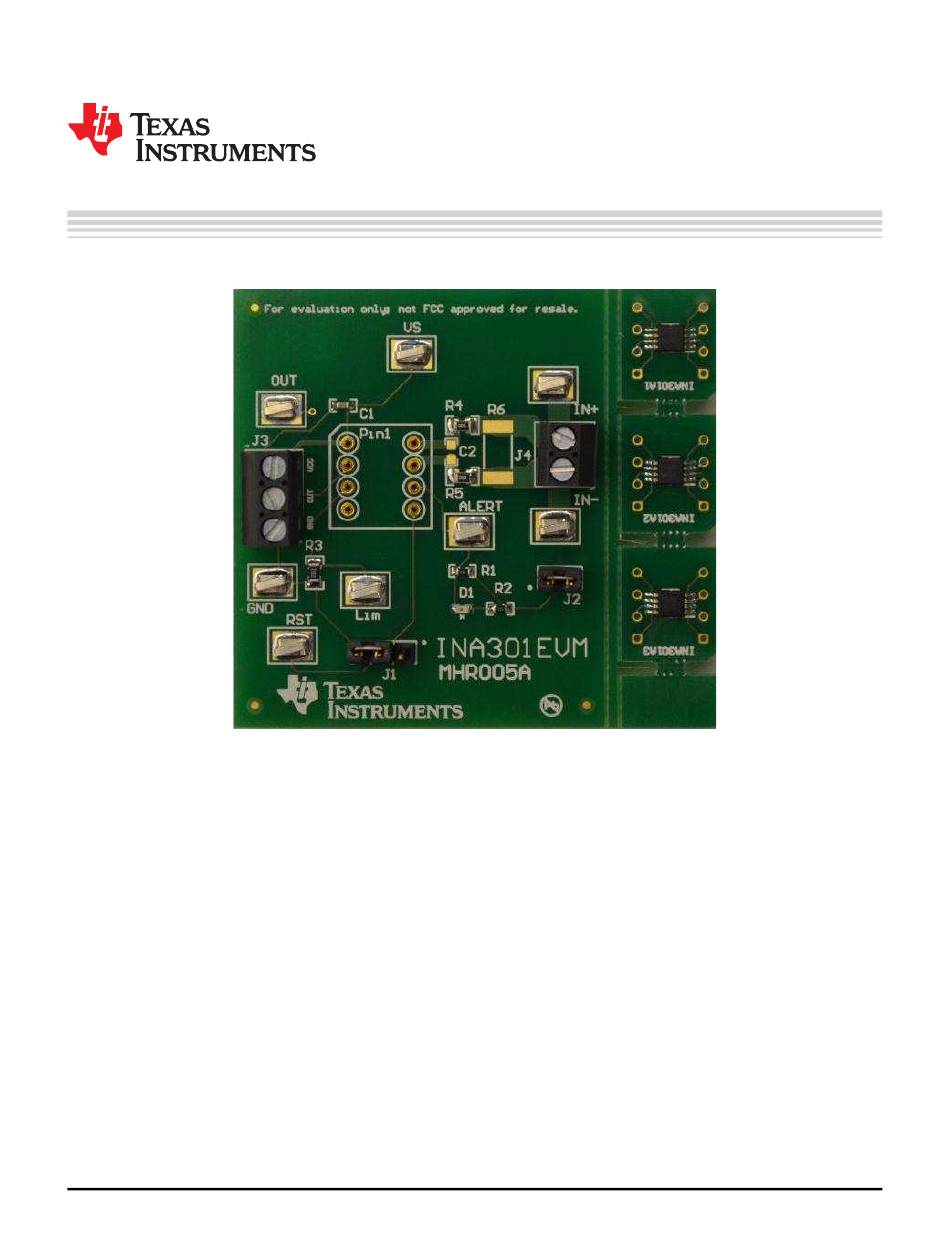

- Page 1 SBOU154 – November 2015 INA301EVM User's Guide This user’s guide describes the characteristics, operation, and use of the INA301EVM evaluation module. This guide discusses how to set up and configure the hardware. Throughout this document, the terms evaluation board, evaluation module, and EVM are synonymous with the INA301EVM. This document also includes an electrical schematic, printed circuit board (PCB) layout drawings, and a parts list for the EVM.
- Page 2 The following documents provide information regarding Texas Instruments' integrated circuits used in the assembly of the INA301EVM. This user's guide is available from the TI web site under literature number SBOU154. Any letter appended to the literature number corresponds to the document revision that is current at the time of the writing of this document.

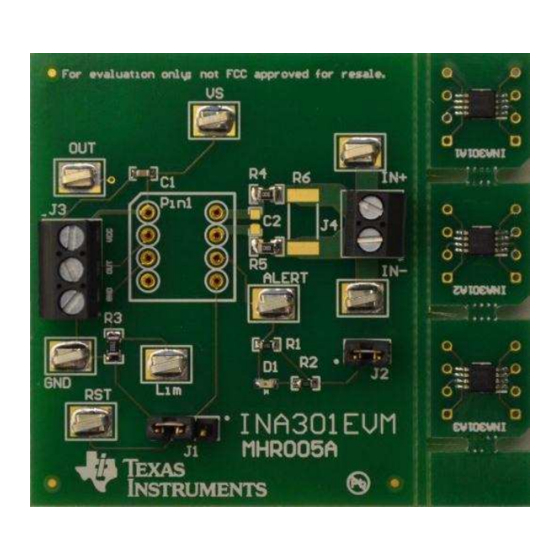

- Page 3 INA301EVM Hardware The INA301EVM requires a 2.7-V to 5.5-V power supply. Connect the VIN+ and VIN– pins across an external shunt resistor in series with a 0-V to 36-V supply to determine the current flowing through that resistor. Use a voltmeter on the OUT pin to measure the voltage output and on the ALERT pin to determine the comparator output.
- Page 4 Quick-Start Setup and Use Follow these procedures to set up and use the INA301EVM: 1. Connect an external dc supply voltage between 2.7 V and 5.5 V to the J3-1 terminal. 2. Connect the desired input to the J4 terminal. This input is either a remote shunt resistor or a differential voltage source with a common-mode voltage of 0 V to 36 V referenced to GND.
- Page 5 VS. C2 along with R4 and R5 creates an optional filter for the VIN+ and VIN– inputs. R6 is an optional shunt resistor for the INA input. Figure 2. INA301EVM Test Board Schematic SBOU154 – November 2015 INA301EVM User's Guide Submit Documentation Feedback Copyright ©...
- Page 6 Schematic, PCB Layout, and Bill of Materials www.ti.com PCB Layout Figure 3 shows the component placement on the INA301EVM test board. There are no components on the bottom layer. Figure 4 Figure 5 illustrate the top and bottom layers, respectively, of the test board.
- Page 7 Schematic, PCB Layout, and Bill of Materials www.ti.com Figure 4. PCB Top Layer SBOU154 – November 2015 INA301EVM User's Guide Submit Documentation Feedback Copyright © 2015, Texas Instruments Incorporated...
- Page 8 Schematic, PCB Layout, and Bill of Materials www.ti.com Figure 5. PCB Bottom Layer INA301EVM User's Guide SBOU154 – November 2015 Submit Documentation Feedback Copyright © 2015, Texas Instruments Incorporated...
- Page 9 High- or Low-Side Current-Sense Amplifier with High-Speed INA301A2IDGKR Texas Instruments Comparator, DGK0008A High- or Low-Side Current-Sense Amplifier with High-Speed INA301A3IDGKR Texas Instruments Comparator, DGK0008A SBOU154 – November 2015 INA301EVM User's Guide Submit Documentation Feedback Copyright © 2015, Texas Instruments Incorporated...
