INSTALLATION AND MAINTENANCE INSTRUCTIONS
B401A Plug-In Detector Base
For use with the following detectors:
1151A, 1451A, 2151A, 2451A, 2451THA, 5451A
Specifications
Base Diameter:
Base Height:
Weight:
Mounting:
Operating Temperature Range:
Operating Humidity Range:
Electrical Ratings — includes base and detector
System Voltage:
Maximum Ripple Voltage:
Start-up Capacitance:
Standby Ratings:*
Alarm Ratings:
Reset Voltage:
Reset Time:
Start-up Time:
* 1151E: 30 µA Maximum.
** Alarm current MUST be limited to 100 mA maximum (130 mA for models 1151A and 2151A) by the control panel.
If used, the RA400ZA Remote Annunciator operates within the specified detector alarm currents.
Before Installing
Please thoroughly read System Sensor manual I56-407,
Guide for Proper Use of System Smoke Detectors, which
provides detailed information on detector spacing, place-
ment, zoning, wiring, and special applications. Copies of
this manual are available from System Sensor.
NOTICE: This manual should be left with the owner/user
of this equipment.
IMPORTANT: The detector used with this base must be
tested and maintained regularly following CAN/ULC-S536
requirements. The detector used with this base should be
cleaned at least once a year.
D450-08-00
10.2 cm (4.0 inches)
2.0 cm (0.8 inches)
152 g (0.34 lb.)
50 mm box
60 mm box
0° to 49°C (32° to 120°F)
10% to 93% Relative Humidity
Base And Smoke Detector
12/24 VDC
4 Volts peak to peak
0.02 µF Maximum
8.5 VDC Minimum
35 VDC Maximum
120 µA Maximum
4.2 VDC Minimum at 10 mA**
6.6 VDC Maximum at 100 mA**
2.5 VDC Minimum
0.3 Seconds Maximum
34 Seconds Maximum
6581 Kitimat Rd. Unit #6 Mississauga, Ontario L5N 3T5
Base And Heat Detector
24 VDC
4 Volts peak to peak
0.02 µF Maximum
15 VDC Minimum
35 VDC Maximum
100 µA Maximum
4.2 VDC Minimum at 10 mA**
6.6 VDC Maximum at 100 mA**
2.5 VDC Minimum
0.3 Seconds Maximum
34 Seconds Maximum
General Description

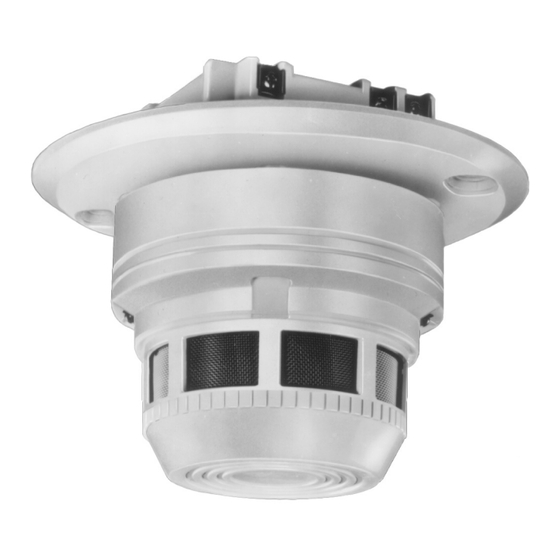

This B401A plug-in detector base is used with System
Sensor smoke and heat detector heads. The capability of
plugging these detectors into a variety of special bases
makes them more versatile than equivalent direct-wired
models. Refer to the System Sensor catalog for other
available plug-in detector bases.
The B401A base is intended for use in 2-wire systems, with
screw terminals provided for power and remote annuncia-
tor connections.
1
1-800-SENSOR2, FAX: 905-812-0772
www.systemsensor.ca
I56-1877-000
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for System Sensor B401A
Summary of Contents for System Sensor B401A
- Page 1 If used, the RA400ZA Remote Annunciator operates within the specified detector alarm currents. General Description Before Installing Please thoroughly read System Sensor manual I56-407, This B401A plug-in detector base is used with System Guide for Proper Use of System Smoke Detectors, which Sensor smoke and heat detector heads. The capability of provides detailed information on detector spacing, place- plugging these detectors into a variety of special bases ment, zoning, wiring, and special applications. Copies of...
- Page 2 Mounting Figure 1. Mounting base to box: Figure 1 shows mechanical mounting details. These detec- tor bases mount to typical junction boxes. Attach the base to the box using the screws supplied with the junction box. SHORTING SPRING Installation Guidelines All wiring must be installed in compliance with applicable codes and the authority having jurisdiction. Proper wire gaug- es should be used. The conductors used to connect smoke detectors to control panels and accessory devices should be color-coded to reduce the likelihood of wiring errors. Improper connections can prevent a system from responding properly in the event of a fire. For signal wiring (the wiring between interconnected detec- tors), it is recommended that the wire be no smaller than 18 gauge. Wire sizes up to 12 gauge may be used with the base. For best system performance, the power (+) and (–)
- Page 3 Figure 2. Typical 2-wire detector wiring configuration: REMOTE REMOTE ANNUNCIATOR ANNUNCIATOR CLASS A OPTIONAL WIRING A78-1175-04 is removed from the base. DO NOT remove the shorting The tab is accessible through the slot on the mounting spring since it reengages as the detector head is turned in base (see Figure 3B).
- Page 4 Please refer to insert for the Limitations of Fire Alarm Systems Three-Year Limited Warranty System Sensor warrants its enclosed smoke detector base to be free Unit# 6 Mississauga, Ontario L5N 3T5. Please include a note describing from defects in materials and workmanship under normal use and service the malfunction and suspected cause of failure. The Company shall not for a period of three years from date of manufacture. System Sensor be obligated to repair or replace units which are found to be defective makes no other express warranty for this smoke detector base. No agent, because of damage, unreasonable use, modifications, or alterations...
