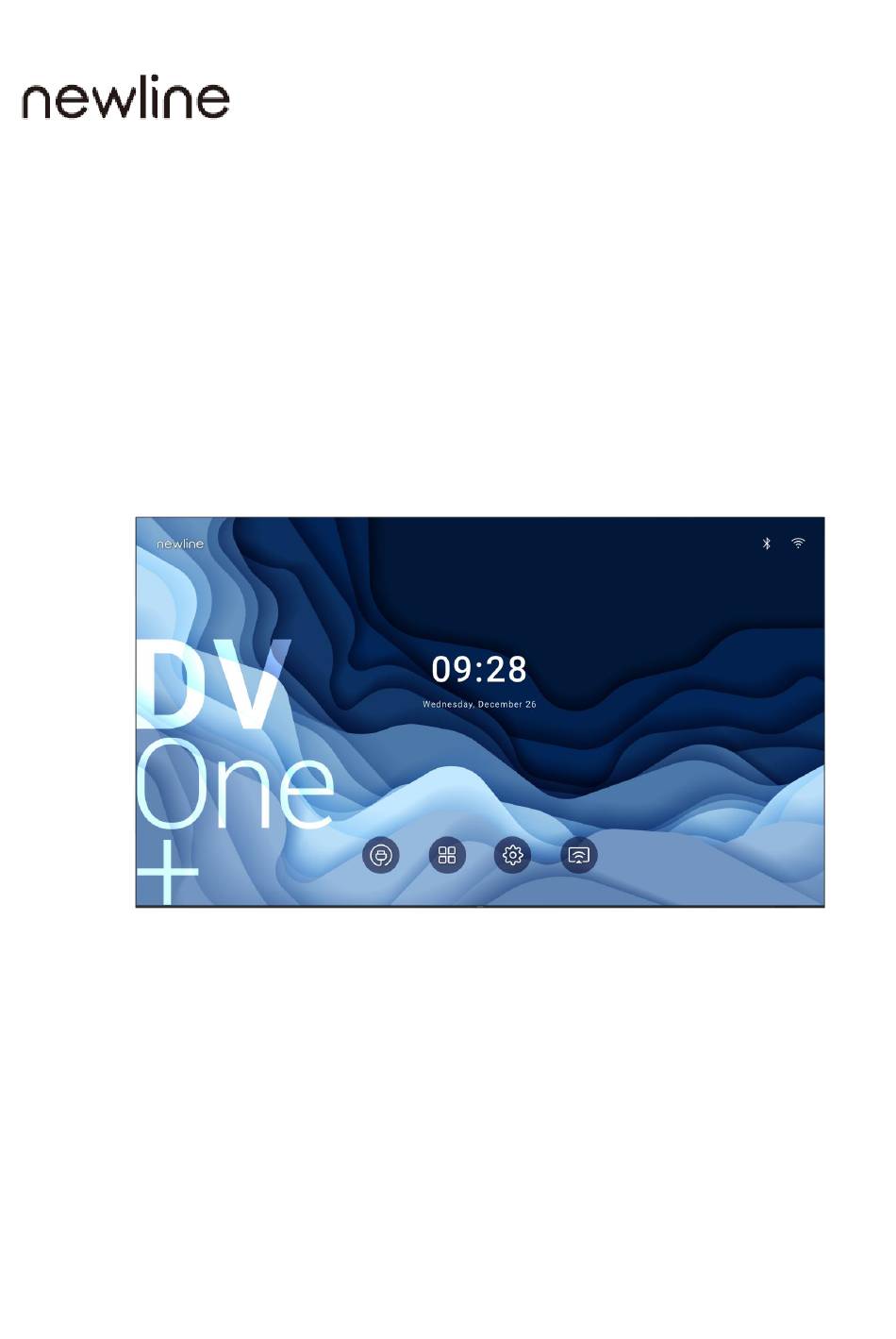

- Page 1 DV ONE+ All-in-one Direct View LED Display User Manual Extended ver si on 1 00220 25...
- Page 2 3.3 Signal Source ........................... 13 3.3.1 HDMI Input ..........................14 3.3.2 Type C Input ..........................14 3.4 Apps..............................14 3.4.1 Newline Display Management+ ....................15 3.4.2 Newline Cast+ ..........................15 3.4.3 Newline VCS ..........................16 3.4.4 File Commander .......................... 16 3.5 Settings ............................
- Page 3 7.3 Common Fault Analysis ......................26 8 Transportation and Delivery ......................... 27 8.1 Transportation ..........................27 8.2 Storage............................27 9 Warranty ..............................27 10 Recycling of Discarded Goods ......................28 Newline Interactive Inc newline-interactive.com...
- Page 4 Welcome to the world of Newline Thank you for choosing newline All-in-one Direct View LED Display. Please use this document to get the most out of your screen. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
- Page 5 DO NOT place fire or any device that gives off high heat around the display. Please use original newline accessories. If you need to use self-purchased accessories, please consult customer service. Arrange professional personnel to inspect the screen regularly.
- Page 6 It is also needed when presenting the equipment for debugging, and is part of the device. Check the delivered device for any obvious damage during transportation. Verify that the goods shipped contains the complete device and accessories you ordered Newline Interactive Inc newline-interactive.com...
- Page 7 Caution: Failure to take appropriate protective measures may result in minor personal injury. Attention: If corresponding protective measures are not taken, it may lead to unexpected results. Documentation Scope of application of this document: This article is applicable to newline DV One+. Newline Interactive Inc newline-interactive.com...
- Page 8 Copyright Notice Newline reserves the right to make changes to this product manual without prior notice. We are not responsible for any direct, indirect, intentional or unintentional damages or hidden dangers caused by not following the product manual for installation or improper use.
- Page 9 Power Input Power supply Rear Interface(Up) Connecting the external device Rear Interface(Side) Connecting the external device Notes: The product images shown are for illustration purposes only and may not be an exact representation of the product. Newline Interactive Inc newline-interactive.com...
- Page 10 RJ45 network interface Used for networking Used for video output,1080p mode HDMI OUT interface RS232 interface Used for achieving centralized control HDMI 2(ARC) interface Used for external device video access USB3.0 interface Used for connecting to USB device Newline Interactive Inc newline-interactive.com...
- Page 11 First-time use requires Bluetooth pairing between the DV One+ and the remote control (hold the volume - and brightness - buttons simultaneously for 5 seconds; the remote control indicator light will flash to enter pairing mode). Newline Interactive Inc newline-interactive.com...
- Page 12 Please properly shut down the device before disconnecting the power source or it may cause damage. Accidental power failure may cause damage to the device. Do not repeatedly turn the power on & off in a short period of time as it may cause malfunction. Newline Interactive Inc newline-interactive.com...
- Page 13 Name Description Date and Real-time synchronisation of time and date. Time Apps Included Signal Source, Apps, Settings and newline cast+. Status Icon Network status, Bluetooth status, microphone mute icon can be displayed. Notes: The system will enter the homepage by default, users can enter "Settings＞General＞Default Source" to set the default signal source.
- Page 14 " icon on the homepage, then select the Type C port icon to achieve screen sharing. 3.4 Apps System is pre-installed with some applications, click the " " icon or press the " " icon on the remote control to view all the applications. Newline Interactive Inc newline-interactive.com...
- Page 15 Newline Display Management Plus is a remote display management solution that enables users to centrally manage the Newline displays from the comfort of their desk. Users can deploy and install apps, configure display settings, and push updates without communicating back and forth.
- Page 16 Home Page to enter Newline Cast+. On screen directions will appear for you to follow in order to wirelessly cast to the display, as shown in the following figure: 3.4.3 Newline VCS Newline Visual Communication Solutions powered by TSN is a digital broadcast network designed to provide unified visual communications in schools and businesses.
- Page 17 Copy the selected items. Move the files to other folder 3.5 Settings When you use the All in one display for the first time, you can configure the network, picture and sound to use the display better. Newline Interactive Inc newline-interactive.com...
- Page 18 Calibration) or a URL automatically running on startup, the app auto- launch only acts on Android system. 1. Only one Newline app can be selected at a time; 2. Enter the link, boot automatically jump to the URL. 3.5.2 Network Under the "Network"...
- Page 19 Menu Functions Turn on the set time Automatically; Date & Set the date and time manually when turning off automatic date &time; Time Set time zone; Set the time format as 24 hours. Newline Interactive Inc newline-interactive.com...
- Page 20 Types Format Image JPEG, BMP, PNG MPEG1, MPEG2, MPEG4, H.264, H.265, VP8, VP9, Motion JPEG, HEVC, Video Sorenson H.263 MPEG1/2 LAYER1, MPEG1/2 LAYER2, MPEG1/2/2.5 LAYER3, AAC, HEAAC, Audio VORBIS, LPCM, IMA ADPCM, MS ADPCM, MU_LAW, FLAC Newline Interactive Inc newline-interactive.com...
- Page 21 Connect RS232 port to the PC or controlling product. Enable RS232 serial port connection and complete the following configuration. Port: COM1 (Set according to PC or controlling product’s port number) Baud rate 19200 Odd/even check None Data bits Stop bit The following tables list controlling codes, querying codes and return codes. Newline Interactive Inc newline-interactive.com...
- Page 22 7F 08 99 A2 B3 C4 02 FF 06 XX CF 7F 09 99 A2 B3 C4 02 FF 06 XX 01 CF mode Note: XX indicates the mode. 00- Standard; 01- ECO mode; 02- Custom; 03- auto Newline Interactive Inc newline-interactive.com...
- Page 23 7F 09 99 A2 B3 C4 02 FF 00 1F 01 CF Newline broadcast Close Newline 7F 08 99 A2 B3 C4 02 FF 01 0F CF 7F 09 99 A2 B3 C4 02 FF 01 1F 01 CF broadcast Newline Interactive Inc newline-interactive.com...
- Page 24 7F 09 99 A2 B3 C4 02 FF 01 49 XX CF Notes: Backlight 7F 08 99 A2 B3 C4 02 FF 01 49 CF XX indicates the value of backlight brightness brightness (1 - 100), corresponding to the hexadecimal number system (01 - 64). Newline Interactive Inc newline-interactive.com...
- Page 25 Step 1: Turn off the power of the display. Step 2: Confirm the dirty place of the display. Step 3: Use the dry soft cloth to wipe the dirty area and use the air gun to blow the clean place at the same time. Newline Interactive Inc newline-interactive.com...
- Page 26 No video signal Signal source mismatch output after match and match the signal source. connecting Check for poor contact and correct HDMI cable HDMI cable damaged direction of the HDMI cable, and replace the HDMI cable. Newline Interactive Inc newline-interactive.com...
- Page 27 Excessive product loss or malfunction due to unsuitable environment of use. Other failures caused by reasons other than normal loss (normal loss refers to the loss of the product itself, parts, and software systems, etc. that occur under the premise of this Newline Interactive Inc newline-interactive.com...
- Page 28 Our company is devoted to product innovation and technology enhancement. Therefore, we may change product specification and information without notice. Product pictures in the manual are for reference only, please refer to actual products. Newline Interactive Inc newline-interactive.com...
