Bluetti EP600 Manual

Bluetti EP600 Manual

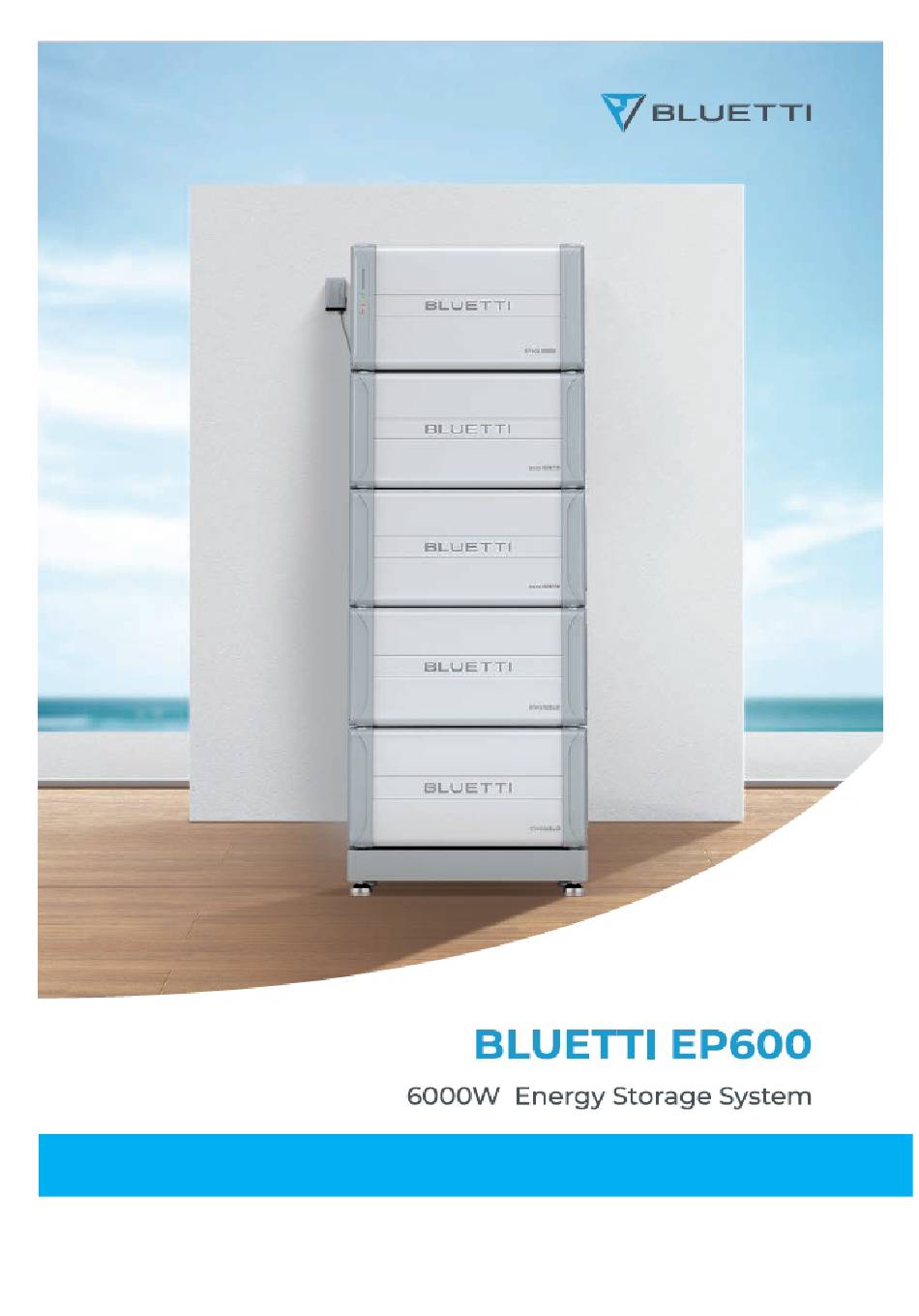

6000w energy storage system
Hide thumbs Also See for EP600:

Advertisement

Table of Contents

How to connect the EP600 to the home main panel.
Entry type: FAQ, Entry ID: 10221009, Entry date: 12/20/2022 v1.8

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EP600 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Bluetti EP600

Summary of Contents for Bluetti EP600

  • Page 1 How to connect the EP600 to the home main panel. Entry type: FAQ, Entry ID: 10221009, Entry date: 12/20/2022 v1.8...

  • Page 2: Table Of Contents

    2.1 Find out the essential household appliances Before installing the EP600 energy storage system, you should consider that if we need to make a backup system . If there is no power outage over the past few months ,you don’t need that. If there a lot of power outage, you need to build a backup system.
  • Page 3 Before installing your EP600 energy storage system, you need to create a plan for the essential backup appliances to balance the loads within the three phases of your home. EP600 support rated 2000VA AC output each phase or three phase 6000VA output . Please allocate the load circuit breakers from which run the appliances.

  • Page 4: Circuit Connection

    Toggle Switch QF2 NOT more than 6000VA. You’re OK! NOTE: Overload for 10 minutes at a maximum power of 2200VA per phase, total 6600VA three phase for the EP600. Circuit connection...
  • Page 5 Before installing the EP600 , We will make a plan that as flowing : 1) Switch to I is use the EP600 supply, we have UPS mode ,so owners can switch to I all the time until EP600 have something fault.
  • Page 6 How to connect the EP600 to home main panel Following is a example home circuit before EP600 installation...
  • Page 7 Then , connect the EP600 and transfer switch to the home circuit as following: NOTE : 1. Connect the L1/L2/L3/N wires from EP600 BACKUP to the SFT440’s pin 2(L1), pin 6(L2), pin 10(L3), pin 14(N) ; 2. Connect the L1/L2/L3/N wires from public Grid to the SFT440’s pin 4(L1), pin 8(L2), pin 12(L3), pin 16(N) ;...
  • Page 8 How to connect the EP600 to home main panel...

  • Page 9: Transfer Switch

    How to connect the EP600 to home main panel 4. Transfer switch Transfer switch is necessary for building a partial home backup appliances: the following for reference : Visit web address: https://www.amazon.de/HAGER-SFT440-Commutatore-tetrapolare-moduli/dp/B00SCD72NA/ref=sr_1_113?__mk_d e_DE=%C3%85M%C3%85%C5%BD%C3%95%C3%91&crid=JLKKSZ5KGNX4&keywords=hager&qid=1664528870&qu=eyJx c2MiOiI3LjQ0IiwicXNhIjoiNi40NiIsInFzcCI6IjUuNzMifQ%3D%3D&sprefix=hager%2Caps%2C419&sr=8-113 https://www.ebay.de/itm/284416047307?chn=ps&var=585962128862&_trkparms=ispr%3D1&amdata=enc%3A1LQ_...

  • Page 10: More Information

    How to connect the EP600 to home main panel Q21NJSF6GOlAQNbws-w7&norover=1&mkevt=1&mkrid=707-134425-41852-0&mkcid=2&mkscid=101&itemid=5 85962128862_284416047307&targetid=1716911581159&device=c&mktype=pla&googleloc=9043390&poi=&cam paignid=17943303986&mkgroupid=140642150118&rlsatarget=pla-1716911581159&abcId=9301060&merchantid =115461285&gclid=CjwKCAiAh9qdBhAOEiwAvxIok_q2nMZkazDxeYYmnb7Ee3OX0enPxAfhiF848fmpxs7rpcjrFtSktxo CwDAQAvD_BwE 5. More information Website: www.bluettipower.eu Email: sale -eu@bluettipower.com / sale-uk@bluettipower.com...
