Disc mower
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Disc Mower
EasyCut R 280 CV
EasyCut R 320 CV
EasyCut R 280 CR
EasyCut R 320 CR
(from serial no.: 930 685)
Order no.: 150 000 144 04 en
09.09.2015

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EasyCut R 280 CV and is the answer not in the manual?

Questions and answers

Related Manuals for Krone EasyCut R 280 CV

Summary of Contents for Krone EasyCut R 280 CV

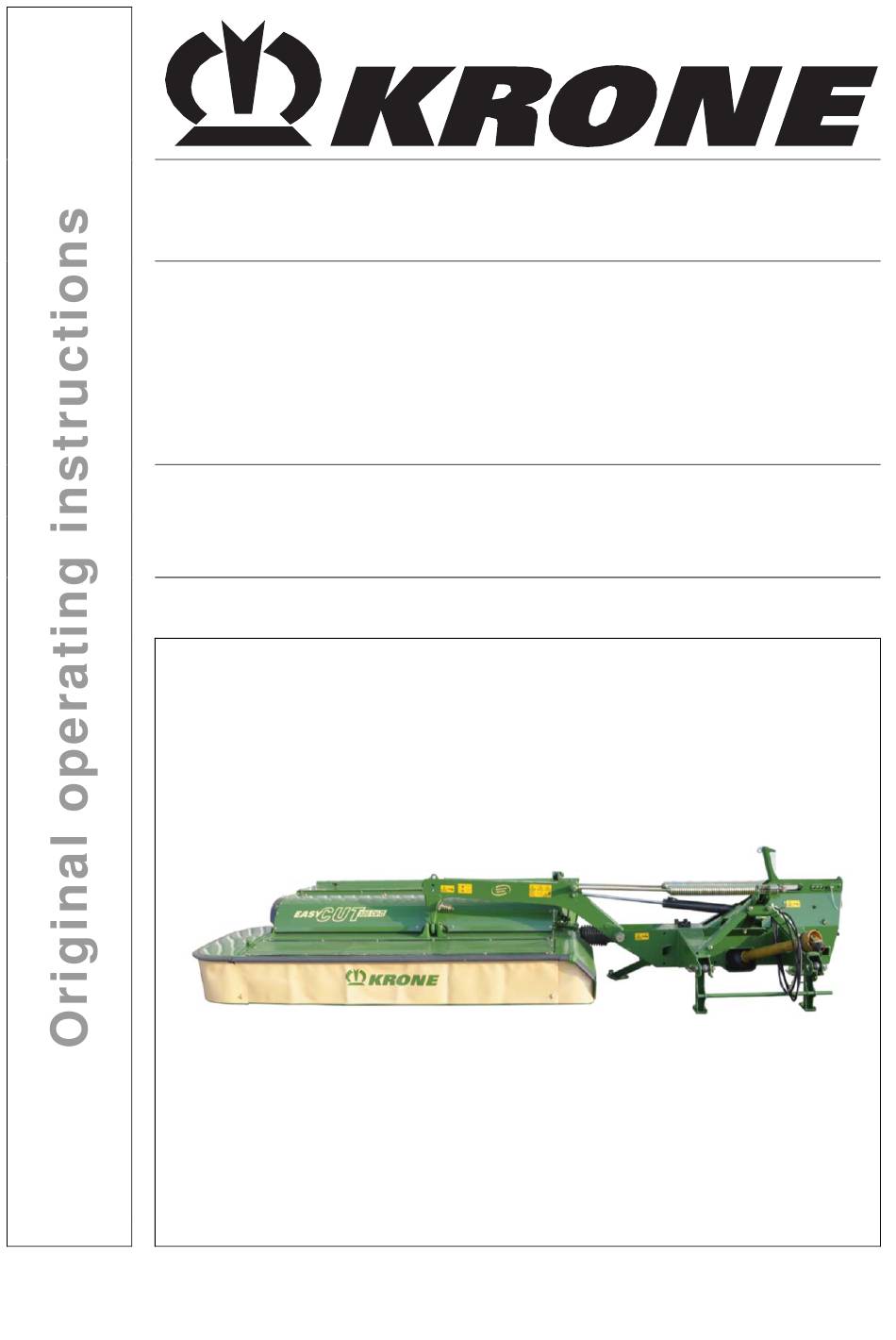

  • Page 1 Disc Mower EasyCut R 280 CV EasyCut R 320 CV EasyCut R 280 CR EasyCut R 320 CR (from serial no.: 930 685) Order no.: 150 000 144 04 en 09.09.2015...

  • Page 2: Ec Declaration Of Conformity

    Krone disc mower Machine: Type / types: EasyCut R 280 CV; EasyCut R 320 CV EasyCut R 280 CR; EasyCut R 320 CR to which this declaration refers is in compliance with the relevant provisions of EC directive 2006/42/EC (machines) The signing Managing Director is authorised to compile the technical documents.

  • Page 3: Table Of Contents

    Table of Contents Pos: 3 /Überschriften/Überschriften 1/F-J/Inhaltsverzeichnis @ 31\mod_1251969952727_78.docx @ 302165 @ 1 @ 1 Table of Contents Pos: 4 /BA/Inhaltsverzeichnis Sprachenneutral @ 10\mod_1221574899104_0.docx @ 135495 @ @ 1 Table of Contents ........................... 3 To this Document ........................... 7 Validity ..............................7 Re-Ordering ............................
  • Page 4 Table of Contents PTO shaft ............................37 6.4.1 Length adjustment........................37 Start-up ..............................39 Mounting onto the Tractor ........................ 39 Hydraulics ............................40 7.2.1 Special Safety Instructions ......................40 7.2.2 Connecting the hydraulic lines ....................40 PTO shaft ............................42 7.3.1 Special Safety Instructions ......................
  • Page 5 Table of Contents 11.4 Tightening torques ..........................69 11.4.1 Metric Thread Screws with Control Thread ................69 11.4.2 Metric Thread Screws with Fine Thread ................... 70 11.4.3 Metric Thread Screws with Countersunk Head and Hexagonal Socket ........70 11.4.4 Deviating Tightening Torques ....................71 11.5 Rotary hub with shear fuse (optional) ....................
  • Page 6 Table of Contents Index ..............................106 Pos: 5 /Layout Module /---------------Seitenumbruch---------------- @ 0\mod_1196175311226_0.docx @ 4165 @ @ 1...

  • Page 7: To This Document

    These operating instructions are valid for disc mowers of the series: EasyCut R 280 CV, EasyCut R 320 CV, EasyCut R 280 CR und EasyCut R 320 CV Pos: 6.3.1 /Überschriften/Überschriften 2/K-O/N/Nachbestellung (Nachbestellung dieses Dokuments) @ 349\mod_1436355974813_78.docx @ 2625865 @ 2 @ 1 Re-Ordering Pos: 6.3.2 /BA/Zu diesem Dokument/Nachbestellung_Text @ 349\mod_1436355830140_78.docx @ 2625835 @ @ 1...

  • Page 8: Direction Information

    To this Document Pos: 6.9.5 /BA/Zu diesem Dokument/Richtungsangaben_mit Überschrift 3. Ebene @ 311\mod_1418209262291_78.docx @ 2405467 @ 3 @ 1 2.5.2 Direction Information Direction information in this document such as front, rear, right and left always applies in the direction of travel. Pos: 6.9.6 /Überschriften/Überschriften 3/A-E/B/Begriff "Maschine"...
  • Page 9 To this Document Pos: 6.9.16 /Überschriften/Zwischenüberschriften/P-T/Symbole in Abbildungen @ 336\mod_1430121455379_78.docx @ 2557570 @ @ 1 Symbols in figures Pos: 6.9.17 /BA/Zu diesem Dokument/Darstellungsmittel_Übersicht Symbole_BA @ 329\mod_1427193088297_78.docx @ 2523598 @ @ 1 To visualize parts and actions steps, the following icons are used: Icon Explanation Reference sign for part...
  • Page 10 To this Document Pos: 6.9.19 /Überschriften/Zwischenüberschriften/U-Z/Warnhinweise_Zu diesem Dokument @ 337\mod_1430720690194_78.docx @ 2563366 @ @ 1 Warning signs Pos: 6.9.20 /BA/Zu diesem Dokument/Warnhinweise_Zu diesem Dokument_Text @ 337\mod_1430720301162_78.docx @ 2563335 @ @ 1 Warning WARNING! - Type and source of hazard! Effect: Injuries, serious material damage. •...

  • Page 11: Safety

    Safety Pos: 8 /Überschriften/Überschriften 1/P-T/Sicherheit @ 0\mod_1195566748646_78.docx @ 635 @ 1 @ 1 Safety Pos: 9 /Überschriften/Überschriften 2/U-Z/VVerwendungszweck @ 1\mod_1201707246738_78.docx @ 54055 @ 2 @ 1 Purpose of Use Pos: 10 /BA/Einleitung/EasyCut/Verwendungszweck Mäher @ 3\mod_1204547495418_78.docx @ 70590 @ @ 1 The EasyCut disc mower is used for cutting crops growing on the ground (except maize).

  • Page 12: Personnel Qualification And Training

    Safety Pos: 15.1 /BA/Sicherheit/Personalqualifikation und -schulung @ 0\mod_1195639383185_78.docx @ 1136 @ 3 @ 1 3.3.1 Personnel Qualification and Training The machine may be used, maintained and repaired only by persons who are familiar with it and have been instructed about the dangers connected with it. The operator must define areas of responsibility and monitoring of personnel.

  • Page 13: Safety Instructions And Accident Prevention Regulations

    Safety Pos: 15.5 /BA/Sicherheit/Sicherheits- und Unfallverhütungs-Vorschriften Swadro_Ladewagen_EasyCut @ 73\mod_1308298589597_78.docx @ 655493 @ 2 @ 1 Safety Instructions and Accident Prevention Regulations Please follow all generally applicable safety and accident prevention regulations in addition to the safety instructions contained in these operating instructions! The attached warning and safety signs provide important information for safe operation.

  • Page 14: Attached Devices

    Safety Pos: 15.7 /BA/Sicherheit/Angebaute Geräte/Geräte angebaut EasyCut @ 3\mod_1204552588996_78.docx @ 70752 @ 2 @ 1 Attached devices Use extreme caution when attaching or detaching implements onto or from the tractor! Couple the respective application devices to the appropriate couplings (e.g. three-point suspension) only and secure them in a way (transport, use) that excludes inadvertent lifting or lowering of the device.

  • Page 15: Hydraulic System

    7 Replacement parts must at least comply with the technical requirements set by the manufacturer of the implements! This is guaranteed by original KRONE spare parts! Pos: 15.16 /BA/Sicherheit/Wartung/Wartung Zusatz Schneidwekzeuge @ 12\mod_1224578273531_78.docx @ 151591 @ @ 1 When replacing working tools with cutting edges, use suitable tools and gloves! Pos: 15.17 /BA/Sicherheit/Wartung/Wartung Zusatz bei Gasspeicherung @ 38\mod_1265787178167_78.docx @ 349311 @ @ 1...

  • Page 16: Unauthorised Conversion/Modification And Spare Parts Production

    Safety Pos: 15.19 /BA/Sicherheit/Eigenmächtiger Umbau und Ersatzteilherstellung @ 1\mod_1201937705539_78.docx @ 55745 @ 2 @ 1 Unauthorised Conversion/Modification and Spare Parts Production Conversions or modifications of the machine are permitted only with prior consultation with the manufacturer. Original spare parts and accessories authorised by the manufacturer help to ensure safety.
  • Page 17 Safety Pos: 19 /Layout Module /---------------Seitenumbruch---------------- @ 0\mod_1196175311226_0.docx @ 4165 @ @ 1...

  • Page 18: Machine Description

    Pos: 21 /Überschriften/Überschriften 2/K-O/MMaschinenübersicht @ 0\mod_1195565731130_78.docx @ 555 @ 2 @ 1 Machine overview Pos: 22 /Abkürzungen /Abkürzungen sprachneutral/EasyCut/EasyCut R 280 CV ; EasyCut R 320 CV @ 116\mod_1340888611120_0.docx @ 1020115 @ @ 1 EasyCut R 280 CV ; EasyCut R 320 CV Pos: 23 /BA/Maschinenbeschreibung/Maschinenübersicht/Mähwerke/Maschinenübersicht EasyCut 280/320 CV @ 193\mod_1383029626802_78.docx @ 1645025 @ @ 1...
  • Page 19 Machine Description Pos. Description Pos. Description Adjustment lever for compensation Compensation springs springs Baffles *) Broad distribution plate Parking support (series) Blade key*) Main gearbox Friction clutch Intermediate universal shaft Shifting gear Swath flaps CV-shaped steel tine conditioner Cutter bar Lateral suspension arm Three-point linkage Drive PTO shaft...
  • Page 20 Machine Description Pos: 25 /Abkürzungen /Abkürzungen sprachneutral/EasyCut/EasyCut R 280 CR ; EasyCut R 320 CR @ 195\mod_1383724888528_0.docx @ 1654386 @ @ 1 EasyCut R 280 CR ; EasyCut R 320 CR Pos: 26 /BA/Maschinenbeschreibung/Maschinenübersicht/Mähwerke/Maschinenübersicht EasyCut 280/320 CR @ 195\mod_1383718493926_78.docx @ 1653845 @ @ 1 EC-454-0 Fig.
  • Page 21 Machine Description Pos. Description Pos. Description Adjustment lever for compensation Compensation springs springs Parking support (series) Blade key*) Main gearbox Friction clutch Intermediate universal shaft Angular gear Swath flaps Roller conditioner Cutter bar Broad distribution plate Lateral suspension arm Three-point linkage Drive PTO shaft Pressure gauge, with hydraulic spring relief design*)

  • Page 22: Identification Plate

    Note Authentic KRONE spare parts and accessories authorised by the manufacturer help to ensure safety. The use of spare parts, accessories or additional equipment not manufactured, tested or approved by KRONE will exclude any liability for consequential damage.

  • Page 23: Introduction

    Machine Description Pos: 36 /BA/Sicherheit/EasyCut/Sicherheit Einführung EasyCut @ 3\mod_1204553763950_78.docx @ 70812 @ 2 @ 1 Introduction The disc mower is equipped with all safety devices (protective devices). However, it is not possible to eliminate all potential hazards on this machine as this would impair its full functional capability.

  • Page 24: Position Of The Adhesive Safety Stickers On The Machine

    Machine Description Pos: 40 /Überschriften/Überschriften 2/K-O/LLage der Sicherheitsaufkleber an der Maschine @ 0\mod_1195634967326_78.docx @ 1020 @ 2 @ 1 Position of the Adhesive Safety Stickers on the Machine Pos: 41.1 /BA/Sicherheit/Aufkleber/EasyCut/Sicherheitsaufkleber EasyCut R 280/320 CV(CR) Bild @ 311\mod_1418638582873_78.docx @ 2407505 @ @ 1 EC-355-5 Fig.
  • Page 25 Machine Description Pos: 41.3 /BA/Sicherheit/4. Sicherheitsaufkleber/EU - ISO /27 007/27 007 982 0 (1x) Bestell-Nr. @ 242\mod_1395646595116_78.docx @ 1902042 @ @ 1 1 Order No. 27 007 982 0 (1x) Pos: 41.4 /Abkürzungen /Bei grünem Hauptgetriebe @ 311\mod_1418284783354_78.docx @ 2406228 @ @ 1 With green main gearbox Pos: 41.5 /BA/Sicherheit/4.
  • Page 26 Machine Description Pos: 41.7 /BA/Sicherheit/Aufkleber/EasyCut/Sicherheitsaufkleber EasyCut R 280/320 CV(CR) Bild @ 311\mod_1418638582873_78.docx @ 2407505 @ @ 1 EC-355-5 Fig. 5 Pos: 41.8 /Layout Module /---------------Seitenumbruch---------------- @ 0\mod_1196175311226_0.docx @ 4165 @ @ 1...
  • Page 27 Machine Description Pos: 41.9 /BA/Sicherheit/4. Sicherheitsaufkleber/EU - ISO /27 007/27 007 983 0 (1x) Bestell-Nr. @ 242\mod_1395646653741_78.docx @ 1902071 @ @ 1 1 Order No. 27 007 983 0 (1x) Pos: 41.10 /Abkürzungen /Bei beigen Hauptgetriebe @ 311\mod_1418284176102_78.docx @ 2406097 @ @ 1 With beige main gearbox Pos: 41.11 /BA/Sicherheit/4.
  • Page 28 Machine Description Pos: 41.15 /BA/Sicherheit/Aufkleber/EasyCut/Sicherheitsaufkleber EasyCut R 280/320 CV(CR) Bild @ 311\mod_1418638582873_78.docx @ 2407505 @ @ 1 EC-355-5 Fig. 6 Pos: 41.16 /Layout Module /---------------Seitenumbruch---------------- @ 0\mod_1196175311226_0.docx @ 4165 @ @ 1...
  • Page 29 Machine Description Pos: 41.17 /BA/Sicherheit/4. Sicherheitsaufkleber/EU - ISO /939/939 576 0 (3x) Bestell-Nr. @ 302\mod_1413900766616_78.docx @ 2353022 @ @ 1 3) Order No. 939 576 0 (3x) Pos: 41.18 /BA/Sicherheit/4. Sicherheitsaufkleber/EU - ISO /939/939 576 0 Bild/Text 3-fach Aufkleber @ 194\mod_1383549620226_78.docx @ 1648864 @ @ 1 Danger from turning machine parts There is a risk of injury as machine parts may still continue to run for a certain time after being switched...

  • Page 30: Technical Data Of The Machine

    Pos: 48 /BA/Einleitung/Technische Daten/EasyCut/EasyCut R 280 CV / R 320 CV / R 280 CR / R 320 CR /Technische Daten: Hydraulikanschlüsse EasyCut R 280 CV(CR) / R 320 CV(CR ) / R 360 @ 193\mod_1382968206299_78.docx...
  • Page 31 Pos: 54 /BA/Einleitung/Technische Daten/EasyCut/EasyCut R 280 CV / R 320 CV / R 280 CR / R 320 CR /Technische Daten: Hydraulikanschlüsse EasyCut R 280 CV(CR) / R 320 CV(CR ) / R 360 @ 193\mod_1382968206299_78.docx...
  • Page 32 Pos: 60 /BA/Einleitung/Technische Daten/EasyCut/EasyCut R 280 CV / R 320 CV / R 280 CR / R 320 CR /Technische Daten: Hydraulikanschlüsse EasyCut R 280 CV(CR) / R 320 CV(CR ) / R 360 @ 193\mod_1382968206299_78.docx...
  • Page 33 Pos: 66 /BA/Einleitung/Technische Daten/EasyCut/EasyCut R 280 CV / R 320 CV / R 280 CR / R 320 CR /Technische Daten: Hydraulikanschlüsse EasyCut R 280 CV(CR) / R 320 CV(CR ) / R 360 @ 193\mod_1382968206299_78.docx...

  • Page 34: Consumables

    • Dispose of used consumables according to statutory provisions. Pos: 72 /Abkürzungen /Abkürzungen sprachneutral/EasyCut/EasyCut R 280 CV ; EasyCut R 320 CV @ 116\mod_1340888611120_0.docx @ 1020115 @ @ 1 EasyCut R 280 CV ; EasyCut R 320 CV Pos: 73 /BA/Wartung/Tabellen_Füllmengen/Mähwerke/Technische Daten Betriebsstoffe Füllmengen EC R 280/320 CV @ 368\mod_1441709828775_78.docx @ 2700696 @ @ 1...

  • Page 35: Commissioning

    Commissioning Pos: 79.1 /Überschriften/Überschriften 1/A-E/Erstinbetriebnahme @ 0\mod_1196314201498_78.docx @ 5855 @ 1 @ 1 Commissioning Pos: 79.2 /Überschriften/Überschriften 2/A-E/EErstmontage @ 1\mod_1202226261982_78.docx @ 58270 @ 2 @ 1 First installation Pos: 79.3 /BA/Erstinbetriebnahme/Erstmontage @ 1\mod_1202224111998_78.docx @ 58190 @ @ 1 The document "Assembly Instructions" describes how to install the device for the first time. Pos: 79.4 /Überschriften/Überschriften 2/P-T/SSpezielle Sicherheitshinweise @ 0\mod_1196660495760_78.docx @ 9134 @ 2 @ 1 Special Safety Instructions Pos: 79.5 /BA/Sicherheit/6.

  • Page 36: Mounting Onto The Tractor

    Commissioning Pos: 79.9 /Überschriften/Überschriften 2/A-E/AAnbau an den Traktor @ 0\mod_1199717845194_78.docx @ 34039 @ 2 @ 1 Mounting onto the Tractor Pos: 79.10 /Überschriften/Überschriften 3/K-O/KKuppelpunkte @ 9\mod_1220531326398_78.docx @ 126608 @ 3 @ 1 6.3.1 Clutching points Pos: 79.11 /BA/Erstinbetriebnahme/EasyCut/Kuppelpunkte/Kuppelpunkte Bild EC 280/320 CV-Q -1 @ 59\mod_1297409242082_78.docx @ 557036 @ @ 1 POS.1 POS.2 POS.3 EC-380-0 Fig.

  • Page 37: Pto Shaft

    Commissioning Pos: 79.15 /Überschriften/Überschriften 2/F-J/GGelenkwelle @ 0\mod_1199781879794_78.docx @ 34542 @ 2 @ 1 PTO shaft Pos: 79.16 /Überschriften/Überschriften 3/K-O/LLängenanpassung @ 1\mod_1201687632810_78.docx @ 53589 @ 3 @ 1 6.4.1 Length adjustment Pos: 79.17 /BA/Sicherheit/6. Überarbeitete Warnhinweise/Warnung - Unbeabsichtigtes Abkuppeln angebaute @ 291\mod_1410427253866_78.docx @ 2294307 @ @ 1 Danger! - Inadvertent uncoupling of the machine during road travel or work.
  • Page 38 Commissioning Pos: 79.21 /BA/Erstinbetriebnahme/Gelenkwelle/Mähwerke/Längenanpassung Bild EC280/320 -1/ B 870 @ 58\mod_1296650359919_78.docx @ 552633 @ @ 1 EC-329-0 Fig.9 Pos: 79.22 /BA/Erstinbetriebnahme/Gelenkwelle/Mähwerke/Längenanpassung_mit Pfahlsicherung @ 9\mod_1220535961555_78.docx @ 126855 @ @ 1 The length of the PTO shaft (1) must be adjusted. • Disassemble the PTO shaft.

  • Page 39: Start-Up

    Start-up Pos: 82.1 /Überschriften/Überschriften 1/F-J/Inbetriebnahme @ 0\mod_1196327075811_78.docx @ 6375 @ 1 @ 1 Start-up Pos: 82.2 /Überschriften/Überschriften 2/A-E/AAnbau an den Traktor @ 0\mod_1199717845194_78.docx @ 34039 @ 2 @ 1 Mounting onto the Tractor Pos: 82.3 /BA/Sicherheit/6. Überarbeitete Warnhinweise/Warnung - Unbeabsichtigtes Abkuppeln angebaute @ 291\mod_1410427253866_78.docx @ 2294307 @ @ 1 Danger! - Inadvertent uncoupling of the machine during road travel or work.

  • Page 40: Hydraulics

    Start-up Pos: 82.9 /Überschriften/Überschriften 2/F-J/HHydraulik @ 0\mod_1199776034950_78.docx @ 34205 @ 2 @ 1 Hydraulics Pos: 82.10 /Überschriften/Überschriften 3/P-T/SSpezielle Sicherheitshinweise @ 0\mod_1197301069931_78.docx @ 17662 @ 3 @ 1 7.2.1 Special Safety Instructions Pos: 82.11 /BA/Sicherheit/Hydraulik/Warnung - Anschluss der Hydraulikleitungen @ 0\mod_1199776548685_78.docx @ 34225 @ @ 1 Warning ! - Connection of the hydraulic line Effect: severe injuries due to penetration of hydraulic oil under the skin.
  • Page 41 Start-up Pos: 82.17 /BA/Inbetriebnahme/EasyCut/Hydraulik/Hydraulikanschluss Bild EC R 280/320 CV mit Legende @ 206\mod_1386664376516_78.docx @ 1712781 @ @ 1 EC-358-1 Fig. 11 Double-action control unit Single-action control unit Pos: 82.18 /BA/Inbetriebnahme/EasyCut/Hydraulik/Anschluss Hydraulikleitung EC280/320 CV-Q @ 206\mod_1386662499817_78.docx @ 1712722 @ @ 1 •...

  • Page 42: Pto Shaft

    Start-up Pos: 82.21 /Überschriften/Überschriften 2/F-J/GGelenkwelle @ 0\mod_1199781879794_78.docx @ 34542 @ 2 @ 1 PTO shaft Pos: 82.22 /Überschriften/Überschriften 3/P-T/SSpezielle Sicherheitshinweise @ 0\mod_1197301069931_78.docx @ 17662 @ 3 @ 1 7.3.1 Special Safety Instructions Pos: 82.23 /BA/Sicherheit/Gelenkwelle/Gefahr - Sich drehende Gelenkwelle_2 @ 0\mod_1199781692950_78.docx @ 34523 @ @ 1 Danger! - Rotating PTO shaft Effect: Danger to life or serious injuries •...

  • Page 43: Install The Pto Shaft

    EC-359-0 Fig. 13 Pos: 82.32 /Abkürzungen /Abkürzungen sprachneutral/EasyCut/EasyCut R 280 CV ; EasyCut R 320 CV @ 116\mod_1340888611120_0.docx @ 1020115 @ @ 1 EasyCut R 280 CV ; EasyCut R 320 CV Pos: 82.33 /BA/Inbetriebnahme/EasyCut/Anbau Gelenkwelle/Zwischengelenkwelle/Zwischengelenkwelle mit Freilauf Text EC 280/320 CV-Q @ 10\mod_1221488055292_78.docx @ 134083 @ @ 1 The intermediate PTO shaft for the tedder drive is coupled to the gearbox via the friction clutch (1) and to the tedder via the free-wheel (2).

  • Page 44: Swivelling Parking Support Into Transport Position

    Start-up Pos: 82.38 /Überschriften/Überschriften 2/A-E/AAbstellstütze in Transportstellung schwenken @ 10\mod_1221637347634_78.docx @ 135539 @ 2 @ 1 Swivelling parking support into transport position Pos: 82.39 /BA/Bedienung /EasyCut/Abstellstütze/Abstellstütze angehoben Bild EC R 280 CV / R 320 CV / R 280 CR / R 320 CR @ 205\mod_1386245162750_78.docx @ 1706387 @ @ 1 EC-459-0 Fig.

  • Page 45: Driving And Transport

    Driving and Transport Pos: 84.1 /Überschriften/Überschriften 1/F-J/Fahren und Transport @ 0\mod_1196330049217_78.docx @ 6553 @ 1 @ 1 Driving and Transport Pos: 84.2 /BA/Sicherheit/Fahren und Transport/Warnung - Transport / Straßenfahrt @ 295\mod_1412076613597_78.docx @ 2318257 @ @ 1 WARNING! - Transport travel on roads Accidents may occur when the following points are not observed during transport travel on roads.

  • Page 46: Operation

    Operation Pos: 86.1 /Überschriften/Überschriften 1/A-E/Bedienung @ 0\mod_1199789505403_78.docx @ 34825 @ 1 @ 1 Operation Pos: 86.2 /Überschriften/Überschriften 2/U-Z/VVor dem Mäheinsatz @ 3\mod_1204788384465_78.docx @ 73168 @ 2 @ 1 Before mowing Pos: 86.3 /BA/Sicherheit/7. Gefahrenhinweise alt/Mähwerke/Gefahr - Arbeitseinsatz / Mähen @ 73\mod_1307695972255_78.docx @ 654926 @ @ 1 DANGER! - Using the machine for work Effect: Danger to life, injuries or damage to the machine.

  • Page 47: Folding Down The Safety Device

    Operation Pos: 86.7 /Überschriften/Überschriften 3/P-T/SSchutzeinrichtung herunterklappen @ 9\mod_1220881079079_78.docx @ 128594 @ 3 @ 1 9.2.1 Folding down the Safety Device Pos: 86.8 /BA/Sicherheit/7. Gefahrenhinweise alt/Mähwerke/Gefahr - Fortschleudern von Steinen @ 84\mod_1318311844997_78.docx @ 733435 @ @ 1 DANGER! – Stones forcibly projected during operation Effect: Danger to life or serious injuries.

  • Page 48: Adjusting The Lateral Suspension Arm

    Operation Pos: 86.12 /Überschriften/Überschriften 3/P-T/SSeitliche Lenker einstellen @ 9\mod_1220882767235_78.docx @ 128767 @ 2 @ 1 9.2.2 Adjusting the lateral suspension arm Pos: 86.13 /BA/Sicherheit/EasyCut/Gefahr - Einstellung der Unterlenkerhöhe am Traktor @ 9\mod_1220882859813_78.docx @ 128789 @ @ 1 Danger! - Height adjustment of the lower suspension arms on the tractor Effect: Danger to life, injuries or damage to the machine.

  • Page 49: Folding Down Mowing Unit

    Operation Pos: 86.17 /Überschriften/Überschriften 2/K-O/MMähwerk abklappen @ 207\mod_1386673356360_78.docx @ 1713738 @ 2 @ 1 Folding Down Mowing Unit Pos: 86.18 /BA/Sicherheit/7. Gefahrenhinweise alt/Mähwerke/Gefahr - Absenken des Mähwerks in Arbeitsstellung EC 280/320 @ 9\mod_1220879244798_78.docx @ 128439 @ @ 1 Danger! - Lowering the mowing unit into the working position Effect: Danger to life, injuries or damage to the machine.

  • Page 50: Swivelling Parking Support Into Transport Position

    Operation Pos: 86.28 /Überschriften/Überschriften 2/A-E/AAbstellstütze in Transportstellung schwenken @ 10\mod_1221637347634_78.docx @ 135539 @ 2 @ 1 Swivelling parking support into transport position Pos: 86.29 /BA/Bedienung /EasyCut/Abstellstütze/Achtung Abstellstütze eingeklappt EC 280/320 CV-Q @ 10\mod_1221637532743_78.docx @ 135563 @ @ 1 Caution! - Parking support(s) not swivelled into transport position before road/transport travel and for work! Effect: Damage to the machine •...

  • Page 51: Detaching The Machine

    Operation Pos: 86.38 /Überschriften/Überschriften 2/A-E/AAbbau der Maschine @ 3\mod_1204792387824_78.docx @ 73245 @ 3 @ 1 Detaching the machine Pos: 86.39 /BA/Sicherheit/EasyCut/Gefahr - Maschine abstellen_mit Hydraulikschlauch @ 9\mod_1220883208423_78.docx @ 128830 @ @ 1 Danger! - Unexpected movements of the machine Effect: Danger to life, serious injuries •...
  • Page 52 Operation Pos: 86.42 /BA/Bedienung /EasyCut/Entlastungsfeder(n)/Entlastungs außer Funktion setzen Bild EC 280/320 CV-Q -1 @ 59\mod_1297421247410_78.docx @ 557699 @ @ 1 Fig. 21 Pos: 86.43 /BA/Bedienung /EasyCut/Entlastungsfeder(n)/Entlastungsfedern außer Funktion setzen. @ 9\mod_1220884313501_78.docx @ 128945 @ @ 1 • Disable the compensation springs by reversing the adjusting lever (1) (only possible in transport position).

  • Page 53: Four Supports (Optional)

    Operation Pos: 86.48 /BA/Bedienung /EasyCut/Abstellstütze/Vier Stützen (optional) Überschrift @ 58\mod_1296816723926_78.docx @ 554520 @ 3 @ 1 9.5.1 Four supports (optional) Pos: 86.49 /BA/Bedienung /EasyCut/Abstellstütze/Achtung Kippgefahr @ 58\mod_1297065492192_78.docx @ 554954 @ @ 1 CAUTION! Danger of tipping Machine may be lowered into transport position only with additionally attached parking supports on a firm and level base (concrete/paving).

  • Page 54: Settings

    Settings Pos: 88.1 /Überschriften/Überschriften 1/A-E/Einstellungen @ 0\mod_1199868783862_78.docx @ 36141 @ 1 @ 1 Settings Pos: 88.2 /BA/Sicherheit/7. Gefahrenhinweise alt/Mähwerke/Warnung - Einstellarbeiten angebaute Maschinen @ 254\mod_1397487875458_78.docx @ 1953794 @ @ 1 DANGER! - Unexpected movement of the machine Effect: Danger to life or serious injuries. •...

  • Page 55: Adjusting The Guards

    Settings Pos: 88.8 /Überschriften/Überschriften 2/A-E/EEinstellung der Schutze @ 3\mod_1204709091570_78.docx @ 71854 @ 2 @ 1 10.3 Adjusting the Guards Pos: 88.9 /BA/Sicherheit/7. Gefahrenhinweise alt/Mähwerke/Gefahr - Fortschleudern von Steinen @ 84\mod_1318311844997_78.docx @ 733435 @ @ 1 DANGER! – Stones forcibly projected during operation Effect: Danger to life or serious injuries.

  • Page 56: Adjust Locking

    Settings Pos: 88.12 /Überschriften/Überschriften 2/U-Z/VVerriegelung einstellen @ 91\mod_1326177560227_78.docx @ 777175 @ 2 @ 1 10.4 Adjust Locking Pos: 88.13 /BA/Einstellungen/Mähwerke/EasyCut/Verriegelung einstellen Bild EC R 280/320 CV @ 91\mod_1326177685810_78.docx @ 777203 @ @ 1 EC-363-0 EC-402-0 Fig. 28 Pos: 88.14 /BA/Einstellungen/Mähwerke/EasyCut/Verriegelung einstellen Text EC R 280/320 CV / EC R 360 @ 91\mod_1326176346008_78.docx @ 777147 @ @ 1 The locking (2) prevents during use that the side panel folds up and that foreign objects are slung away.

  • Page 57: Adjusting The Compensation Springs

    Settings Pos: 88.16 /Überschriften/Überschriften 2/A-E/EEinstellung der Entlastungsfedern @ 0\mod_1196666659447_78.docx @ 10133 @ 2 @ 1 10.5 Adjusting the Compensation Springs Pos: 88.17 /BA/Sicherheit/7. Gefahrenhinweise alt/Mähwerke/Gefahr - Einstellung an den Entlastungsfedern @ 0\mod_1196751594562_78.docx @ 12575 @ @ 1 Danger! - Setting on the compensation springs Effect: Danger to life or serious injuries •...

  • Page 58: Hydraulic Spring Compensation (Optional)

    The set ground pressure can be read off on the pressure gauge (1). Recommended setting range: Type Setting range EasyCut R 360 50 – 100 bar EasyCut R 280 CV 50 – 100 bar EasyCut R 320 CV 70 – 120 bar Setting the ground pressure: •...

  • Page 59: Setting Of The Pole Protection Mechanism

    The optimal setting for the trigger moment takes place in the factory. Pos: 88.32 /BA/Einstellungen/Mähwerke/EasyCut/Pfahlsicherung/Pfahlsicherung EC R 280/320 CV Tabelle @ 74\mod_1308907610720_78.docx @ 658901 @ @ 1 Mower type Dimension x EASYCUT R 280 CV 80 mm EASYCUT R 320 CV 80 mm Pos: 88.33 /BA/Einstellungen/Mähwerke/EasyCut/Pfahlsicherung/Pfahlsicherung nach dem Auslösen @ 9\mod_1220961640381_78.docx @ 130471 @ @ 1...

  • Page 60: Adjusting The Tedder Speed

    Settings Pos: 88.36 /Überschriften/Überschriften 2/A-E/EEinstellung der Zetterdrehzahl @ 0\mod_1196668564463_78.docx @ 10266 @ 2 @ 1 10.8 Adjusting the Tedder Speed Pos: 88.37 /Abkürzungen /CV-Ausführung @ 95\mod_1328530180147_78.docx @ 799128 @ @ 1 CV-Design Pos: 88.38 /BA/Sicherheit/7. Gefahrenhinweise alt/Einstellarbeiten / Einstellungen/Gefahr - Einstellungen an der Maschine @ 0\mod_1196668628056_78.docx @ 10285 @ @ 1 Danger! - Settings on the machine Effect: Danger to life, injuries or damage to the machine.

  • Page 61: Adjusting The Conditioner Plate

    Settings Pos: 88.42 /Überschriften/Überschriften 2/A-E/EEinstellen des Aufbereitungsblechs @ 0\mod_1196670615681_78.docx @ 10399 @ 2 @ 1 10.9 Adjusting the conditioner plate Pos: 88.43 /Abkürzungen /CV-Ausführung @ 95\mod_1328530180147_78.docx @ 799128 @ @ 1 CV-Design Pos: 88.44 /BA/Einstellungen/Mähwerke/Einstellung des Aufbereitungsbleches Bild 280/320 CV -1 @ 59\mod_1297428738564_78.docx @ 558081 @ @ 1 Fig.

  • Page 62: Adjusting The Swath Width

    Settings Pos: 88.47 /BA/Einstellungen/Mähwerke/Schwadbreite / Breitablage/Einstellung der Schwadbreite @ 3\mod_1204713615383_78.docx @ 72164 @ 2 @ 1 10.10 Adjusting the Swath Width Two different forms of spreading are available: • Swathing • Wide spreading Pos: 88.48 /Überschriften/Überschriften 3/A-E/E/Einstellung bei Schwadablage @ 3\mod_1204713732476_78.docx @ 72183 @ 3 @ 1 10.10.1 Adjustment for Swathing Pos: 88.49 /BA/Einstellungen/Mähwerke/Schwadbreite / Breitablage/Einstellung der Schwadablage Bild EC280/320 CV / B 1000 CV @ 103\mod_1331793832879_78.docx @ 938098 @ @ 1...

  • Page 63: Setting Wide Distributor Plate

    Settings Pos: 88.54 /BA/Einstellungen/Mähwerke/Schwadbreite / Breitablage/Breitverteilerblech einstellen @ 60\mod_1297859420539_78.docx @ 561604 @ 3 @ 1 10.10.2 Setting wide distributor plate Pos: 88.55 /BA/Einstellungen/Mähwerke/Schwadbreite / Breitablage/Hinweis Kreuzgriffe @ 59\mod_1297431749350_78.docx @ 558246 @ @ 1 Note The star knobs may work loose due to vibrations, possibly resulting in the loss of the star knobs, screws and swath plates.

  • Page 64: Wide Spreading

    Settings Pos: 88.59 /Überschriften/Überschriften 3/A-E/B/Breitablage @ 3\mod_1204713764351_78.docx @ 72202 @ 3 @ 1 10.10.3 Wide spreading Pos: 88.60 /BA/Einstellungen/Mähwerke/Schwadbreite / Breitablage/Hinweis Kreuzgriffe @ 59\mod_1297431749350_78.docx @ 558246 @ @ 1 Note The star knobs may work loose due to vibrations, possibly resulting in the loss of the star knobs, screws and swath plates.

  • Page 65: Setting The Distance Of The Rollers

    Settings Pos: 88.65 /Überschriften/Überschriften 2/A-E/AAbstand der Walzen einstellen @ 193\mod_1383232082286_78.docx @ 1647075 @ 2 @ 1 10.11 Setting the Distance of the Rollers Pos: 88.66 /BA/Einstellungen/Mähwerke/Rollen-Conditioners/Bei Ausführung Rollen-Conditioner @ 193\mod_1383232134538_78.docx @ 1647193 @ @ 1 With roller conditioner design (CR) Pos: 88.67 /BA/Einstellungen/Mähwerke/Rollen-Conditioners/Einstellen des Rollenabstandes EasyCut CR-Ausführung @ 193\mod_1383229458078_78.docx @ 1647015 @ @ 1 CRI-0-001 EC-452-0...
  • Page 66 Settings Pos: 90 /Layout Module /Diese Seite ist bewusst freigelassen worden. @ 1\mod_1201783680373_78.docx @ 54443 @ @ 1 This page has been left blank deliberately!! Pos: 91 /Layout Module /---------------Seitenumbruch---------------- @ 0\mod_1196175311226_0.docx @ 4165 @ @ 1...

  • Page 67: Maintenance

    Effect: Danger to life, serious injuries or loss of warranty claims as well as exclusion of liability • Use only authentic KRONE spare parts and accessories authorised by the manufacturer. The use of spare parts, accessories or additional equipment not manufactured, tested or approved by KRONE will exclude any liability for consequential damage.

  • Page 68: Maintenance Table

    Maintenance Pos: 93.10 /Überschriften/Überschriften 2/U-Z/WWartungstabelle @ 65\mod_1300369413064_78.docx @ 583966 @ 1 @ 1 11.3 Maintenance table Pos: 93.11 /BA/Wartung/Mähwerke/Wartungstabelle - EasyCut mit Reibkupplung @ 193\mod_1383233458804_78.docx @ 1647358 @ @ 1 Maintenance interval Maintenance work Cutter bar Oil level check Oil change not required All gearboxes Oil level check...

  • Page 69: Tightening Torques

    Maintenance Pos: 93.13.1 /Überschriften/Überschriften 2/A-E/AAnziehdrehmomente @ 202\mod_1385711894606_78.docx @ 1693123 @ 2 @ 1 11.4 Tightening torques Pos: 93.13.2 /Überschriften/Überschriften 3/K-O/MMetrische Gewindeschrauben mit Regelgewinde @ 322\mod_1424945442462_78.docx @ 2483466 @ 3 @ 1 11.4.1 Metric Thread Screws with Control Thread Pos: 93.13.3 /BA/Wartung/Drehmomente / Anziehdrehmomente/Anziehdrehmomente Metrische Gewindeschrauben mit Regelgewinde Tabelle @ 321\mod_1424760222607_78.docx @ 2477725 @ @ 1 NOTICE The table does not apply to countersunk screws with hexagonal socket in case the countersunk screw is tightened via hexagonal socket.

  • Page 70: Metric Thread Screws With Fine Thread

    Maintenance Pos: 93.13.5 /Überschriften/Überschriften 3/K-O/MMetrische Gewindeschrauben mit Feingewinde @ 322\mod_1424945855944_78.docx @ 2484627 @ 3 @ 1 11.4.2 Metric Thread Screws with Fine Thread Pos: 93.13.6 /BA/Wartung/Drehmomente / Anziehdrehmomente/Anziehdrehmomente Metrische Gewindeschrauben mit Feingewinde Tabelle @ 321\mod_1424845229172_78.docx @ 2480186 @ @ 1 A = thread size Tightening torque in Nm (unless otherwise stated)

  • Page 71: Deviating Tightening Torques

    Maintenance Pos: 93.15 /Überschriften/Überschriften 3/A-E/A/Abweichende Anziehdrehmomente @ 369\mod_1441722353234_78.docx @ 2702740 @ 3 @ 1 11.4.4 Deviating Tightening Torques Pos: 93.16 /BA/Wartung/Drehmomente / Anziehdrehmomente/Abweichendes Drehmoment EasyCut @ 3\mod_1204885737515_78.docx @ 73465 @ @ 1 Screws / nuts MA [Nm] Nut for cutting disc flange Nut for shear protection (rotary hub) Bearing housing for cutting disc Bearing housing for blade drum...

  • Page 72: Rotary Hub With Shear Fuse (Optional)

    Maintenance Pos: 95.1 /Überschriften/Überschriften 2/K-O/KKreiselnabe mit Schersicherung (optional) @ 4\mod_1213097920976_78.docx @ 86356 @ 2 @ 1 11.5 Rotary hub with shear fuse (optional) Pos: 95.2 /BA/Wartung/Mähwerke/Schersicherung/Bild Mähholm Aufstellung EC R 280/320 (CV) EC F 320 CV @ 147\mod_1361180309624_78.docx @ 1319551 @ @ 1 Fig.
  • Page 73 Maintenance Pos: 95.4 /BA/Sicherheit/7. Gefahrenhinweise alt/Mähwerke/Gefahr - Schnell rotierende Messerteller/Messertrommeln_1 @ 0\mod_1197017696736_78.docx @ 16001 @ @ 1 Danger! - Rapidly rotating cutting discs/blade drums. Effect: Danger to life or serious injuries. • Switch off the engine and remove the ignition key. •...

  • Page 74: After Shearing Off

    Maintenance Pos: 95.8 /BA/Wartung/Mähwerke/SchersicherungNach dem Abscheren EasyCut @ 364\mod_1440501433026_78.docx @ 2678607 @ 3 @ 1 11.5.1 After Shearing Off Caution! - Correct installation position of the bearing housing not observed. Effect: Damage to the machine • Right rotating (RE/RZ) cutting discs and drums always have right-handed pinion shafts and nuts (no groove mark on the pinion shaft and nut).
  • Page 75 • Remove the hub (1). • Remove the damaged shear pins (3). • Check the nut and hub for damage. Replace damaged parts with KRONE original replacement parts. • Fill the space above the bearing with grease (c). • Place the hub on the pinion shaft.

  • Page 76: Maintenance - Gearbox

    Maintenance - Gearbox Pos: 97 /Überschriften/Überschriften 1/U-Z/Wartung - Getriebe @ 2\mod_1203058202823_78.docx @ 64495 @ 3 @ 1 Maintenance - Gearbox Pos: 98.1 /Überschriften/Überschriften 2/F-J/HHauptgetriebe @ 0\mod_1197005740033_78.docx @ 15416 @ 2 @ 1 12.1 Main gearbox Pos: 98.2 /BA/Wartung/Hinweis Ölstandskontrolle in Arbeitsstellung und in waagerechter Stellung der Maschine vornehmen @ 194\mod_1383554973754_78.docx @ 1649577 @ @ 1 Note Perform oil level check and oil change while the machine is in a horizontal position! Pos: 98.3 /BA/Wartung/Ölkontrolle_Wechsel/Mähwerke/Bild Hauptgetriebe EC 280/320 CV-Q -1 @ 60\mod_1297751121997_78.docx @ 560221 @ @ 1...

  • Page 77: Oil Change

    Maintenance - Gearbox Pos: 98.11 /BA/Wartung/Ölkontrolle_Wechsel/Ölwechsel_ALT/Schutz (4) demontieren @ 58\mod_1296735396286_78.docx @ 553788 @ @ 1 • Remove the guard (4) Pos: 98.12 /BA/Wartung/Ölkontrolle_WechselÖlwechsel NEU @ 140\mod_1355142057277_78.docx @ 1244610 @ @ 1 Oil change: Collect escaping oil in a suitable container. •...

  • Page 78: Speed Gearbox

    Maintenance - Gearbox Pos: 100.1 /Überschriften/Überschriften 2/P-T/SSchaltgetriebe @ 0\mod_1197010889455_78.docx @ 15766 @ 3 @ 1 12.2 Speed gearbox Pos: 100.2 /Abkürzungen /CV-Ausführung @ 95\mod_1328530180147_78.docx @ 799128 @ @ 1 CV-Design Pos: 100.3 /BA/Wartung/Hinweis Ölstandskontrolle in Arbeitsstellung und in waagerechter Stellung der Maschine vornehmen @ 194\mod_1383554973754_78.docx @ 1649577 @ @ 1 Note Perform oil level check and oil change while the machine is in a horizontal position! Pos: 100.4 /BA/Wartung/Ölkontrolle_Wechsel/Mähwerke/Bild Schaltgetriebe mit Legende EC 280/320 CV-Q @ 194\mod_1383287262886_78.docx @ 1647665 @ @ 1...

  • Page 79: Angular Gearbox

    Maintenance - Gearbox Pos: 102.1 /Überschriften/Überschriften 2/U-Z/WWinkelgetriebe @ 0\mod_1197005918299_78.docx @ 15435 @ 2 @ 1 12.3 Angular gearbox Pos: 102.2 /Abkürzungen /CR-Ausführung @ 194\mod_1383299073254_78.docx @ 1647987 @ @ 1 CR design Pos: 102.3 /Überschriften/Überschriften 3/K-O/OOberteil @ 10\mod_1221639445993_78.docx @ 135690 @ 3 @ 1 12.3.1 Top part Pos: 102.4 /BA/Wartung/Hinweis Ölstandskontrolle in Arbeitsstellung und in waagerechter Stellung der Maschine vornehmen @ 194\mod_1383554973754_78.docx @ 1649577 @ @ 1...

  • Page 80: Angular Gearbox

    Maintenance - Gearbox Pos: 104.1 /Überschriften/Überschriften 2/U-Z/WWinkelgetriebe @ 0\mod_1197005918299_78.docx @ 15435 @ 2 @ 1 12.4 Angular gearbox Pos: 104.2 /Abkürzungen /CR-Ausführung @ 194\mod_1383299073254_78.docx @ 1647987 @ @ 1 CR design Pos: 104.3 /Überschriften/Überschriften 3/U-Z/Unterteil @ 10\mod_1221640227712_78.docx @ 135712 @ 3 @ 1 12.4.1 Bottom part Pos: 104.4 /BA/Wartung/Hinweis Ölstandskontrolle in Arbeitsstellung und in waagerechter Stellung der Maschine vornehmen @ 194\mod_1383554973754_78.docx @ 1649577 @ @ 1...

  • Page 81: Gearbox For Top Roller Drive

    Maintenance - Gearbox Pos: 106.1 /Überschriften/Überschriften 2/F-J/GGetriebe für oberen Walzenantrieb @ 11\mod_1223618840051_78.docx @ 148283 @ 3 @ 1 12.5 Gearbox for Top Roller Drive Pos: 106.2 /Abkürzungen /CR-Ausführung @ 194\mod_1383299073254_78.docx @ 1647987 @ @ 1 CR design Pos: 106.3 /BA/Wartung/Hinweis Ölstandskontrolle in Arbeitsstellung und in waagerechter Stellung der Maschine vornehmen @ 194\mod_1383554973754_78.docx @ 1649577 @ @ 1 Note Perform oil level check and oil change while the machine is in a horizontal position! Pos: 106.4 /BA/Wartung/Ölkontrolle_Wechsel/Mähwerke/Bild Getriebe für oberen Walzenantrieb CR @ 194\mod_1383559678635_78.docx @ 1649994 @ @ 1...

  • Page 82: Oil Level Check And Oil Change On The Cutter Bar

    Maintenance - Gearbox Pos: 108.1 /Überschriften/Überschriften 2/K-O/OÖlstandskontrolle und Ölwechsel am Mähholm @ 0\mod_1197017549815_78.docx @ 15963 @ 3 @ 1 12.6 Oil level check and oil change on the cutter bar Pos: 108.2 /Überschriften/Überschriften 3/K-O/OÖlwechsel @ 0\mod_1197021941955_78.docx @ 16139 @ 2 @ 1 12.6.1 Oil change Pos: 108.3 /BA/Wartung/Mähwerke/Hinweis Ein Ölwechsel am Mähholm ist nicht erforderlich.

  • Page 83: Maintenance - Blade Changing

    Maintenance - Blade Changing Pos: 110 /Überschriften/Überschriften 1/U-Z/Wartung - Messerwechsel @ 107\mod_1334638484298_78.docx @ 968003 @ 2 @ 1 Maintenance - Blade Changing Pos: 111.1 /Überschriften/Überschriften 2/K-O/KKontrolle der Mähklingen und Messerhalterung @ 0\mod_1197265641329_78.docx @ 16323 @ 2 @ 1 13.1 Checking the Cutter Blades and Blade Holder Pos: 111.2 /BA/Sicherheit/7.

  • Page 84: Blade Screw Connection

    Maintenance - Blade Changing Pos: 111.8 /BA/Wartung/Mähwerke/Messerschraub / Messerschnellverschluss/Messerschraubverschluss Haltebolzen 14 mm @ 0\mod_1197267907375_78.docx @ 16425 @ 3 @ 1 13.1.2 Blade screw connection Danger! - Insufficient thickness of material on the retaining bolts. Effect: Danger to life or serious injuries. •...

  • Page 85: Blade Quick-Fit Device

    Maintenance - Blade Changing Pos: 111.10 /BA/Wartung/Mähwerke/Messerschraub / Messerschnellverschluss/Messerschnellverschluss Haltebolzen 14mm @ 0\mod_1197268087875_78.docx @ 16444 @ 4 @ 1 13.1.3 Blade Quick-Fit Device Danger! - Insufficient thickness of material on the retaining bolts. Effect: Danger to life or serious injuries. •...

  • Page 86: Periodical Inspection Of The Leaf Springs

    The abrasion limit of the leaf springs will be achieved if the application seam (1) is worn on one point. EC 225 0 Fig. 49 Note Use only original Krone spare parts to replace the leaf springs. Pos: 111.13 /Layout Module /---------------Seitenumbruch---------------- @ 0\mod_1196175311226_0.docx @ 4165 @ @ 1...

  • Page 87: Periodical Inspection Of The Cutting Discs / Blade Drums

    In case of deformed cuttings discs or drums, the dimension of A = 48 mm must never be exceeded. EC-0-211 Fig. 50 Note The cutting discs or drums must be replaced by Original Krone spare parts only. Pos: 111.15 /Layout Module /---------------Seitenumbruch---------------- @ 0\mod_1196175311226_0.docx @ 4165 @ @ 1...

  • Page 88: Abrasion Limit

    If cutting discs or blade drums show deformations or wear in form of abrasions (2) or similar, these components have to be replaced by Original Krone spare parts . Pos: 111.17 /Layout Module /---------------Seitenumbruch---------------- @ 0\mod_1196175311226_0.docx @ 4165 @ @ 1...

  • Page 89: Blade Changing On Cutting Discs

    Maintenance - Blade Changing Pos: 111.18 /Überschriften/Überschriften 2/K-O/MMesserwechsel an Messertellern @ 0\mod_1197269068562_78.docx @ 16521 @ 3 @ 1 13.2 Blade Changing on Cutting Discs Pos: 111.19 /BA/Sicherheit/7. Gefahrenhinweise alt/Mähwerke/Gefahr - Schnell rotierende Messerteller/Messertrommeln_1 @ 0\mod_1197017696736_78.docx @ 16001 @ @ 1 Danger! - Rapidly rotating cutting discs/blade drums.

  • Page 90: Blade Screw Connection

    Maintenance - Blade Changing Pos: 111.22 /Überschriften/Überschriften 3/K-O/MMesserschraubverschluss @ 0\mod_1197270941296_78.docx @ 16578 @ 3 @ 1 13.2.1 Blade Screw Connection Pos: 111.23 /BA/Wartung/Mähwerke/Messerschraub / Messerschnellverschluss/Beschreibung Messerwechsel Messerschraubverschluss @ 47\mod_1285661949953_78.docx @ 456898 @ @ 1 EC-0-250 Pic. 52 • Fold up safety device •...

  • Page 91: Blade Quick-Fit Device

    Maintenance - Blade Changing Pos: 111.25 /Überschriften/Überschriften 3/K-O/MMesserschnellverschluss @ 0\mod_1197271019859_78.docx @ 16597 @ 3 @ 1 13.2.2 Blade Quick-Fit Device Pos: 111.26 /BA/Wartung/Mähwerke/Messerschraub / Messerschnellverschluss/Beschreibung Messerwechsel Messerschnellverschluss @ 0\mod_1197271100500_78.docx @ 16616 @ @ 1 EC-251-0 Fig. 53 • Clean the area. •...

  • Page 92: Replacing The Linings

    Maintenance - Blade Changing Pos: 111.28 /BA/Wartung/Mähwerke/Stoßkanten erneuern @ 0\mod_1197271320468_78.docx @ 16636 @ 2 @ 1 13.3 Replacing the linings Caution! - If the linings are checked irregularly. Effect: Damage to the machine • Always check the mowing unit for damaged linings prior to start-up and replace linings, if necessary! •...

  • Page 93: Maintenance - Lubrication Chart

    Maintenance – lubrication chart Pos: 114.1 /Überschriften/Überschriften 1/U-Z/Wartung - Schmierplan @ 0\mod_1197359304198_78.docx @ 18232 @ 1 @ 1 Maintenance – lubrication chart Pos: 114.2 /Überschriften/Überschriften 2/P-T/SSpezielle Sicherheitshinweise @ 0\mod_1196660495760_78.docx @ 9134 @ 2 @ 1 14.1 Special Safety Instructions Pos: 114.3 /BA/Sicherheit/7. Gefahrenhinweise alt/Mähwerke/Warnung - Reparatur_Wartung_Reinigungs_4 allgemein EasyCut @ 292\mod_1410941423112_78.docx @ 2299026 @ @ 1 WARNING! When performing repair, maintenance or cleaning work or in case of technical intervention, drive elements may start moving (caution: cutting discs continue to run).

  • Page 94: Lubrication Chart

    14.3 Lubrication Chart Pos: 114.8 /Abkürzungen /Abkürzungen sprachneutral/EasyCut/EasyCut R 280 CV ; EasyCut R 320 CV @ 116\mod_1340888611120_0.docx @ 1020115 @ @ 1 EasyCut R 280 CV ; EasyCut R 320 CV Pos: 114.9 /BA/Wartung/Mähwerke/EasyCut / AM Mähwerke/Schmierpläne/Schmierplan EC R 280/320 CV @ 194\mod_1383560605775_78.docx @ 1650167 @ @ 1 EC-379-2 Fig.
  • Page 95 Maintenance – lubrication chart Pos: 114.11 /Abkürzungen /Abkürzungen sprachneutral/EasyCut/EasyCut R 280 CR ; EasyCut R 320 CR @ 195\mod_1383724888528_0.docx @ 1654386 @ @ 1 EasyCut R 280 CR ; EasyCut R 320 CR Pos: 114.12 /BA/Wartung/Mähwerke/EasyCut / AM Mähwerke/Schmierpläne/Schmierplan EC R 280/320 CR @ 195\mod_1383726272530_78.docx @ 1654585 @ @ 1 EC-455-0 Fig.

  • Page 96: Placing In Storage

    Perform the necessary repair tasks during the time immediately after the harvest season. Draw up a list of all replacement parts you will need. This will make it easier for your KRONE dealer to process your orders and you will be certain that your machine will be ready for use at the beginning of the next season.

  • Page 97: Before The Start Of The New Season

    Before the Start of the New Season Pos: 116.4 /Überschriften/Überschriften 1/U-Z/Vor Beginn der neuen Saison @ 4\mod_1211272647559_78.docx @ 82867 @ 1 @ 1 Before the Start of the New Season Pos: 116.5 /Überschriften/Überschriften 2/P-T/SSpezielle Sicherheitshinweise @ 0\mod_1196660495760_78.docx @ 9134 @ 2 @ 1 16.1 Special Safety Instructions Pos: 116.6 /BA/Sicherheit/7.

  • Page 98: Friction Clutch

    Effect: Serious damage to the machine • Manipulation of the overload protection changes the slip torque. This will lead to a loss of warranty claims! Original KRONE spare parts only may be used. Pos: 116.14 /BA/Einlagerung/Reibkupplung/Reibkupplung entlüften @ 3\mod_1204732297351_78.docx @ 72885 @ @ 1 EC-257-0 Fig.

  • Page 99: Special Equipment

    Special equipment Pos: 118.1 /Überschriften/Überschriften 1/P-T/Sonderausstattung @ 2\mod_1202808469779_78.docx @ 61649 @ 1 @ 1 Special equipment Pos: 118.2 /Überschriften/Überschriften 2/P-T/SSpezielle Sicherheitshinweise @ 0\mod_1196660495760_78.docx @ 9134 @ 2 @ 1 17.1 Special Safety Instructions Pos: 118.3 /BA/Sicherheit/7. Gefahrenhinweise alt/Mähwerke/Warnung - Reparatur_Wartung_Reinigungs_4 allgemein EasyCut @ 292\mod_1410941423112_78.docx @ 2299026 @ @ 1 WARNING! When performing repair, maintenance or cleaning work or in case of technical intervention, drive elements may start moving (caution: cutting discs continue to run).

  • Page 100: Hydraulic Spring Compensation (Optional)

    Special equipment Pos: 120.1 /Überschriften/Überschriften 2/F-J/HHydraulische Federentlastung @ 59\mod_1297428073260_78.docx @ 557976 @ 2 @ 1 17.3 Hydraulic spring compensation (optional) Pos: 120.2 /Überschriften/Überschriften 3/U-Z/Umfang des Beipacks @ 39\mod_1268206369839_78.docx @ 358438 @ 2 @ 1 17.3.1 Scope of the accessories kit Pos: 120.3 /BA/Beipacks/Mäher/EasyCut/Hydraulische Federentlastung/Umfang des Beipacks Bild Federentlastung @ 59\mod_1297666613133_78.docx @ 558640 @ @ 1 EC-373-0 Fig.

  • Page 101: Mounting

    Special equipment Pos: 120.6 /Überschriften/Überschriften 3/A-E/A/Anbau @ 59\mod_1297664191618_78.docx @ 558472 @ 3 @ 1 17.3.2 Mounting Pos: 120.7 /BA/Beipacks/Mäher/EasyCut/Hydraulische Federentlastung/Gefahr Anbau Hydra. Federentlastung @ 59\mod_1297664894319_78.docx @ 558498 @ @ 1 Danger! - Unexpected movement of the machine Effect: Danger to life, serious injuries •...
  • Page 102 Special equipment Pos: 120.12 /BA/Beipacks/Mäher/EasyCut/Hydraulische Federentlastung/mit CV/Entlastungsfedern abschrauben @ 60\mod_1297689010746_78.docx @ 559987 @ @ 1 Unscrewing compensation springs EC-375-0 Fig. 63 • Unscrew compensation springs (b) and place on machine • Remove components (C) from the three-point block • Remove adjusting lever (a) and put aside •...
  • Page 103 Special equipment Pos: 120.14 /BA/Beipacks/Mäher/EasyCut/Hydraulische Federentlastung/Vormontierten Zylinder montieren @ 60\mod_1297688919919_78.docx @ 559961 @ @ 1 Installing pre-assembled cylinder EC-376-0 Fig. 64 • Remove upper hose clamp half (a) • Install pre-assembled cylinder (1) (b) in the rear hole using available pin •...
  • Page 104 Special equipment Pos: 120.17 /BA/Beipacks/Mäher/EasyCut/Hydraulische Federentlastung/Doppelsperrbock montieren @ 60\mod_1297688388550_78.docx @ 559882 @ @ 1 Installing double locking block and connecting hydraulic hoses 4 7 6 5 EC-378-0 Fig. 66 • Screw pre-assembled double locking block (3) onto the three-point block using bolt (4), washer (7), detent edge washer (6) and nut (5) •...

  • Page 105: Disposal Of The Machine

    Disposal of the machine Pos: 122 /Überschriften/Überschriften 1/A-E/Entsorgung der Maschine @ 274\mod_1404207309028_78.docx @ 2060455 @ 1 @ 1 Disposal of the machine Pos: 123 /BA/Entsorgung der Maschine/Die Maschine entsorgen @ 274\mod_1404207434449_78.docx @ 2060544 @ 2 @ 1 18.1 Disposal of the machine After the service life of the machine has expired, the individual components of the machine must be disposed of properly.
  • Page 106 Index Folding down the Safety Device ......47 Four supports ......... 44, 50, 53 Abrasion Limit ............. 88 Friction Clutch ............ 98 Adjust Locking ............ 56 From Headland Position to Transport Position .. 49 Adjusting Skids ........... 99 From Transport Position to Headland Position .. 49 Adjusting the Compensation Springs ....
  • Page 107 Open Guards ............54 Spare Parts ............67 Operation ............46 Special equipment ..........99 Speed gearbox ........... 78 Start-up .............. 39 Periodical Inspection of the Cutting Discs / Blade Switching from working position to transport Drums ............. 87 position ............45 Periodical Inspection of the Leaf Springs ...
  • Page 108 Maschinenfabrik Bernard Krone GmbH Heinrich-Krone-Straße 10, D-48480 Spelle Postfach 11 63, D-48478 Spelle Phone +49 (0) 59 77/935-0 +49 (0) 59 77/935-339 Internet: http://www.krone.de eMail: info.ldm@krone.de...

This manual is also suitable for:

Easycut r 320 cvEasycut r 280 crEasycut r 320 cr930 685

Table of Contents
