Thank you for choosing HERD!
For assistance call
1-888-543-4373
www.HERD.com
Important
Herd Bumpers are vehicle "Make & Model" specific. Use of a bumper on a vehicle other than the model it
was designed for will constitute improper use of the product and will void the HERD product warranty.
Unless otherwise specified, Grade 8 or Class 10.9 hardware is to be used. For the purposes of these
instructions, OE hardware means the truck's original factory hardware.
For further detail of warranty coverage and warranty repair information visit
General Safety
Take time to fully read the instructions before installing the Herd bumper.
At all times exercise safe work shop practices, wear steel toe boots and safety glasses during installation.
Parts and components of the Herd bumper can be heavy, handle with care to avoid injuries.
Respect power tools and use them as advertised.

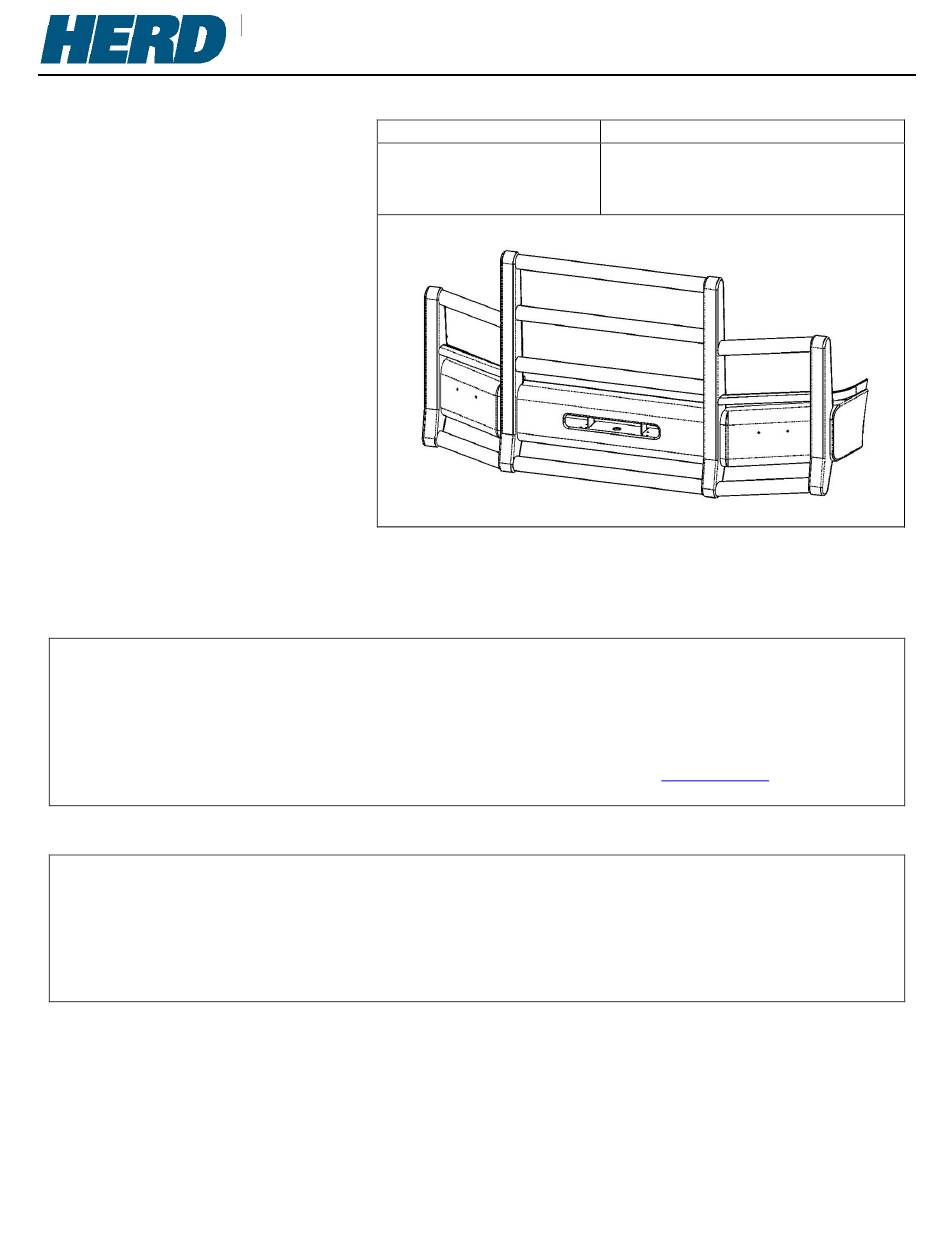

Part No: FL34-IG
Rev: A
Date: 01-May-17
Installation guide
SKU #
FL34A2, FL34A4, FL34D2,
FL34D4,FL34DFLT2,
FL34RT, FL34SRT
1
Truck Model
Freightliner M2 112
.
www.HERD.com
HERD North America
Inc.
2168 Springfield Road
Box 28, Group 525, RR5
Winnipeg, MB. Canada R2C
2Z2
1-888-543-4373
www.HERD.com
1-888-543-4373
Advertisement
Related Manuals for Herd FL34A2
Summary of Contents for Herd FL34A2
- Page 1 Important Herd Bumpers are vehicle "Make & Model" specific. Use of a bumper on a vehicle other than the model it was designed for will constitute improper use of the product and will void the HERD product warranty.
- Page 2 Parts and hardware included Item No Description Bumper Driver side sub-mount Passenger side sub-mount HERD Bracket ½”-13 UNC x 1- ” Gr.8 hex bolt ½”-13 UNC x 1- ” Gr.8 hex bolt ½” flat washer ”-11 UNC x 2” Gr.8 hex bolt ”-11 UNC Nyloc hex nut...
- Page 3 Cut mounts on the cut lines that were marked. Mark cut line here Figure 2 – OEM strut/bumper mount (passenger side shown). 5. Cut brackets off on marked line. (Fig.2) Part No: FL34-IG 1-888-543-4373 Rev: A www.HERD.com Date: 01-May-17 1-888-543-4373...
- Page 4 (90 lb-ft) 5/8”-11 UNC hardware (150 lb-ft) Figure 5 – Herd submounts installed (Driver side shown). 8. Install HERD bumper onto the HERD bracket. If the bumper is a Defender product follow the arrows in Fig.6 to lock the channel into the steel hinge.
- Page 5 Check mounting points after the first 5000 km and every 3-6 month. This bumper is equipped with Herd Slam Latch which requires periodic adjustment. Refer to Slam Latch Installation adjustment instructions (S001) to properly adjust your slam Latch. Part No: FL34-IG...
