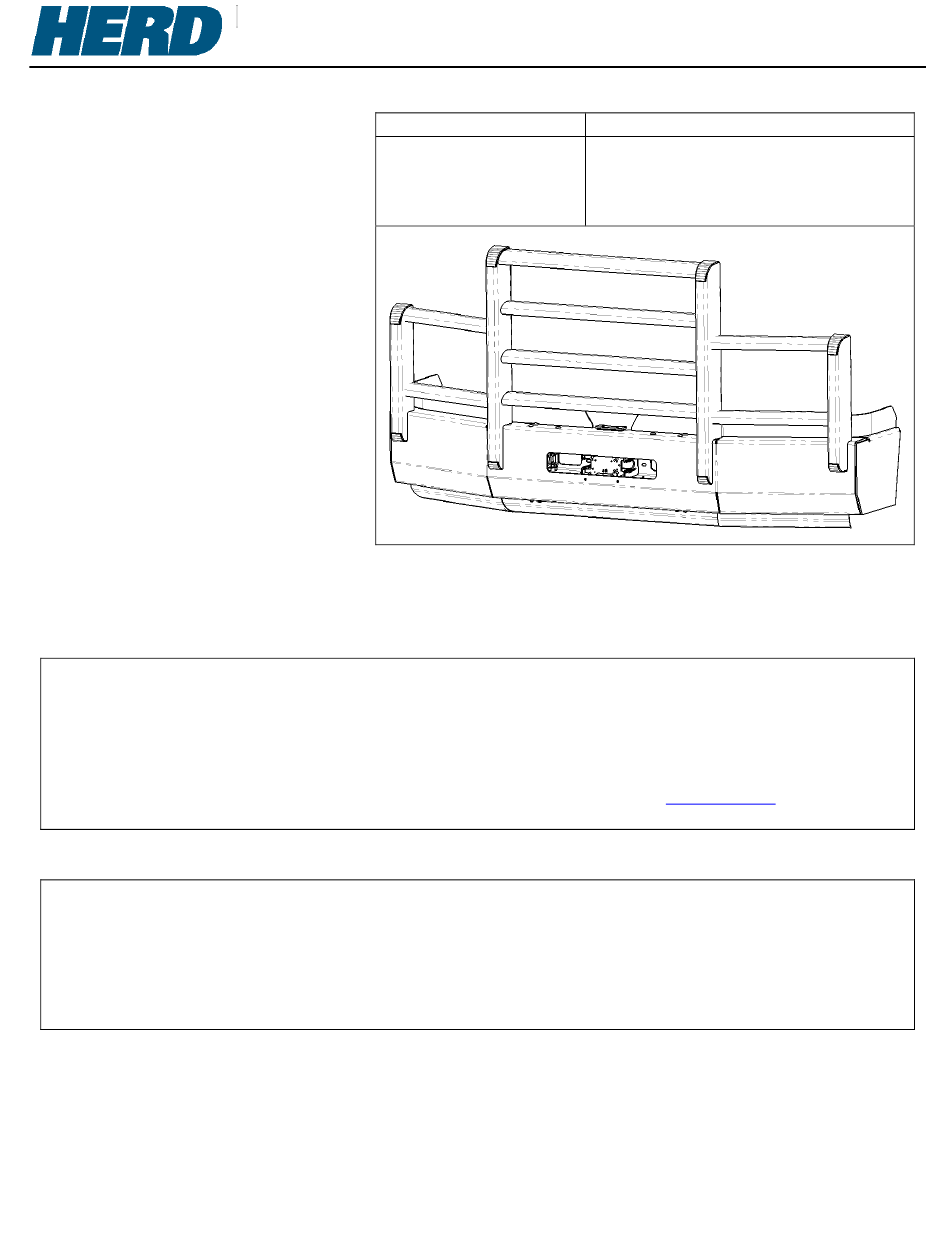

Thank you for choosing HERD!
For assistance call
1-888-543-4373
www.HERD.com
Important
• Herd Truck Guards are vehicle "Make & Model" specific. Use of a Truck Guard on a vehicle other than the
model it was designed for will constitute improper use of the product and may void warranty.
• Unless otherwise specified, Grade 8 or Class 10.9 hardware is to be used. For the purposes of these
instructions, OE hardware means the truck's original factory hardware.
• For further detail of warranty coverage and warranty repair information visit
General Safety
• Take time to fully read the instructions before installing the Herd Truck Guard.
• At all times exercise safe work shop practices, wear steel toe boots and safety glasses during installation.
• Parts and components of the Herd Truck Guard can be heavy, handle with care to avoid injuries.
• Respect power tools and use them as advertised.
Part No: PB11C4-02-IG
Rev: C
Date: 2020-04-16
Installation Guide
SKU #
PB11C4-02
1
Truck Model
Peterbilt 365, 367,
567
.
www.HERD.com
HERD North America Inc.
2168 Springfield Road
Box 28, Group 525, RR5
Winnipeg, MB. Canada R2C 2Z2
1-888-543-4373
www.HERD.com
1-888-543-4373
Advertisement
Related Manuals for Herd PB11C4-02
Summary of Contents for Herd PB11C4-02
- Page 1 Important • Herd Truck Guards are vehicle "Make & Model" specific. Use of a Truck Guard on a vehicle other than the model it was designed for will constitute improper use of the product and may void warranty. • Unless otherwise specified, Grade 8 or Class 10.9 hardware is to be used. For the purposes of these instructions, OE hardware means the truck's original factory hardware.
- Page 2 Parts and Tools Referenced in this Installation Guide Parts and Hardware Included Item No Part No Description 2P6004 WLDMT-TRUCK GUARD PB11C4-02 100062 ASSY-UNIVERSAL BRACKET 1P6023 KIT – MOUNTING PB11C4-02 100027 C4-02 SLAM LATCH ASSEMBLY 100021 ASSY-LIFT ASSIST 100054 ASSY-HINGE 100058 KIT-CHANNEL STRUT 400014...
- Page 3 1. With the hood of the truck closed, remove the bolts shown on each side of the bumper. OEM bumper can be removed. Factory bumper uninstall (Passenger side shown) Figure 1 – OEM Bumper Uninstall Part No: PB11C4-02-IG 1-888-543-4373 Rev: C www.HERD.com Date: 2020-04-16 1-888-543-4373...
- Page 4 Installation Procedure 2. Install HERD mounting brackets onto truck frame. Do not tighten bolts until installation is complete. Figure 2 – OEM Bumper Mount Removed from the truck 3. Install tow receiver mounts (From Item 3) into truck tow receivers. Remove the OEM bolts indicated by arrows.
- Page 5 (Items 18 and 19). Try mount the sub-mount level with respect to the truck’s frame. 6. Repeat for the passenger side OEM Hardware Figure 5 – Side Mounting Bracket Installation Driver side Part No: PB11C4-02-IG 1-888-543-4373 Rev: C www.HERD.com Date: 2020-04-16 1-888-543-4373...
- Page 6 (item 5) Lift Assist Spring Lift Assist Spring Figure 7a – Bracket and Lift Assist Disassembly Part No: PB11C4-02-IG 1-888-543-4373 Rev: C www.HERD.com Date: 2020-04-16 1-888-543-4373...
- Page 7 Note that the schematic view of the bracket may differ from what can be seen in Figure 8. 12, 19 Figure 8 – Universal Bracket Side Mounting Location (Driver Side Shown) Part No: PB11C4-02-IG 1-888-543-4373 Rev: C www.HERD.com Date: 2020-04-16...
- Page 8 Reinsert Figure 9.2 – Bracket and Lift Assist Reassembly 3/8” hardware securing the lift assist springs. Part No: PB11C4-02-IG 1-888-543-4373 Rev: C www.HERD.com Date: 2020-04-16 1-888-543-4373...
- Page 9 (Items 14, 15, 16). 23, 24 Figure 11 – Air Deflector Installation 13. Install radar sensor, if truck is equipped with one. Refer to the HERD radar sensor installation guide (S009) to re-install your sensor. Figure 12 – CAS Unit Installation Important •...
- Page 10 Installation Procedure • This truck guard is equipped with Herd Slam Latch which requires periodic adjustment. Refer to Slam Latch Installation adjustment instructions (S001) to properly adjust your Slam Latch. Part No: PB11C4-02-IG 1-888-543-4373 Rev: C www.HERD.com Date: 2020-04-16 1-888-543-4373...
