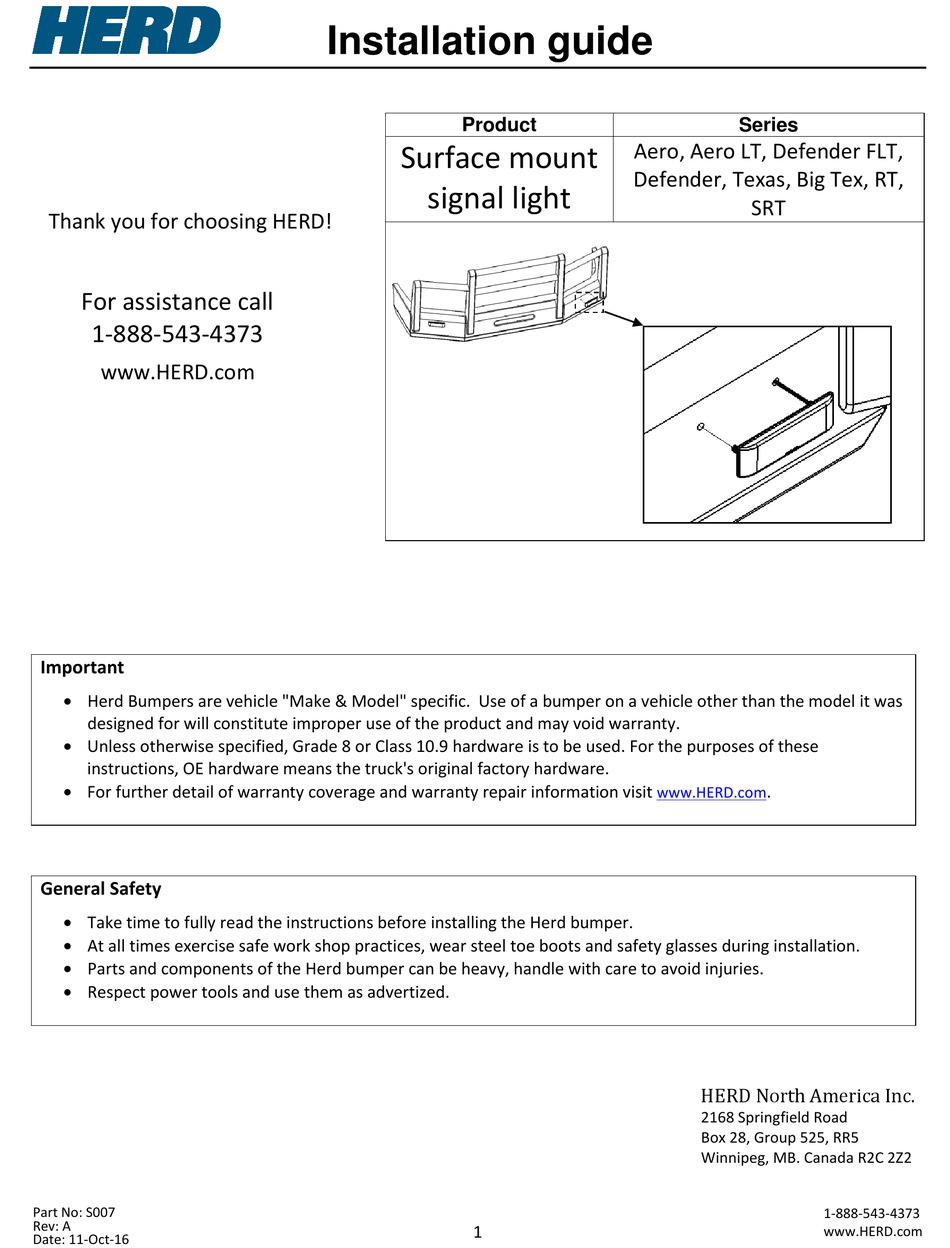

Thank you for choosing HERD!
For assistance call
1-888-543-4373
www.HERD.com
Important
Herd Bumpers are vehicle "Make & Model" specific. Use of a bumper on a vehicle other than the model it was
designed for will constitute improper use of the product and may void warranty.
Unless otherwise specified, Grade 8 or Class 10.9 hardware is to be used. For the purposes of these
instructions, OE hardware means the truck's original factory hardware.
For further detail of warranty coverage and warranty repair information visit
General Safety
Take time to fully read the instructions before installing the Herd bumper.
At all times exercise safe work shop practices, wear steel toe boots and safety glasses during installation.
Parts and components of the Herd bumper can be heavy, handle with care to avoid injuries.
Respect power tools and use them as advertized.
Part No: S007
Rev: A
Date: 11-Oct-16
Installation guide
Product
Surface mount
signal light
1
Series
Aero, Aero LT, Defender FLT,
Defender, Texas, Big Tex, RT,
SRT
.
www.HERD.com
HERD North America Inc.
2168 Springfield Road
Box 28, Group 525, RR5
Winnipeg, MB. Canada R2C 2Z2
1-888-543-4373
www.HERD.com
1-888-543-4373
Advertisement
Related Manuals for Herd Aero Series
Summary of Contents for Herd Aero Series
- Page 1 Important Herd Bumpers are vehicle "Make & Model" specific. Use of a bumper on a vehicle other than the model it was designed for will constitute improper use of the product and may void warranty. Unless otherwise specified, Grade 8 or Class 10.9 hardware is to be used. For the purposes of these instructions, OE hardware means the truck's original factory hardware.
- Page 2 White – Ground, Red – Turn Signal, Black – Marker light Tools Required Tool Specification Socket 9/16” or 14 mm Wrench 9/16” or 14 mm Drill Drill Bit 1/8” and ½” Part No: S007 1-888-543-4373 Rev: A www.HERD.com Date: 11-Oct-16 1-888-543-4373...
- Page 3 (Figure 2). Drill two ½” holes (1/8” pilot hole) using marks for reference. Once holes are drilled install lights as outlined in Step 1. Center punched marks Figure 2 Part No: S007 1-888-543-4373 Rev: A www.HERD.com Date: 11-Oct-16 1-888-543-4373...
- Page 4 (Figure 3). Drill two ½” holes (1/8” pilot hole) using marks for reference. Once holes are drilled install lights as OEM light cutout outlined in Step 1. Center punched marks Figure 3 Part No: S007 1-888-543-4373 Rev: A www.HERD.com Date: 11-Oct-16 1-888-543-4373...
