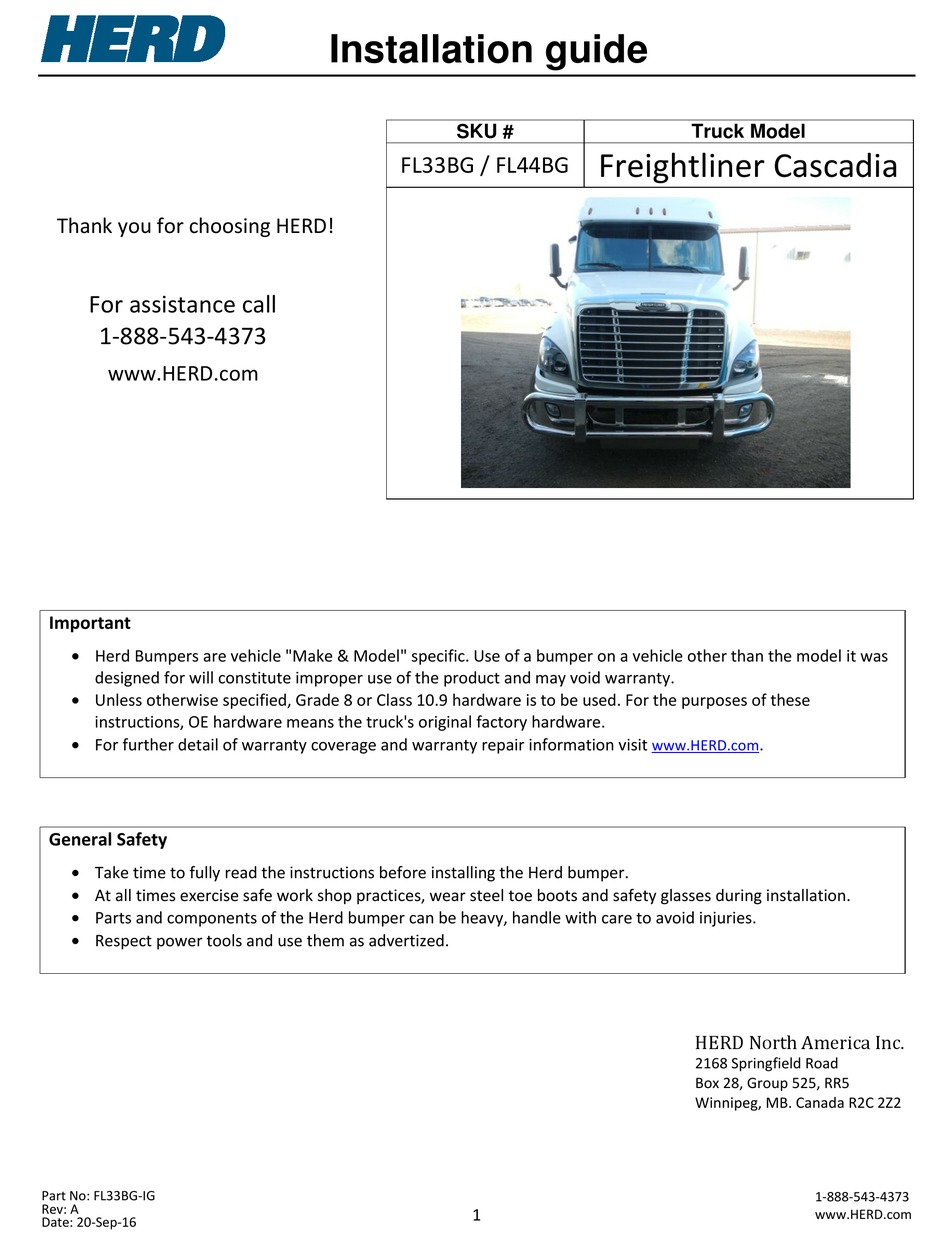

Thank you for choosing HERD!
For assistance call
1-888-543-4373
www.HERD.com
Important
Herd Bumpers are vehicle "Make & Model" specific. Use of a bumper on a vehicle other than the model it was
designed for will constitute improper use of the product and may void warranty.
Unless otherwise specified, Grade 8 or Class 10.9 hardware is to be used. For the purposes of these
instructions, OE hardware means the truck's original factory hardware.
For further detail of warranty coverage and warranty repair information visit
General Safety
Take time to fully read the instructions before installing the Herd bumper.
At all times exercise safe work shop practices, wear steel toe boots and safety glasses during installation.
Parts and components of the Herd bumper can be heavy, handle with care to avoid injuries.
Respect power tools and use them as advertized.
Part No: FL33BG-IG
Rev: A
Date: 20-Sep-16
Installation guide
SKU #
FL33BG / FL44BG
1
Truck Model
Freightliner Cascadia
.
www.HERD.com
HERD North America Inc.
2168 Springfield Road
Box 28, Group 525, RR5
Winnipeg, MB. Canada R2C 2Z2
1-888-543-4373
www.HERD.com
1-888-543-4373
Advertisement
Related Manuals for Herd FL33BG
Summary of Contents for Herd FL33BG
- Page 1 Important Herd Bumpers are vehicle "Make & Model" specific. Use of a bumper on a vehicle other than the model it was designed for will constitute improper use of the product and may void warranty. Unless otherwise specified, Grade 8 or Class 10.9 hardware is to be used. For the purposes of these instructions, OE hardware means the truck's original factory hardware.
- Page 2 Bumper guard stud plates Parts and hardware included Item No Part No Description BG-GR-01 ASSY-WLD CASCADIA BG-MTK-01 ASSY-FL33BG MOUNTING KIT 1MPA001 ASSY-WLD STUD BRACKET NLN0.75-10GR8 NYLON LOCK NUT ¾-10GR8 YZP FW0.75GR8 FLAT WASHER ¾ GR8 YZP 1TBA001 ASSY-WLD CASCADIA TOW...
- Page 3 (Item 10) to secure plates in place (tighten locknut just enough to engage the nylon, allowing the plate to move freely during installation). Figure 2 – Guard mounting plate installation. Part No: FL33BG-IG 1-888-543-4373 Rev: A www.HERD.com Date: 20-Sep-16 1-888-543-4373...
- Page 4 200 ft- lbs (271 N·m). Repeat on opposite side of bumper. Figure 4 – Submount assembly installation. Narrow Rad version shown. Part No: FL33BG-IG 1-888-543-4373 Rev: A www.HERD.com Date: 20-Sep-16 1-888-543-4373...
- Page 5 5, readjust then tighten all hardware. Figure 6 – Bumper guard installed (Narrow Rad version shown). Important Check mounting points after the first 5000 km and every 3-6 month. Part No: FL33BG-IG 1-888-543-4373 Rev: A www.HERD.com Date: 20-Sep-16 1-888-543-4373...
