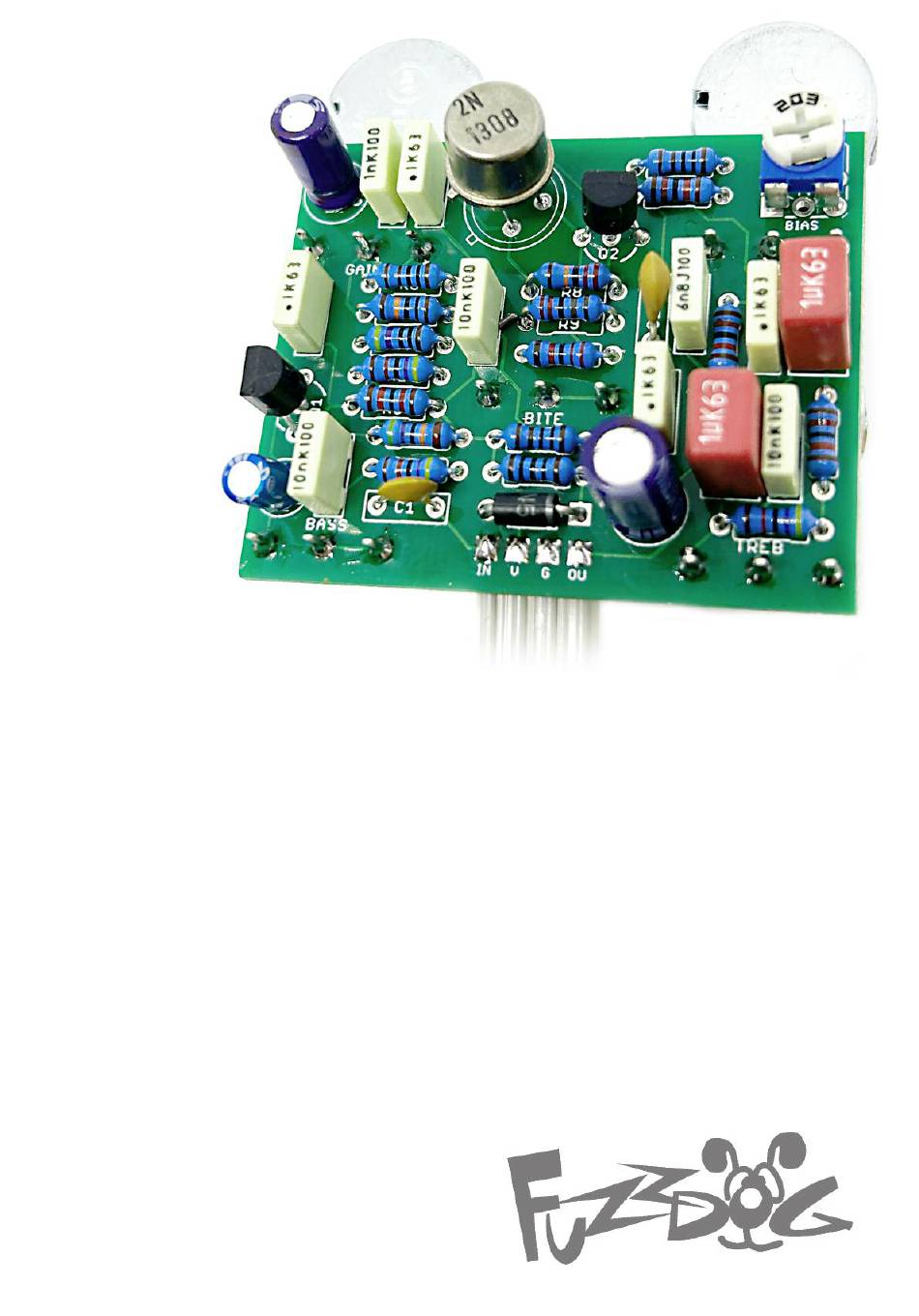

- Page 1 ZAP! Single channel germanium fuzz monster Contents of this document are ©2023 Pedal Parts Ltd. No reproduction permitted without the express written permission of Pedal Parts Ltd. All rights reserved.
- Page 2 Before you dig in, ensure you download and read the General Build Guide. It contains all the information you need for a successful outcome.
- Page 3 Schematic + BOM 100p 1N5817 470K 100n 2N5089 470R 100n 2N3904 NPN Germanium** 100K BIAS 20K trimmer 220K BASS 100KB 470p BITE* 100n GAIN 500KA 100R 1u elec TREB 25KB 4u7 elec 100KB 1u elec 47u elec 100u elec *BITE is an optional pot to give you more oomph at Q2.
- Page 5 Snap the small metal tag off the pots so they can be mounted flush in the box. You should solder all other board-mounted components before you solder the pots. Once they’re in place you’ll have no access to much of the board. Trimmer Adjustment Twiddle until you get the sound you want.
-
Page 6: Drilling Template
13 5mm 27mm This template is a rough guide only. You should ensure correct marking of your enclosure before drilling. You use this template at your own risk. Pedal Parts Ltd can accept no responsibility for incorrect drilling of enclosures. FuzzDog.co.uk...
