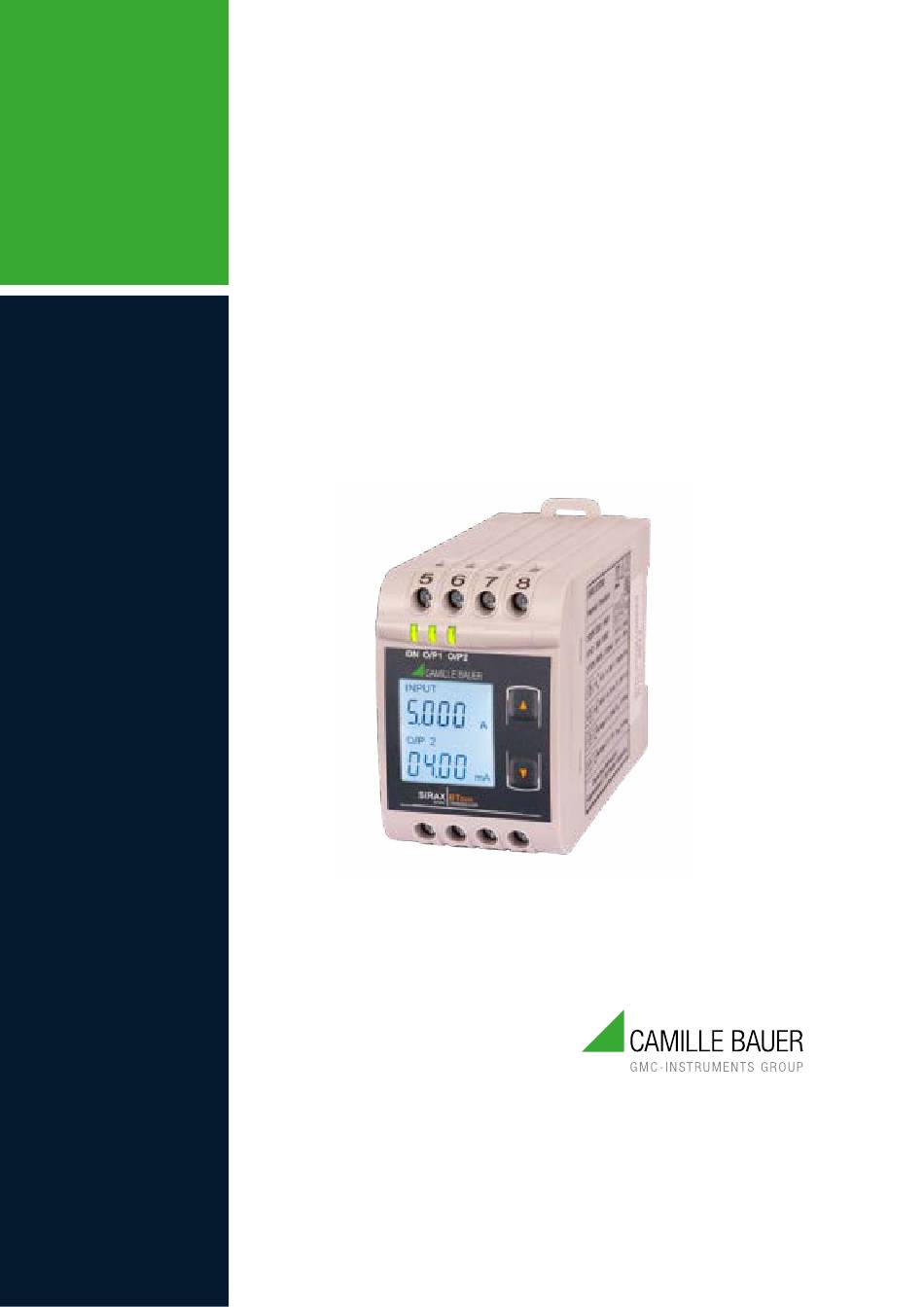

- Page 1 Operating Instructions SIRAX BT5200 Transducer for AC current Camille Bauer Metrawatt AG Aargauerstrasse 7 CH-5610 Wohlen/Switzerland Tel: +41 56 618 21 11 info@camillebauer.com www.camillebauer.com...
-
Page 2: Legal Information
Legal information Warning notices In this document warning notices are used, which you have to observe to ensure personal safety and to prevent damage to property. Depending on the degree of danger the following symbols are used: If the warning notice is not followed death or severe personal injury will result. If the warning notice is not followed damage to property or severe personal injury may result. -
Page 3: Table Of Contents
Table of content 1. Introduction ……………………………………………………………………………………………………………………… 4 1.1 Purpose of this document …………………………………………………………………………………………………… 4 1.2 Scope of supply …………………………………………………………………………………………………………… 4 1.3 Further documents ………………………………………………………………………………………………………… 4 2. Safety notes ……………………………………………………………………………………………………………………… 4 3. Device overview 5 4. Mechanical mounting …………………………………………………………………………………………………………… 5 4.1 Mounting …………………………………………………………………………………………………………………… 5 4.2 Demounting of the device ……………………………………………………………………………………………………... -
Page 4: Introduction
1. Introduction 1.1 Purpose of this document This document describes the universal measurement device SIRAX BT5200. It is intended to be used by: Installation personnel and commissioning engineers • Service and maintenance personnel • Planners • Scope This handbook is valid for all hardware versions of the BT5200. Some of the functions described in this document are available only, if the neces- sary optional components are included in the device. -
Page 5: Device Overview
3. Device overview The SIRAX BT5200 is a top-hat rail mounted Transducer and used to measure and convert AC Current input into an proportional DC current or voltage output signal. Input Current and Output Voltage/Current is displayed on LCD and indicated by LED’s. 4. -
Page 6: Electrical Connections
5. Electrical connections Ensure under all circumstances that the leads are free of potential when connecting them! 5.1 General safety notes Please observe that the data on the type plate must be adhered to! The national provisions have to be observed in the installation and material selection of electric lines! Symbol Meaning Device may only be disposed of in a professional manner! -
Page 7: Connection Diagram
5.5 Connection Diagram Input I Connection Terminal details 5 (L) Measuring input 6 (N) Auxilliary power supply AUX ~ - O/P1 Measuring output - 1 O/P1 O/P2 Measuring output - 2 O/P2 – Modbus – – A B G Output-1 Output-2 RS485 5.6 Modbus interface RS485... -
Page 8: Operating The Device
6.1 Operating the device O/P1 O/P2 O/P1 O/P2 O/P1 O/P2 SIRAX BT5200 can be configured and programmed at site for the following: CT Primary, CT Secondary (5A or 1A), Input parameters (i.e start, end and INPUT x012 INPUT elbow value of Input) and Output parameters (i.e as Voltage or as Current and start, end and elbow value of outputs). -
Page 9: Programming
7. Programming Programming of transducer can be done in three ways: 1) Programming via Front LCD & two keys. 2) Programming via Programming port available at front of Transducers using optional PRKAB5000 adapter 3) Programming via optional RS485 (Modbus) communication port. 7.1 Programming via Front LCD &... -
Page 10: New/Change Password
Password Set/Confirmed O/P1 O/P2 Pressing “ Down” key will enter to the “New / change Password” entry stage.(section 7.1.1.2) Pressing the “ Up” key will advance to the Potential Transformer parameter selection(section 7.1.2). Password Incorrect. O/P1 O/P2 This screen is displayed when the unit has not accepted the Password entered. Pressing the "... -
Page 11: Current Transformer Parameter Selection
Enter New / Change Password, third digit entered, prompting for fourth digit. (* denotes that digit will be O/P1 O/P2 flashing). Pressing the “ Down” key will scroll the value of the fourth digit from 0 through to 9, the value will wrap from 9 round to 0. -
Page 12: Current Transformer Secondary Value
Enter New / Change CT Primary value, first digit entered, prompting for second digit. O/P1 O/P2 (*Denotes that digit will be flashing). Pressing the “ Down” key will scroll the value of the second digit from 0 through to 9, the value will wrap from 9 round to 0. -
Page 13: Communication Parameter Selection
New/changed CT Secondary value confirmed. O/P1 O/P2 Pressing the “ Down” key will return to the “New / Change CT Secondary value edit” mode. Pressing the “ Up” key will confirm the CT Secondary and advance to the Communication parameter Selection (section 7.1.3). -
Page 14: Rs 485 Baud Rate
New/changed Address value confirmed. O/P1 O/P2 Pressing the “ Down” key will re-enter to the “New / Change Address value edit” mode. Pressing the “ Up” key will confirm New Address value and advance to Baud Rate selection (section 7.1.3.2). 7.1.3.2 RS 485 Baud Rate This screen allows the user to set Baud Rate of RS 485 port. -
Page 15: Output Type Selection
7.1.4. Output Type Selection 7.1.4.1 Output 1 Type selection This screen allows the user to set the output 1 type as Voltage or Current. Pressing the “ Down” key will enter the “output 1type edit” mode and scroll between voltage and current. O/P1 O/P2 Pressing “... -
Page 16: Input Parameter Selection
7.1.5. Input parameter selection 7.1.5.1 End value of Input This screen allows the user to set the End value of Input. End value of Input can be set from 40% to 150% of set CT secondary value. Pressing the “ Down”... -
Page 17: Start Value Of Input
7.1.5.2 Start value of Input This screen allows the user to set the Start value of Input. Start value of Input can be set up to 80% of End value of Input. O/P1 O/P2 Pressing the “ Down” key will enter the “New/Change INPUT x012 INPUT Start value of Input edit”... -
Page 18: Elbow Function Selection
O/P 12 y012 7.1.5.3 Elbow Function selection This screen allows the user to enable or disable Elbow function of input. Pressing the “ Down” key will enter the “Selection of Elbow function of Input edit” mode and scroll the O/P1 O/P2 value between yes and no. -
Page 19: Output Parameter Selection
Enter New / Change Elbow value of the Input, third digit entered, prompting for fourth digit. (* denotes that O/P1 O/P2 digit will be flashing). INPUT Pressing the “ Down” key will scroll the value of the fourth digit from 0 through to 9, the value will wrap from 9 round to 0 depending on set value of End value of Input. -
Page 20: Elbow Value Of Output 1
Enter New / Change Start value of the Output 1, first digit entered, prompting for second digit. (*Denotes that O/P1 O/P2 digit will be flashing). Pressing the “ Down” key will scroll the value of the second digit from 0 through to 4, the value will wrap from 4 round to 0 depending on the set End value of Output. -
Page 21: Output 2 Parameter Selection
Enter New / Change Elbow value of the Output 1, first digit entered, prompting for second digit. (*Denotes O/P1 O/P2 that digit will be flashing). Pressing the “ Down” key will scroll the value of the second digit from 0 through to 9, the value will wrap from 9 round to 0depending on the set End value of Output. -
Page 22: Start Value Of Output 2
7.1.6.2.2 Start value of output 2 This screen allows the user to set the Start value of Output 2 (considerd as DC Voltage). Start value of Output can be set up to 20% of set End value of Output. O/P1 O/P2 Pressing the “... -
Page 23: Elbow Value Of Output 2
7.1.6.2.3 Elbow value of output 2 This screen appears only when Elbow function is enabled. This screen allows the user to set the Elbow value of Output 2 (considerd as DC Volta- ge). The Elbow value can be set any value between set Start value of Output and End value of Output. O/P1 O/P2 Pressing the “... -
Page 24: Programming Via The Programming Connection And The Prkab5000 Programming Cable
7.2 Programming via the RS485 (Modbus) interface Follow the subsequent steps to program the transducer via the RS485 interface and Modbus: Schritt 1: DIP switch setting The DIP switches must be configured for the desired output type as described in Section 7.3. Schritt 2: Connection Connect the Modbus cable according to the connection diagram in Chapter 5.5. -
Page 25: Service, Maintenance And Disposal
Incorrect disposal can cause environ- mental risks. 8.5 Return All devices delivered to Camille Bauer Metrawatt AG shall be free of any hazardous contaminants (acids, lyes, solutions, etc.). Use original packaging or suitable transport packaging to return the device. Damage by returning Damages caused by improper returning, no warranties or guarantees can be given. -
Page 26: Technical Data
9. Technical data Inputs Rated current (I 1 … 5 A Current transformer primary value: 1 … 9999 A Nominal frequency (f 45 … 66 Hz Rated load input voltage: < 0.6 VA at rated voltage Overload capacity: 1.2 * I permanently, 10 * X2 for 3 sec., 5 repetitions in 5 minute intervals. -
Page 27: Output Characteristics
Output characteristics: 1) Example of setting with Linear characteristics: 2) Example of setting with Bent characteristics: X0 = Start value of input Y0 = Start value of output X1 = Elbow value of input Y1 = Elbow value of output X2 = End value of input Y2 = End value of output RN = Rated value of output burden... -
Page 28: Dimensional Drawings
Installation Data: Material: Lexan 940 (polycarbonate), V-0 acc. to UL94, self-extinguishing, non-dripping, free of halogen Mounting position: Rail mounting / wall mounting Weight: Approx. 0.4kg Connection Terminal Connection Element: Conventional Screw type terminal with indirect wire pressure Permissible cross section of the connection lead: ≤... -
Page 29: Modbus Functions
11.1 Modbus functions Following code functions are provide: Function code Function Address Read holding registers 40001 to 40040 Read input registers 30001 to 30002 Presets multiple registers 40001 to 40040 Example of read out measurement Query: Device address Function code Start address Nr. -
Page 30: Modbus Register
11.3 Modbus Register Address Read/ Name Description (Register) Write 30007 Current Input current (RMS) 40001 – – – 40003 Mode selection This is used to select the Mode of operation. Normal mode = 1 Simulation mode = 2 40005 – –...
