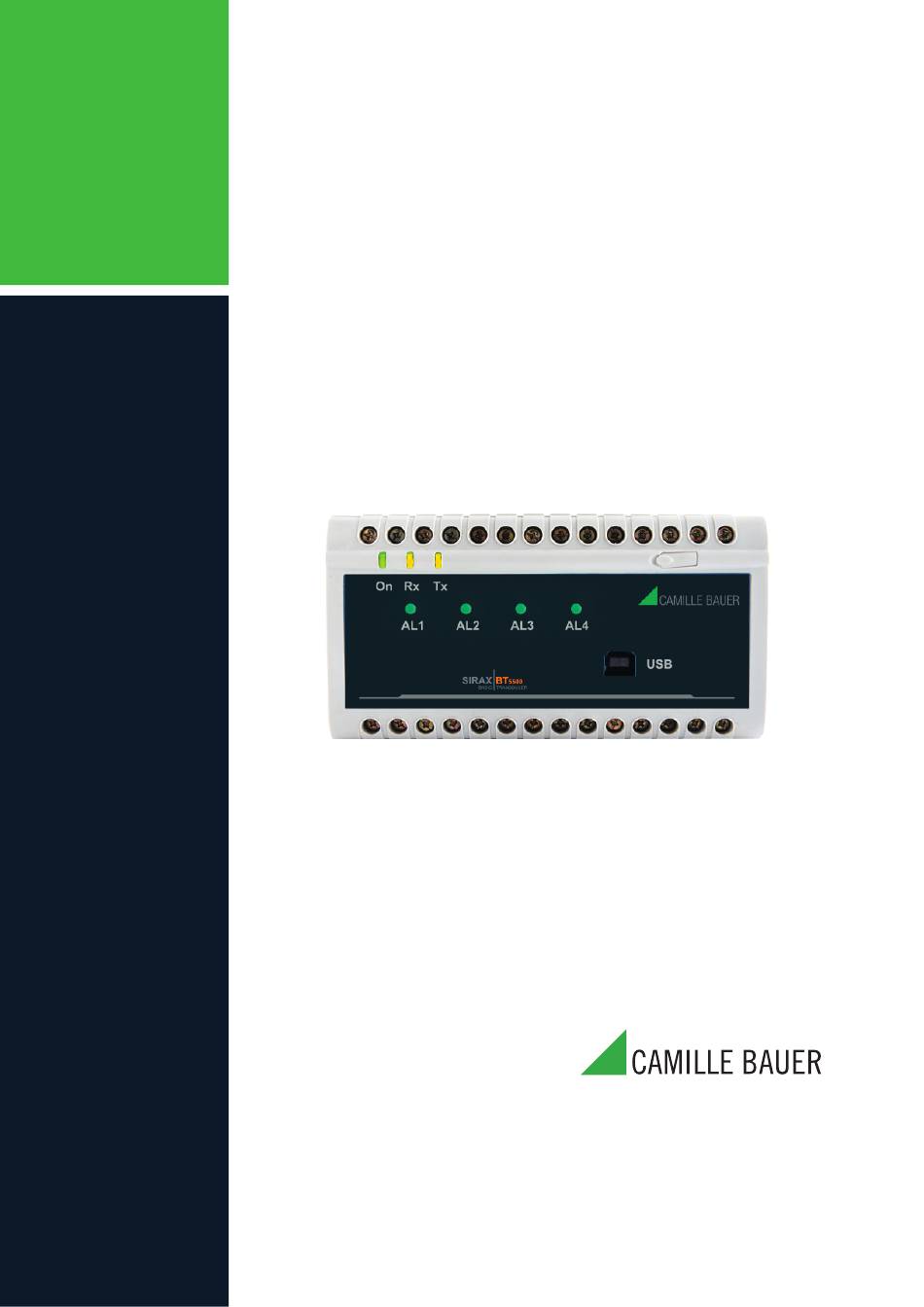

Device handbook
SIRAX BT5500
Operating Instructions SIRAX BT5500
Camille Bauer Metrawatt AG
Aargauerstrasse 7
CH-5610 Wohlen/Schweiz
Tel: +41 56 618 21 11
Fax: +41 56 618 21 21
info@cbmag.com
www.camillebauer.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SIRAX BT5500 and is the answer not in the manual?

Questions and answers

Related Manuals for Camille Bauer SIRAX BT5500

Summary of Contents for Camille Bauer SIRAX BT5500

  • Page 1 Device handbook SIRAX BT5500 Operating Instructions SIRAX BT5500 Camille Bauer Metrawatt AG Aargauerstrasse 7 CH-5610 Wohlen/Schweiz Tel: +41 56 618 21 11 Fax: +41 56 618 21 21 info@cbmag.com www.camillebauer.com...

  • Page 2: Table Of Contents

    10.2 Example 2 - Configuring alarm of ordered power exceeding …………………………………………………………………26 10.3 Example 3 - Programming a unidirectional continuous output 1 ……………………………………………………………27 10.4 Example 4 - Programming a bidirectional continzous output 1 ………………………………………………………………28 PM 1002499 000 00 Device handbook SIRAX BT5500 2/28...

  • Page 3: Legal Informations

    The display and the control buttons should be cleaned at regular intervals. Use a dry or slightly damp cloth. Damage caused by cleaning agents Detergents can not only affect the clarity of the display, but also cause damage to the device. Therefore, do not use detergents. PM 1002499 000 00 Device handbook SIRAX BT5500 3/28...

  • Page 4: Disposal

    Service and maintenance personnel, Planner. Scope This handbook is valid for all versions of the programmable multi-function transducer SIRAX BT5500. Some of the functions described in this document are available only, if the necessary optional components are included in the device.

  • Page 5: Mechanical Mounting And Installation

    • Phase active power factors ……………… Pf1, Pf2, Pf3 The SIRAX BT5500 can be mounted either on DIN Rail or directly on to a wall by mounting plate. Please ensure that the operating temperature limits are not exceeded when determining the place of mounting (place of measurement): –10 …...

  • Page 6: Possible Cross Section And Tightening Torques

    No fuse may be connected upstream of the current measurement inputs! When using current transformers their secondary connectors must be short-circuited during installation and before removing the device. Never open the secondary circuit under load. PM 1002499 000 00 Device handbook SIRAX BT5500 6/28...
  • Page 7 Measurement with the use of current transformer in a four-wire network Semidirect measurement in a three-wire network Indirect measurement with the use of 3 current transformers and 2 or 3 voltage transformers in a four-wire network PM 1002499 000 00 Device handbook SIRAX BT5500 7/28...

  • Page 8: Power Supply

    Before commissioning you have to check if the connection data of the device match the data of the plant. If so, you can start to put the device into operation by switching on the power supply and the measurement inputs. Label version with 4 analog output 4...20mA PM 1002499 000 00 Device handbook SIRAX BT5500 8/28...

  • Page 9: Programming

    7.1 Configuration of the transducer The SIRAX BT5500 can be configuraed via software. The transducer has to be connected to the computer through the RS-485 converter, if the com- munication will be performed using RS-485/Modbus Interface or directly through the USB port and after selecting Multi-transducer the conficuration for the connection can be done.

  • Page 10: Settings Of Transmission Parameters

    The currently measured value is copied out to the minimal and maximal value. e) clock: it is possible to set time and date synchronize the clock with the time on the PC (computer). PM 1002499 000 00 Device handbook SIRAX BT5500 10/28...

  • Page 11: Setting Of Alarm Parameters

    Mean active power 3 x Un x In x cos(0°) [W] * Used active ordered power (used energy) 100 [%] * Un, In – Rated values of transducer voltage and current PM 1002499 000 00 Device handbook SIRAX BT5500 11/28...

  • Page 12: Setup Of Analog Output Parameters

    Admissible overflow on the analog output: 20% of the lower and upper range value. Minimal value on the analog output: -20 1.2 = - 24 mA. Maximal value on the analog output: 20 1.2 = 24 mA. PM 1002499 000 00 Device handbook SIRAX BT5500 12/28...

  • Page 13: Restoration Of Manufacturer Parameters

    Baud rate 4800, 9600, 19200, 38400 9600 7.1.7 Measured Values After choosing the group: - measured values, all parameters measured by the transducer are displayed in the form of a list. PM 1002499 000 00 Device handbook SIRAX BT5500 13/28...

  • Page 14: Minimal And Maximal Values

    – the state diode lights in red – inappropriate work parameters; one must configure the transducer again. – the state diode pulsate alternately in red and green - error of phase connection sequence; one must interchange the connection of phase L2 with the phase L3. PM 1002499 000 00 Device handbook SIRAX BT5500 14/28...

  • Page 15: Technical Specifications

    Accuracy ±1% Angle between U and I -180° ... 180° Accuracy ±0.5% Energy Input active energy 0 ... 99999999.9 kWh Accuracy ±0.5% Developed active energy 0 ... 99999999.9 kvarh Accuracy ±0.5% PM 1002499 000 00 Device handbook SIRAX BT5500 15/28...
  • Page 16 03 readout of registers 16 write of registers 17 device identifying Physics USB 1.1 / 2.0 Protocol Modbus/RTU Identifier 0xC6 (198) Responce time 500 ms Address Mode Baud rate 9600 kbit/s PM 1002499 000 00 Device handbook SIRAX BT5500 16/28...
  • Page 17 UL94 V-0, self-extinguishing, non-dripping, free of halogen Dimensions 122.5 x 66.0 x 106.5 mm (w x h x d) Weight 0.45 kg Dimensions 122.5mm 95.5mm Application : Application : Application : : 106.5mm PM 1002499 000 00 Device handbook SIRAX BT5500 17/28...

  • Page 18: Interface Definition Modbus (Rs485)

    9. Interface Definition Modbus (RS485) The programmable multi-function transducer SIRAX BT5500 supports the MODBUS (RS485) RTU protocol (2-wire). Connection should be made using twisted pair shielded cable. All "A" and "B" connections are daisy chained to-gether. The screens should also be connected to the “Gnd”...
  • Page 19 -1440 ... 0 ... 1440 [‰] Alarm output 3 - upper alarm switching value of the rated input range 1010 4035 0 ... 900 s Alarm output 3 - alarm switching delay PM 1002499 000 00 Device handbook SIRAX BT5500 19/28...
  • Page 20 Continuous output 3 - lower value of the current output range [10 μA] [10 μA] 4068 1 ... 2400 [10 μA] Continuous output 3 - upper value of the current output range [10 μA] 2000 PM 1002499 000 00 Device handbook SIRAX BT5500 20/28...
  • Page 21 Program version (x 100) 4106 0 ... 65535 Reserved 4107 0 ... 65535 Reserved 4108 Measurement Mode: 0 - 3Ph4W, 1 - 3Ph3W In parenthesis [ ]: resolution or unit is suitably placed. PM 1002499 000 00 Device handbook SIRAX BT5500 21/28...
  • Page 22 7014/6014 7507 Voltage of phase L2 √ 7016/6016 7508 Current of phase L2 √ √ 7018/6018 7509 Active power of phase L2 √ 7020/6020 7510 Reactive power of phase L2 √ PM 1002499 000 00 Device handbook SIRAX BT5500 22/28...
  • Page 23 3-phase reactive inductive energy (watthour meter counting to 7106/6106 7553 kVarh √ √ 99999.9 kWh) 3-phase active output energy (number of register 7555 overfills, 7108/6108 7554 √ √ setting to zero after exceeding 99999999.9 kVarh) MVarh PM 1002499 000 00 Device handbook SIRAX BT5500 23/28...
  • Page 24 √ 7200/6200 7600 Apparent power L3 min √ 7202/6202 7601 Apparent power L3 max √ 7204/6204 7602 Power factor (PF) L1 min √ 7206/6206 7603 Power factor (PF) L1 max √ PM 1002499 000 00 Device handbook SIRAX BT5500 24/28...
  • Page 25 THD I2 min √ 7298/6298 7649 THD I2 max √ 7300/6300 7650 THD I3 min √ 7302/6302 7651 THD I3 max √ 7304/6304 7652 Cosine angle between U1 and I1 min √ PM 1002499 000 00 Device handbook SIRAX BT5500 25/28...

  • Page 26: Examples Of Transducer Programming

    In the example for the remaining 10% of ordered power under maximal power consumption the devices could work yet 60 seconds without exposing the consumer to penalties. If the delay was set to 60 seconds the alarm would not be activated (register 4019). PM 1002499 000 00 Device handbook SIRAX BT5500 26/28...

  • Page 27: Example 3 - Programming A Unidirectional Continuous Output 1

    (20.00 mA x 100) = 2000 4053 0 – normal mode of the continuous output 1 4054 24 – 24 mA on continuous output 1 if the error (-1e20 or 1e20) PM 1002499 000 00 Device handbook SIRAX BT5500 27/28...

  • Page 28: Example 4 - Programming A Bidirectional Continzous Output 1

    (20.00 mA x 100) = 2000 4053 0 – normal mode of the continuous output 1 4054 24 – 24 mA on continuous output 1 if the error (-1e20 or 1e20) PM 1002499 000 00 Device handbook SIRAX BT5500 28/28...
