Onyx
AM4224
Weight / Peso
Housing / Corpo proiettore
IK rating / classe IK
IP rating / grado IP
Ambient temp./ Temperatura ambientale
Power supply / Alimentazione
Inrush current / Corrente di spunto
Power / Potenza massima
Nominal current / Corrente nominale
Power factor / Rifasamento
Thermal protection / Protezione termica
Electrical class / Classe elettrica
Cable / Cavo
Control / Sistema di controllo
Channels / Canali
Color range / Colori
Optics/ Ottiche

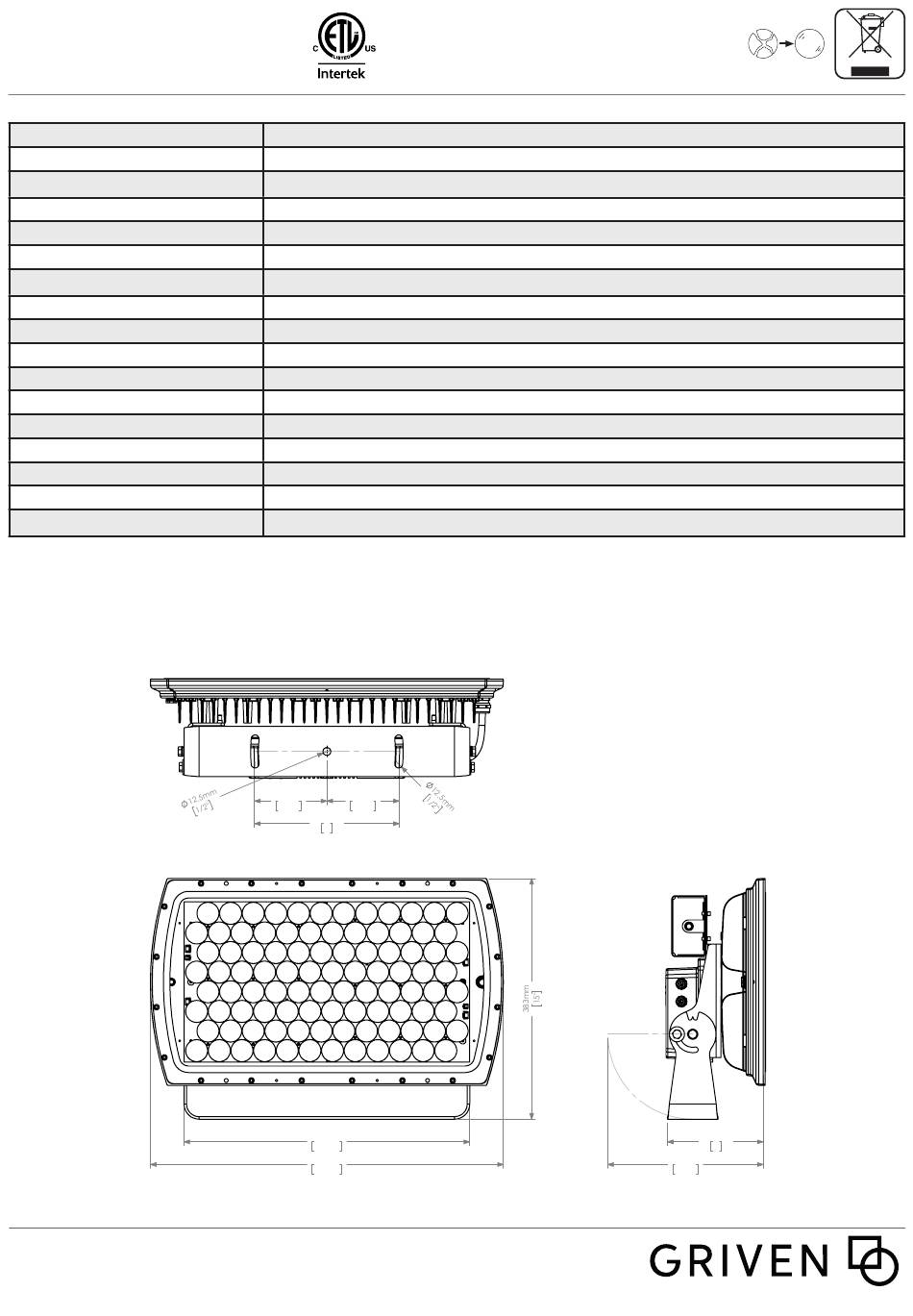

Dimensions
Griven S.r.l. - Via Bulgaria, 16
46042 Castel Goffredo
Mantova - Italy
96 High output LEDS additive syntesis: RGBW-millions of colours, DW- from 2700°K to 6500°K
115mm
115mm
4 1/2"
4 1/2"
230mm
9"
454mm
17 7/8"
561mm
22 1/8"
Tel. +39.0376.779483
© Copyright Griven 2018 - Griven reserves the right to make
changes to this product and related instructions at any time
Fax +39.0376.779682
without prior notice and such changes shall be effective
E-mail: sales@griven.com
immediatly
Web: www.griven.com
User Manual
550090 Rev. 00
Date: 05/09/2023
17,7 Kg (39 Lbs)
Iron/Alluminum, scratch resistant paint
-40°C to 50°C ( -40°F to122°F)
100-277 VAC 50/60Hz
70A @230VAC cold start
286 W
3.23A @ 100Vac / 1.16A @ 277Vac
cos.φ = 0,9
Electronic
5 1/2'
USITT DMX-512 - RDM
4-5-6 (RGBW), 2-3 (DW), 1 (Monochromatic)
Ultraspot
.
IK10
IP66
I
152mm
6"
247mm
9 3/4"
page 1 of 7
Advertisement
Related Manuals for Griven Onyx AM4224
Summary of Contents for Griven Onyx AM4224
- Page 1 22 1/8" 9 3/4" page 1 of 7 Tel. +39.0376.779483 © Copyright Griven 2018 - Griven reserves the right to make Griven S.r.l. - Via Bulgaria, 16 changes to this product and related instructions at any time Fax +39.0376.779682 46042 Castel Goffredo without prior notice and such changes shall be effective E-mail: sales@griven.com...
- Page 2 Important notices / Avvertimenti importanti - This product must be installed in accordance with applicable national and local electrical and construction codes by a person familiar with the construction and operation of the product and the hazards involved. Failure to comply with the following installation instructions may result in death or serious injury. Questo prodotto deve essere installato secondo le normative locali, da personale specializzato.
-
Page 3: Dmx Input
Fixing / FISSAGGIO WARNING ! fixing and connecting operations must mandatorily be carried out by qualified personnel only ! ATTENZIONE ! le operazioni di installazione e connessione devono obbligatoriamente essere eseguite solo da personale specializzato ! WARNING ! Ensure power supply is off before connecting or disconnecting fixtures ! ATTENZIONE ! Assicurarsi che l’alimentazione sia disattivata prima di collegare o scollegare i proiettori! 17,7 Kg./ 39Lbs 115mm... - Page 4 Menu reference and functions / MENU E FUNZIONI page 4 of 7 Onyx...
- Page 5 Beam aiming / ORIENTAMENTO size 13 (ISO) Hex wrench Pivot limit: 90° CAUTION: The luminaire should be positioned so that prolonged staring into the luminaire is not expected. Configurations / CONFIGURAZIONI WARNING ! Use a DMX repeater on each 32nd fixture of the chain or in case the cable lenght exceeds 300m ( 1000 ft.).
- Page 6 · On/Off identifi cation: questo comando è usato per rintracciare l’unità sulla quale si vuole operare ( il proiettore si metterà in evidenza accendendo tutti i LED a massima intensità). · Manufacturer: viene mostrato in nome del produttore ( Griven ). · Model description: viene mostrato il modello del proiettore.
- Page 7 Polar Edition features ( only for PE fi xtures ) The POLAR Edition is fi tted with a thermal glass which is particularly useful for outdoor applications. In fact, by warming up, the glass melts ice and snow which might interfere with the projection. When the projector is on, if required by the weather conditions, the glass is automatically warmed up.
