Moon Marine
Code / Codice
Power consumption
Consumo di energia
Remote Power supply
Alimentatore Remoto
Forward voltage
Electrical class
Classe elettrica
Weight / Peso
Operating temperature
Temperatura di funzionamento
IP rating / Grado IP
IK rating / Grado IK
Size / Dimensioni
Moon Marine - White and RGBW
69
2.70
Griven S.r.l. - Via Bulgaria, 16
46042 Castel Goffredo
Mantova - Italy
User's Manual
551174 Rev.3.0
Date:10/02/2025

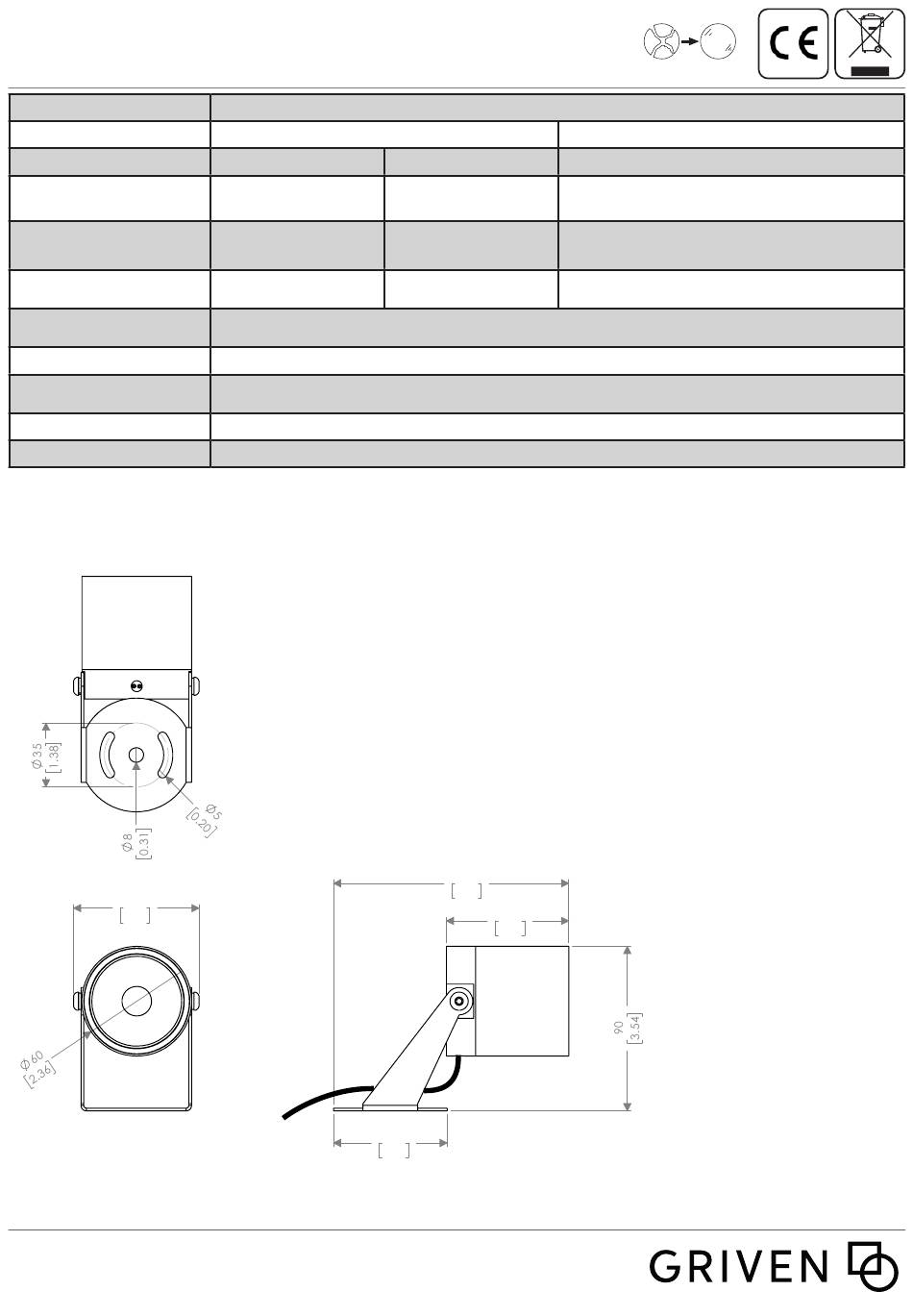

AL5309 Moon Marine INOX / AL5327 Moon Marine BRASS
Moon Marine W
NA/ME/WI/EW
7W MAX
Constant Current:
250 mA
35.5 V
Tel. +39.0376.779483
© Copyright Griven 2018 -Griven reserves the right to make
changes to this product and related instructions at any time
E-mail: sales@griven.com
without prior notice and such changes shall be effective
Web: www.griven.com
immediatly
ULTRASPOT
2.7 W MAX
Constant Current:
800mA
3 V
III
0,9 Kg / 2 lb
-40°C to 50°C / (-40°F to 122°F)
IP67
IK08
127
5.00
67
2.64
62.2
2.45
.
Moon Marine RGBW /DW
NA/ME/WI/EW
4.6W MAX
Costant Voltage:
24 Vdc
page 1 of 7
Advertisement
Related Manuals for Griven Moon Marine W
Summary of Contents for Griven Moon Marine W
- Page 1 2.45 page 1 of 7 Griven S.r.l. - Via Bulgaria, 16 Tel. +39.0376.779483 © Copyright Griven 2018 -Griven reserves the right to make changes to this product and related instructions at any time 46042 Castel Goffredo E-mail: sales@griven.com without prior notice and such changes shall be effective Mantova - Italy Web: www.griven.com...
- Page 2 Important notices / Avvertimenti importanti - This product must be installed in accordance with applicable national and local electrical and construction codes by a person familiar with the construction and operation of the product and the hazards involved. Failure to comply with the following installation instructions may result in death or serious injury. Questo prodotto deve essere installato secondo le normative locali, da personale specializzato.
- Page 3 Fixing / Fissaggio WARNING ! fixing and connecting operations must mandatorily be carried out by qualified personnel only ! ATTENZIONE ! le operazioni di installazione e connessione devono obbligatoriamente essere eseguite solo da personale specializzato ! WARNING ! Ensure power supply is off before connecting or disconnecting fixtures ! ATTENZIONE ! Assicurarsi che l’alimentazione sia disattivata prima di collegare o scollegare i proiettori!
- Page 4 Costant Current 250 mA 220-240 Vac 50/60 Hz MOON MARINE W Ultraspot Cable type ( Power in ) - 2x0,5 mm^2 - L= 1 m Tipo di cavo ( Power in ) - 2x0,5 mm^2 - L= 1 m ROSSO + RED +...
-
Page 5: Dmx Controller
Cable type ( Power + DMX ) - 4x0,25 mm^2 - L= 1 m Power Supply Unit Costant Current 250 mA 12,5W 35V BIANCO WHITE DATA + Moon MARINE W Code: AL5309 / AL5327 DMX CONTROLLER NERO BLACK CAVO Ø4mm / 2x0,5 mm²... -
Page 6: Dmx Chart
DMX Chart RGBW and DW Mode Channel Function Value Mode 4 channel - “RGBW 4ch” 0-100% Red 0-255 0-100% Green 0-255 0-100% Blue 0-255 0-100% White 0-255 Mode 5 channel - “RGBW 5ch” 0-100% Red 0-255 0-100% Green 0-255 0-100% Blue 0-255 0-100% White 0-255... - Page 7 Half Moon W (2-12pcs) (1-8pcs) (4-14pcs) AL5360/900 (ON/OFF) AL4324/900 (DALI) AL5364/900 (DALI and 0/1..10V) 900mA AL5324 / AL5326 Half Moon Marine W (2-12pcs) (1-8pcs) (4-14pcs) AL5360/1000 (ON/OFF) AL4324/1000 (DALI) AL5364/1000 (DALI and 0/1..10V) 1000mA AL5310 / AL5312 / AL5314 Moon Ultraspot W...
