Wiggens WCI-650CH Operating Manual

Co2 shaking incubator
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
English

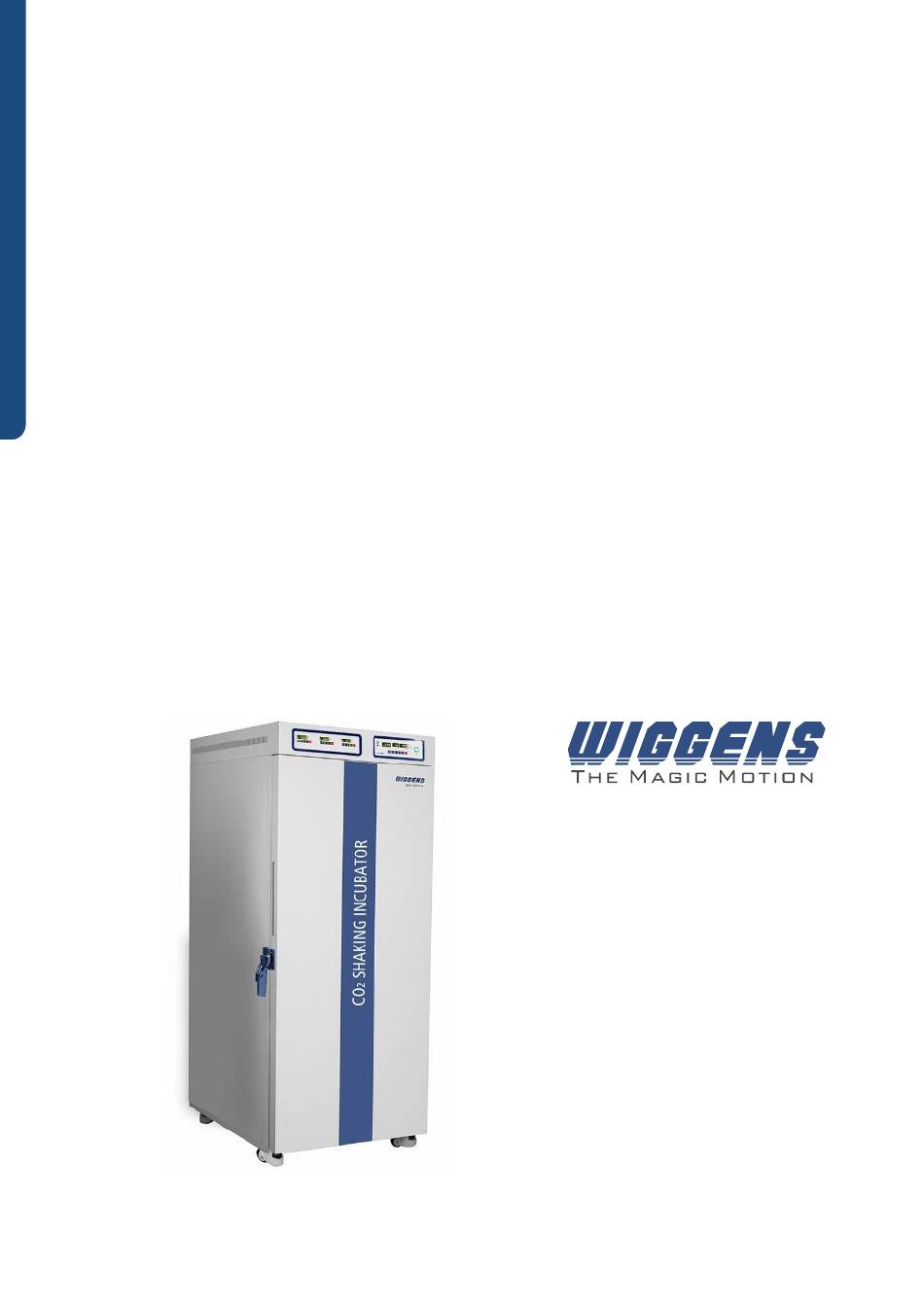

OPERATING MANUAL
CO2 Shaking Incubator
WCI-650CH / WCI-850CH
WIGGENS GmbH
Wiescher Str. 11-13 Haus 3, 42277 Wup
pertal, Germany
Tel.: 0049 7248 4529088
Wiggens China
Room 426, Hall A, Office Building M8,
No. 1 Jiuxiangqiao East Road, Chaoyang
District, Beijing 100015, China
Tel: +86 400-809-2068
Fax: +86 400-809-2068-112
info@ wiggens.com
www.wiggens.com
189821.0806.21-V3.1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WCI-650CH and is the answer not in the manual?

Questions and answers

Related Manuals for Wiggens WCI-650CH

Summary of Contents for Wiggens WCI-650CH

  • Page 1 English OPERATING MANUAL CO2 Shaking Incubator WCI-650CH / WCI-850CH WIGGENS GmbH Wiescher Str. 11-13 Haus 3, 42277 Wup pertal, Germany Tel.: 0049 7248 4529088 Wiggens China Room 426, Hall A, Office Building M8, No. 1 Jiuxiangqiao East Road, Chaoyang District, Beijing 100015, China...

  • Page 2: Unpacking And Inspecting

    Congratulations! You have made an excellent choice. WIGGENS thanks you for the trust you have placed in us. This operating manual has been designed to help you gain an understanding of the operation and possible applications of our instruments. For optimal utilization of all functions, we recommend that you thoroughly study this manual prior to beginning operation.

  • Page 3: Table Of Contents

    WIGGENS WCI-650CH/850CH Content 1. Safety and General Precaution ....................................5 1.1. General Information on Precaution ................................5 1.2. CE Conformity ......................................5 1.3. Precaution for using the power cable ................................6 1.4. Precaution for ground connection ................................7 1.5. Precaution for use ......................................8 2. Precaution ..........................................9 2.1.
  • Page 4 Operating Manual 9.2. Printer ........................................32 10. Warranty ..........................................32 10.1. Warranty ........................................32 10.2. Contact /Technical Service ..................................33...

  • Page 5: Safety And General Precaution

    WIGGENS WCI-650CH/850CH 1. Safety and General Precaution 1.1. General Information on Precaution Precaution is to prevent the possible accident or danger during operation. So, you must keep it.  Precaution is divided into caution and warning. And, each of them has following meanings.

  • Page 6: Precaution For Using The Power Cable

    Operating Manual 1.3. Precaution for using the power cable Do not make the power plug be pressed by back of the product. (A space between the product and the plug must be 30cm at least. The power outlet must be only for this product. (Using various products simultaneously can cause a fire) Clean the power plug with a dry towel and connect it properly.

  • Page 7: Precaution For Ground Connection

    WIGGENS WCI-650CH/850CH 1.4. Precaution for ground connection Please ground before use the product, if you don’t ground, you can get an electrocution when malfunction or an electric leakage occurs. At the place where you can’t ground, Please buy the equipment to prevent any electrical leakage.

  • Page 8: Precaution For Use

    Operating Manual 1.5. Precaution for use You must not disassemble, fix and remodel the product by yourself. (You can damage the product throughout a fire and malfunction or get a property loss as well as experimental loss. Do not use the product for different purpose. (It can cause malfunction or poor function.

  • Page 9: Precaution

    WIGGENS WCI-650CH/850CH 2. Precaution Precaution is to prevent the possible accident or danger duringoperation. So, you must keep it.  Precaution is separated into caution and warning. And, each of them has following meanings.  Other Marks  2.1. Precaution for electricity Use this product only internally.

  • Page 10: Precaution For Installation

    Operating Manual Do not use the damaged power code and outlet. (It can cause an electric shock and a fire. When the smoke comes out from the product or smell something is burning or any other strange symptoms are occurred, pull out the power code and stop using it. (It can cause an electric shock and a fire.) 2.2.

  • Page 11: Precaution For Use

    WIGGENS WCI-650CH/850CH 2.3. Precaution for use You must not disassemble, fix and remodel the product by yourself. (You can damage the product throughout a fire and malfunction or get a loss from a different study result than the original purpose) Do not use an inflammable spray near the product.

  • Page 12: Precaution For Ground Connection

    Operating Manual 2.4. Precaution for ground connection Please ground before use the product, if you don't ground, you can be electrically shocked when malfunction or an electric leakage occurs At the place where you can't ground, Please buy the equipment to prevent elect leakage. ...

  • Page 13: Feature & Specification

    WIGGENS WCI-650CH/850CH 3 Feature & Specification 3.1. Feature SUSPENSION CELL CO2 INCUBATOR  This incubator is aimed at culturing suspension cell and mammalian cell such as CHO, HEK, HELA, etc. IR CO2 SENSOR  Precise CO2 detection allows maintaining the CO2 uniformity.

  • Page 14: Specification

    Operating Manual 3.2. Specification INCUBATOR WCI-650CH WCI-850CH Temp. range Ambient +5℃ to 60℃ Temp. accuracy ±1℃ at 37℃ Humidity ≥70% at 37℃ CO₂ range 0 % to 20 % CO₂ accuracy ±0.3 % at 5 % at 37℃ CO₂ sensor IR CO₂...
  • Page 15 WIGGENS WCI-650CH/850CH SHAKER BUILT-IN SHAKER Motion Orbital Speed range 30 to 300 rpm 30 to 300 rpm Speed accuracy ±1 rpm Time range Continuous or up to 9999min Time accuracy ±1% Drive system Beltless Direct Drive Shaking throw 25mm Platform size...

  • Page 16: Configuration

    Operating Manual 3.3. Configuration Front Side Rear side Control Panel RS-485 Interface Power Switch CO2 Inlet Glass Door RS-232 Interface Shaker Over Temp. Protector Door Latch Fuse Magnetic Seal Power Cord...

  • Page 17: Installation & Operation Of Incubator

    WIGGENS WCI-650CH/850CH 4. Installation & Operation of Incubator 4.1. Control Panel -CO₂ Incubator Control Panel Heating Signal: To show status of heating activation at 3 parts where is controlled by 3 each sensor. Glass door means the Temperature set button.

  • Page 18: Installation

    Operating Manual 4.2. Installation Locating Place and install the product  Install the product at the desired place and check the level of both side and back and four castors. Move the product to the desired place. After placing the product at the desired spot, all of 4 casters need to be locked to avoid vibration of incubator.

  • Page 19: Operation

    WIGGENS WCI-650CH/850CH The pressure gauge may be different depending on its manufacturing companies. If Regulator's pressure is too high, it causes malfunction of the CO₂ valve control. 4.3. Operation Before Switch ON, insert water tray filling with distilled water. Make sure connection of gas supply. And Open CO2 gas cylinder or supply with the pressure of regulator set to 4.5Psi or 0.3 bar.

  • Page 20: Calibration

    Operating Manual 4.4. Calibration Please follow up the procedure for calibration below in case of discrepancy between actual value (measured by reliable thermometer or device) in chamber and displayed value. Conduct the analysis of CO density and Temperature when incubator has been stabilized for more than 2 hours. Leave the incubator at least 2 hours (preferably overnight) to allow conditions to stabilize if incubator is just turned ON.

  • Page 21: Humidity Display

    WIGGENS WCI-650CH/850CH Push UP (▲) and DOWN (▼) to adjust CO % display. Before release of CO incubator from WIGGENS factory, CO density is calibrated optimizing at 5%. When using different density ofCO rather than 5%, this calibration is highly recommendable.

  • Page 22: Shaker Operation

    Operating Manual 6. Shaker Operation The equipment allows controlling 3 shakers individually. Shaker Control Panel Shaking Signal: Show status of three shakers oscillation activation Shaking speed set button. RPM1: Shaker 1 current speed, set speed and timer. Adjustment button RPM2: Shaker 2 current speed, set speed and timer. Shaker 1 start/stop RPM3: Shaker 3 current speed, set speed and timer.

  • Page 23: Time Setting

    WIGGENS WCI-650CH/850CH After Setting the RPM is also completed, press the “START/STOP button” individually, then the product will operate as saved RPM. You must press the “ENTER” key to save. 6.2. Time Setting 1. When you press the “TIMER/SET” button, 0000 is displayed on RPM1 screen. During the display flickers, you can set the time through pressing “(UP)▲(DOWN)▼”...

  • Page 24: Maximum Loading For 3 Shakers

    With maximum loading, shaking is available up to 150RPM.  In case of WCI-650CH, 2L Flask is only available in 3rd compartment (lowest level). Other top and middle  compartments are not available with 2L flask due to the height.

  • Page 25: Shaker Disassemble For Cleaning

    WIGGENS WCI-650CH/850CH 6.5. Shaker Disassemble for Cleaning When the product requires cleaning chamber and shakers, it is hard to access all surface of chamber without removal of shakers and shelves. 3 shakers in the incubator and its base shelves are all demountable. Followings are the step to disassemble shakers and shelves.

  • Page 26: Safety Switch

    Operating Manual 7. Safety Switch It is the safety device to prevent the heater from overheating, when the temperature controller is malfunctioning. Set the Safety S/W higher than setting point.  The Safety S/W has wide deviation  Safety S/W is the safety device for preventing the heater to overheat when ...
  • Page 27 WIGGENS WCI-650CH/850CH temperature 22.20℃, CO2 density 11.1%. RS 485 Pin allocation Shaker Chamber Humidity 10:GND 10:GND 10:GND The modbus protocol uses 16-bit registers for data transmission with RS-485 serial port. Data that use more than 16 bits must be divided into several register. For values that are divided into several registers, the registers are arranged according to the Modbus format.
  • Page 28 Operating Manual Shaker Baud: 38400 bits/second Default ID：1 Data bits: 8 Stop bits:1 Handshake: None Parity: None Holding register Register address Explanation Data type Remark Read or write (DEC.) 40001 Shaker 1 setting speed Unit:1RPM Read and write 0:Stop 40002 Shaker 1 state Read and write 1:Start...
  • Page 29 WIGGENS WCI-650CH/850CH Chamber Baud: 4800~38400 bits/second (default is 38400 bits/second) Default ID：3 Data bits: 8 Stop bits:1 Handshake: None Parity: None Holding register Register address Explanation Data type Remark Read or write (DEC.) 0:4800 1:9600 40001 Baudrate Read and write...

  • Page 30: Optional Function

    Operating Manual CO2 sensor disconnection 0:Null 30014 Read alarm 1:Activate Humidity Baud: 38400 bits/second Data bits: 8 Stop bits:1 Handshake: None Parity: None Holding register Register address Explanation Data type Remark Read or write (DEC.) 40024 Current RH value Unit:1% Read 9.
  • Page 31 When UV lighting with cover, expose of UV light to chamber is very little. However, it is not guaranteed that cell is not damaged in this situation. WIGGENS recommend avoid cell culture when UV light is on even with cover.

  • Page 32: Printer

    WIGGENS reserves the right to decide the validity of any warranty claim. In case of faults arising either due to faulty materials or workmanship, parts will be repaired or replaced free of charge.

  • Page 33: Contact /Technical Service

     Copy and complete the Conformation of condition of unit from these operating instructions.  Please repack the device appropriately for transport and send to WIGGENS Instruments together with the Confirmation of condition of unit. Our contact details WIGGENS GmbH Wiescher Str.

  • Page 34: Confirmation Of Condition Of Unit

    Operating Manual Confirmation of condition of unit In the case of repair, copy and complete the Conformation of condition of unit and send it to WIGGENS Instruments. 1. Details about the unit Product number Serial number Reason for repair 2. Has the device been cleaned, decontaminated/sterilized? 3.
  • Page 35 WIGGENS WCI-650CH/850CH E-mail WIGGENS GmbH Wiescher Str. 11-13 Haus 3, 42277 Wuppertal, Germany Tel.: 0049 7248 4529088 Wiggens China Room 426, Hall A, Office Building M8, No. 1 Jiuxiangqiao East Road, Chaoyang District, Beijing 100015, China Tel: +86 400-809-2068 Fax: +86 400-809-2068-112...
  • Page 36 Operating Manual www.wiggens.com...

This manual is also suitable for:

Wci-850ch
