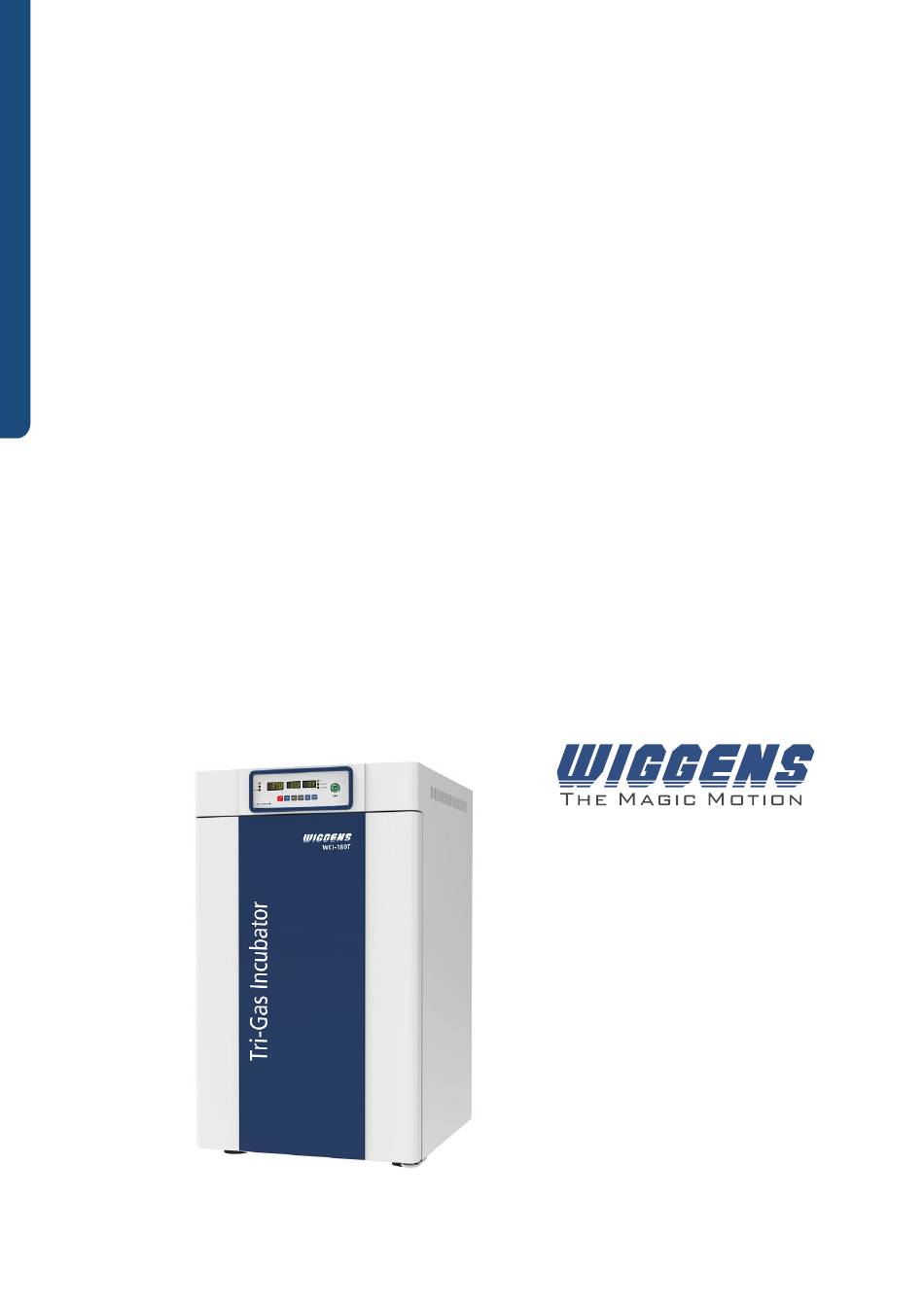

OPERATING MANUAL
Tri-Gas Incubator
WCI-40T / WCI-180T / WCI-850T
WIGGENS GmbH
Gässlesweg 22-24, 75334 Straubenhardt,
Germany
Tel.: 0049 7248 4529088
Wiggens China
Room 303, Hall C, Office Building M8, No.1
Jiuxianqiao East Road, Chaoyang District,
Beijing 100015, China
Tel: +86 400-809-2068
Fax: +86 400-809-2068-112
info@ wiggens.com
www.wiggens.com
1.0408.2020-V2.1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WCI-40T and is the answer not in the manual?

Questions and answers

Related Manuals for Wiggens WCI-40T

Summary of Contents for Wiggens WCI-40T

  • Page 1 English OPERATING MANUAL Tri-Gas Incubator WCI-40T / WCI-180T / WCI-850T WIGGENS GmbH Gässlesweg 22-24, 75334 Straubenhardt, Germany Tel.: 0049 7248 4529088 Wiggens China Room 303, Hall C, Office Building M8, No.1 Jiuxianqiao East Road, Chaoyang District, Beijing 100015, China Tel: +86 400-809-2068 Fax: +86 400-809-2068-112 info@ wiggens.com...

  • Page 2: Unpacking And Inspection

    Congratulations! You have made an excellent choice. WIGGENS wants to thank you for the trust you have placed in us. This operating manual has been designed to help you gain an understanding of the operation and possible applications of our instruments. For optimal utilization of all functions, were commend that you thoroughly study this manual prior to beginning any operation.

  • Page 3: Table Of Contents

    WIGGENS WCI-40T/WCI-180/WCI-850T CONTENTS 1. Safety and General Precaution ....................5 1.1. General Information on Precaution ................5 1.2. CE Conformity ........................ 5 1.3. Precaution for Using the Power Cable ................6 1.4. Precaution for Ground Connection ................6 1.5. Precaution for Use ......................7 2.
  • Page 4 Operating Manual 12.2. Contact /Technical Service ..................24...

  • Page 5: Safety And General Precaution

    WIGGENS WCI-40T/WCI-180/WCI-850T 1. Safety and General Precaution 1.1. General Information on Precaution  Precaution is to prevent the possible accident or danger during operation. So, you must keep it.  Precaution is divided into caution and warning. And, each of them has following meanings.

  • Page 6: Precaution For Using The Power Cable

    Operating Manual 1.3. Precaution for Using the Power Cable Do not make the power plug be pressed by back of the product. (A space between the product and the plug must be 30cm at least. The power outlet must be only for this product. (Using various products simultaneously can cause a fire) Clean the power plug with a dry towel and connect it properly.

  • Page 7: Precaution For Use

    WIGGENS WCI-40T/WCI-180/WCI-850T 1.5. Precaution for Use You must not disassemble, fix and remodel the product by yourself. (You can damage the product throughout a fire and malfunction or get a property loss as well as experimental loss. Do not use the product for different purpose.

  • Page 8: Transportation, Storage And Location Of Installation

    Operating Manual 2. Transportation, Storage and Location of Installation 2.1. Transportation DO NOT try to slide or tilt the unit Lift the unit at its four lower corners with the aid of 2 people. (Weight: 35kg) Permissible ambient temperature range for transport: -10℃ to 60℃. 2.2.

  • Page 9: Location Of Installation And Ambient Conditions

    WIGGENS WCI-40T/WCI-180/WCI-850T 2.3. Location of Installation and Ambient Conditions Do not put inflammable substances near the product. (It can cause a fire) When you install the product, you have to put the distance of at least 30cm from the wall. To completely separate the unit from the power supply, power plug must be disconnected.

  • Page 10: Prerequisite And Configuration Of O₂

    When you have received the instrument which is packed on pallet, inspect the box carefully for any damages that may have caused any damages to product during shipping. Please report any damage to the carrier or to your local WIGGENS distributor immediately. LOCATION The incubator is designed to operate at temperature 5℃...
  • Page 11 WIGGENS WCI-40T/WCI-180/WCI-850T Air jacket-6 side direct heating Glass door Ventilation fan Door latch Glass door heater-Prevent condensation Outer door Stainless steel shelve- Perforated to improve uniformity Magnetic door seal Inner door seal- Airtight to prevent �������� leakage Power switch Water pan-Heated by 6 sides direct heating for...

  • Page 12: Features And Specification Of The Unit

    Operating Manual 4. Features and Specification of the Unit 4.1. Features 1. Excellent Uniformity of Temperature, CO (optional) 2. 6 Sides Direct Heat for Temperature Uniformity and Fast Recovery 3. IR CO₂ Sensor detects precise density of CO₂ 4. Outer Heated Door ensures no condensation on glass door. 5.

  • Page 13: Specification

    WIGGENS WCI-40T/WCI-180/WCI-850T 4.2. Specification Items WCI-40T WCI-180T WCI-850T Temperature Range Ambient +5℃ to 60℃ Ambient +5℃ to 60℃ Ambient +5℃ to 60℃ Accuracy ±0.1℃ at 37℃ ±0.1℃ at 37℃ ±0.1℃ at 37℃ Microprocessor Digital Microprocessor Digital Microprocessor Digital PID Controller...

  • Page 14: Control Panel

    Operating Manual 5. Control Panel Heating Signal: To show status of heating activation at 3 parts where is controlled by 3 each sensor. Glass door means the heater around glass door. Temperature Display LED window. Temperature set button. gas percentage in chamber Gas Setting Button.

  • Page 15: Operation

    WIGGENS WCI-40T/WCI-180/WCI-850T 6. Operation Before Switch ON, insert water tray filling with distilled water. Make sure connection of gas supply. And Open CO2 gas cylinder or supply with the pressure of regulator set to 4.5Psi or 0.3 bar. 1） Turn on the power switch：The digital readout of current temperature and density of CO2 & O2 in chamber will be displayed.

  • Page 16: Calibration Of Temperature & O₂ & Co2 And Auxiliary Setting

    Operating Manual 6.4. Calibration of Temperature & O₂ & CO and Auxiliary Setting Please follow up the procedure for calibration below in case of discrepancy between actual values (measured by reliable thermometer or device) in chamber and displayed value. Ensure the Alarm button should be “On” position prior to this procedure. If the Alarm button is at OFF, the “CAL/SET”...
  • Page 17 Push UP (▲) and DOWN (▼) to adjust CO₂% display. Before release of CO incubator from WIGGENS factory, CO density is calibrated optimizing at 5%. When using different density of CO₂ rather than 5%, this calibration is highly recommendable.

  • Page 18: Configuration Of O2 Unit

    Operating Manual Ninth Click Up or Down button ☞ Network Communication Baud For different electric signal transmission, different baud is needed to connect the controller. Each baud can be set in this menu. Push up and down to change the number of baud. 0: 4800 1: 9600 2: 19200...

  • Page 19: Water Tray

    WIGGENS WCI-40T/WCI-180/WCI-850T *When pressing the alarm mute button on the control panel will stop the alarm from activating. If the alarm was stopped by mute button, the alarm will be re-activated after 3 minutes. 6.7. Water Tray An additional water tray at the bottom of the chamber enables a high, uniform relative humidity while its special double-dish or dish tray design that creates cold point preventing condensation in other parts of the chamber.
  • Page 20 Operating Manual Please let the incubator cool down thoroughly before using it again. Heat remaining inside the chamber can cause injury, even if the sterilization cycle is already finished Incubator should not be turned off during the sterilization NOTE: *Total sterilization program time is 10 Hours, but, heat up and recovery time to each temperature point may be vary depending on Room temperature or set point.

  • Page 21: Safety Switch

    WIGGENS WCI-40T/WCI-180/WCI-850T Figure 2: Display of the incubator indicating sterilization cycle “CLEAN” is shown in temperature display and 600 is shown in CO₂ LED Window. CLEAN means the HOT AIR Decontamination program is now activated. The number 600 displayed in CO₂ LED is the time counted down from 600 minutes (10 hours).

  • Page 22: Optional Function

    Operating Manual 9. Optional Function Printer Printer can be connected to CO2 incubator to print daily working status that contains information of setting temperature, present temperature and present CO2. Set printer parameters Press “CAL/SET” key for 3s to enter temperature calibration. Press UP (▲) and DOWN (▼) to choose ”prit” that is printer mode, then confirm with pressing “CAL/SET”.

  • Page 23: Troubleshooting

    5x20mm, Unit does The miniature fuse has blown. 220V(5A),110V(7A). If the newly inserted fuse triggers switch on (main again, there is short circuit: contact WIGGENS service. switch position “l” Switch defective Replace the switch Defective function of the CO concentration Reset the alarm.

  • Page 24: Service

    WIGGENS reserves the right to decide the validity of any warranty claim. In case of faults arising either due to faulty materials or workmanship, parts will be repaired or replaced free of charge.

  • Page 25: Confirmation Of Condition Of Unit

    WIGGENS WCI-40T/WCI-180/WCI-850T Confirmation of condition of unit In the case of repair, copy and complete the Conformation of condition of unit and send it to WIGGENS Instruments. 1. Details about the unit Product number Serial number Reason for repair 2. Has the device been cleaned, decontaminated/sterilized? 3.
  • Page 26 Operating Manual Phone E-mail...
  • Page 27 WIGGENS WCI-40T/WCI-180/WCI-850T WIGGENS GmbH Gässlesweg 22-24, 75334 Straubenhardt, Germany Tel.: 0049 7248 4529088 WIGGENS China Room 303, Hall C, Office Building M8, No.1 Jiuxianqiao East Road, Chaoyang District, Beijing 100015, China Tel: +86 400-809-2068 Fax: +86 400-809-2068-112 info@ wiggens.com www.wiggens.com...
