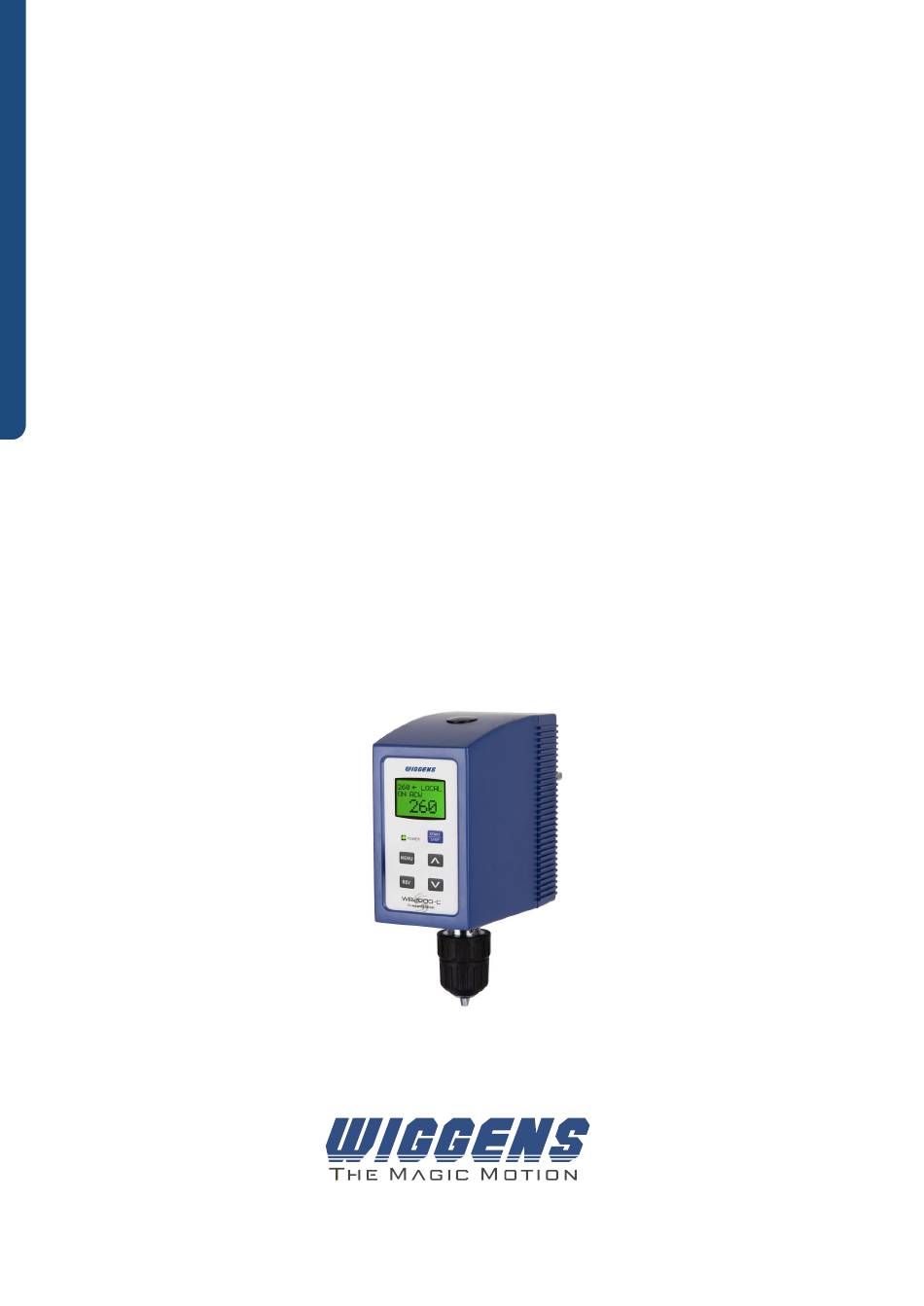

- Page 1 English OPERATING MANUAL Overhead Stirrer WB2000-C 1.10050.0719.18-V1.1...
-
Page 2: Unpacking And Inspecting
Congratulations! You have made an excellent choice. WIGGENS thanks you for the trust you have placed in us. This operating manual has been designed to help you gain an understanding of the operation and possible applications of our instruments. For optimal utilization of all functions, we recommend that you thoroughly study this manual prior to beginning operation. -
Page 3: Table Of Contents
4.2. Installation ..........................10 4.2.1. Installing the Overhead Stirrer ................... 11 4.2.2. Impeller Attachment ......................12 4.2.3.The dimensions of the Overhead stirrer (WB2000-C) ............12 4.3. Operation ..........................13 4.3.1. Operation of the WB2000-C ....................13 4.3.2. Functional Elements ......................13 4.3.3. -
Page 4: Intended Use
1. Intended Use To fulfill its principle task of a reliable and accurate stirring process, the Overhead Stirrer WB2000-C also incorporates a remote control function by connecting the unit to a computer via an RS-232 cable. It is also equipped with digital analog input/output ports and a foot pedal port for various applications. -
Page 5: Disposal
WIGGENS WB2000-C When using hazardous materials or materials that could become hazardous, the instrument may be operated only by persons who are absolutely familiar with these materials and the instrument. These persons must be fully aware of possible risks. -
Page 6: Technical Specifications
Order Numbers as stated on the product label and box label are stated as Full Order Numbers (FON), consisting of the BON followed by the ONA. For a full explanation of the ONA of your product, please ask your local WIGGENS support or refer to the Order Number Guide in WIGGENS... -
Page 7: Safety Instructions
WIGGENS WB2000-C 3. Safety Instructions 3.1. Explanation of Safety Notes In addition to the safety warnings listed, warnings are posted throughout the operating manual. These warnings are designated by an exclamation mark inside an equilateral triangle. “Warning of a dangerous situation (Attention! Please follow the documentation).”... - Page 8 The stirrer must be securely fixed to a stable support and be mounted to a stand using a heavy duty clamp, which must be provided by WIGGENS. If other stands or clamps are used, ensure that they are stable so that it will not fall down.
- Page 9 WIGGENS WB2000-C Warning！ Ensure that no loose clothing, jewelry, or hairs are entangled in any rotating parts. A fast spinning chuck can cause injury to the operator. Only process media that will not react dangerously to the extra energy produced through processing. This also applies to any extra energy produced in other ways, e.g.
-
Page 10: For Protection Of The Equipment
Operating Manual damaged or shattered by this. It can cause injury to the operator, also can damage the rotating stirring tool. In this case exchange the stirring tool for one without imbalance or remedy the cause of the imbalance. If there is still imbalance, return it to the dealer or the manufacturer along with a description of the fault. -
Page 11: Installing The Overhead Stirrer
WIGGENS WB2000-C 4.2.1. Installing the Overhead Stirrer Installation Steps Install the Support Bar Clamp the stirrer to a WIGGENS stand on a stable level surface. Insert the impeller shaft into the open chuck and adjust the impeller to the ... -
Page 12: Impeller Attachment
Operating Manual 4.2.2. Impeller Attachment Loosen the clamp connected to the support bar and raise the stirring unit to the far end of the support bar Tighten the clamp again Use the chuck key to open up the chuck inlet ... -
Page 13: Operation
WIGGENS WB2000-C 4.3. Operation 4.3.1. Operation of the WB2000-C 1. Housing 2. On / Off-Button 3. Increase Button 6. Reverse Button 4. Decrease Button 5. Chuck 9. LCD Display 7. Menu Button 8. LED Power Light 4.3.2. Functional Elements On / Off – Button Start or stop the stirrer. -
Page 14: Safety And Servo Control
4.3.3. Safety and Servo Control The WB2000-C stirrer employs a memory function. When switching on and starting the stirrer, the speed used is the same as the one that was set at the last operation. The WB2000-C incorporates a “soft start” function. When starting the stirrer, increasing or decreasing the stirring speed, or using the reverse function, the speed ramps smoothly from the current speed to the new set speed. -
Page 15: Cleaning And Maintenance
3: GND Ground signal CAUTION! WB2000-C adopts servo motor control and soft starting safety control. Even in heavy load situations it can still be able to maintain the set speed. When the instrument is started, the last used speed will be displayed on the LCD screen. -
Page 16: Maintenance
These may damage the surface of the instrument. 5.2. Maintenance Do not attempt to service or repair a WIGGENS overhead stirrer. If the overhead stirrer housing is opened the warranty becomes void. Contact WIGGENS for return authorization and return instructions. Ordering spare parts... -
Page 17: Transport And Storage
WIGGENS WB2000-C 6. Transport and Storage Clean the overhead stirrer so that it is free from any materials which may be harmful to the health. Provide a material safety data sheet where appropriate. Place the overhead stirrer unit and its parts into the original packing or a container with necessary protection to prevent damage during transport. - Page 18 Operating Manual Pitched Leaf Impeller and Pitched Blade 6-Hole Blade Impeller Impeller 9503 9003 9504 9004 9503 9005 9506 9009 9507 9010 9508 9011 9012 9013 9014 Centrifugal Impeller Propeller stirrers, 3 _x blades Blade Height:10mm Rotor Shaft Length Oder No. Rotor Shaft Length...
-
Page 19: Stirring Seals
WIGGENS WB2000-C 9610 9025 9611 9026 9612 9025A 9026A Radial Flow Impeller Multi-Purpose Impeller 9030 9020 9031 9021 7.2 Stirring Seals Model Shaft Ø mm) ‘A’Core Height(mm) excl.joint Guide Ø (mm) Oder No. 19/22 5.101.1.7 24/40 5.102.7 24/40 5.104.7 24/40 5.105.7... - Page 20 Operating Manual Material：Aluminum, stainless steel Material: Aluminum, stainless steel Dimensions (W x D)：340X300mm Dimensions (W x D)：340X300mm Model Height(mm) Model Height(mm) WH11-S WH11-D WH12-S WH12-D WH13-S WH13-D For more information about accessories please contact your local supplier. CAUTION! For safety and guarantee reasons only original accessory parts are to be used!
-
Page 21: Service
2. Use a circuit meter to check if there is DC24V electricity running from the adapter stirrer does not react to any output port input 3. If the malfunction cannot be determined this way, please contact the WIGGENS support After switching on the unit, the display lights up but shows the Please contact the WIGGENS support error message “OH”... -
Page 22: Warranty
WIGGENS reserves the right to decide the validity of any warranty claim. In case of faults arising either due to faulty materials or workmanship, parts will be repaired or replaced free of charge. -
Page 23: Confirmation Of Condition Of Unit
WIGGENS WB2000-C Confirmation of condition of unit WIGGENS In the case of repair, copy and complete the Confirmation of condition of unit and send it to Instruments. 1. Details about the unit Product number Serial number Reason for repair 2. Has the device been cleaned, decontaminated/sterilized? 3. - Page 24 WIGGENS GmbH WIGGENS China Wiescher Str. 11a, 42277 Wuppertal Germany Room 426, Hall A, Office Building M8, No.1 Jiuxianqiao Tel.: +49 202 373 29 58-0 East Road, Chaoyang District, Beijing 100015, China info@wiggens.com Tel: +86 400-809-2068 www.wiggens.com...
