Summary of Contents for Wiggens D-500 Pro
- Page 1 English OPERATING MANUAL Homogenizer D-500Pro V1.0 07212020...
-
Page 2: Unpacking And Inspecting
Congratulations! You have made an excellent choice. WIGGENS thanks you for the trust you have placed in us. This operating manual has been designed to help you gain an understanding of the operation and possible applications of our instruments. For optimal utilization of all functions, we recommend that you thoroughly study this manual prior to beginning operation. -
Page 3: Table Of Contents
3. Description of the equipment ......................9 3.1 Overview ........................... 9 3.2 Drive unit ..........................10 3.3 Stands ............................. 10 3.4 WIGGENS dispersing-aggregates ................... 11 3.5 Technical specifications ......................12 4.Installation ............................13 4.1 UnpackK ..........................13 4.2 Assembling of the drive ......................13 4.3 Assembling of the stand with accessories ................ -
Page 4: Introduction
WIGGENS D-500Pro , its installation and maintenance and the appropriate replacement parts and accessories. They will help you avoid erroneous use and subsequent damage. Although WIGGENS units are designed for ease of service, this does not release you from the obligation to inspect your equipment carefully and to clean it thoroughly WIGGENS is a specialist manufacturer of machines and equipment for dispersion and mixing technology. -
Page 5: Organisational Matters
Device not designed for use in explosion danger environment 2. Safety This chapter is directed at all users of WIGGENS laboratory equipment. It includes information on safe and optimum use. 2.1 Summary Any incorrect use of the installed equipment can be dangerous. Inadequately trained users can cause material damage and personal injury. -
Page 6: Safety Concept
Operating Manual 2.2 Safety concept The safety concept sets down the entitlement to use the equipment and the responsibilities of the individual users. The machines and equipment are designed and constructed according to the state of the art and the recognized safety rules. 2.2.1 Intended use of the equipment The equipment is designed and constructed for the following use: Dispersion and homogenisation of pump able fluid products in accordance with the technical specifications (see point 3.5) -
Page 7: Areas Of Responsibilty
WIGGENS D-500Pro 2.2.5 Areas of responsibilty In order that the system/equipment can be used safely and without risk, the users in various roles bear the responsibility for particular danger areas. Contract partner: The contract partner bears the responsibility for the “proximity danger area”. -
Page 8: Warnings
Operating Manual In every case the electrical installation has to be done by technician Warnings Ensure that the rated voltage of the equipment matches the supply. Before changing any dispersing aggregate, the line cord has to be plugged out ... -
Page 9: Description Of The Equipment

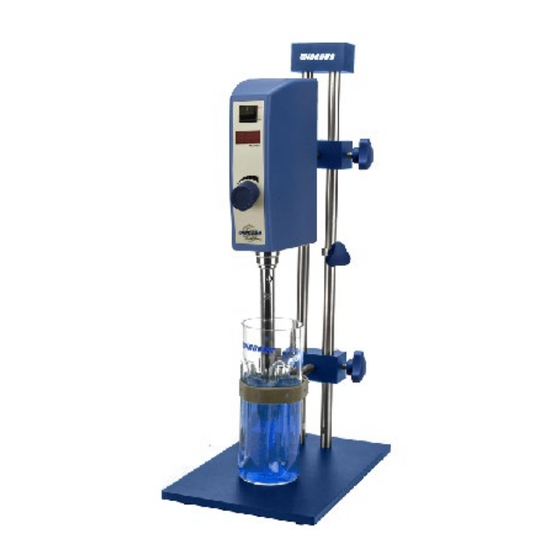

3. Description of the equipment 3.1 Overview The WIGGENS system D-500 Pro prepares finest dispersions and homogenizations and is suitable for use with working volumes up to 2000ml (depending on the viscosity of the product and the dispersing aggregate used). The drive can be equipped with a wide range of WIGGENS dispersing-aggregates. -
Page 10: Drive Unit
3.2 Drive unit The drive unit D-500 Pro is equipped with a 500 W motor and will be started using the main switch placed at the front side. The speed will be adjusted using knob on the front side of the device. Within the speed range of up to 30’000 rpm, the integrated closed loop speed control will tune the speed to any adjusted value independent from load changes. -
Page 11: Wiggens Dispersing-Aggregates
A wide range of dispersing aggregates with diameters of are available. For questions concerning WIGGENS dispersing aggregates please get in contact with WIGGENS of your local specialist dealer. Due to the quick coupling, WIGGENS dispersing aggregates can be fitted and replaced very easily. The three below show the mounting of an aggregate. -
Page 12: Technical Specifications
Operating Manual 3.5 Technical specifications Drive D-500 Pro Motor type Universal motor Supply voltage AC 230V, 50Hz/ AC 230V, 60Hz Max. speed 30’000rpm Speed indication LED,3 digits, actual speed Speed measurement Digital, direct by HAL-probe(no calibration needed) Input power Max.500W Output power Max.280W... -
Page 13: Installation
4.2 Assembling of the drive The D-500 Pro drive arrives fully equipped with the extension suitable for the stand WH-12. Just mount the drive at the stand and plug the line cord into the power inlet connection at the back side. -
Page 14: Maintenance
5.1 Drive Under normal working conditions, the D-500 Pro drive, requires no special servicing. Parts such as the motor brushes and bearing are subject to natural wear. The following are standard values for wear parts of the drive: Ball bearings: several 1000’s of operating hours. - Page 15 WIGGENS D-500Pro Disassembly of the dispersing tool Hold the dispersing tool with a cloth (to avoid cutting of your hand due to sharp edges at the stator). At the same time turn the shaft tube clockwise. Screw the shaft tube of the stator and pull it over the axle and put it aside.
- Page 16 Operating Manual Remove the PTFE bearing from the axle. After this disassembly you should have the following five parts: shaft tube, axle, rotor, stator and PTFE bearing. To assemble the dispersing tool please follow above 3 steps in reverse order (3./2./1.) When assembling the dispersing tool, always make sure that the PTFE bearing is fixed correctly and cooled by the working medium.
-
Page 17: Trouble Shooting
Board without AC Check if the power cord is plugged in. No 220V AC detected There is a problem with Send the equipment to the nearest authorized WIGGENS Display “PE”(phase error) the detection circuit service center Check the aggregate for solid particles which may be... -
Page 18: Warranty And Product Liability
WIGGENS Please repack the device appropriately for transport and send to Instruments together with the Confirmation of condition of unit. Our contact details WIGGENS GmbH Add：Wiescher Str. 11a, 42277 Wuppertal Germany Tel.: +49 202 373 29 58-0 info@wiggens.com WIGGENS China Room 426, Hall A, Office Building M8, No.1 Jiuxianqiao... -
Page 19: Confirmation Of Condition Of Unit
WIGGENS D-500Pro Confirmation of condition of unit WIGGENS In the case of repair, copy and complete the Conformation of condition of unit and send it to Instruments. 1. Details about the unit Product number Serial number Reason for repair 2. Has the device been cleaned, decontaminated/sterilized? 3. - Page 20 WIGGENS GmbH WIGGENS China Wiescher Str. 11a, 42277 Wuppertal Germany Room 426, Hall A, Office Building M8, No.1 Jiuxianqiao Tel.: +49 202 373 29 58-0 East Road, Chaoyang District, Beijing 100015, China info@wiggens.com Tel: +86 400-809-2068 www.wiggens.com...
