Wiggens WCI-40P Operating Manual

Peltier-cooled co2 incubator
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
English

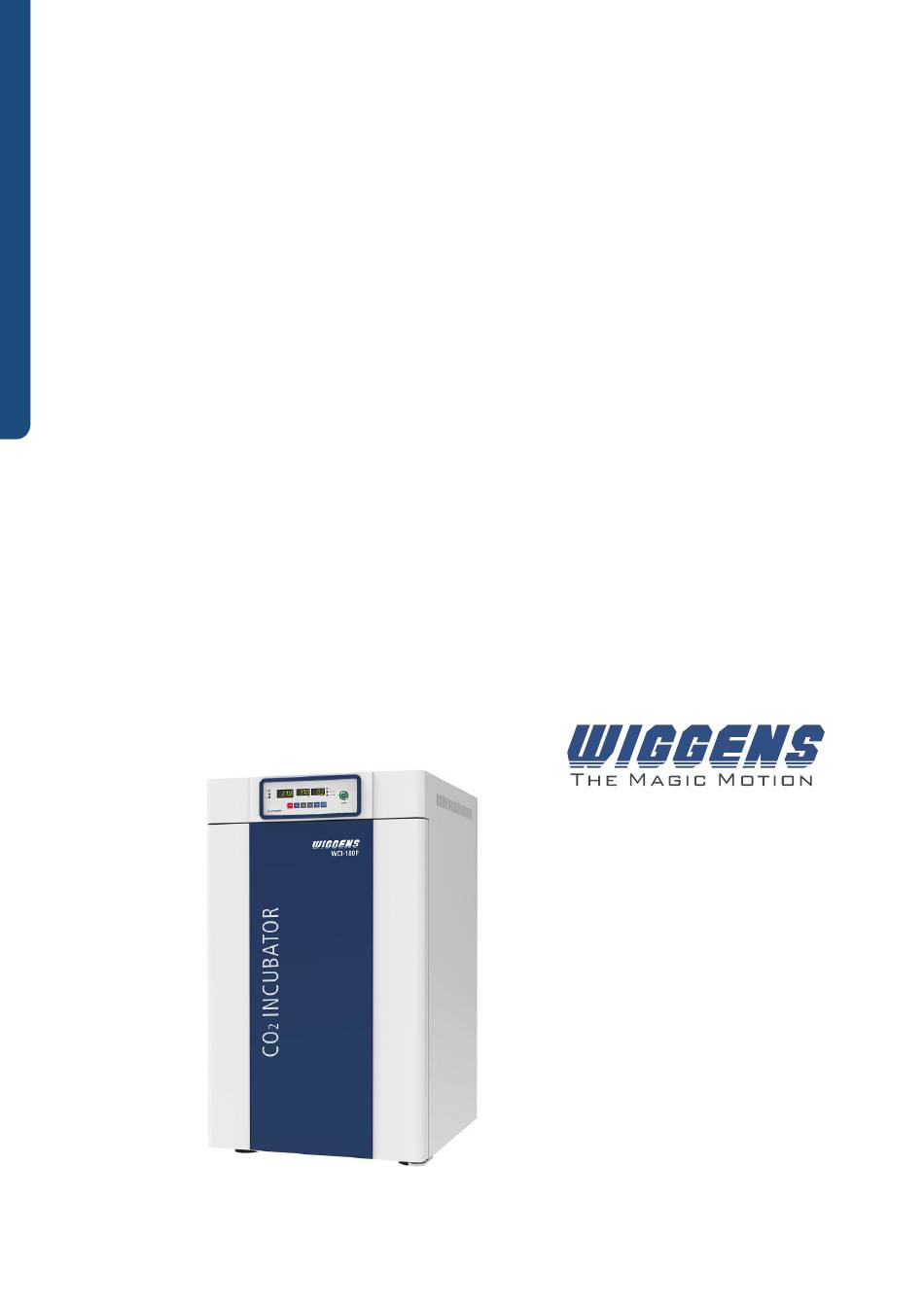

OPERATING MANUAL
Peltier-cooled CO
Incubator
2
WCI-40P / WCI-120P / WCI-180P
WCI-260P / WCI-650P / WCI-850P
WIGGENS GmbH
Gässlesweg 22-24, 75334 Straubenhardt,
Germany
Tel.: 0049 7248 4529088
Wiggens China
Room 303, Hall C, Office Building M8,
No.1 Jiuxianqiao East Road, Chaoyang
District, Beijing 100015, China
Tel: +86 400-809-2068
Fax: +86 400-809-2068-112
info@wiggens.com
www.wiggens.com
V22012022-V3.1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WCI-40P and is the answer not in the manual?

Questions and answers

Related Manuals for Wiggens WCI-40P

Summary of Contents for Wiggens WCI-40P

  • Page 1 English OPERATING MANUAL Peltier-cooled CO Incubator WCI-40P / WCI-120P / WCI-180P WCI-260P / WCI-650P / WCI-850P WIGGENS GmbH Gässlesweg 22-24, 75334 Straubenhardt, Germany Tel.: 0049 7248 4529088 Wiggens China Room 303, Hall C, Office Building M8, No.1 Jiuxianqiao East Road, Chaoyang...

  • Page 2: Unpacking And Inspecting

    Congratulations! You have made an excellent choice. WIGGENS thanks you for the trust you have placed in us. This operating manual has been designed to help you gain an understanding of the operation and possible applications of our instruments. For optimal utilization of all functions, we recommend that you thoroughly study this manual prior to beginning operation.

  • Page 3: Table Of Contents

    Peltier-cooled CO2 Incubator CONTENTS 1. Safety and general precaution ....................5 1.1. General information on precaution ................5 1.3. Precaution for using the power cable ................6 1.4. Precaution for ground connection ................. 6 1.5. Precaution for use ......................7 2.
  • Page 4 Operating Manual 9.2. Printer .......................... 23 9.3. Peltier cooled model ....................24 10. Service and Check Point ......................24 11. Troubleshooting ........................25 12. Service ........................... 26 12.1. Warranty ........................26 12.2. Contact /Technical Service ..................26...

  • Page 5: Safety And General Precaution

    Peltier-cooled CO2 Incubator 1. Safety and general precaution 1.1. General information on precaution  Precaution is to prevent the possible accident or danger during operation. So, you must keep it.  Precaution is divided into caution and warning. And, each of them has following meanings. If you don't keep this warning, you can get an accident or a fire.

  • Page 6: Precaution For Using The Power Cable

    Operating Manual 1.3. Precaution for using the power cable Do not make the power plug be pressed by back of the product. (A space between the product and the plug must be 30cm at least. The power outlet must be only for this product. (Using various products simultaneously can cause a fire) Clean the power plug with a dry towel and connect it properly.

  • Page 7: Precaution For Use

    Peltier-cooled CO2 Incubator 1.5. Precaution for use You must not disassemble, fix and remodel the product by yourself. (You can damage the product throughout a fire and malfunction or get a property loss as well as experimental loss. Do not use the product for different purpose. (It can cause malfunction or poor function.

  • Page 8: Transportation, Storage And Location Of Installation

    Operating Manual 2. Transportation, storage and location of installation 2.1. Transportation DO NOT try to slide or tilt the unit Lift the unit at its four lower corners with the aid of 2 people. (Weight: 35kg) Permissible ambient temperature range for transport: -10℃ to 60℃. 2.2.

  • Page 9: Location Of Installation And Ambient Conditions

    Peltier-cooled CO2 Incubator 2.3. Location of installation and ambient conditions Do not put inflammable substances near the product. (It can cause a fire) When you install the product, you have to put the distance of at least 30cm from the wall. To completely separate the unit from the power supply, power plug must be disconnected.

  • Page 10: Prerequisite And Configuration

    When you have received the instrument which is packed on pallet, inspect the box carefully for any damages that may have caused any damages to product during shipping. Please report any damage to the carrier or to your local WIGGENS distributor immediately. LOCATION The incubator is designed to operate at temperature 5℃...

  • Page 11: Configuration

    Peltier-cooled CO2 Incubator 3.2. Configuration Exterior Configuration of CO incubator Air jacket-6 side direct heating Outer door Ventilation fan Magnetic door seal Glass door heater-Prevent condensation Power switch Stainless steel shelve- Perforated to improve Control panel Inner door seal- Airtight to prevent CO uniformity leakage inlet...

  • Page 12: Features And Specifications Of The Unit

    6. Convenient Decontamination Process (Easy Preparation, Automatic Program) 7. Microprocessor PID control for Temperature, CO 8. Natural Humidification System by water tray and circulation fan. 9. Special Air Jacket allows effective heat preservation between insulation and chamber. 4.2. Specification WCI-40P WCI-120P WCI-180P Model Order No. (Standard)

  • Page 13: Control Panel

    Peltier-cooled CO2 Incubator Model WCI-260P WCI-650P WCI-850P Order No. (Standard) W6013260 W6013650 W6013850 Chamber volume [L] Temperature Stability [℃] ±0.1 at 37℃ ±0.1 at 37℃ ±0.1 at 37℃ Temp. Uniformity [℃] ±0.4 at 37℃/RT.20℃ ±0.5 at 37℃/RT.20℃ ±0.5 at 37℃/RT.20℃ Heating / Total Capacity [W] 610 / 850 1100 / 1350...

  • Page 14: Operation

    Operating Manual 6. Operation Before Switch ON, insert water tray filling with distilled water (If necessary). Make sure connection of gas supply. And Open CO2 gas cylinder or supply with the pressure of regulator set to 4.5~7.25Psi or 0.3~0.5 bar. 6.1.

  • Page 15: Calibration Of Temperature & Co2

    Peltier-cooled CO2 Incubator 6.4. Calibration of temperature & CO Please follow up the procedure for calibration below in case of discrepancy between actual value (measured by reliable thermometer or device) in chamber and displayed value. Conduct the analysis of CO density and Temperature when incubator has been stabilized for more than 2 hours.

  • Page 16: Alarm

    Operating Manual Push UP (▲) and DOWN (▼) to adjust CO % display. Before release of CO incubator from WIGGENS factory, CO density is calibrated optimizing at 5%. When using different density ofCO rather than 5%, this calibration is highly recommendable.

  • Page 17: Hot Air Sterilization

    Peltier-cooled CO2 Incubator 6.7. Hot Air Sterilization (only for the Sterilization model) When CO incubators are used in contamination hazardous areas, hot air sterilization can be used as an additional means of cleaning the inside of the chamber. Hot Air Decontamination uses 6 side direct heating up to 125°C. This makes chamber decontaminated destroying bacteria and germ.
  • Page 18 Operating Manual How to start Figure 1: Example of the display of an incubator with the hot air sterilization option. After conducting prerequisite, take the following steps: Turning on the cycle: On the display of the incubator, press the two following buttons simultaneously (∧& CAL/SET) which directed as CLEAN MODE.

  • Page 19: Safety Switch

    Peltier-cooled CO2 Incubator 7. Safety Switch It is the safety device to prevent the heater from overheating, when the temperature controller is malfunctioning. Set the Safety S/W higher than setting point.  The Safety S/W has wide deviation  Safety S/W is the safety device for preventing the heater to overheat when ...

  • Page 20: Rs-485 Interface

    Operating Manual List of commands Item Input / output Content of "#" Remarks Set the equipment parameters Set temperature out_sp_00 #### Decimal number Unit:0.01℃ Set CO2 density out_sp_01 ### Decimal number Unit: 0.01% Timing sending once every 5 seconds eg: prs 2229 2220 111 means current chamber temperature 22.29℃, door Status prs ## ## ##...
  • Page 21 Peltier-cooled CO2 Incubator Input register Register address Explanation Data type Remark Read or write (DEC.) Current chamber 30001 Read Unit:0.01℃ temperature Current door 30002 Unit:0.01℃ Read temperature Current sterilization 30003 Unit:0.01℃ Read temperature 30005 Current CO2 density Unit：0.01% Read Unit：1 second, 30006 Open door time Read...

  • Page 22: Optional Function

    When UV lighting with cover, expose of UV light to chamber is very little. However, it is not guaranteed that cell is not damaged in this situation. WIGGENS recommend avoid cell culture when UV light is on even with cover.

  • Page 23: Printer

    Peltier-cooled CO2 Incubator 2. Carefully put ceiling down and pull it out from two hooks (in red circle) at back. See below. Pull it out to direction as arrows are directed. After that UV light expose to more surface of chamber but, not completely entire chamber due to shelves.

  • Page 24: Peltier Cooled Model

    Operating Manual 9.3. Peltier cooled model For processes that require low temperatures, the equipment can be fitted with peltier cooling unit. The equipment can be equipped with an internal cooling unit that is an autonomous system. The cooling unit is located at the rear of the incubator with its own fan.

  • Page 25: Troubleshooting

    5x20mm, Unit does The miniature fuse has blown. 220V(5A),110V(7A). If the newly inserted fuse triggers switch on (main again, there is short circuit: contact WIGGENS service. switch position “l” Switch defective Replace the switch Defective function of the CO concentration Reset the alarm.

  • Page 26: Service

    WIGGENS reserves the right to decide the validity of any warranty claim. In case of faults arising either due to faulty materials or workmanship, parts will be repaired or replaced free of charge.

  • Page 27: Confirmation Of Condition Of Unit

    Peltier-cooled CO2 Incubator Confirmation of condition of unit In the case of repair, copy and complete the Conformation of condition of unit and send it to WIGGENS Instruments. 1. Details about the unit Product number Serial number Reason for repair 2.
  • Page 28 Operating Manual Phone E-mail...
  • Page 29 Peltier-cooled CO2 Incubator WIGGENS GmbH Gässlesweg 22-24, 75334 Straubenhardt, Germany Tel.: 0049 7248 4529088 WIGGENS China Room 303, Hall C, Office Building M8, No.1 Jiuxianqiao East Road, Chaoyang District, Beijing 100015, China Tel: +86 400-809-2068 Fax: +86 400-809-2068-112 info@ wiggens.com...

This manual is also suitable for:

Wci-120pWci-180pWci-260pWci-650pWci-850p
