Wiggens WS-350P Operating Manual

Microplate shaker
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
English

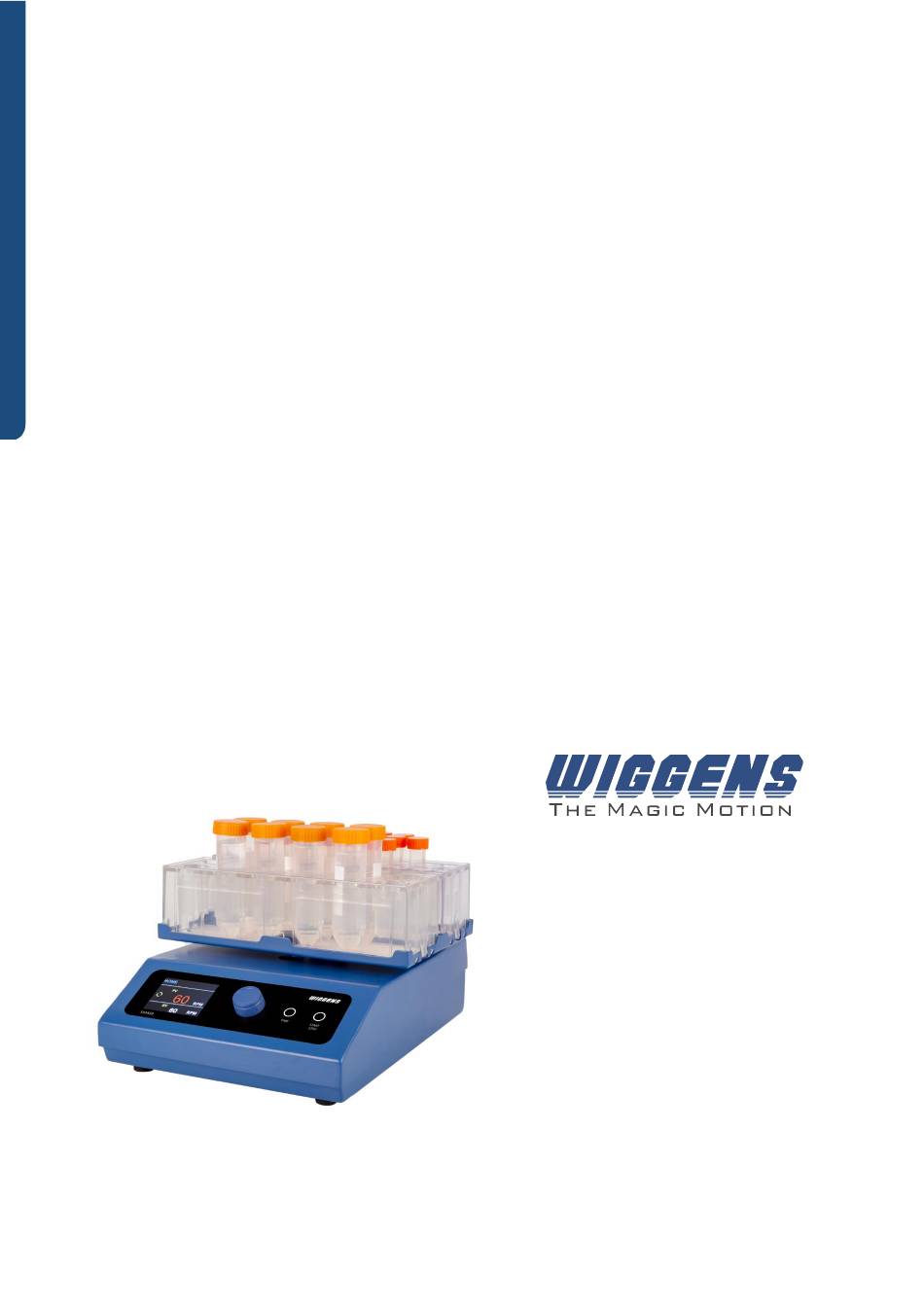

OPERATING MANUAL
Microplate Shaker
WS-350P
WIGGENS GmbH
Gässlesweg 22-24, 75334
Straubenhardt, Germany
Tel.: 0049 7248 4529088
Wiggens Co., Ltd.
Room 426, Hall A, Office Building M8,
No.1 Jiuxianqiao East Road, Chaoyang
District, Beijing 100015, China
Tel: +86 400-809-2068
Fax: +86 400-809-2068-112
info@ wiggens.com
www.wiggens.com
1.115.0922.20-V1.1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WS-350P and is the answer not in the manual?

Questions and answers

Related Manuals for Wiggens WS-350P

Summary of Contents for Wiggens WS-350P

  • Page 1 Microplate Shaker WS-350P WIGGENS GmbH Gässlesweg 22-24, 75334 Straubenhardt, Germany Tel.: 0049 7248 4529088 Wiggens Co., Ltd. Room 426, Hall A, Office Building M8, No.1 Jiuxianqiao East Road, Chaoyang District, Beijing 100015, China Tel: +86 400-809-2068 Fax: +86 400-809-2068-112 info@ wiggens.com www.wiggens.com...

  • Page 2: Unpacking And Inspecting

    Congratulations! You have made an excellent choice. WIGGENS thanks you for the trust you have placed in us. This operating manual has been designed to help you gain an understanding of the operation and possible applications of our instruments. For optimal utilization of all functions, we recommend that you thoroughly study this manual prior to beginning operation.

  • Page 3: Table Of Contents

    WIGGENS WS-350P Important: keep operating manual for future use Content 1. Safety .......................... 5 1.1 Operation Manual ....................5 1.2 WARNING/CAUTION/NOTICE Alerts ..............5 1.3 Exemption for responsibility ................5 1.4 Warning statement ..................... 6 1.5 Caution statement ....................7 2.
  • Page 4 Operating Manual 8.1 1.5ml Micro-tube rack ..................19 8.2 15ml Conical tube rack .................. 19 8.3 50ml Conical tube rack ................... 19 9. Appendix ........................20 9.1 Technical Specification ..................20 9.2 Instrument Disposal ..................20 9.3 Warranty ......................21 9.3.1 General .......................

  • Page 5: Safety

    WIGGENS WS-350P 1. Safety 1.1 Operation Manual This manual contains important safety and operation information. You must carefully read, understand, and follow all the instructions in this manual prior to operating this instrument. Keep this manual in a safe place nearby for reference and make it easily available to all users.

  • Page 6: Warning Statement

    Operating Manual 1.4 Warning statement Indicates a hazardous situation which, if not avoided, could result in death or serious injury. Please check and connect properly -the voltage, phase and capacity of power supply on the ID plate before installation. Power supply must be properly grounded. Abnormal grounded connection causes serious damage.

  • Page 7: Caution Statement

    WIGGENS WS-350P 1.5 Caution statement Indicates a hazardous situation which, if not avoided, may result in minor or moderate injury. Do not put heavy things on the power line. Do not put the machine on the line. It may take off the wire coating and causes the electric shock or fire.

  • Page 8: Functional Description

    Operating Manual 2. Functional Description 2.1 Introductions WS-350P can be operating large amount of sample (4 Microplates in same time). And the shaker is designed for conveniences and safety of the experiment. 2.2 Feature Outstanding Performance 1) Rotation diameter 3mm, 150 ~ 1,200 rpm rotational speed with stable rotation speed can be selected to user suitable purpose.

  • Page 9: Construction

    WIGGENS WS-350P 2.3 Construction 1) Silicon Pad: to protect sliding of glassy flask. 2) Plate Tray: to be placed Microplate, Adapter (Accs. Refer: P19). 3) TFT panel & Controller: The panel indicates product setting and control condition. 4) Touch Button: to choose RPM or TIMER individually.

  • Page 10: Installations And Caution

    (3) Inspect to see that the unit is not damaged during transportations. 3.2 Checking the unit components (1) Please check the unit components supplied packaged in the package after unpacking. (2) If noticeable damage or an omission is found, immediately notify your local WIGGENS’ Service Department. QUANTITY...

  • Page 11: Installation

    WIGGENS WS-350P 3.3 Installation 3.3.1 Installing environment ▪ Temperature: 2℃ ~ 60℃ ▪ Relative Humidity: RH 10% ~ 80% ▪ Maximum altitude: up to 2,000 m 3.3.2 Location conditions Place the unit table as far as possible when in use, and keep suitable distance not to be placed from other instruments.

  • Page 12: Operation

    Operating Manual 4.Operation 4.1 Controller – Name and function (1) TFT Display: Check out status of unit through TFT display. Current RPM Setting RPM Off-T It shows remaining time during Timer mode operation It indicates the unit works when the logo show up (2) RPM Set Knob: It can be used to set the desire RPM.

  • Page 13: Start And Stop

    WIGGENS WS-350P 4.2 Start and stop (1) Turn on the switch at the back bottom of the unit. [Booting] [Stand by] (2) Put down the RPM Set Knob and rotate the knob to set the desired RPM. Click the START/STOP button to start the unit.

  • Page 14: Timer Function

    Operating Manual 4.3 Timer function 4.3.1 How to set Timer (1) Press button when the unit stops. (2) Time input display shows when you press the dial knob. STEP 1 STEP 2 STEP 3 STEP 4 STEP 5 STEP 1: press the dial knob the cursor will skip to the hour position. STEP 2: Input hour by rotating the dial knob to right or left direction.

  • Page 15: Stop Timer Mode

    WIGGENS WS-350P 4.3.2 Stop Timer mode Timer function can stops as follows; STEP 1 STEP 2 STEP 3 STEP 1: The HOME interface indicates the unit status. STEP 2: Press the START/STOP button will stop the unit and the RPM logo will also disappear.

  • Page 16: Safety Device

    Operating Manual 5. Safety Device Safety device for overload Performance of motor is not working well by overload, inserted safety circuit stops operating with the alarming. The unit operates fine after re-booting. 6. Maintenance 6.1 Periodic maintenance A period of checking time classifications daily weekly...

  • Page 17: Troubleshooting

    WIGGENS WS-350P （3） Store in a dry place after packing. 7. Troubleshooting 7.1 Electrical Trouble Causes Solution Compare power source and voltage on the ID plate and make sure they Incorrect electric power are the same. ID plate is found on the bottom of unit.

  • Page 18: Trouble During Operation

    Operating Manual 7.2 Trouble during operation Symptom Cause Action Dial button doesn’t Capacitive Sensing Request service. operate well Initialization Error Off the power switch on the Touch button doesn’t Capacitance sensor initialization power supply is blocked. In a operate well errors few moments to initialize the controller power supply.

  • Page 19: Accessories

    1.5ml Micro-tube, 15ml 50ml Conical tube can be used as well. In that case, rpm should be lower than the speed range of the technical specifications. In order to purchase optional accessories, please refer to our website www.wiggens.com Item Cat.

  • Page 20: Appendix

    2.If not possible, contact your local governing body for regulations regarding disposal of laboratory equipments. WIGGENS Tech highly recommends you to find a local service provider that can properly dispose of your instrument.

  • Page 21: Warranty

    ⚫ Serial number on Identification plate. ⚫ Defect and trouble ⚫ Application and using condition. 9.3.2 Wiggens does not cover in case of as below even it is under warranty period. ⚫ Abuse, ⚫ Misuse, neglect, and accident ⚫ Improper application, repair or attempt repair not authorized by WIGGENS Tech ⚫...

  • Page 22: Contact /Technical Service

    ⚫ Copy and complete the Conformation of condition of unit from these operating instructions. ⚫ Please repack the device appropriately for transport and send to WIGGENS Instruments together with the Confirmation of condition of unit. Our contact details WIGGENS GmbH Add：Gässlesweg 22-24, 75334 Straubenhardt, Germany...

  • Page 23: Confirmation Of Condition Of Unit

    3. Is the unit in a condition which does not represent any health threats for the staff of our service department? If not, which substances has the unit come into contact with? 4. Legally binding declaration The customer is aware of being legally liable to WIGGENS Instruments for any damages arising from incomplete and incorrect information. Date Signature...
  • Page 24 Operating Manual Country Phone E-mail...
  • Page 25 WIGGENS WS-350P WIGGENS GmbH Gässlesweg 22-24, 75334 Straubenhardt, Germany Tel.: 0049 7248 4529088 Wiggens Co., Ltd. Room 426, Hall A, Office Building M8, No.1 Jiuxianqiao East Road, Chaoyang District, Beijing 100015, China Tel: +86 400-809-2068 Fax: +86 400-809-2068-112 info@ wiggens.com...
