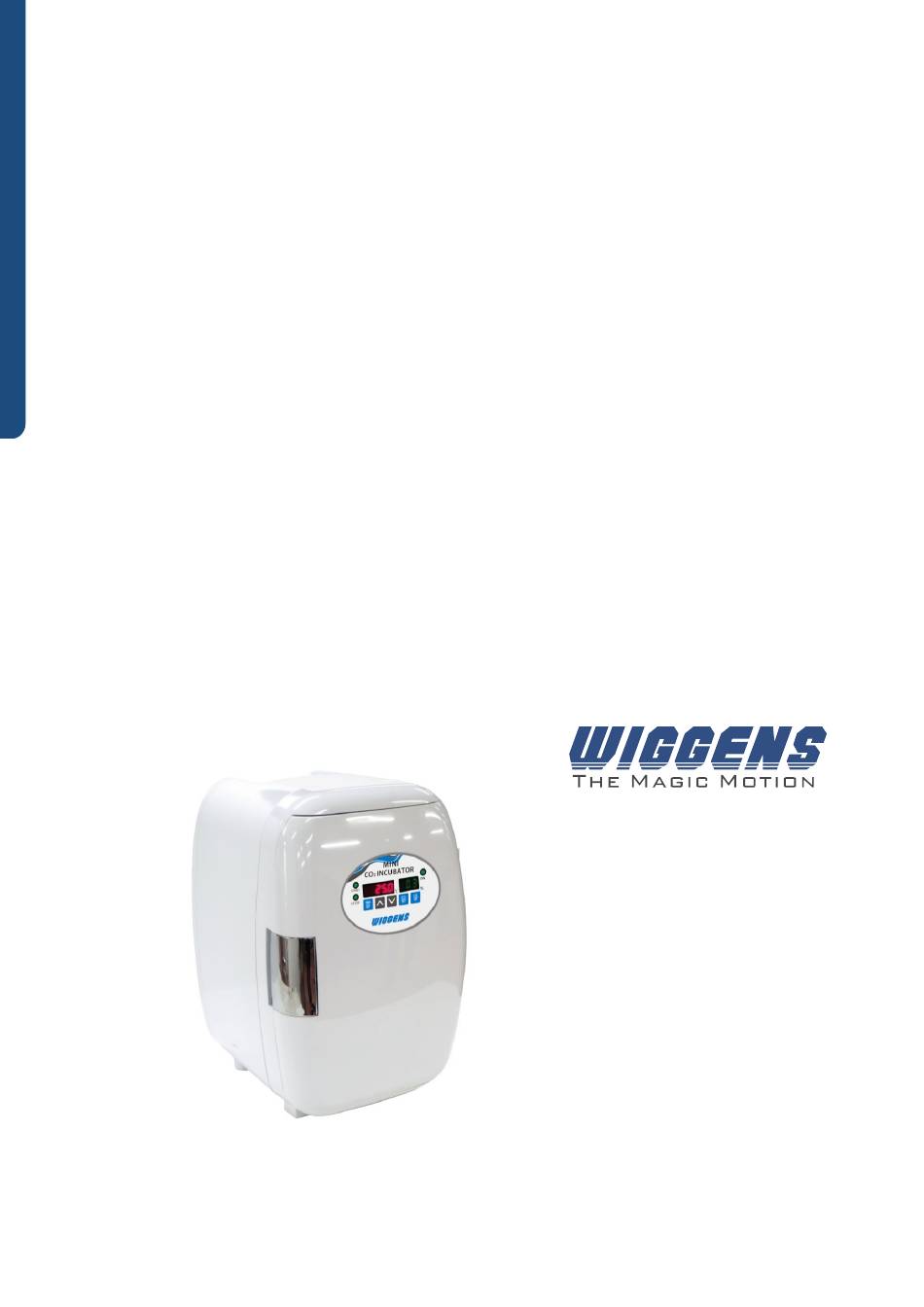

OPERATING MANUAL
CO
Incubator
2
WCI-15R
WIGGENS GmbH
Gässlesweg 22-24, 75334 Straubenhardt,
Germany
Tel.: 0049 7248 4529088
Wiggens Co., Ltd.
Room 426, Hall A, Office Building M8, No.1
Jiuxianqiao East Road, Chaoyang District,
Beijing 100015, China
Tel: +86 400-809-2068
Fax: +86 400-809-2068-112
info@ wiggens.com
www.wiggens.com
1.1892.0401.20-V2.1
Advertisement
Table of Contents
Related Manuals for Wiggens WCI-15R
Summary of Contents for Wiggens WCI-15R
- Page 1 Incubator WCI-15R WIGGENS GmbH Gässlesweg 22-24, 75334 Straubenhardt, Germany Tel.: 0049 7248 4529088 Wiggens Co., Ltd. Room 426, Hall A, Office Building M8, No.1 Jiuxianqiao East Road, Chaoyang District, Beijing 100015, China Tel: +86 400-809-2068 Fax: +86 400-809-2068-112 info@ wiggens.com www.wiggens.com...
-
Page 2: Unpacking And Inspecting
Congratulations! You have made an excellent choice. WIGGENS thanks you for the trust you have placed in us. This operating manual has been designed to help you gain an understanding of the operation and possible applications of our instruments. For optimal utilization of all functions, we recommend that you thoroughly study this manual prior to beginning operation. -
Page 3: Table Of Contents
WIGGENS WCI-15R Content 1. Warranty .............................. 4 2.General Information on Precaution ......................5 2.1. Precaution for using the power cable ..................6 2.2. Precaution for ground connection ....................6 2.3. Precaution for use ........................7 3.Transportation, Storage and Location of Installation ................8 3.1. -
Page 4: Warranty
This warranty does not extend to any WIGGENS products which have been misused, neglected, accident or mis-installation, application. 1) The free warranty service will be provided once the unit is proved to be defective by wrong workmanship after WIGGENS or reliable distributor’s examination. -
Page 5: General Information On Precaution
WIGGENS WCI-15R CE Conformity The products described in the operating instructions conform to the requirements of the following European guidelines: Low voltage regulations with respect to legal harmonization of the member countries concerning electric devices for use within certain voltage limits. -
Page 6: Precaution For Using The Power Cable
Operating Manual 2.1. Precaution for using the power cable Do not make the power plug be pressed by back of the product. (A space between the product and the plug must be 30 cm at least. The power outlet must be only for this product. (Using various products simultaneously can cause a fire) Clean the power plug with a dry towel and connect it properly. -
Page 7: Precaution For Use
WIGGENS WCI-15R 2.3. Precaution for use You must not disassemble, fix and remodel the product by yourself. (You can damage the product to a fire and malfunction or get a property loss as well as experimental loss. Do not use the product for different purpose. -
Page 8: Transportation, Storage And Location Of Installation
Operating Manual 3. Transportation, Storage and Location of Installation 3.1. Transportation DO NOT try to slide or tilt the unit Permissible ambient temperature range for transport: -10℃to 60℃. 3.2. Storage Do not keep it at place in High Humidity. Permissible ambient humidity: max. 70%storage in a cold location is the place you transfer the unit to the installation site for start-up, condensation may form. -
Page 9: Location Of Installation And Ambient Conditions
WIGGENS WCI-15R 3.3. Location of installation and ambient conditions Do not put flammable substances near the product. (It can cause a fire) When you install the product, you have to put the distance of at least 30cm from the wall. To completely separate the unit from the power supply, power plug must be disconnected. -
Page 10: Prerequisite And Configuration
Operating Manual 4. Prerequisite and Configuration 4.1. Prerequisite Inspection of Boxes When you have received the instrument which is well boxed, inspect the box carefully to check any transit damage. Please report any damage to the carrier or to your local NBIOTEK distributor immediately. Location The incubator is designed to operate at temperature 5℃above ambient, and recommended to operate at minimum ambient(temperature in the place for use), 18℃. -
Page 11: Configuration
WIGGENS WCI-15R 4.2. Configuration Figure #1> Front side Handle for carrying Control panel Finger supporter for door close Door Handle <Figure #2> Inner side and rear side IR CO sensor Door Sealing Gasket Circulation fan Stainless steel panel Stainless steel shelf... - Page 12 Operating Manual <Figure #3> Rear of Incubator Air Circulation Serial Label Power Input receptacle Cooling Fan DC 12V Car Jack Receptacle Air Circulation Sample Port Foot of Incubator with non-slip rubber Inlet Port inlet port is ∅4 x 2mm (total diameter 4mm, hole 2mm). A connecting tube for CO Note The tube diameter of CO inlet port is...
-
Page 13: Feature And Specification
WIGGENS WCI-15R 5. Feature and Specification 5.1. Feature 1. Light weight, easy to carry concept of 16liter potable mini CO incubator. 2. Compact size for workstation or clean bench. 3. Precise temperature control by Peltier. (ambient -8’C, lowest temp. is 15’C at 24’C RT) 4. -
Page 14: Specification
Operating Manual 5.2. Specification Item Specification Chamber volume 15.2liter Temperature range 15℃ ~ 45℃ at ambient 25℃ Temperature accuracy ±0.25℃ Temperature control Microcomputer range 0~20% sensor Dual beam IR sensor accuracy ±0.1%（5%） Humidity Up to 80% Gas pressure 0.7Bar (Max.1Bar) Display LED display Cooling &... -
Page 15: Control Panel
WIGGENS WCI-15R 6. Control Panel 1. RUN LED LAMP: normal – 2Hz BLINK, failed – 10Hz BLINK 2. HOT/COOL LED LAMP : RED(heating) BLUE(Peltier – cooling) 3. Alarm LED LAMP: RED 4. Temperature LED display 5. Temperature setting button 6. Adjustment button 7. -
Page 16: Operation
Operating Manual 7. Operation Please check connection of gas supply. And Open CO gas cylinder for supply with the pressure of regulator set to a certain level. incubator set-up process 7.1. Place and install the product. Install the product at the desired place and check the level in all directions (side by side, front to back and ground). 7.2. -
Page 17: Connect The Co Gas
WIGGENS WCI-15R 7.3. Connect the CO Regulator Pressure Gauge Bombe Pressure Gauge Flow Meter Regulator valve Master valve Check whether CO gas is leaking at any point of regulator. If leak is found, please take measures to stop leaking before supply of CO gas to incubator. -
Page 18: Power Switch On
Operating Manual 7.4. Power switch on Turn on the power switch in line of power cable. Then, digital LED will display current temperature andCO₂% in chamber after below message passed in short time. 7.5. Setting temperature a. Connect the power, then the LED screen will display the temperature in the chamber. b. -
Page 19: Calibration For Temperature And Co
WIGGENS WCI-15R 7.7. Calibration for temperature and CO Please follow up below procedure for calibration in case of discrepancy between actualvalue (measured by reliable measurement device) in chamber and displayed value. Measure CO density and Temperature after incubator is stabilized in which takes about more than 2 hours (you might want to perform this stabilization process at night before home) Please note that low deviation range such as ±... - Page 20 Operating Manual b. Forth Click “CAL SET” ☞ CO density calibration Channel 4 is at CO density calibration stage. Press UP (▲) as much as difference from measured value by precise analyzer if it is higher. Press DOWN (▼) as much as difference from measured value by precise analyzer if it is lower.Ex) If measured CO value is 5% and Display shows 4%, then press up 1%.
-
Page 21: Humidity
WIGGENS WCI-15R 7.8. Humidity Mini CO incubator adopts natural humidity system by water container as below image. Please fill up distilled water up to the water line of water tray and keep lid closed for proper humidity level (at about 80%) during operation of incubator. -
Page 22: Contact /Technical Service
Our contact details WIGGENS GmbH Add：Gässlesweg 22-24, 75334 Straubenhardt, Germany Tel.: 0049 7248 4529088 Wiggens Co., Ltd. Room 426, Hall A, Office Building M8, No.1 Jiuxianqiao East Road, Chaoyang District, Beijing 100015, China Tel: +86 400-809-2068 Fax: +86 400-809-2068-112 info@ wiggens.com service@wiggens.com... -
Page 23: Confirmation Of Condition Of Unit
WIGGENS WCI-15R Confirmation of condition of unit WIGGENS In the case of repair, copy and complete the Conformation of condition of unit and send it to Instruments. 1. Details about the unit Product number Serial number Reason for repair 2. Has the device been cleaned, decontaminated/sterilized? 3. - Page 24 Operating Manual WIGGENS GmbH Gässlesweg 22-24, 75334 Straubenhardt, Germany Tel.: 0049 7248 4529088 WIGGENS China Room 426, Hall A, Office Building M8, No.1 Jiuxianqiao East Road, Chaoyang District, Beijing 100015, China Tel: +86 400-809-2068 Fax: +86 400-809-2068-112 info@ wiggens.com www.wiggens.com...
