OPERATING MANUAL
Vortex Shaker
Vortex 3000
WIGGENS GmbH
Gässlesweg 22-24, 75334 Straubenhardt,
Germany
Tel.: 0049 7248 4529088
Wiggens Co., Ltd.
Room 426, Hall A, Office Building M8, No.1
Jiuxianqiao East Road, Chaoyang District,
Beijing 100015, China
Tel: +86 400-809-2068
Fax: +86 400-809-2068-112
info@ wiggens.com
www.wiggens.com
1.360.0403.20-V2.1
Advertisement
Table of Contents
Related Manuals for Wiggens Vortex 3000
Summary of Contents for Wiggens Vortex 3000

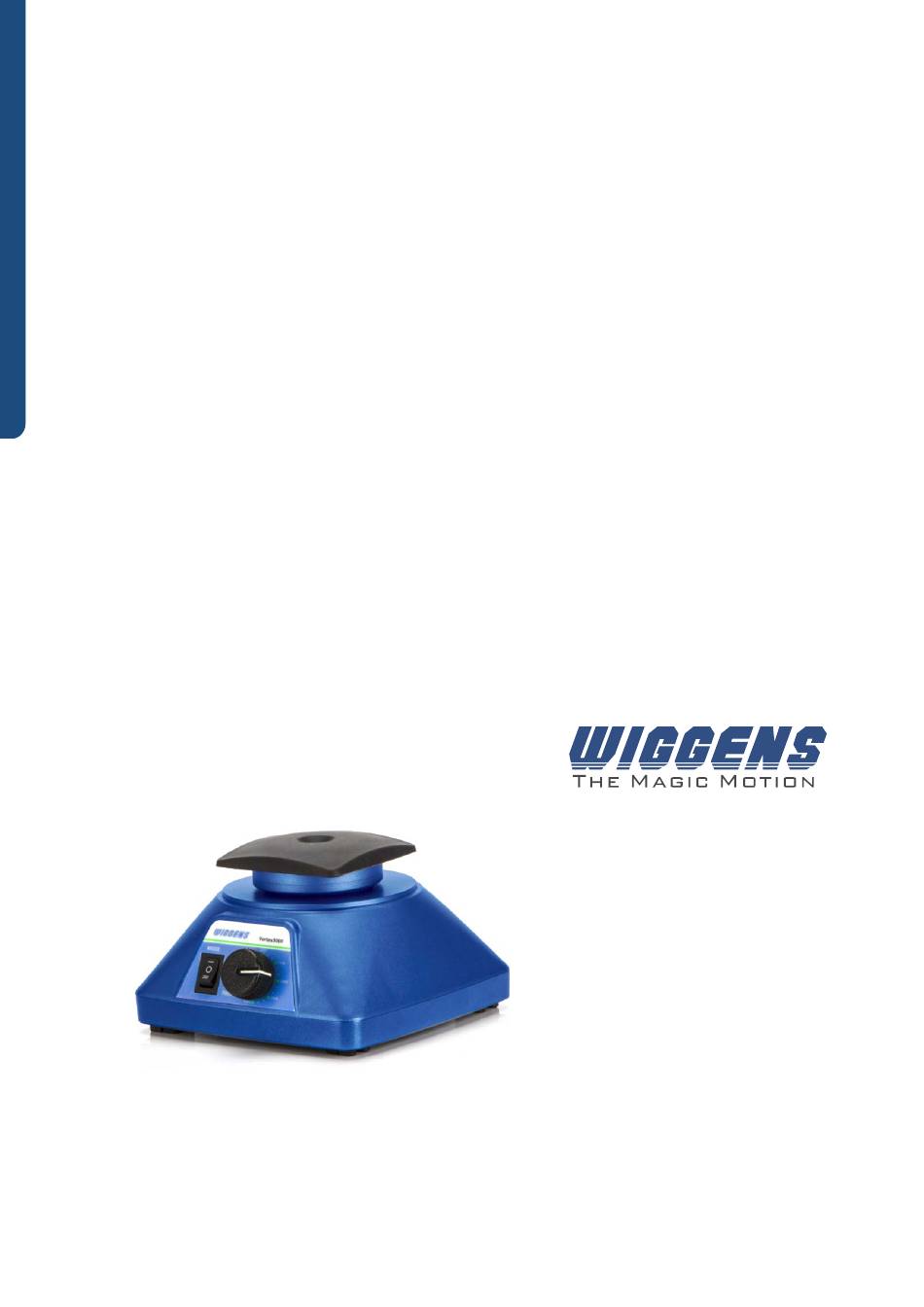

- Page 1 English OPERATING MANUAL Vortex Shaker Vortex 3000 WIGGENS GmbH Gässlesweg 22-24, 75334 Straubenhardt, Germany Tel.: 0049 7248 4529088 Wiggens Co., Ltd. Room 426, Hall A, Office Building M8, No.1 Jiuxianqiao East Road, Chaoyang District, Beijing 100015, China Tel: +86 400-809-2068 Fax: +86 400-809-2068-112 info@ wiggens.com...
-
Page 2: Unpacking And Inspecting
Congratulations! You have made an excellent choice. WIGGENS thanks you for the trust you have placed in us. This operating manual has been designed to help you gain an understanding of the operation and possible applications of our instruments. For optimal utilization of all functions, we recommend that you thoroughly study this manual prior to beginning operation. -
Page 3: Table Of Contents
4.3.1. Overview of the Vortex 3000 ..................... 12 4.3.2. Operation of the Vortex 3000 in On-Touch Mode............... 13 4.3.3 .Operation of the Vortex 3000 in Continuous Mode ............13 4.3.4. Stopping the instrument ....................13 5.Cleaning and Maintenance ........................14 5.1. -
Page 4: Intended Use
Operating Manual 1. Intended Use The Vortex 3000 is an elaborate vortex shaker constructed for safe and reliable shaking tasks. The shaking operation can be switched between continuous and on-touch mode depending on the shaking purpose. The main application areas are solution samples or homogenized concentrates in test tubes and capped vials. -
Page 5: Disposal
WIGGENS Vortex 3000 Only qualified personnel are authorized to perform configuration, installation, maintenance and repairs of the instrument. Routine operation can also be carried out by untrained personnel who should however be instructed by trained personnel. If you have any questions concerning the operation of your instrument or the information in this manual, please contact 2.1. -
Page 6: Technical Specifications
Order Numbers as stated on the product label and box label are stated as Full Order Numbers (FON), consisting of the BON followed by the ONA. For a full explanation of the ONA of your product, please ask your local WIGGENS support or refer to the Order Number WIGGENS Guide in the General Catalog. -
Page 7: Safety Instructions
WIGGENS Vortex 3000 3. Safety Instructions 3.1. Explanation of Safety Notes In addition to the safety warnings listed, warnings are posted throughout the operating manual. These warnings are designated by an exclamation mark inside an equilateral triangle. “Warning of a dangerous situation (Attention! Please follow the documentation).”... - Page 8 Operating Manual Never operate instruments with damaged mains power cables. Observe all warning labels. Be aware of tripping! Never route the connection cable in highly frequented areas! Repairs are to be carried out only by qualified service personnel ...
-
Page 9: For Protection Of The Equipment
Max. mains fluctuation of ±10 % are permissible Overvoltage category II 4.2. Installation 4.2.1. Installing the Vortex 3000 Place the unit with its four rubber feet on a stable and flat surface and in proper environment for operation. -
Page 10: Mounting Accessories
Operating Manual 4.2.2. Mounting Accessories 1. Mounting of the Rubber Platform (optional) In On-Touch mode, or Continuous mode, the rubber platform is used as the standard platform for micro tubes and conical tubes to mix test samples or specimen. Place the rubber platform on top of the top plate ... -
Page 11: Connection To The Main Power Supply
WIGGENS Vortex 3000 4.2.3. Connection to the Main Power Supply Please supply the electric power to the unit according to the following steps: Adjust the dial knob before the power is on so that it is in the “0” rpm position ... -
Page 12: Operation
Operating Manual 4.3. Operation 4.3.1. Overview of the Vortex 3000 Description Rubber Platform: Used for On-Touch mode only. It is applied to mix samples in micro tubes or conical tubes when putting them on the platform directly. main switch Used for selecting the operation between On-Touch mode , Off mode and Continuous mode On-Touch mode: Put the switch to the lower position (=) to operate in this mode. -
Page 13: Operation Of The Vortex 3000 In On-Touch Mode
WIGGENS Vortex 3000 4.3.2. Operation of the Vortex 3000 in On-Touch Mode Mount the rubber platform Connect the unit to the power supply Put the operation mode switch to Touch mode Turn the dial knob to select the desired shaking speed ... -
Page 14: Cleaning And Maintenance
Operating Manual CAUTION! Make sure that the micro plate / test tube plate is placed correctly and tightly before starting the shaking operation. At the start of any operation set the shaking speed to 0 rpm when selecting Continuous mode. -
Page 15: Maintenance
5.2. Maintenance Do not attempt to service or repair a WIGGENS vortex shaker. If the housing of the shaker is opened, the warranty becomes void. Contact WIGGENS for return authorization and return instructions. Ordering spare parts... -
Page 16: Accessories
Operating Manual 7. Accessories Model Description Order No. Rubber platform, Test tube & small vessel V0058 up to Ø 50mm Platform V0011 Microplate tray V0008 Recommended speed range: 0~1500rpm Tube Holder with Insert Retainer For shaking test tube & small vessel(tube) up to Ø... -
Page 17: Service
This is either a mechanical failure of the dial knob or a failure in the electronics operate well. Please contact the WIGGENS support Note! WIGGENS reserves the right to carry out technical modifications with repairs for providing improved performance of the instrument. -
Page 18: Warranty
Our contact details WIGGENS GmbH Add：Gässlesweg 22-24, 75334 Straubenhardt, Germany Tel.: 0049 7248 4529088 Wiggens Co., Ltd. Room 426, Hall A, Office Building M8, No.1 Jiuxianqiao East Road, Chaoyang District, Beijing 100015, China Tel: +86 400-809-2068 Fax: +86 400-809-2068-112 info@ wiggens.com service@wiggens.com... -
Page 19: Confirmation Of Condition Of Unit
WIGGENS Vortex 3000 Confirmation of condition of unit WIGGENS In the case of repair, copy and complete the Conformation of condition of unit and send it to Instruments. 1. Details about the unit Product number Serial number Reason for repair 2. - Page 20 Operating Manual WIGGENS GmbH Gässlesweg 22-24, 75334 Straubenhardt, Germany Tel.: 0049 7248 4529088 WIGGENS China Room 426, Hall A, Office Building M8, No.1 Jiuxianqiao East Road, Chaoyang District, Beijing 100015, China Tel: +86 400-809-2068 Fax: +86 400-809-2068-112 info@ wiggens.com www.wiggens.com...
