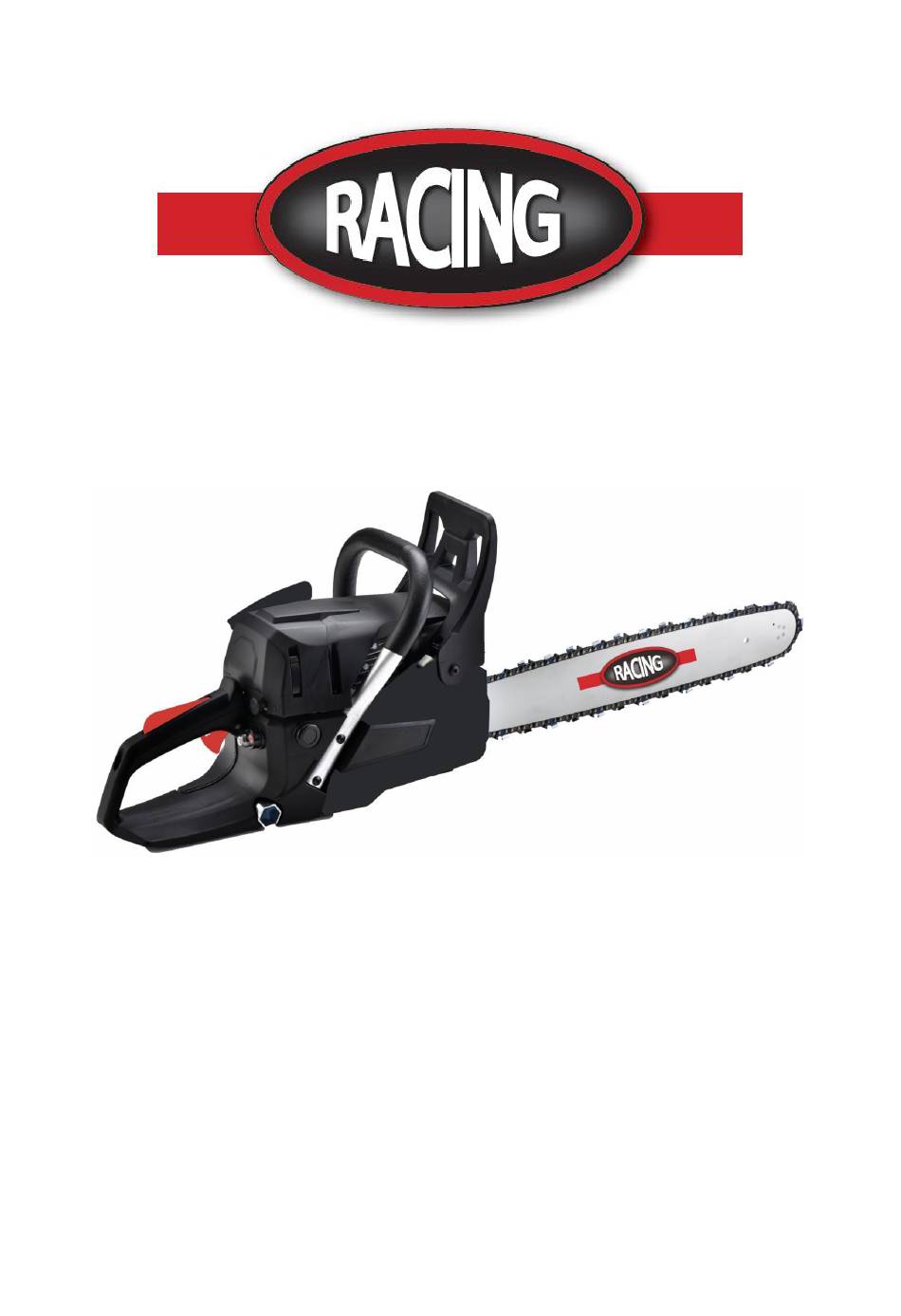

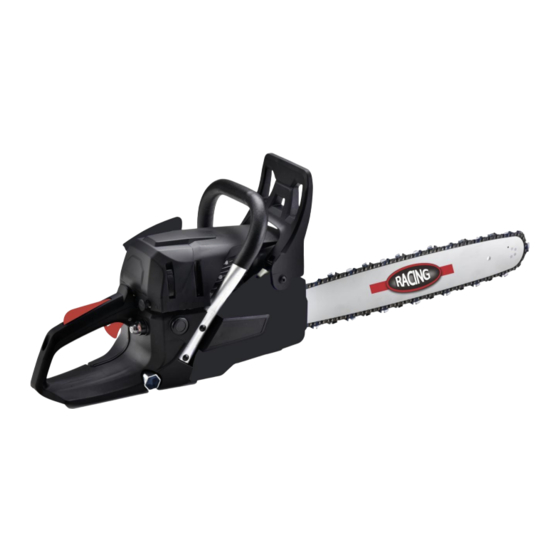

- Page 1 ORIGINAL INSTRUCTIONS >EN PETROL CHAINSAW RAC4540CS USER GUIDE WARNING: Read thoroughly the instruction manual before using.
- Page 2 CONTENTS SAFETY WARNINGS............................3 YOUR PRODUCT..............................7 ASSEMBLY................................9 FILLING THE OIL TANK AND FUEL TANK......................12 OPERATION..............................13 MAINTENANCE AND STORAGE........................16 DECLARATION OF CONFORMITY ........................19 WARRANTY..............................20 PRODUCT FAILURE............................21 WARRANTY EXCLUSIONS..........................22...
- Page 3 SAFETY WARNINGS WARNING! When using this type of garden tool, basic precautions should always be followed to reduce the risk of fire, electric shock and injury. Read all instructions carefully before attempting to use this product and retain these instructions. Be familiar with all the operations described in these operating instructions.
- Page 4 Turn off the tool after use, when you leave it unattended, when changing these accessories and before servicing. Keep handles dry, clean and free of oil and grease. Be concentrated when using the tool. Look at what you do, use good sense and do not use the tool when you are tired.
- Page 5 control. Be careful when using the machine during stormy weather. Do not use the machine during lightning, thunderstorms or in bad weather. Do not expose the tool to rain. Do not use the tool in damp environment. It is recommended to use the spiked bumper provided for cutting trees and thick branches. ...
- Page 6 can be controlled by the operator, if appropriate precautions are taken. Do not allow the chain saw to start. Do not stretch the arm too far and do not cut above the shoulder height. This helps prevent unintentional end contacts and allows better control of the chain saw in unforeseen situations. Use only the manufacturers specified replacement guides and chains.
- Page 7 Wear anti slippery footwear. Setting the chain tension. Fuel filler (on fuel tank cap). Oil filler (on oil tank cap). Choke knob. YOUR PRODUCT DESCRIPTION(FIG.1) (FIG.1) 1. Guide bar 7. Air filter cover 13. Throttle lock 2. Chain 8. Switch on/off 14.
- Page 8 6. Kit of tools 3. Guide bar scabbard 7. Plug wrench 4. Saw chain 8. User manual with warranty card TECHNICAL DATA Model RAC4540CS Type of engine 1E43F (single cylinder, air cooled 2-stroke petrol engine) Fuel Tank Volume 550cm³ Ratio 40:1 Oil tank volume 260cm³...
- Page 9 ASSEMBLY Before you start up your chainsaw for the first time you must assemble the bar and chain, adjust the chain, fill the fuel tank with fuel and add oil to lubricate the chain. WARNING! Do not START the chain saw until it is completely set up for use. Read this manual carefully before using the machine.
- Page 10 Fig. 5 Fig.6 6. Run the chain behind the drive chain wheel (E). Check if the chain links are well positioned between the teeth of the chain wheel (Fig. 7). 7. Insert the links into the bar groove (F) (Fig. 7). 8.
- Page 11 Fig.10 Fig.9 CHAIN TENSION ADJUSTING PROCEDURE 1. Loosen the nuts (on the protective cover) and turn the adjusting screw (D) clockwise to tighten the chain. Turn the adjusting screw (D) counterclockwise to decrease chain tension. Make sure the chain is all the way around the bar (fig.
- Page 12 WARNING! The brake shield must be in good condition and must make a distinctive click when moving from one position to another. Do not use the unit if the brake shield cannot be moved to one of the positions or if the chain does not stop when the brake is applied. Take the unit to a service center for repair.
- Page 13 The fuel used for this tool is a mixture of unleaded gasoline and registered engine lubricant. When mixing gasoline with oil, use only gasoline that does not contain ethanol or methanol. Unleaded gasoline is a quality gasoline type. This will help to avoid damaging the fuel lines of the engine and other engine parts.
- Page 14 TO STOP THE ENGINE 1. Release the throttle lock key and throttle key to allow the engine to idle. 2. To stop the engine, move the switch to the O position (OFF). NOTE: To stop the engine in an emergency, engage the chain brake and move the switch to the “O” position. CHAIN BRAKE Starting shall always be done with the chain brake activated.
- Page 15 Before bending a branch or trunk in bending, observe the direction of bending and finish the cut opposite the bending side to prevent the chain guide from getting stuck in the cut. FELLING OF TREES Examine the work area and estimate where the tree will fall. Start the machine as described above. Start by making a notch in the direction of fall chosen.
- Page 16 MAINTENANCE AND STORAGE MAINTENANCE Before any maintenance work, the machine must be switched off and completely cooled. Perform the maintenance work according to the instructions below and perform them regularly. A clean, well-maintained machine increases its standard of living and efficiency. On the contrary, a machine maintained can cause damage, accidents and render the tool inoperable in the short term.
- Page 17 Check: Reverse the bar from time to time to avoid the effects of wear. The bar rail should always be in place. Use a ruler to observe it. If a gap is observed between them, then the rail is normal. Otherwise, the rail is worn out.
- Page 18 i. Sharpening of the chain For best performance, we strongly recommend that you periodically sharpen the chain. The chain can either be sharpened by a professional or by yourself by providing you with a sharpening guide (make sure you know how to use it). The chain must be sharpened when: Wood chips have become powder The cut is not straight...
- Page 19 BUILDER SAS ZI, 32 rue Aristide Bergès – 31270 Cugnaux - France Declares that the machinery designated below: Petrol chainsaw RAC4540CS Serial number: 20241118461-20241118660 Complies with the provisions of the Directive "machinery" 2006/42/EC and regulations National transposing it; Also complies with the following European directives: EMC Directive 2014/30/EU Emission directive (EU) 2016/1628 &...
- Page 20 WARRANTY The manufacturer guarantees the product against defects in material and workmanship for a period of 2 years from the date of the original purchase. The warranty only applies if the product is for household use. The warranty does not cover breakdowns due to normal wear and tear. The manufacturer agrees to replace parts identified as defective by the designated distributor.
- Page 21 PRODUCT FAILURE WHAT TO DO IF MY MACHINE BREAKS DOWN? If you bought your product in a store: • Empty the fuel tank. • Make sure that your machine is complete with all accessories supplied, and clean! If this is not the case, the repairer will refuse the machine.
- Page 22 WARRANTY EXCLUSIONS THE WARRANTY DOES NOT COVER: • Start-up and setting up of the product. • Damage resulting from normal wear and tear of the product. • Damage resulting from improper use of the product. • Damage resulting from assembly or start-up not in accordance with the user manual. •...
- Page 23 BUILDER SAS 32 rue Aristide Bergès - Z.I. du Casque - 31270 Cugnaux - France MADE IN PRC...
