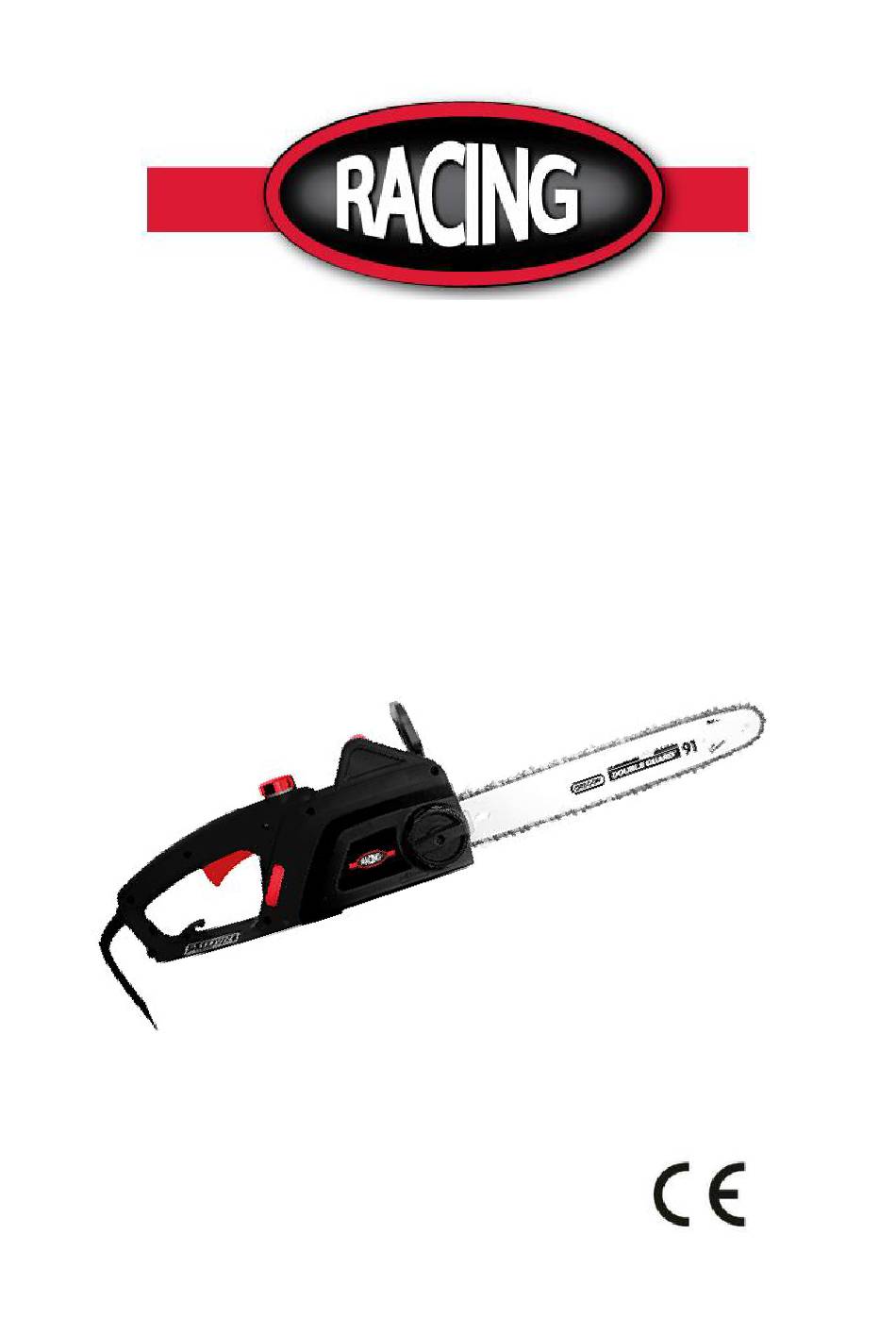

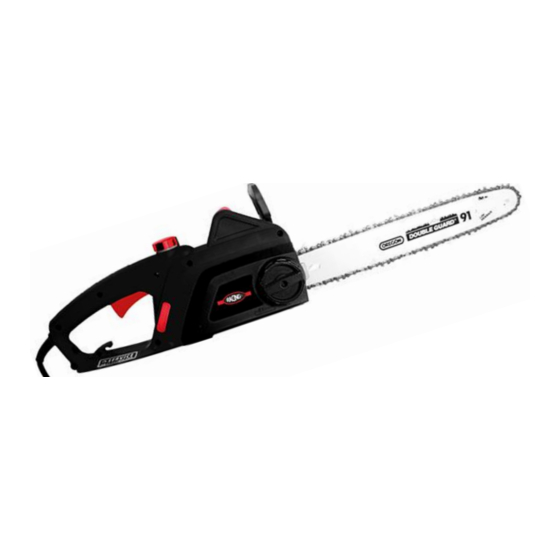

- Page 1 ORIGINAL INSTRUCTIONS INSTRUCTIONS MANUAL ELECTRIAL CHAINSAW RAC2035ECS Warning: Read the instructions before using this tool. BUILDER SAS 32, rue Aristide Bergès - ZI 31270 Cugnaux – France MADE IN PRC 2020...
-
Page 2: Table Of Contents
CONTENTS SAFETY WARNINGS YOUR PRODUCT ASSEMBLY OPERATION MAINTENANCE AND STORAGE DISPOSAL DECLARATION OF CONFORMITY WARRANTY. PRODUCT FAILURE WARRANTY EXCLUSIONS... -
Page 3: Safety Warnings
1. SAFETY WARNINGS WARNING Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. ave all warnings and instructions for future reference. The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool. -
Page 4: Additional Instructions
Chain saw safety warnings: Keep all parts of the body away from the saw chain when the chain saw is operating. Before you start the chain saw, make sure the saw chain is not contacting anything. A moment of inattention while operating chain saws may cause entanglement of your clothing or body with the saw chain. - Page 5 Failure to follow these instructions can result in serious injuries and, in some cases, death. This product is intended for private domestic use only. Do not use it for commercial purposes. Never let people unfamiliar with these instructions or children use this product. ...
- Page 6 After hitting a foreign object; Every time the product starts to vibrate abnormally. Pay attention to foot and cutting injuries. Inspect and regularly service the product. Repairs should be carried out only by an authorized service center or a similar qualified specialist.
- Page 7 Symbols Warning symbol Read and refer to these operating instructions Wear hearing protection and eyes protection Value of sound emission according to European Directive 2000/14/EC This tool must be used by persons trained to cut down trees; Read this instruction manual! The contact of the end of the bar with any object must be avoided.
-
Page 8: Your Product
Intended use The tool should only be used to cut trees. Do not use it for other applications. This product should not be used outside of domestic premises e.g. for cutting firewood in forested areas. The use of this product in case of rain or humid environment is prohibited. This product is intended for private domestic use only. -
Page 9: Assembly
Technical data: Model RAC2035ECS Tension 230V-240V˜ 50Hz Power 2000W Max speed of the 7000/min spindle Cutting length 355 mm (14’’) Chain speed 13.1m/s Guide Bar 140SDEA041 （518302） 14”,3/8 0.050” Chain 91PJ053X(14” 3/8 ,5 3t teeth) Weight with bar and 5.3kg... -
Page 10: Operation
2). Place the chain saw on any suitable flat surface. 3). Spread the saw chain out with the cutting edges (A) of the chain pointing in the direction of rotating. Slide the saw chain into the slot around the chain bar. Ensure chain is in correct running direction. (See Fig.4a, 4b) 4). -
Page 11: Main Settings
2. Starting and stopping Note: Ensure the brake is working efficiently. Check its operation every time before commencing work with it. Connect the tool to a mains power supply. Depress the safety lock off button (2) whist squeezing the main switch (8). ... -
Page 12: Cutting Work
4. Cutting work The tool should only be used to cut trees. Do not use it for other applications. Do not attempt to remove the chainsaw when it is stuck during operation. Stop the machine and remove the wedge blade with a wedge. Stick your feet well, keep a good balance and do not climb on the tree trunk. -
Page 13: Maintenance And Storage
5. MAINTENANCE AND STORAGE 1. Maintenance Before any maintenance work, the machine must be switched off and completely cooled. Perform the maintenance work according to the instructions below and perform them regularly. A clean, well-maintained machine increases its standard of living and efficiency. On the contrary, a machine maintained can cause damage, accidents and render the tool inoperable in the short term. -
Page 14: Disposal
d. chain saw Check each time the cutter and cutting angles are as shown below. e. Sharpening of the chain For best performance, we strongly recommend that you periodically sharpen the chain. The chain can either be sharpened by a professional or by yourself by providing you with a sharpening guide (make sure you know how to use it). -
Page 15: Declaration Of Conformity
Declaration of conformity BUILDER ZI, 32 rue Aristide Bergès – 31270 Cugnaux - France Declares that the machinery designated below: Chainsaw RAC2035ECS Serial number: - 20200809945-20200810544 Complies with the provisions of the Directive "machinery" 2006/42/EC and regulations National transposing it;... -
Page 16: Warranty
8. WARRANTY WARRANTY The manufacturer guarantees the product against defects in material and workmanship for a period of 2 years from the date of the original purchase. The warranty only applies if the product is for household use. The warranty does not cover breakdowns due to normal wear and tear. The manufacturer agrees to replace parts identified as defective by the designated distributor. -
Page 17: Product Failure
9. PRODUCT FAILURE WHAT TO DO IF MY MACHINE BREAKS DOWN? If you bought your product in a store: a) Empty the fuel tank. b) Make sure that your machine is complete with all accessories supplied, and clean! If this is not the case, the repairer will refuse the machine. -
Page 18: Warranty Exclusions
10. WARRANTY EXCLUSIONS THE WARRANTY DOES NOT COVER: • Start-up and setting up of the product. • Damage resulting from normal wear and tear of the product. • Damage resulting from improper use of the product. • Damage resulting from assembly or start-up not in accordance with the user manual. •...
