ORIGINAL INSTRUCTIONS

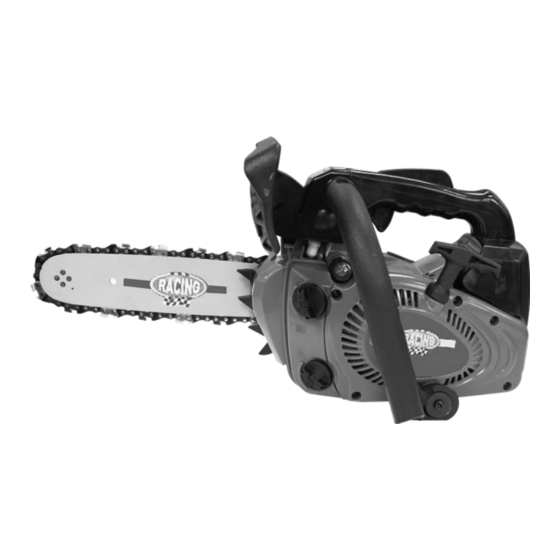

CHAINSAW
RAC2525-1
INSTRUCTIONS MANUAL
Read the instructions before use the tool
32, rue Aristide Bergès - ZI 31270 Cugnaux – France
MADE IN PRC 2018
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the RAC2525-1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Racing RAC2525-1

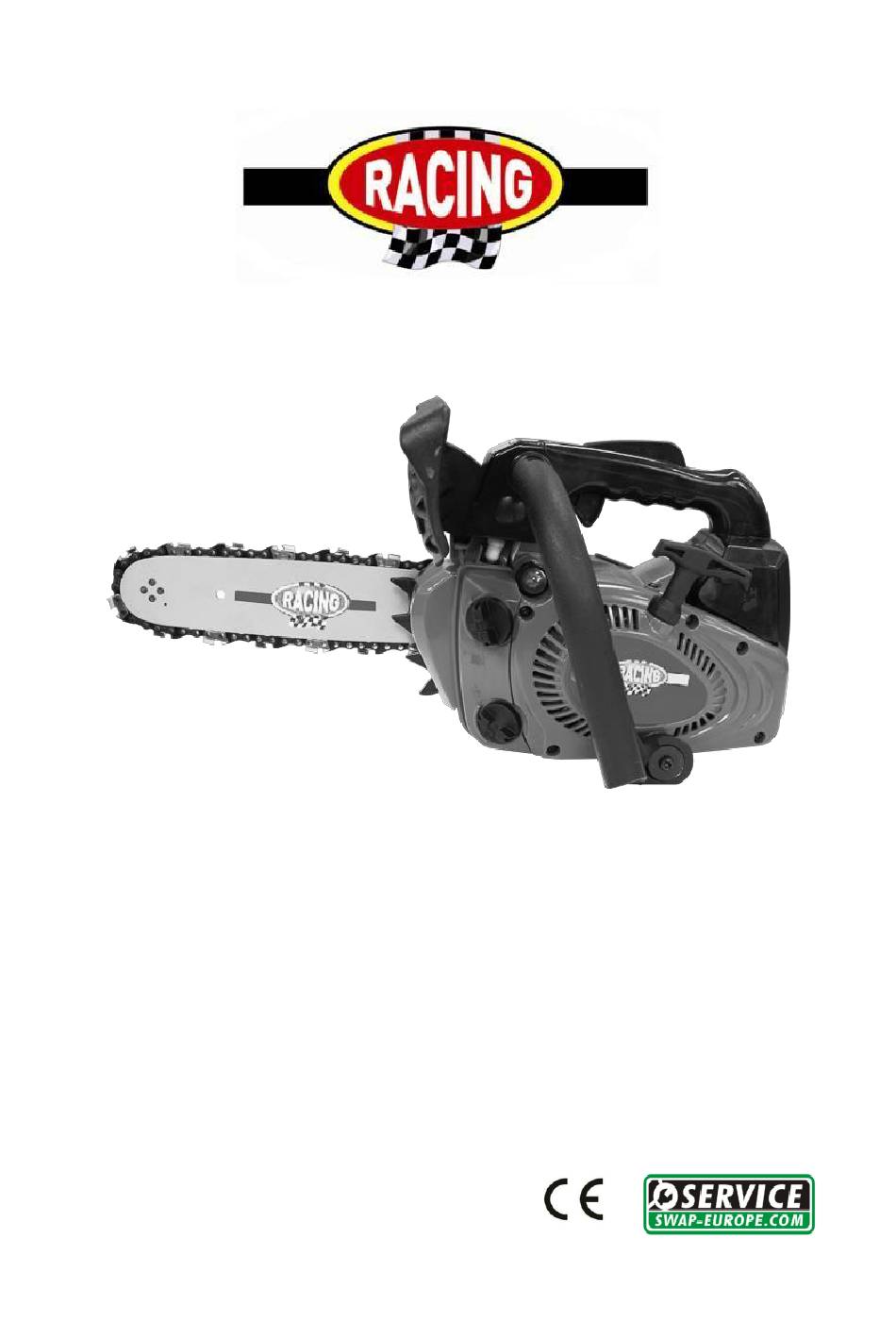

  • Page 1 ORIGINAL INSTRUCTIONS CHAINSAW RAC2525-1 INSTRUCTIONS MANUAL Read the instructions before use the tool 32, rue Aristide Bergès - ZI 31270 Cugnaux – France MADE IN PRC 2018...
  • Page 2: Table Of Contents

    CONTENTS SECURITY INSTRUCTIONS YOUR PRODUCT ASSEMBLY FILLING THE FUEL TANK OPERATION MAINTENANCE AND STORAGE DECLARATION OF CONFORMITY...
  • Page 3: Security Instructions

    1. SAFETY WARNINGS • WARNING! When using this type of power tool, basic precautions should always be followed to reduce the risk of fire, electric shock and injury. • Read all instructions carefully before attempting to use this product and retain these instructions.
  • Page 4 accessories and before servicing. • Keep handles dry, clean and free from oil and grease. • Be concentrated when using the tool. Look at what you do, make sense and do not use the tool when you are tired. • Remove the blade guard before using the tool.
  • Page 5 • Follow the instructions for lubrication, tension and chain change accessories. A chain whose tension and lubrication are incorrect can either break or increase the risk of rebound. • Keep handles dry, clean and free of oil and grease. Oily, greasy grips are slippery and cause loss of control.
  • Page 6 • Bounce results from improper use of the tool and / or incorrect operating procedures or conditions and can be avoided by taking the appropriate precautions specified below: • Hold the saw with both hands firmly with the thumbs and fingers encircling the handles of the saw and place your body and arms to allow you to withstand the rebound forces.
  • Page 7: Your Product

    Wear gloves of security Wear security shoes 2. YOUR PRODUCT a. Description...
  • Page 8 1- Safety protection 2- Chain 3- Chain Guide 4- Fastening nut 5- Engine 6- Ventilation opening 7- Safety Trigger 8- Handle 9- Accelerator throttle 10- Cable starter 11- Handle 12- Oil reservoir 13- Fuel Tank 14- Switch 15- Starter...
  • Page 9 Technical data Model RAC2525-1 Type of engine 1E34FC (air cooled 2-stroke petrol engine), Royal Garden. Fuel Tank Volume 230cm³ Oil tank volume 160cm³ Idle speed of the engine 3300±300/min Clutch speed 4600/min Maximum power 0.9 kW Displacement 25.4cm³ Maximum operating speed...
  • Page 10: Assembly

    3. ASSEMBLY a. Assembly of the chain guide IMPORTANT: The machine must not be started during assembly. Wear protective gloves when handling the blade. 1) Pull the guard toward the front handle to check that the chain brake is not engaged. 2) Loosen the nuts and remove the chain cover.
  • Page 11 7) Adjust the chain tension by turning the tension screw until the straps touch just the bottom side of the bar. 8) Tighten the nuts and check if the chain is rotated correctly and tight. While lifting the chain guide, turn the content screw to apply correct tension to the chain.
  • Page 12: Filling The Fuel Tank

    4. FILLING THE FUEL TANK WARNING: When filling the tank: The chainsaw must always be stopped and cooled. Never smoke during refueling. It must not have flames or sparks near the fuel. Before refueling, allow the chainsaw to cool completely. Do not attempt to refuel when the engine is hot.
  • Page 13: Operation

    5. OPERATION Before using the chainsaw, inspect the work area. This must be cleared. Remove any branches, obstacles and other items that may cause damage during cutting. The unit should always be filled with fuel and useful. Check the level of filling and refill when necessary.
  • Page 14 2. Stopping the engine Allow the chainsaw to run for a few minutes. Then turn the switch to the OFF position. 3. Main settings a. Adjusting the carburetor The carburetor is preset at the factory. To avoid malfunction, it is recommended not to adjust the adjustment screws.
  • Page 15 c. Release of the chain brake To use the chain saw again, the chain brake must be released. This must be done machine off and cooled. Pull the shield until it returns to its original position. d. Sharpening of the chain For best performance, we strongly recommend that you periodically sharpen the chain.
  • Page 16 a. Using the Chainsaw in the Tree An analysis of accidents with chainsaws during tree pruning shows that the main cause is an inadequate use of the one-hand chainsaw. In a large majority of accidents, operators do not seek to adopt a safe working position that allows them to hold with both hands.
  • Page 17 c. Starting the saw in the tree When starting the saw in the shaft, the operator should: Apply the chain brake before starting, and Hold the saw on the left side, either on the right side before starting: ▪ On the left side, hold the saw with your left hand on the front handle while holding the saw away from the body while pulling the starter rope with your right hand, or ▪...
  • Page 18 Operators should: Never cut with the rebound area at the end of the chain saw chain guide Never hold and cut sections or Never try to catch sections when they fall. e. Release of a jammed saw If the saw gets stuck during cutting, the operators should: Saw the saw and attach it securely to the cutting foot of the shaft (ie trunk side) or has a separate chord from the tool Pull the saw of the cluster while the branch is lifted, if necessary,...
  • Page 19 b. Trunk on the ground Cut half of the trunk, turn it over and finish the cut on the other side. c. Trunk in elevation Begin by cutting a first part from below and then from above. Then, on the second part, repeat this operation.
  • Page 20: Maintenance And Storage

    6. MAINTENANCE AND STORAGE 1. Maintenance Before any maintenance work, the machine must be switched off and completely cooled. Perform the maintenance work according to the instructions below and perform them regularly. A clean, well-maintained machine increases its standard of living and efficiency.
  • Page 21 d. Cleaning the oil filter and fuel filter Clean these items regularly. Remove them from the tanks using clamps. Clean them with gasoline and then put them back in place afterwards e. Guide bar Cleaning: Remove bar guide to remove dirt from grooves and oil inlet. Regularly grease the pinion.
  • Page 22 Sprocket Check the sprocket on signs of wear. If wearing is important, replace it with a new one. Do not install a chain on a worn or damaged sprocket. Do not install a worn chain on a pinion. g. Spark plug Clean the electrodes with a wire brush and set the gap to 0.6mm if necessary.
  • Page 23 Sharpening of the chain For best performance, we strongly recommend that you periodically sharpen the chain. The chain can either be sharpened by a professional or by yourself by providing you with a sharpening guide (make sure you know how to use it). The chain must be sharpened when: Wood chips have become powder To perform a normal cut, force on the tool#...
  • Page 24: Declaration Of Conformity

    BUILDER ZI, 32 rue Aristide Bergès – 31270 Cugnaux - France Declares that the machinery designated below: Petrol chainsaw RAC2525-1 Serial number: Complies with the provisions of the Directive "machinery" 2006/42/EC and regulations National transposing it; Also complies with the following European directives:...
  • Page 25 Philippe MARIE / PDG...
