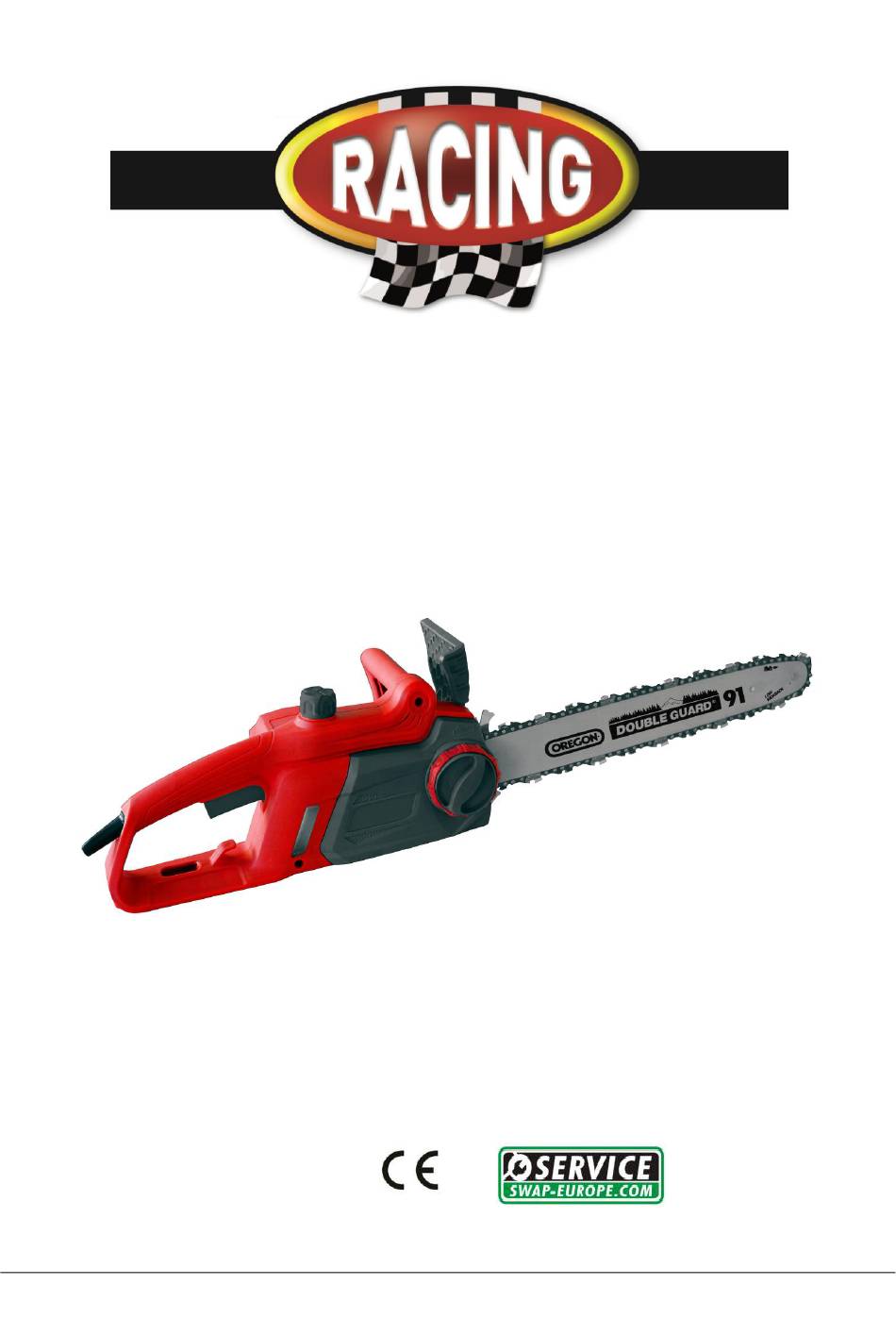

- Page 1 ORIGINAL INSTRUCTIONS ELECTRIAL CHAINSAW RAC2035ECS-A, RAC2040ECS-A INSTRUCTIONS MANUAL Read the instructions before using the tool BUILDER SAS 32, rue Aristide Bergès - ZI 31270 Cugnaux – France MADE IN PRC 2019...
-
Page 2: Table Of Contents
CONTENTS SAFETY WARNINGS YOUR PRODUCT ASSEMBLY OPERATION MAINTENANCE AND STORAGE DISPOSAL DECLARATION OF CONFORMITY... -
Page 3: Safety Warnings
1. SAFETY WARNINGS WARNING Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. ave all warnings and instructions for future reference. The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool. - Page 4 Chain saw safety warnings: Keep all parts of the body away from the saw chain when the chain saw is operating. Before you start the chain saw, make sure the saw chain is not contacting anything. A moment of inattention while operating chain saws may cause entanglement of your clothing or body with the saw chain.
- Page 5 This product is intended for private domestic use only. Do not use it for commercial purposes. Never let people unfamiliar with these instructions or children use this product. National regulations may limit the use of the machine. ...
- Page 6 Pay attention to foot and cutting injuries. Inspect and regularly service the product. Repairs should be carried out only by an authorized service center or a similar qualified specialist. When not in use, store the product out of the reach of children. ...
-
Page 7: Your Product
Symbols Warning symbol Do not use the tool when raining Read and refer to these operating instructions Pull the plug out from the socket immediately when the cable is damaged or entangled or split Wear hearing protection and eyes protection Class II product Value of sound emission according to European Directive 2000/14/EC... - Page 8 a. Description Rear handle Safety lock-off button Chain oil cap Front handle Guide bar with sprocket Chain Safety chain brake lever Main switch Chain cover 10. SDS system 11. Sprocket 12. Adjustable knob...
-
Page 9: Assembly
Technical data: Model RAC2040ECS-A RAC2035ECS-A Tension 230V-240V˜ 50Hz 230V-240V˜ 50Hz Power 2000W 2000W Max speed of 5500/min 5500/min the spindle Cutting length 400mm 350mm Chain speed 10.2m/s 10.2m/s Guide Bar 2181-713303(16”,0,050”) 140SDEA041(14”,0,0.50”) Chain 2484-713302 91PJ052X (14” 3/8”, 52teech) (16” 3/8” 57Teech Weight with bar 3.3 kg... -
Page 10: Operation
a. Assembly of the chain guide IMPORTANT: The machine must not be started during assembly. Wear protective gloves when handling the blade. Your chain saw is supplied one SDS system for assemble and adjust quickly for chain tension. The outside ring (part 1) adjusts the tension of the chain and the inner screw adjusts the tension of the bar. - Page 11 Before using the chainsaw, inspect the work area. This must be cleared. Remove any branches, obstacles and other items that may cause damage during cutting. The unit should always be filled with oil for blade lubrication. Check the level before the use and refill when necessary. 1.
- Page 12 b. Sharpening of the chain For best performance, we strongly recommend that you periodically sharpen the chain. The chain can either be sharpened by a professional or by yourself by providing you with a sharpening guide (make sure you know how to use it). The chain must be sharpened when: Wood chips have become powder To make a normal cut, force on the tool...
- Page 13 b. Trunk on the ground Cut half of the trunk, turn it over and finish the cut on the other side. c. Trunk in elevation Begin by cutting a first part from below and then from above. Then, on the second part, repeat this operation. 5.
-
Page 14: Maintenance And Storage
5. MAINTENANCE AND STORAGE 1. Maintenance Before any maintenance work, the machine must be switched off and completely cooled. Perform the maintenance work according to the instructions below and perform them regularly. A clean, well-maintained machine increases its standard of living and efficiency. On the contrary, a machine maintained can cause damage, accidents and render the tool inoperable in the short term. -
Page 15: Disposal
d. chain saw Check each time the cutter and cutting angles are as shown below. e. Sharpening of the chain For best performance, we strongly recommend that you periodically sharpen the chain. The chain can either be sharpened by a professional or by yourself by providing you with a sharpening guide (make sure you know how to use it). -
Page 16: Declaration Of Conformity
7. DECLARATION OF CONFORMITY BUILDER SAS ZI, 32 rue Aristide Bergès – 31270 Cugnaux - France Declares that the machinery designated below: Chainsaw RAC2040ECS-A Serial number: 20190515737-20190516536 Complies with the provisions of the Directive "machinery" 2006/42/EC and regulations National transposing it; Also complies with the following European directives: EMC Directive 2014/30/EU RoHS Directive 2011/65/EU...
