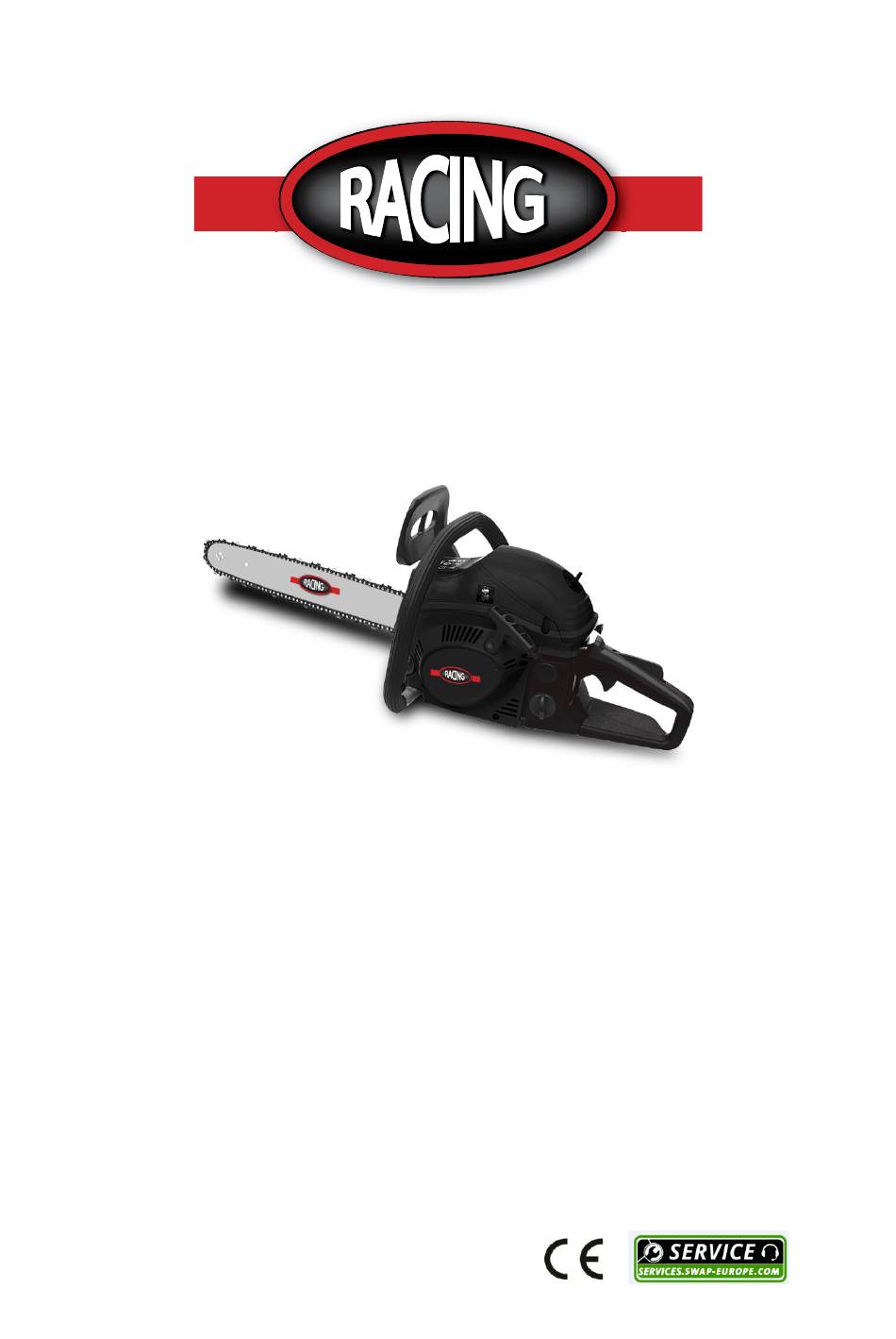

- Page 1 ORIGINAL INSTRUCTIONS CHAINSAW RAC4545PCS-2 INSTRUCTIONS MANUAL Read the instructions before use the tool 32, rue Aristide Bergès - ZI 31270 Cugnaux – France MADE IN PRC 2018...
-
Page 2: Table Of Contents
CONTENTS SECURITY INSTRUCTIONS YOUR PRODUCT ASSEMBLY FILLING THE FUEL TANK OPERATION MAINTENANCE AND STORAGE DECLARATION OF CONFORMITY... -
Page 3: Security Instructions
1. SAFETY WARNINGS • WARNING! When using this type of petrol garden tool, basic precautions should always be followed to reduce the risk of fire, electric shock and injury. • Read all instructions carefully before attempting to use this product and retain these instructions. - Page 4 • Keep handles dry, clean and free from oil and grease. • Be concentrated when using the tool. Look at what you do, make sense and do not use the tool when you are tired. • Remove the blade guard before using the tool. •...
- Page 5 whose tension and lubrication are incorrect can either break or increase the risk of rebound. • Keep handles dry, clean and free of oil and grease. Oily, greasy grips are slippery and cause loss of control. • Cut only wood, as well as for pruning and cutting wood. Do not use the chain saw for any other purpose.
- Page 6 Residual risks Even if you use this product in compliance with all safety requirements, the potential risks of injury and damage remain. The following hazards may arise in the structure and design of this product: • Always be vigilant when using this product, so you can recognize and manage the risks rather.
-
Page 7: Your Product
2. YOUR PRODUCT a. Description... - Page 8 8- Fuel tank 18- Screws of fixation 9- Starter rope 19- ON/OFF switch 10- Oil tank 20- Choke lever b. Technical data Model RAC4545PCS-2 Type of engine RY1E44F (air cooled 2-stroke petrol engine) Fuel Tank Volume 550cm³ Oil tank volume 260cm³...
-
Page 9: Assembly
3. ASSEMBLY a. Assembly of the chain guide IMPORTANT: The machine must not be started during assembly. Wear protective gloves when handling the blade. 1) Pull the guard toward the front handle to check that the chain brake is not engaged. 2) Loosen the nuts and remove the chain cover. - Page 10 6) Reinstall the cover and screw it with the two screws. 7) Adjust the chain tension by turning the tension screw until the straps touch just the bottom side of the bar. Check if the chain is rotated correctly and tight. While lifting the chain guide, turn the content screw to apply correct tension to the chain.
-
Page 11: Filling The Fuel Tank
Turn the chain tension adjustment screw clockwise until the chain is tight. Do not stretch the chain too much. Check the tension of the chain and check if the casing is properly tightened. If this is not the case, please repeat the procedure. 4. -
Page 12: Operation
5. OPERATION Before using the chainsaw, inspect the work area. This must be cleared. Remove any branches, obstacles and other items that may cause damage during cutting. The unit should always be filled with fuel and useful. Check the level of filling and refill when necessary. - Page 13 Use your left hand to pull on the starter rope. In both cases, the saw must remain away from the operator's body. 2. Stopping the engine Allow the chainsaw to run for a few minutes. Then turn the switch to the OFF position. 3.
- Page 14 shown below: b. Chain brake The chain brake is a device that automatically stops the chain in case a backward movement occurs, causing the saw to jump. Normally, the brake is automatically activated by the inertia force. It is also manually tightened by pushing the brake lever down and forward. When the brake is running, a yellow sign comes out from the base of the brake lever.
- Page 15 d. Sharpening of the chain For best performance, we strongly recommend that you periodically sharpen the chain. The chain can either be sharpened by a professional or by yourself by providing you with a sharpening guide (make sure you know how to use it). The chain must be sharpened when: Wood chips have become powder To make a normal cut, force on the tool...
- Page 16 b. Trunk on the ground Cut half of the trunk, turn it over and finish the cut on the other side. c. Trunk in elevation Begin by cutting a first part from below and then from above. Then, on the second part, repeat this operation.
-
Page 17: Maintenance And Storage
MAINTENANCE AND STORAGE 1. Maintenance Before any maintenance work, the machine must be switched off and completely cooled. Perform the maintenance work according to the instructions below and perform them regularly. A clean, well-maintained machine increases its standard of living and efficiency. - Page 18 e. Sprocket Check the sprocket on signs of wear. If wearing is important, replace it with a new one. Do not install a chain on a worn or damaged sprocket. Do not install a worn chain on a pinion. Spark plug Clean the electrodes with a wire brush and set the gap to 0.6mm if necessary.
- Page 19 g. chain saw Check each time the cutter and cutting angles are as shown below. h. Sharpening of the chain For best performance, we strongly recommend that you periodically sharpen the chain. The chain can either be sharpened by a professional or by yourself by providing you with a sharpening guide (make sure you know how to use it).
-
Page 20: Declaration Of Conformity
BUILDER ZI, 32 rue Aristide Bergès – 31270 Cugnaux - France Declares that the machinery designated below: Petrol chainsaw RAC4545PCS-2 Serial number: Complies with the provisions of the Directive "machinery" 2006/42/EC and regulations National transposing it; Also complies with the following European directives:...
