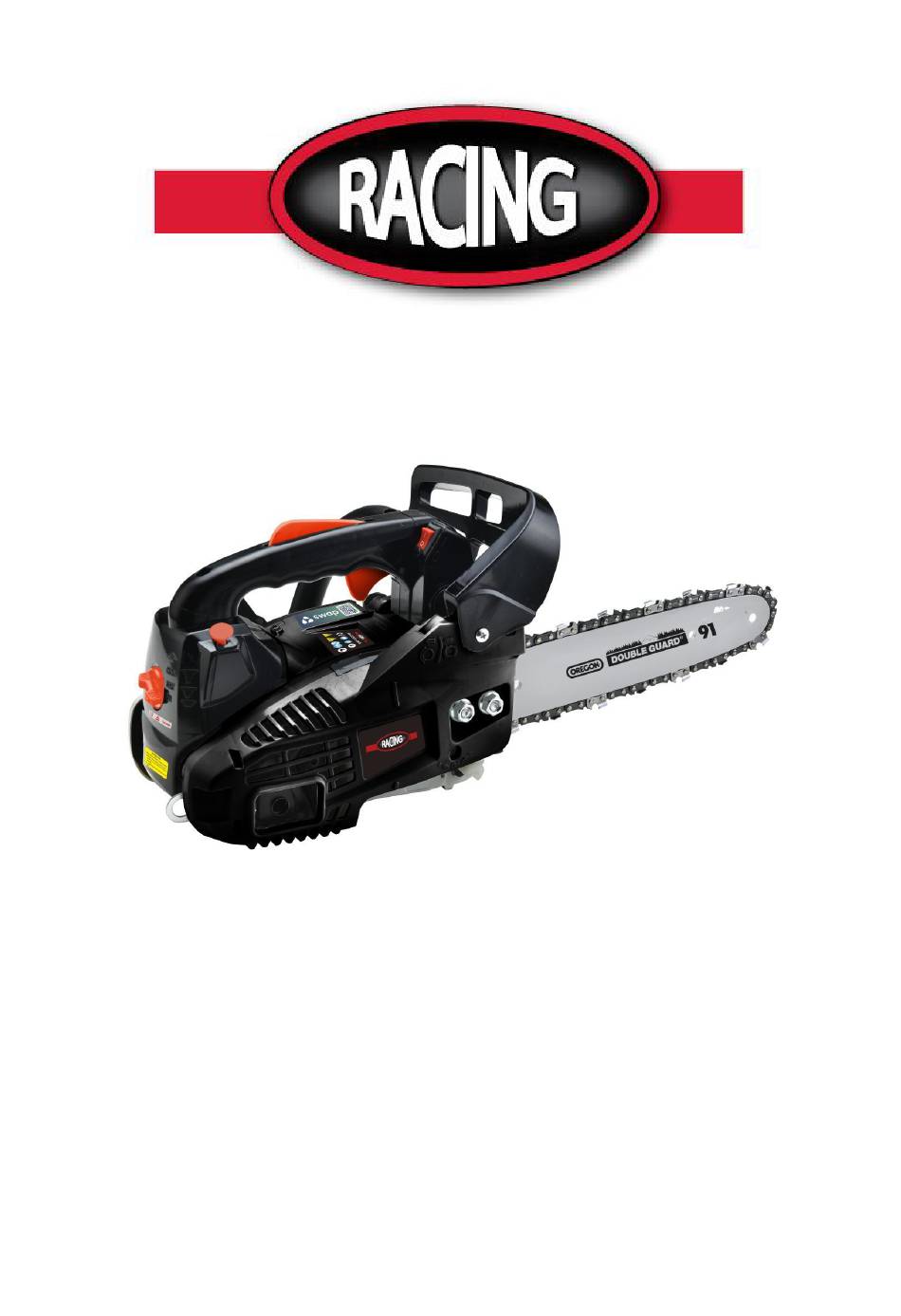

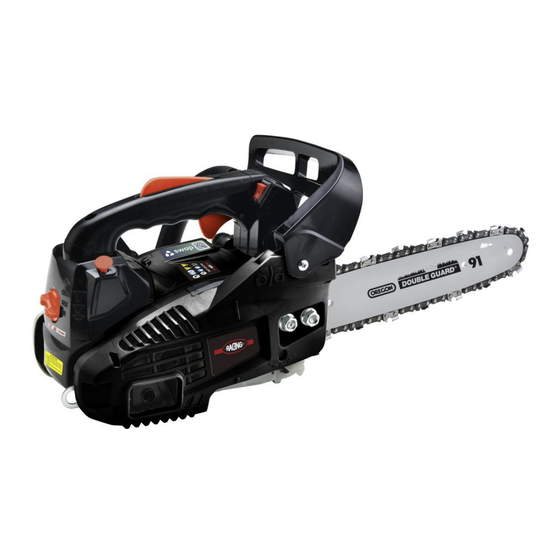

- Page 1 ORIGINAL INSTRUCTIONS >EN PETROL CHAIN SAW RAC2525-ORG USER GUIDE CAUTION: Read this manual before using this machine!
- Page 2 CONTENTS SAFETY WARNINGS............................3 YOUR PRODUCT..............................8 ASSEMBLY................................ 10 FILLING THE OIL TANK AND FUEL TANK......................13 OPERATION..............................14 MAINTENANCE AND STORAGE........................17 DECLARATION OF CONFORMITY ........................21 WARRANTY..............................22 PRODUCT FAILURE............................23 WARRANTY EXCLUSIONS..........................24...
- Page 3 SAFETY WARNINGS WARNING! When using this type of tool, basic precautions should always be followed to reduce the risk of fire, electric shock and injury. Read all instructions carefully before attempting to use this product and retain these instructions. Be familiar with all the operations described in these operating instructions.
- Page 4 Turn off the tool after use, when you leave it unattended, when changing these accessories and before servicing. Keep handles dry, clean and free from oil and grease. Be concentrated when using the tool. Look at what you do, make sense and do not use the tool when you are tired.
- Page 5 of the wood fibers is released, the spring-loaded limb may strike the operator and / or project the chain saw out of control. Exercise extreme caution when cutting brush and young shrubs. Fine materials can grip the cutting chain and be thrown as a whip in your direction, or you lose balance under the effect of traction. ...
- Page 6 Allow the machine to cool before performing inspection, adjustments, maintenance, servicing and storage. Store the tool where fuel vapor will not reach a flame or spark. When transporting and storing, always place the tool in its transport guard and protective device on it. ...
- Page 7 Symptoms of the "white finger" include numbness, loss of sensitivity, tingling, tingling, pain, loss of strength, color changes or skin condition. These symptoms usually appear on the fingers, hands or wrists. Risk increases at low temperatures. Risk of loss hearing in case of prolonged use and when a hearing protection is not used. SYMBOLS Symbol warning of a warning.
- Page 8 Fuel filler (on fuel tank cap). Oil filler (on oil tank cap). Choke knob. The product complies with the applicable European directives and evaluation method of conformity for these directives was done. Intended use WARNING: This gasoline chain saw is specially designed for tree service. It should only be used by a qualified operator using a safe working system.
- Page 9 8. User manual with warranty card 4. Saw chain 9. Spiked bumper and screws(please add picture of spiked bumper and screws) TECHNICAL DATA Model RAC2525-ORG 1E25F Type of engine (single cylinder, air cooled 2-stroke petrol engine) Fuel Tank Volume 230ml...
- Page 10 HuaLong, MC14A6 Carburettor RuiXing, H142A Spark plug LD / L8RTF Sound Pressure level & Uncertainty LpAeq: 95.4dB(A) K=3dB(A) Sound Power level & Uncertainty LwA: 108.4 dB(A) K= 3 dB(A) Guaranteed Sound power level LwA : 113dB(A) (2000/14/EC) Front handle : a 7.199 m/s²...
- Page 11 4. Install the guide bar so that the bar slot aligns with both bolts (C) (fig. 6). 5. Spread the chain in a circle with the cutting edges (D) aligned with the markings on the guide bar (fig. 7). Fig. 6 Fig.7 6.
- Page 12 Fig.10 Fig.11 CHAIN TENSION ADJUSTING PROCEDURE 1. Loosen the nuts (on the protective cover) and turn the adjusting screw (D) clockwise to tighten the chain. Turn the adjusting screw (D) counterclockwise to decrease chain tension. Make sure the chain is all the way around the bar (fig.
- Page 13 WARNING! The brake shield must be in good condition and must make a distinctive click when moving from one position to another. Do not use the unit if the brake shield cannot be moved to one of the positions or if the chain does not stop when the chain brake is applied. Take the unit to a service center for repair.
- Page 14 The recommended mixing ratio is 40:1 (make sure the mixing ratio is correct before filling the product. a. Mixing Mix in a clean, empty container (supplied). Pour the oil into the container. Pour the fuel into the tank. Mix the mixture long enough (more than one minute) to get a good combination.
- Page 15 6. Slowly pull the cable starter grip until you feel resistance, then pull the cable starter with a steady movement to a distance of no more than 50-60 cm. Repeat the procedure several times until the engine starts. 7. Press the throttle lock key and the throttle key, the carburettor air damper will open automatically, the damper lever will return to its original position.
- Page 16 SHARPENING OF THE CHAIN For best performance, we strongly recommend that you periodically sharpen the chain. The chain can either be sharpened by a professional or by yourself by providing you with a sharpening guide (make sure you know how to use it). The chain must be sharpened when: Wood chips have become powder To make a normal cut, force on the tool...
- Page 17 c. Trunk in elevation Begin by cutting a first part from below and then from above. Then, on the second part, repeat this operation. d. Pruning of a felled tree Observe first the direction of flexion of the branch. Make a first notch on the side in flexion and finish the cut on the opposite side.
- Page 18 Check sprocket condition Clean the cylinder fins with a compressor b. Cleaning the air filter Use a compressor to blow dust and chips. To clean the filter foam: open the air filter, remove the foam. Clean this foam with gasoline, wring out and dry.
- Page 19 f. Sprocket Check the sprocket on signs of wear. If wearing is important, replace it with a new one. Do not install a chain on a worn or damaged sprocket. Do not install a worn chain on a pinion. g. Spark plug Clean the electrodes with a wire brush and set the gap to 0.6mm if necessary.
- Page 20 i. Sharpening of the chain For best performance, we strongly recommend that you periodically sharpen the chain. The chain can either be sharpened by a professional or by yourself by providing you with a sharpening guide (make sure you know how to use it). The chain must be sharpened when: Wood chips have become powder The cut is not straight...
- Page 21 SODILOG SAS 4 RUE CURIE, CS 91617 68016 COLMAR CEDEX FRANCE Declares that the machinery designated below: Petrol chainsaw RAC2525-ORG Serial number: 20250603299-20250605298 Complies with the provisions of the Directive "machinery" 2006/42/EC and regulations National transposing it; Also complies with the following European directives: EMC Directive 2014/30/EU Emission directive (EU) 2016/1628 &...
- Page 22 WARRANTY The manufacturer guarantees the product against defects in material and workmanship for a period of 2 years from the date of the original purchase. The warranty only applies if the product is for household use. The warranty does not cover breakdowns due to normal wear and tear. The manufacturer agrees to replace parts identified as defective by the designated distributor.
- Page 23 PRODUCT FAILURE WHAT TO DO IF MY MACHINE BREAKS DOWN? If you bought your product in a store: • Empty the fuel tank. • Make sure that your machine is complete with all accessories supplied, and clean! If this is not the case, the repairer will refuse the machine.
- Page 24 WARRANTY EXCLUSIONS THE WARRANTY DOES NOT COVER: • Start-up and setting up of the product. • Damage resulting from normal wear and tear of the product. • Damage resulting from improper use of the product. • Damage resulting from assembly or start-up not in accordance with the user manual. •...
- Page 25 SODILOG SAS 4 RUE CURIE, CS 91617 68016 COLMAR CEDEX FRANCE MADE IN PRC...
