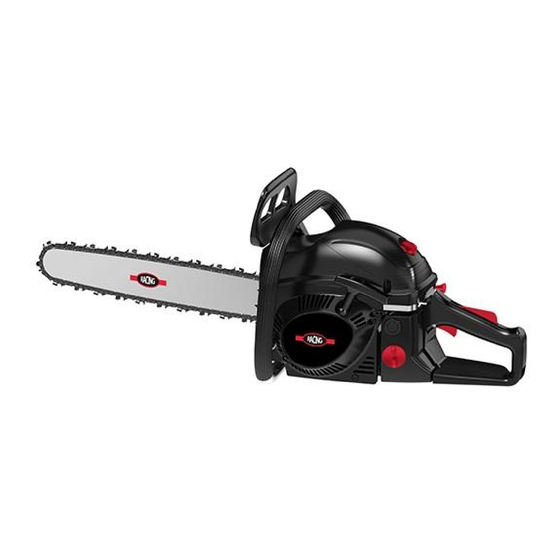

Petrol chainsaw

Advertisement

Quick Links

ORIGINAL INSTRUCTIONS >EN
PETROL CHAINSAW
RAC5045-2C
USER GUIDE
CAUTION: Read this manual before using this machine!

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RAC5045-2C and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Racing RAC5045-2C

  • Page 1 ORIGINAL INSTRUCTIONS >EN PETROL CHAINSAW RAC5045-2C USER GUIDE CAUTION: Read this manual before using this machine!
  • Page 2: Table Of Contents

    CONTENTS 1. SAFETY INSTRUCTIONS........................3 2. YOUR PRODUCT........................... 7 3. ASSEMBLY............................. 9 4. FILLING THE FUEL TANK.........................10 5. OPERATION............................11 6. MAINTENANCE AND STORAGE..................... 15 7. DECLARATION OF CONFORMITY....................18 8. WARRANTY............................19 9. PRODUCT FAILURE........................... 20 10. WARRANTY EXCLUSIONS......................21...
  • Page 3: Safety Instructions

    1. SAFETY INSTRUCTIONS  WARNING! When using this type of petrol garden tool, basic precautions should always be followed to reduce the risk of fire, electric shock and injury.  Read all instructions carefully before attempting to use this product and retain these instructions.
  • Page 4 and before servicing.  Keep handles dry, clean and free from oil and grease.  Be concentrated when using the tool. Look at what you do, make sense and do not use the tool when you are tired.  Remove the blade guard before using the tool. ...
  • Page 5 cutting chain and be thrown as a whip in your direction, or you lose balance under the effect of traction.  Follow the instructions for lubrication, tension and chain change accessories. A chain whose tension and lubrication are incorrect can either break or increase the risk of rebound. ...
  • Page 6  Pinching of the cutting chain on the upper part of the chain guide can force the chain guide to the operator abruptly.  Either of these reactions can result in loss of control of the saw likely to result in a serious personal injury.
  • Page 7: Your Product

    Wear protective gloves. Wear protective foot wear. Do not use the tool under and in moist environment . Guarantee sound power level. 2. YOUR PRODUCT Description...
  • Page 8 6- Accelerator throttle 13-screws 20-Choke lever 7- Rear handle 14-Bottle for fuel mixture 21-Priming pump Technical data Model RAC5045-2C Type of engine RY1E45F-1 (air cooled 2-stroke petrol engine) Fuel Tank Volume 550cm³ Oil tank volume 260cm³ Idle speed of the engine 3100±300/min...
  • Page 9: Assembly

    3. ASSEMBLY Assembly of the chain guide IMPORTANT: The machine must not be started during assembly. Wear protective gloves when handling the blade. 1) Pull the guard toward the front handle to check that the chain brake is not engaged. 2) Loosen the nuts and remove the chain cover.
  • Page 10: Filling The Fuel Tank

    7) Adjust the chain tension by turning the tension screw until the straps touch just the bottom side of the bar. Check if the chain is rotated correctly and tight. While lifting the chain guide, turn the content screw to apply correct tension to the chain. Then lock the crankcase nuts.
  • Page 11: Operation

    Filling the fuel tank  Unscrew the fuel tank cap and remove it.  Fill the tank slowly with the mixture. Do not exceed the maximum capacity (fill to 80% of its capacity preferably).  Replace the cap on the fuel tank and tighten it ...
  • Page 12 c. Hold the chainsaw firmly against the ground. Put the chainsaw:  Either on the left side of your body holding the handle firmly with your left hand. Use your right hand to pull the starter rope  Either on the right side of your body holding the handle firmly with your right hand. Use your left hand to pull on the starter rope.
  • Page 13 b. Chain brake The chain brake is a device that automatically stops the chain in case a backward movement occurs, causing the saw to jump. Normally, the brake is automatically activated by the inertia force. It is also manually tightened by pushing the brake lever down and forward. When the brake is running, a yellow sign comes out from the base of the brake lever.
  • Page 14 Stick your feet well, keep a good balance and do not climb on the tree trunk. Try not to work on a slope. However, if you have to work on a slope, always stand higher than the tree trunk. Before bending a branch or trunk in bending, observe the direction of bending and finish the cut opposite the bending side to prevent the chain guide from getting stuck in the cut.
  • Page 15: Maintenance And Storage

    e. Pruning a tree Begin pruning by nicking the tree from below and then finish at the top. NOTE: Do not work on scaffolding or an unstable ladder. Don't work at arm's length too far off the ground. Do not cut above shoulder level. Always hold the chainsaw with both hands.
  • Page 16 d. Cleaning the oil filter and fuel filter Clean these items regularly. Take them out of the tanks using pliers. Clean them with gasoline then put them back in place afterwards. e. Guide bar Cleaning: Remove bar guide to remove dirt from grooves and oil inlet. Regularly grease the pinion.
  • Page 17 h. chain saw Check each time the cutter and cutting angles are as shown below. i. Sharpening of the chain For best performance, we strongly recommend that you periodically sharpen the chain. The chain can either be sharpened by a professional or by yourself by providing you with a sharpening guide (make sure you know how to use it).
  • Page 18: Declaration Of Conformity

    BUILDER SAS 32 rue Aristide Bergès - Z.I. du Casque - 31270 Cugnaux - France Declares that the machinery designated below: Petrol chainsaw RAC5045-2C Serial number: 20231102291-20231105050 Complies with the provisions of the Directive "Machine" 2006/42/EC and regulations National transposing it;...
  • Page 19: Warranty

    8. WARRANTY WARRANTY The manufacturer guarantees the product against defects in material and workmanship for a period of 2 years from the date of the original purchase. The warranty only applies if the product is for household use. The warranty does not cover breakdowns due to normal wear and tear. The manufacturer agrees to replace parts identified as defective by the designated distributor.
  • Page 20: Product Failure

    9. PRODUCT FAILURE WHAT TO DO IF MY MACHINE BREAKS DOWN? If you bought your product in a store: a) Empty the fuel tank if your product has one. b) Make sure that your machine is complete with all accessories supplied, and clean! If this is not the case, the repairer will refuse the machine.
  • Page 21: Warranty Exclusions

    10. WARRANTY EXCLUSIONS THE WARRANTY DOES NOT COVER: • Start-up and setting up of the product. • Damage resulting from normal wear and tear of the product. • Damage resulting from improper use of the product. • Damage resulting from assembly or start-up not in accordance with the user manual. •...
  • Page 22 BUILDER SAS 32 rue Aristide Bergès - Z.I. du Casque - 31270 Cugnaux - France MADE IN PRC 2023...
