ORIGINAL INSTRUCTIONS
PETROL CHAINSAW
RAC45402C
INSTRUCTIONS MANUAL
Read the instructions before use the tool
BUILDER
32, rue Aristide Bergès - ZI 31270 Cugnaux – France
Made in PRC
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RAC45402C and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Racing RAC45402C

Summary of Contents for Racing RAC45402C

  • Page 1 ORIGINAL INSTRUCTIONS PETROL CHAINSAW RAC45402C INSTRUCTIONS MANUAL Read the instructions before use the tool BUILDER 32, rue Aristide Bergès - ZI 31270 Cugnaux – France Made in PRC...

  • Page 2: Table Of Contents

    CONTENTS SECURITY INSTRUCTIONS YOUR PRODUCT ASSEMBLY FILLING THE FUEL TANK OPERATION MAINTENANCE AND STORAGE DECLARATION OF CONFORMITY WARRANTY PRODUCT FAILURE WARRANTY EXCLUSIONS...

  • Page 3: Security Instructions

    1. SAFETY WARNINGS  WARNING! When using this type of garden tool, basic precautions should always be followed to reduce the risk of fire, electric shock and injury.  Read all instructions carefully before attempting to use this product and retain these instructions.
  • Page 4  Keep handles dry, clean and free from oil and grease.  Be concentrated when using the tool. Look at what you do, make sense and do not use the tool when you are tired.  Remove the blade guard before using the tool. ...
  • Page 5 whose tension and lubrication are incorrect can either break or increase the risk of rebound.  Keep handles dry, clean and free of oil and grease. Oily, greasy grips are slippery and cause loss of control.  Cut only wood, as well as for pruning and cutting wood. Do not use the chain saw for any other purpose.
  • Page 6  Hold the saw with both hands firmly with the thumbs and fingers encircling the handles of the saw and place your body and arms to allow you to withstand the rebound forces. The rebound forces can be controlled by the operator, if appropriate precautions are taken. Do not allow chain saw to start.
  • Page 7 Wear protective gloves Wear protective foot wear Starter handle I / O: Starting and stopping the engine. Push the switch to O in the event of an emergency stop Pull out the choke button to set the starting mode: - First step: hot start - Second step: cold start Do not use in the rain and in wet conditions Carburettor adjustment...

  • Page 8: Your Product

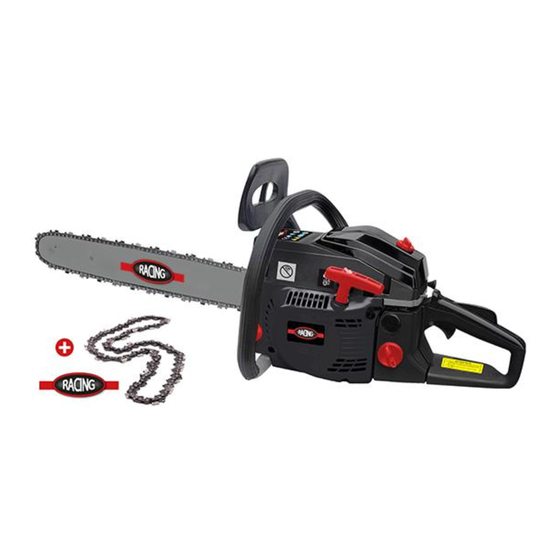

    2. YOUR PRODUCT a. Description...
  • Page 9 8- Fuel tank 18- Screws of fixation 9- Starter rope 19- ON/OFF switch 10- Oil tank 20- Choke lever b. Technical data Model RAC45402C Type of engine RY1E44F (air cooled 2-stroke petrol engine) Fuel Tank Volume 550cm³ Oil tank volume 260cm³...

  • Page 10: Assembly

    3. ASSEMBLY a. Assembly of the chain guide IMPORTANT: The machine must not be started during assembly. Wear protective gloves when handling the blade. 1) Pull the guard toward the front handle to check that the chain brake is not engaged. 2) Loosen the nuts and remove the chain cover.

  • Page 11: Filling The Fuel Tank

    7) Adjust the chain tension by turning the tension screw until the straps touch just the bottom side of the bar. Check if the chain is rotated correctly and tight. While lifting the chain guide, turn the content screw to apply correct tension to the chain.

  • Page 12: Operation

    Mix in a clean, empty container (supplied).  Pour the oil into the container.  Pour the fuel into the tank. Mix the mixture long enough (more than one  minute) to get a good combination. b. Filling the fuel tank Unscrew the fuel tank cap and remove it.
  • Page 13 Hold the chainsaw firmly against the ground. Put the chainsaw: Either on the left side of your body holding the handle firmly with your left  hand. Use your right hand to pull the starter rope Either on the right side of your body holding the handle firmly with your right ...
  • Page 14 3. Main settings a. Adjusting the carburetor The carburetor is preset at the factory. To avoid malfunction, it is recommended not to adjust the adjustment screws. If these screws require readjustment, have the machine serviced by your service center. Stop the tool and tighten the needle L until it stops. Do not force it. Then set it to its initial number of turns as shown below.
  • Page 15 When checking the machine before using it, check the operating condition of the brake by performing the following operations: Start the engine and grasp the handle firmly with both hands.  While pulling the throttle control lever to keep the chain in operation, push ...
  • Page 16 the cut opposite the bending side to prevent the chain guide from getting stuck in the cut. a. Felling of trees Examine the work area and estimate where the tree will fall. Start the machine as described above. Start by making a notch in the direction of fall chosen. When the tree falls, shout or make a beep to alert people in the vicinity.

  • Page 17: Maintenance And Storage

    6. MAINTENANCE AND STORAGE 1. Maintenance Before any maintenance work, the machine must be switched off and completely cooled. Perform the maintenance work according to the instructions below and perform them regularly. A clean, well-maintained machine increases its standard of living and efficiency.
  • Page 18 Check: Reverse the bar from time to time to avoid the effects of wear. The bar rail should always be in place. Use a ruler to observe it. If a gap is observed between them, then the rail is normal. Otherwise, the rail is worn out. A bar must be corrected or replaced.
  • Page 19 g. chain saw Check each time the cutter and cutting angles are as shown below. h. Sharpening of the chain For best performance, we strongly recommend that you periodically sharpen the chain. The chain can either be sharpened by a professional or by yourself by providing you with a sharpening guide (make sure you know how to use it).

  • Page 20: Declaration Of Conformity

    Declaration of conformity RACING ZI, 32 rue Aristide Bergès – 31270 Cugnaux - France Declares that the machinery designated below: Petrol chainsaw RAC45402C Serial number: 20210226674-20210229273 Complies with the provisions of the Directive "machinery" 2006/42/EC and regulations National transposing it;...

  • Page 21: Warranty

    8. WARRANTY WARRANTY The manufacturer guarantees the product against defects in material and workmanship for a period of 2 years from the date of the original purchase. The warranty only applies if the product is for household use. The warranty does not cover breakdowns due to normal wear and tear. The manufacturer agrees to replace parts identified as defective by the designated distributor.

  • Page 22: Product Failure

    9. P R O D U C T FA I L U R E WHAT TO DO IF MY MACHINE BREAKS DOWN? If you bought your product in a store: a) Empty the fuel tank. b) Make sure that your machine is complete with all accessories supplied, and clean! If this is not the case, the repairer will refuse the machine.

  • Page 23: Warranty Exclusions

    10. WA R R A N T Y E X C L U S I O N S THE WARRANTY DOES NOT COVER: • Start-up and setting up of the product. • Damage resulting from normal wear and tear of the product. •...
